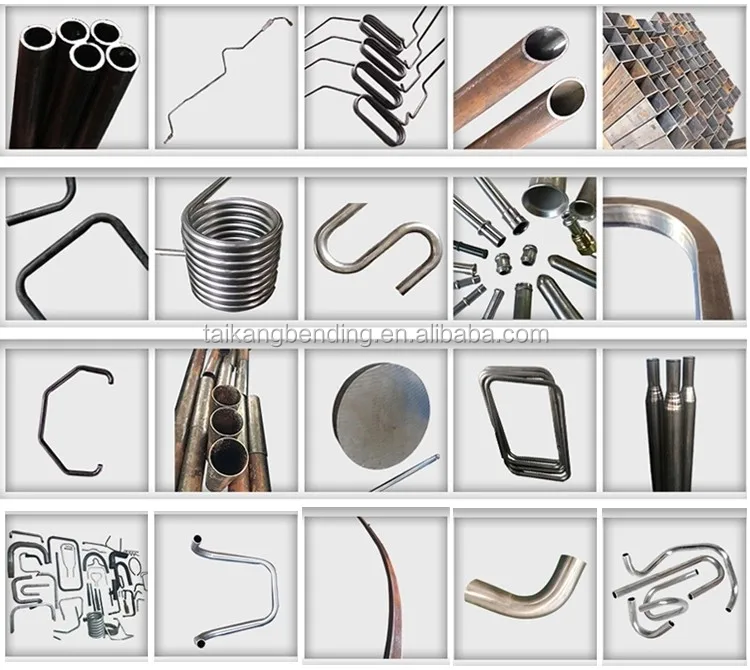

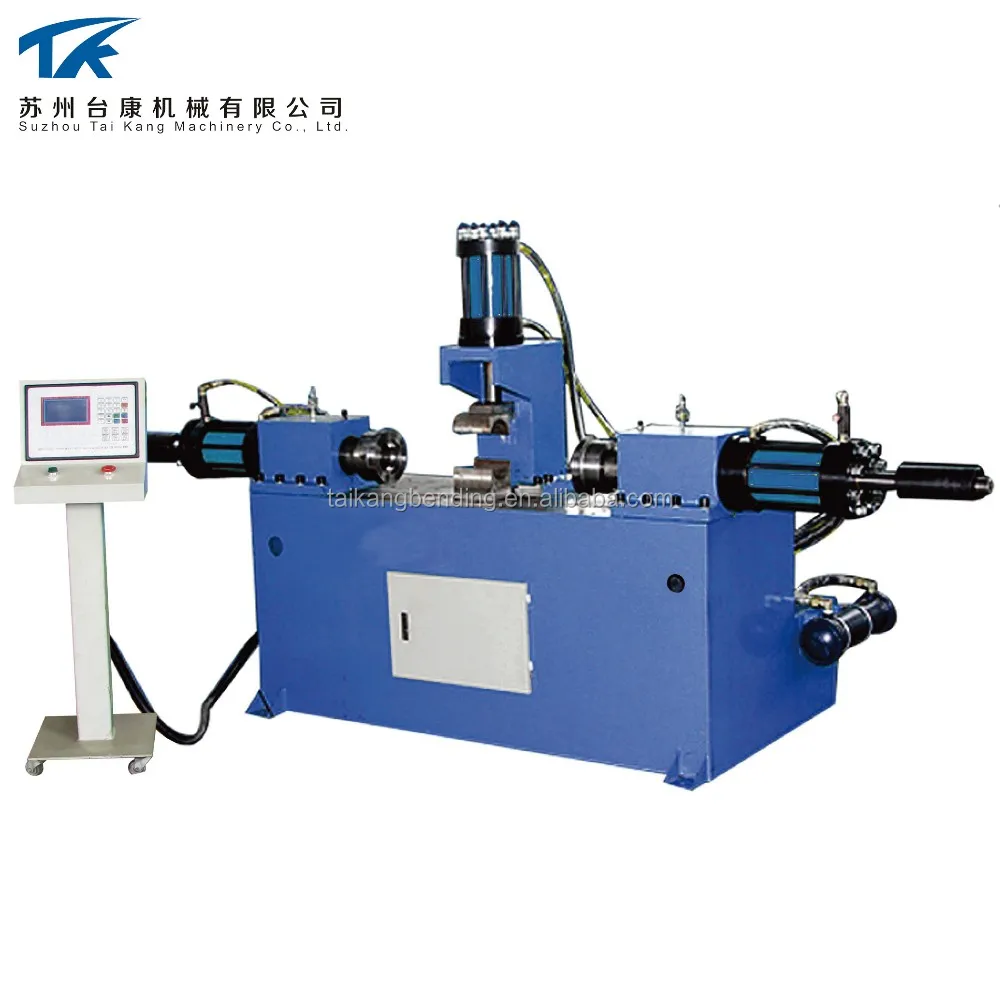

SM40NC taper pipe end forming machine pipe end forming machine tube end forming machine uses linear guide rail as carrier to make the operation wear-free and the product repeatable. It is suitable for end treatment of Brass / Copper, Stainless Steel, Aluminum, Aluminium Alloy, Carben steel pipe and solid bars. It was widely used in mass production of  furniture, automobile, air conditioning, fuel pipeline, etc.   with high efficiency.

Specification/Model
SM40NC
Remark
Max outer diameter×wall thickness
Φ40mm×2m
1.The max processing length can be extended according to customer's requirement.
2.Double end distance can be extended according to customer's requirement.


Max processing length
100mm
Double end distance
150
Hydraulic system pressure(Mpa)
4.5Mpa
Working speed
100mm in 3-4/s
Diamension
2000mm x 550mm x 1300mm
Weight(kg)
1100kg

SM40NC taper pipe end forming machine pipe end forming machine tube end forming machine

Main Features

SM40NC taper pipe end forming machine pipe end forming machine tube end forming machine

1) PLC control and touch screen(multi-station),convenient operation and flexible setting. Easy Operation and Maintenance

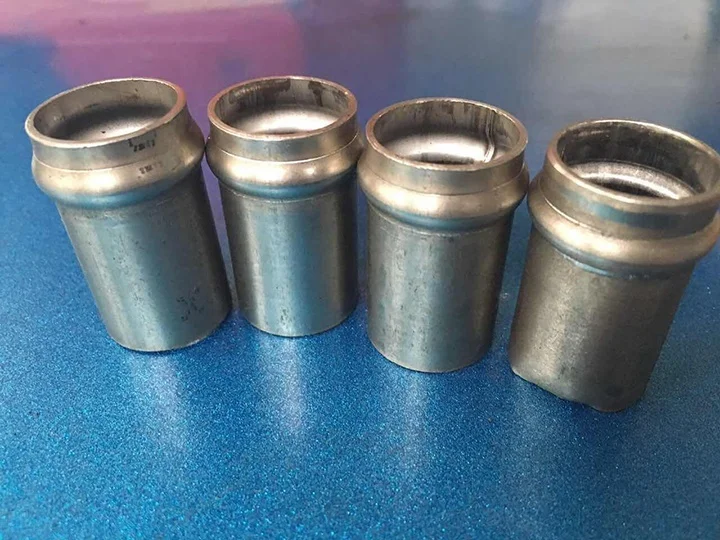

2) It can equipped with all kinds of forming tools for different material and different shape end forming like  shrinking, expanding or other special forming.

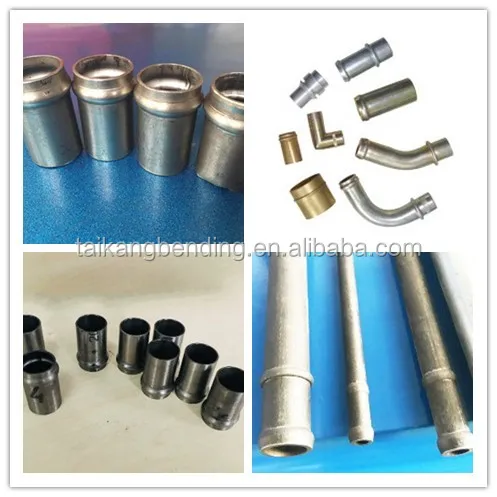

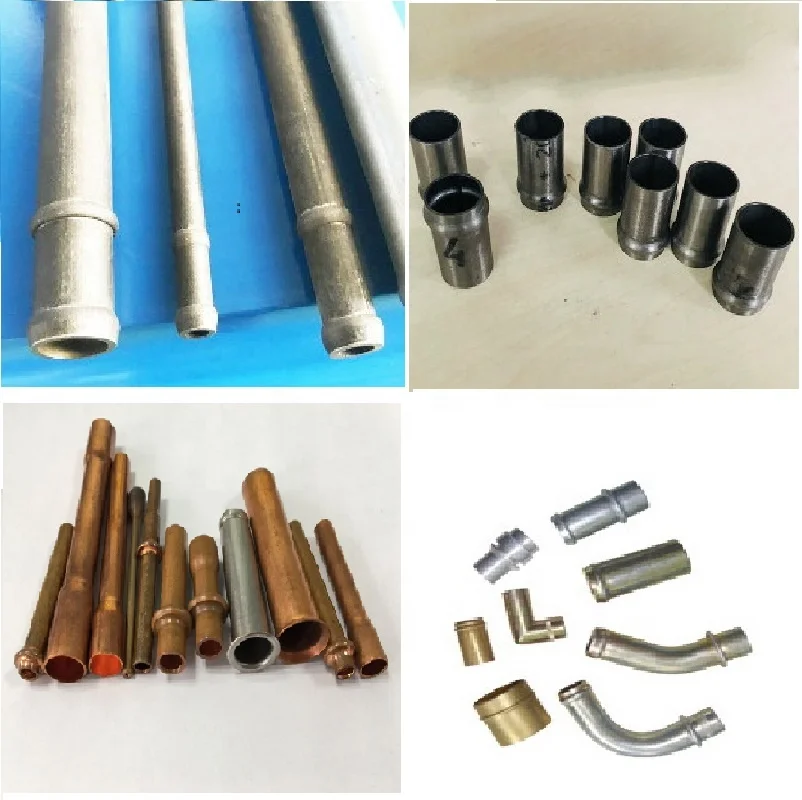

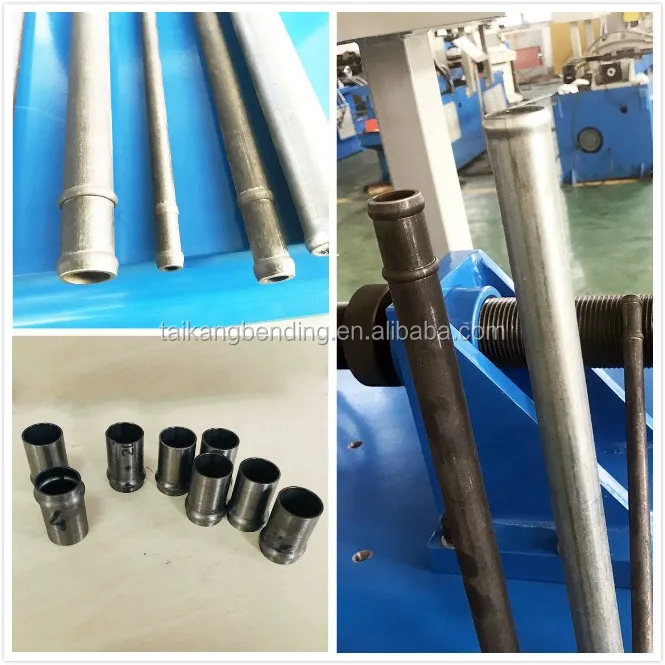

3) Forming shapes can be convex, concave, sectional, flat, square, V-shaped, open elbow and flat elbow. The mould         design can be tailor made according to workpiece and customers' requirements
4)  Adopting linear guide with lube,steady propulsion.
5) The forming tools shifting is by servomotor(multi-station),2 station tools shifting by hydraulic.
6) The end forming is driven by hydraulic(AC servo end forming is optional)

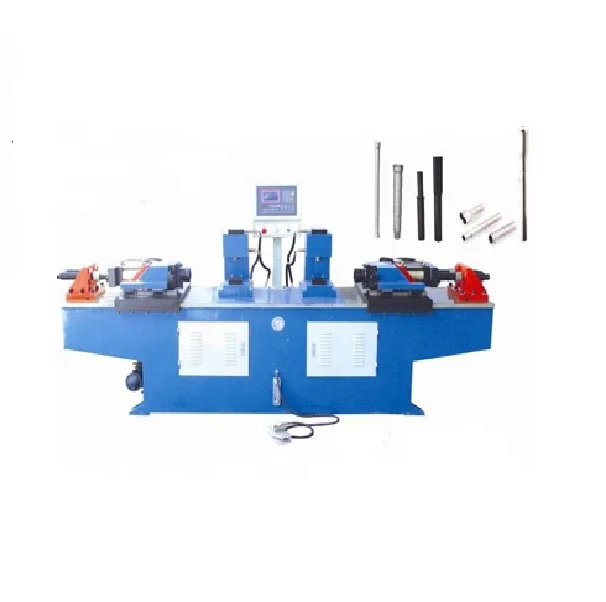

7) Hydraulic synchronization system to ensure processing accuracy for both ends
8) It can equipped with emergency stop device,both manual and automatic operation are available.
9) Hydraulic cooling system(water cooling and air cooling)ensures the equipments long time work stable under the high temp

Detailed Images

Machine Parts

Name: contract die

Suitable for different mould

Machine Parts

Name: Moulding

Tailor made design to meet your requirement

Machine Parts

Name: Moulding
Tailor made design to meet your requirement

Our Service

Pre-Sales Service

* Inquiry and consulting support.
*Provide technical suggestion and package solution
* Sample testing support.
*Reply within 24 hours
*Provide progress information
* View our Factory.

After-Sales Service

*Test the machine before shipment
* Provide technical training relate to use the machine.
* Engineers available to service machinery overseas.
* Free spare parts within one-year warranty period
* Reasonable price for spare parts after warranty
* Provide long-term technical assistance.

Our Company

About our company.

Suzhou TaiKang Machinery Co.,Ltd. Founded 2015.One of top manufacturer in China.Specializing in design and manufacturermachines for pipe process equipment and
tailor made solutions for the global supplier.
Our business philosophy is Client First,Quality First and Honesty First. We sincerely welcome worldwide potential buyers and overseas distributors to contact and visit us for cooperation.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
