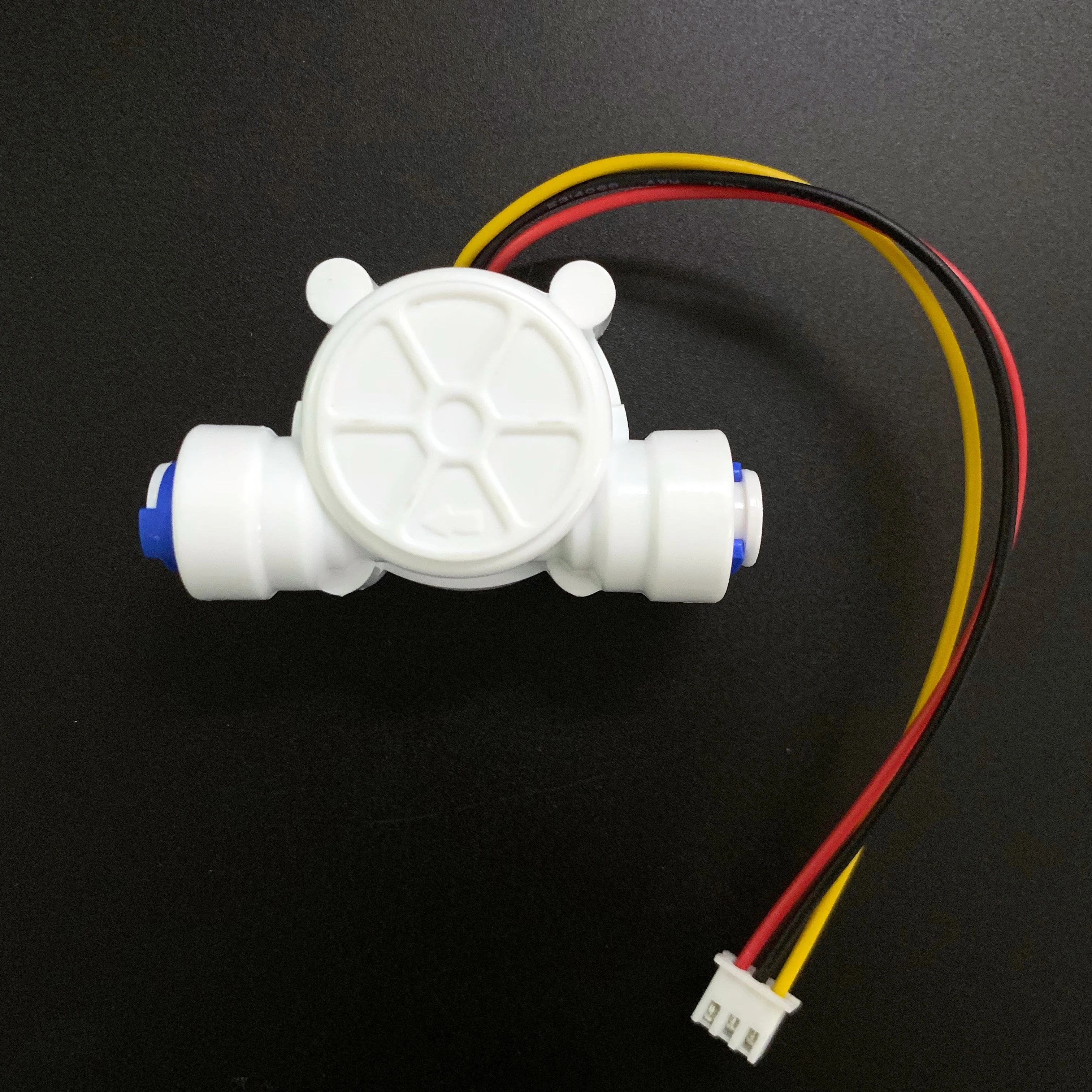

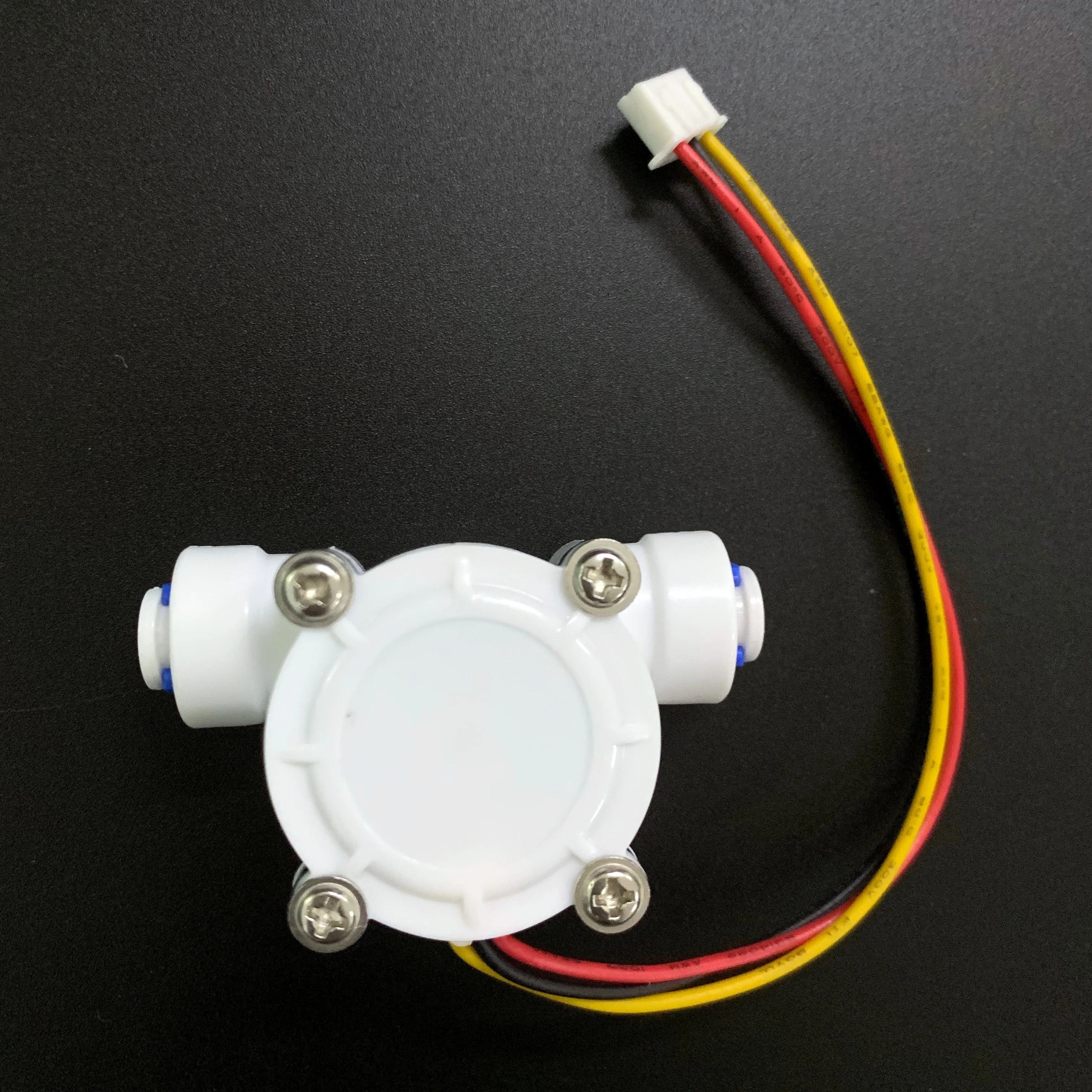

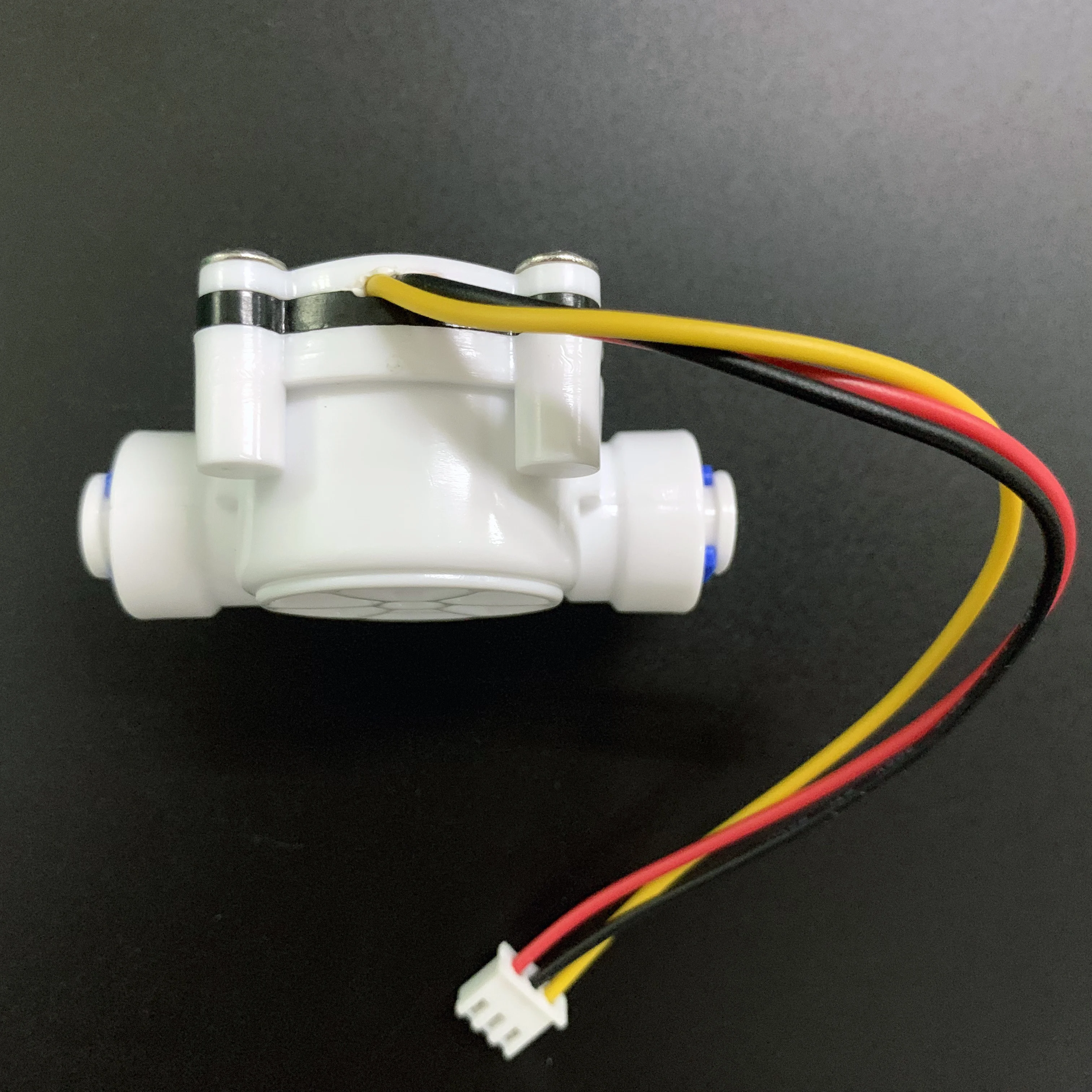

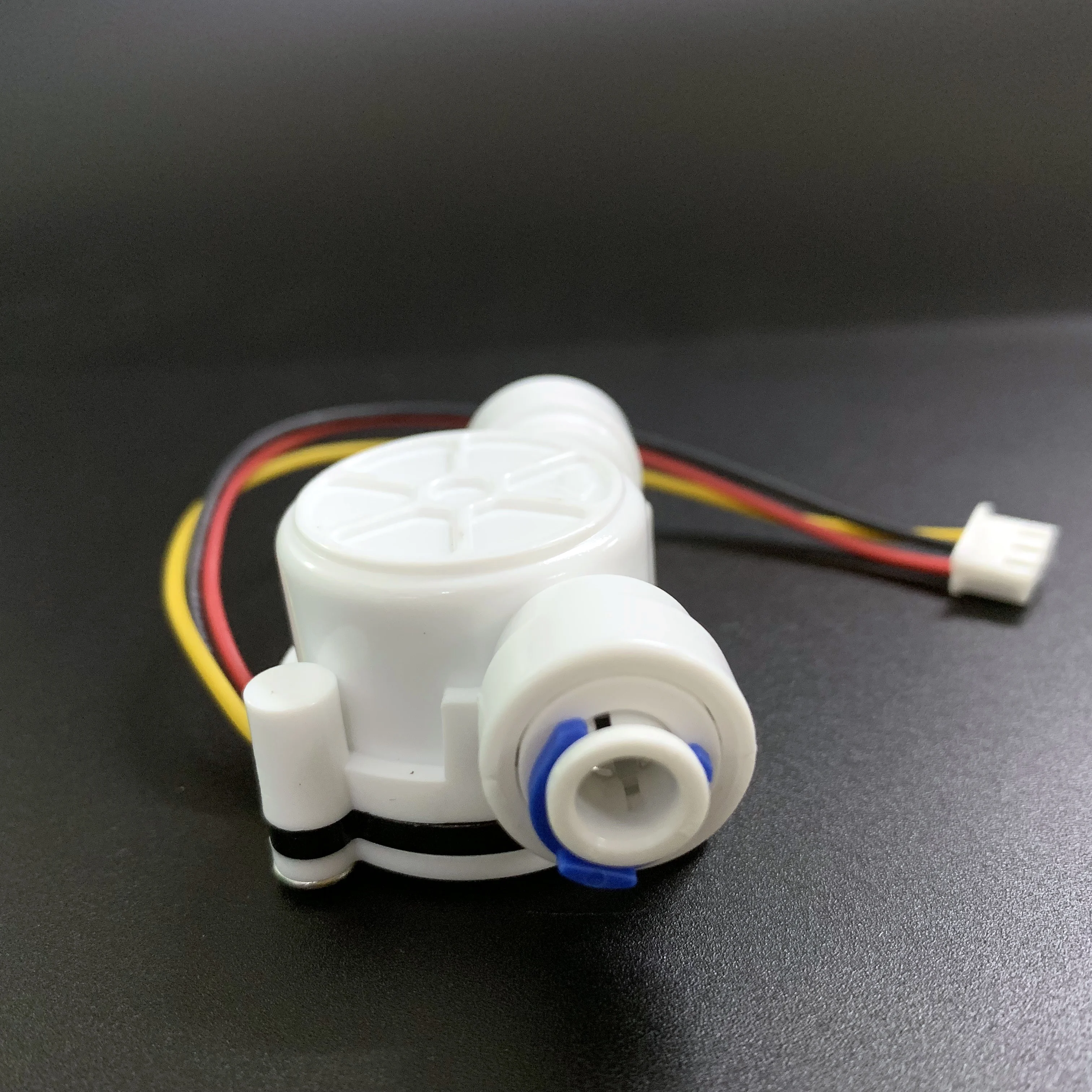

Sunwoald 6,5 мм, быстрое подключение «0,3 ~ 10 л/мин, мини Датчик потока воды для водонагревателя/Диспенсера для воды

Product Overview

Description

 Magnetic Hall Flow Rate Sensor

Product Description



Working theory:



The water flow sensor is a device used to sense the water flow rate in a tank. There is a Hall element in the flow sensor. When liquid flows by the sensor, it drives the Hall element inside the sensor to rotate. By calculating the rotate speed of the element, the water flow sensor can give a precise outcome of the water flow rate passed by the pipe.



Product Application

This product can be used to monitor liquid flow rate in water machine, water heater, coffee machine, vending machine, water meter, medical testing machine and the like. They are widely applied in industrial equipment, agricultural equipment and household electrical appliances in the future.

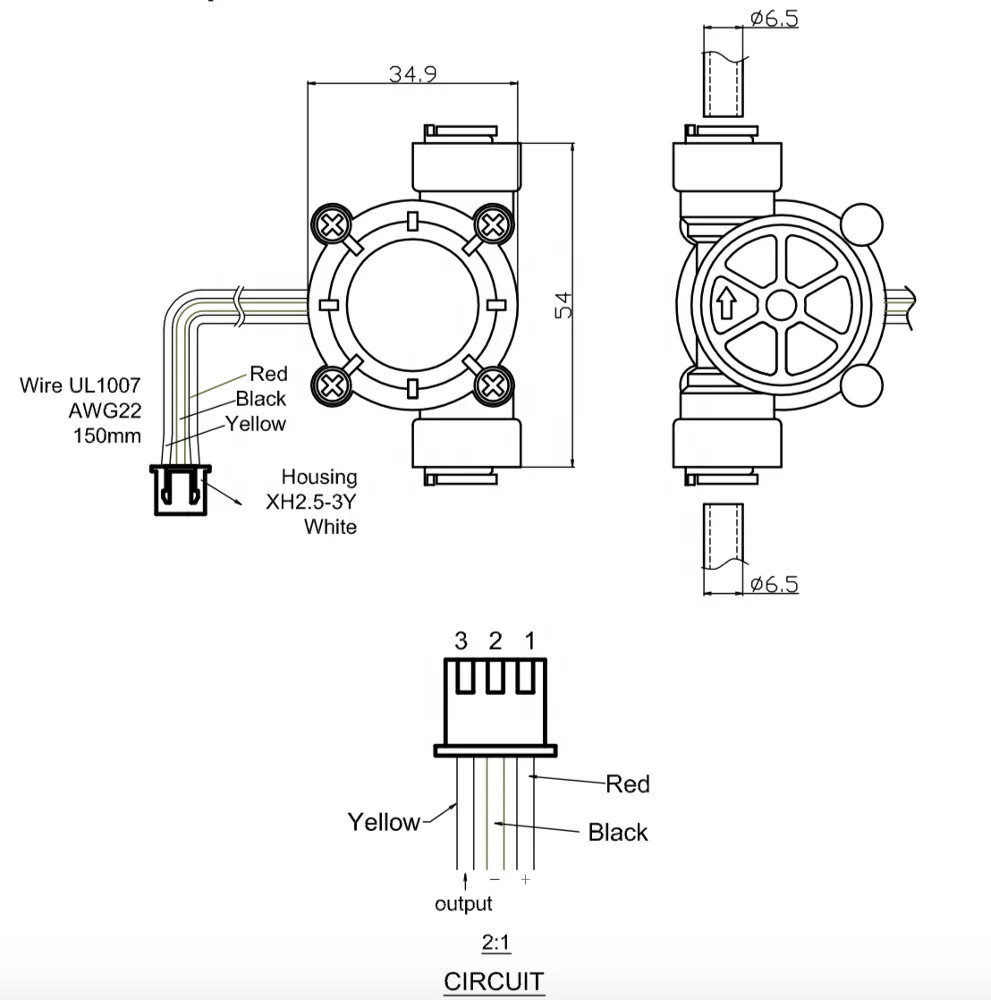

Product Specification



Electrical &Technical Characteristic
Suffering Pressure	1.0MPa	Mounting Position	Vertical ±5°
Operate Temperature	-40 °C ~ +80°C	Output Pulse Duty Cycle	50%±10%
Flow range	0.3~10L/min	Min Insulation Resistance	100M Ohm
Max Switch Current	1.0A	Max Output Pulse Voltage	>DC4.7V
Flow Pulse	F=48*Q±3% Q=L/min	Min Output Pulse Voltage	<DC0.5V
Body Material	POM	Electrical Life	1x 107(5Vdc,10mA)











Related Products



YF-S302 G1/4"	FS-S401 OD7.2mm	FS-S402



Certifications

FAQ

1.Question:  What are your main products?

Answer: We mainly focus on water float switch, flow sensor and door contact switch. We ensure a reasonable price and high quality products.

2.Question: Where is your company?

Answer: We are a factory based in Shenzhen, Guangdong, China. All of our products are safely manufactured according to UL, ISO9001 and RoHs principles, and carefully checked before packed.

3.Question:  What are the available materials?

Answer: Plastic PP, Stainless steel

4.Question: Are these materials safe for drinking water?

Answer: Sure! All of our materials are made according the RoHs principles, they are nontoxic and environmental friendly.

5.. Question: Is the switch made normally open or closed?

Answer: Most clients take our normally open model, but no worries we can make normally closed one if you need. To save from trouble, please read our datasheet before ordering.

6. Question: There is no product in the list suitable for me, can you OEM a new model according to our desire?

 Answer: Yes, we can! Please send us your requirement and basic data or pattern of the product you want, our engineers will take care and OEM the model for you!
