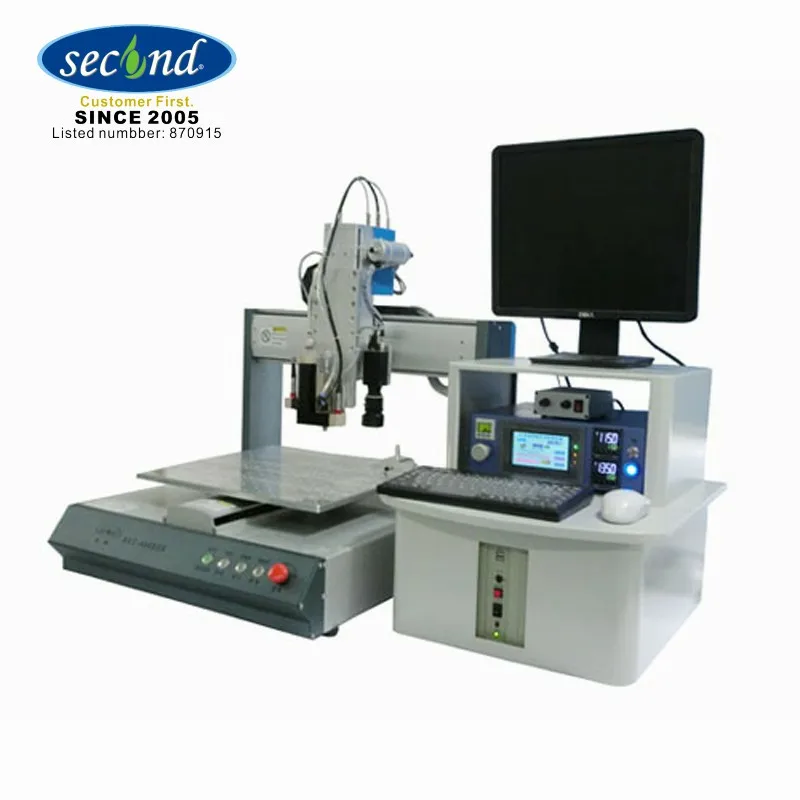

SEC 500EDSP tabletop high precision CCD visual dispensing robots glue dispenser with CE certificated
- Category: Other Machinery & Industrial Equipment >>>
- Supplier: Shenzhen Second Intelligent Equipment Co. Ltd.
Share on (62109530643):
Product Overview
Description
Product Overview
SEC-500EDSP tabletop high precision CCD visual dispensing robots glue dispenser with CE certificated
Main features of Automatic dispenser equipment SEC-500EDSP
1.Operation with handheld LCD panel teach box,which is easy to program and learn.
2.Functions of drawing points,lines,surfaces,arc,circle and consecutive interpolation of irregular curves to realize any 3D non planar trajectory path.
3.Excellent teaching function to support array,graphical browsing,three dimensional elliptic,common graphical library inserting,group editing and so on.
4.MINISD file storage with high speed and 2G capacity can store 999 dispensing process documents.
5.The size of glue,speed of glue spread,dispensing time,time of halting dispensing can be set by parameters.
6.With Second special dispensing controller,glue outflow is quite stable without leaking and dripping.
7.The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.
8.Powerful PC compatibility with the Logoshop software can import mainstream design software(such as Auto CAD,Coral Draw,etc.) to generate a variative of file formats(such as,.NC,.AI,.DXF,.JPG,.BMP,scanner,etc.
9.It is applied to fluid dispensing, such as, UV glue, AB glue,COB(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative and so on.
1.Operation with handheld LCD panel teach box,which is easy to program and learn.
2.Functions of drawing points,lines,surfaces,arc,circle and consecutive interpolation of irregular curves to realize any 3D non planar trajectory path.
3.Excellent teaching function to support array,graphical browsing,three dimensional elliptic,common graphical library inserting,group editing and so on.
4.MINISD file storage with high speed and 2G capacity can store 999 dispensing process documents.
5.The size of glue,speed of glue spread,dispensing time,time of halting dispensing can be set by parameters.
6.With Second special dispensing controller,glue outflow is quite stable without leaking and dripping.
7.The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.
8.Powerful PC compatibility with the Logoshop software can import mainstream design software(such as Auto CAD,Coral Draw,etc.) to generate a variative of file formats(such as,.NC,.AI,.DXF,.JPG,.BMP,scanner,etc.
9.It is applied to fluid dispensing, such as, UV glue, AB glue,COB(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative and so on.
PRODUCT SPECIFICATIONS
Specifications
1.Pro & skilled manufacturer.
2.Excellent teaching function to support programming;
2.Excellent teaching function to support programming;
3.Stable dispensing to avoid dripping or leaking;
4.Prompt & swift delivery.Specifications
Model | SEC-500EDSP | SEC-500EDSV(CCD) | |||
Work area | 500(X)╳500(Y)╳100(Z)mm | ||||
Size | 690(L)*728(W)*680(H)mm | ||||
Z Max load | 6.5 kg | ||||
Travel speed | 500mm/sec(XY)/250mm/sec(Z) | ||||
Drive mode | Servo motor + lead screw + precise linear guide rail | ||||
Visual | German made high-definition CCD | ||||
Light sourse | LED red / blue / white | ||||
XYZ repeatability | ±0.02mm | ||||
Resolution | 0.01mm | ||||
Operation Method | IPC, LCD display, keyboard&mouse | ||||
Controlling Software | Windows XP; Second Fluent | ||||
Power supply | AC220V, 50/60Hz, 1.5kw | ||||
Work condition | Temperature 0-40℃; relative humidity 20-90% | ||||
Weight | 55kg | ||||
Note | including 1 working platform | ||||
Why Choose Us
1. Free sampling you can choose, send us glue and dispensing product, we will demo and video to customer。
2. experience in fluid dispensing for more than 14 years, can supply thousands of dispensing solutions ,backup by a strong hardware and software team online supporting.
* We can make part design and mould design by software CAD,UG,PRO/E,Solidworks and Catia ect
* Available for OEM/ODM service and very super precision reachs to 0.001mm..
* Standard mould base. * Send sample with test video to customers for check product quality and mould working condition.
* During the period of making the mould,we'll report the process of the mould with pictures every Monday.
* Customer's design are welcomed..
* Competive price with on-time delivery.
* One year warranty
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
Packing & Delivery

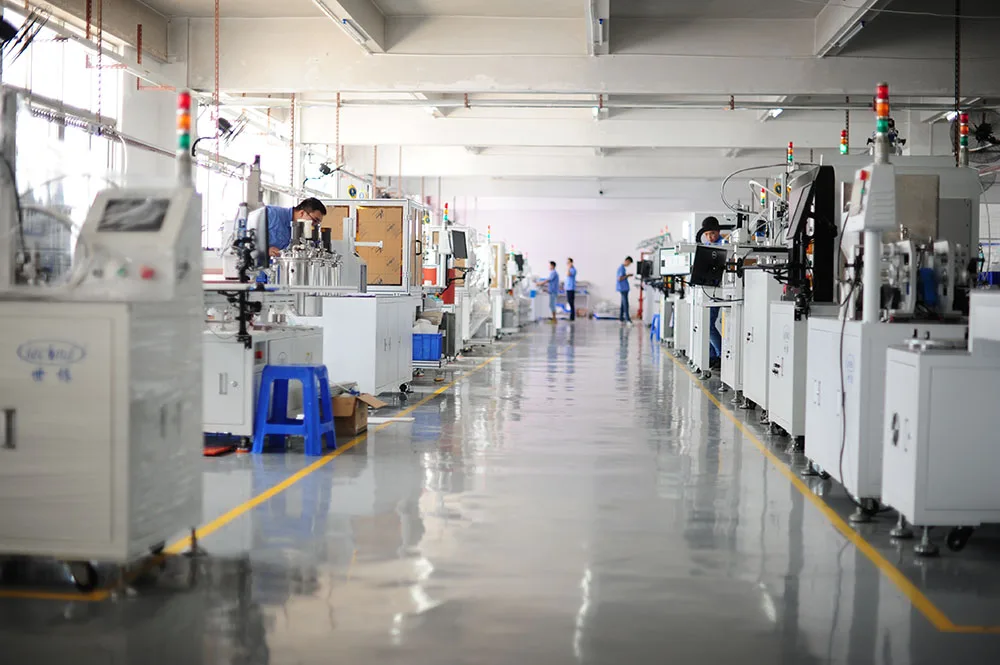

Company Profile
Second Intelligent Equipment focuses on automated dispensing, and potting machines, from design to production. The company was established since 2005. Since the birth of the first dispensing machine, we focus on dispensing, dispensing, and dispensing only.
With bold focus and strategy, Second Intelligent has become a well-known brand in domestic, and gradually respected by the international fluid automation application industry. The company has over 470 staffs, with both in-house software and hardware engineers, and 6 direct offices around China’s major cities, as well as different global partners.

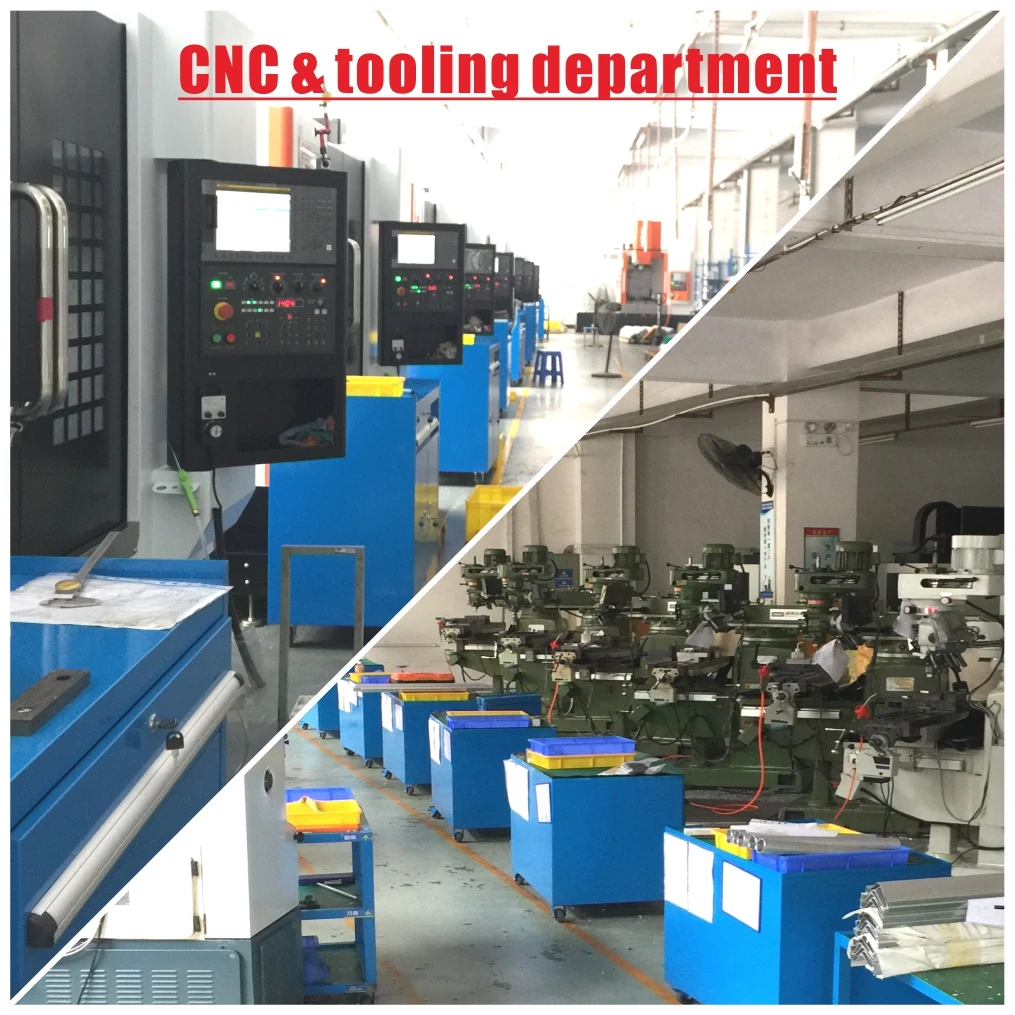

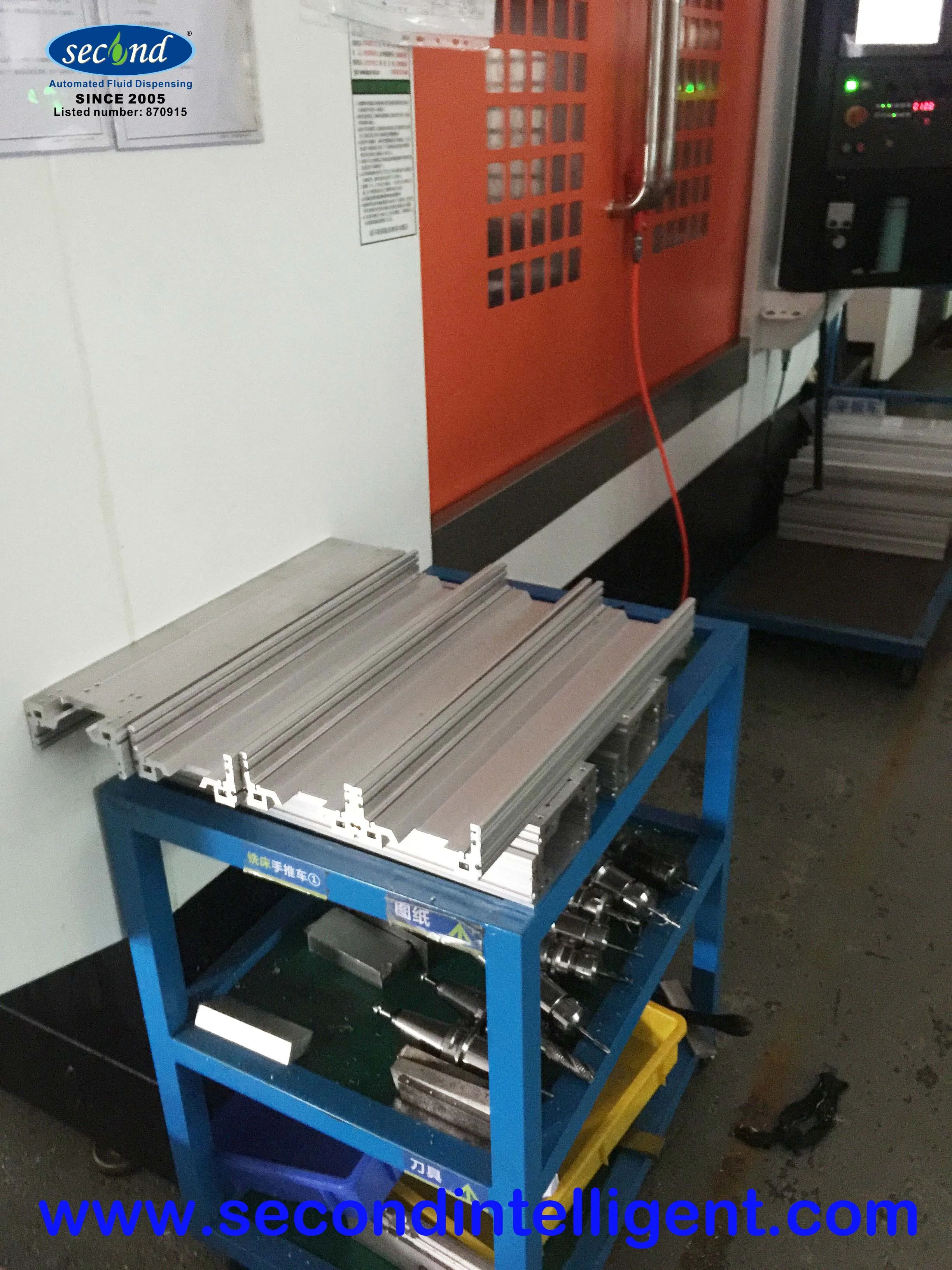

Second Intelligent Equipment provides one-stop dispensing and potting solution. The company provides direct manufacturing service, from presales design to after sales service supports. The company owns and operates its CNC, wire cutting, and milling center so to provide fast turnover, in-house quality control, and non-stop spare parts supply services.

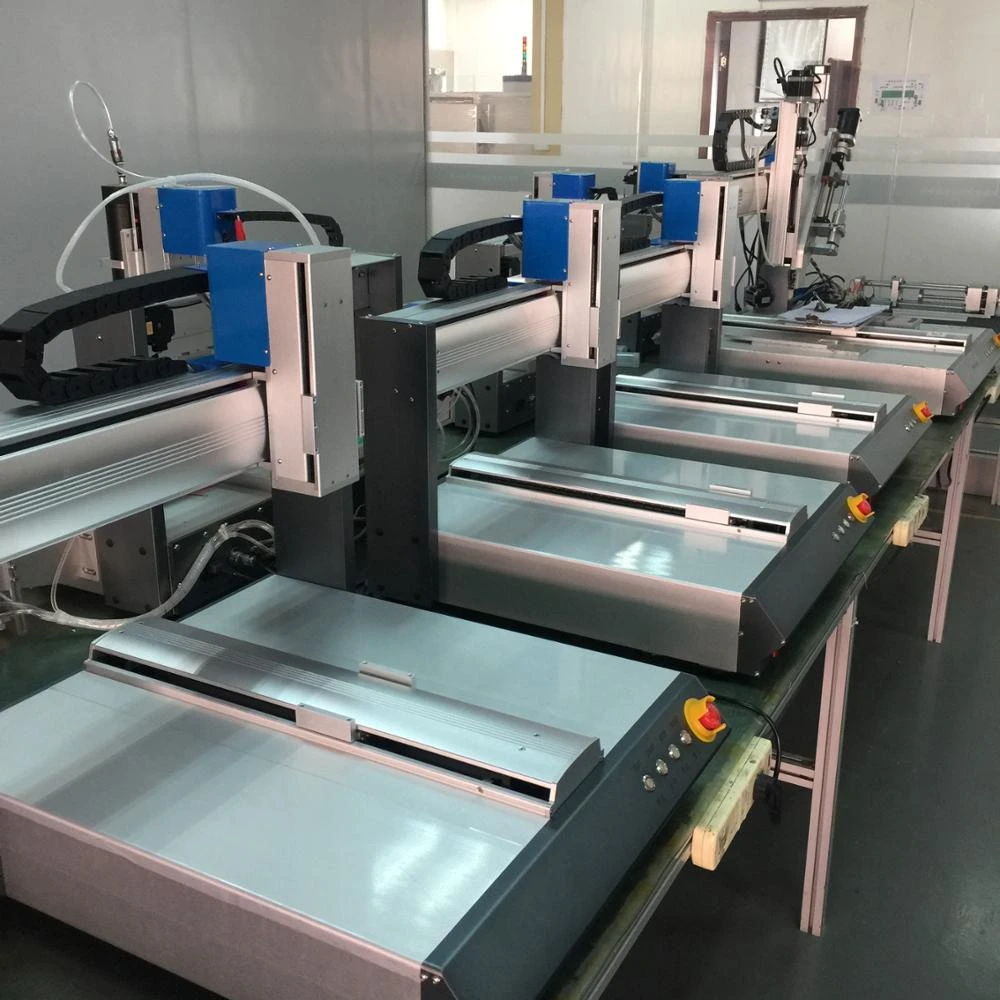

The company able to provide various type of automated fluid dispensing and potting machines. Currently, the company has desktop, standalone, inline conveyor, and robotic automated fluid dispensing machines. These machines are able to meet different industries, and thousands of different types of adhesive material dispensing needs.
“Second” Intelligent, the name was created after customer, because we truly believe Customer “First,” together we work as a team to continue to improve equipment and machines’ features to solve various dispensing, and potting needs to bring quality to products, works, and lives.
Related Products
FAQ
Dear Customer, Greetings from Second Intelligent!
As below Q&A to let you know more about Second Intelligent:
1 Are you factory or trade company?
We are manufacturer of fluid dispensing equipment since 2005, from desktop to freestanding big equipment, and RO roller machine.
2 How long is your machine warranty?
12 months
3 What is your lead time?
1 Are you factory or trade company?
We are manufacturer of fluid dispensing equipment since 2005, from desktop to freestanding big equipment, and RO roller machine.
2 How long is your machine warranty?
12 months
3 What is your lead time?
For standard specification machine, we have inventory and could prepare the machine within 7 working days.
For custom request, desktop machine 7-10 days, freestanding machine 10-15 days, RO roller machine 12-20 days.
4 Do you provide free training for using and installing the machine?
Yes, our technical person can provide online training as request, customers could contact us at any time for any tech issues, our engineer team could support at any time if you need.
In order to recommend more suitable machine, please let us know the following information:
1 Glue type: please give us the data sheet if you have
2 Glue is easy caking? A Yes, need vacuum tank B No, no special request
3 Glue package please send us picture A Cartridge B Barrel C Pour into our machine tank directly
4 Glue package amount
5 Need vacuum system when pouring glue into our tank A Yes B No
We could provide vacuum system for 300ML,3600ML and 25KG barrel glue package
4 Do you provide free training for using and installing the machine?
Yes, our technical person can provide online training as request, customers could contact us at any time for any tech issues, our engineer team could support at any time if you need.
In order to recommend more suitable machine, please let us know the following information:
1 Glue type: please give us the data sheet if you have
2 Glue is easy caking? A Yes, need vacuum tank B No, no special request
3 Glue package please send us picture A Cartridge B Barrel C Pour into our machine tank directly
4 Glue package amount
5 Need vacuum system when pouring glue into our tank A Yes B No
We could provide vacuum system for 300ML,3600ML and 25KG barrel glue package
