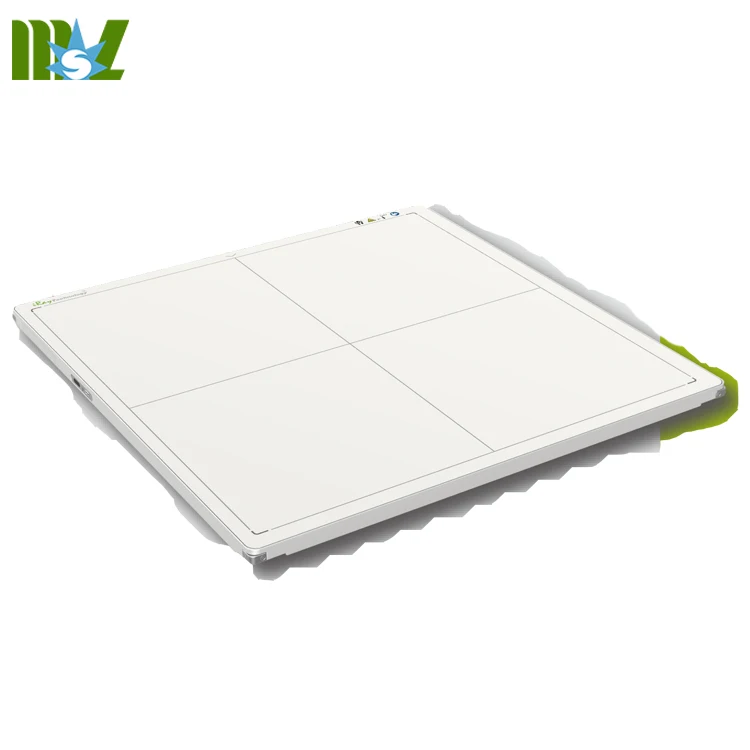

Superior Long battery Life MSLFP06 17 * 17 inch Cassette Wireless Flat Panel X RAY Detector

MSLFP06 is a smart 17*17 inch wireless, cassette-sized FPD for radiographic imaging. It features reliable AED, dependable wireless performance, and a long battery life. The MSLFP06 supports a fast work flow, and is the optional choice for both retrofit and new DR system solutions.

Dual band(2.4 and 5 GHz) wireless support with easy sharing

Long battery life and smart workflow

Direct deposition Csl for better image quality with lower dose

Wireless cassette detector per ISO 4090, fits in bucky

139um pixel pitch, with 16 bit ADC for more image details

Stable iSybc+ Automatic Exposure Detection(AED)

Detector Technology	Amorphous Silicon
Scintillator	Csl
Active area(mm2)	427* 427
Pixel Matrix	3072* 3072
Pixel Pitch(um)	139
Resolution(ip/mm)	3.6
AD Conversion(bit)	16
Wifi	2.4G and 5G, IEEE802.11 a/b/g/n/ac
Trigger Mode	AED/Software

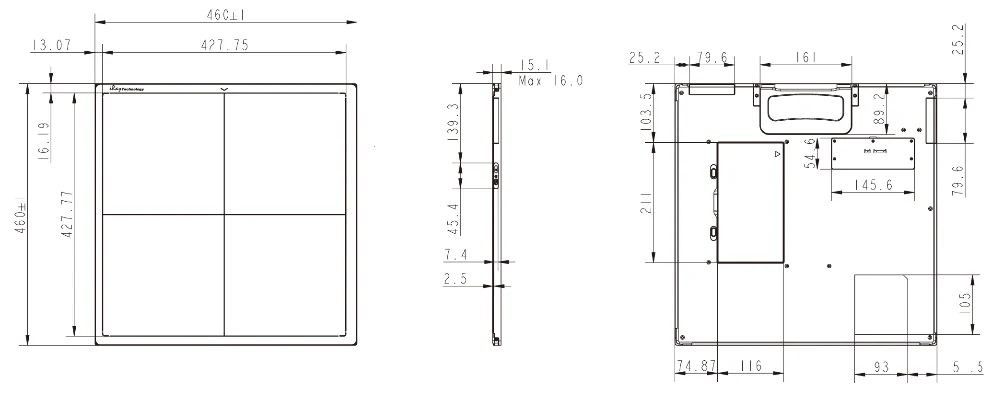

Dimension(mm)	460*460*15
Battery Autonomy(h)	5
Full Image Time(s)	Typ.5
Weight(kg)	4.6
Static Loading	150kg uniformly
Ingress Protection	IPX1
Operating Temperature(℃)	3-35
Operating Humidity	10%-90%

Detailed Image
