petrol pump machine fuel dispenser
US $2100
high efficiency CNG filling machine fuel dispenser CNG dispenser machine
- Category: Other Service Equipment >>>
- Supplier: Sichuan Rongteng Automation Equipment Co. Ltd.
Share on (62122980301):
Product Overview
Description
Product features
Description:

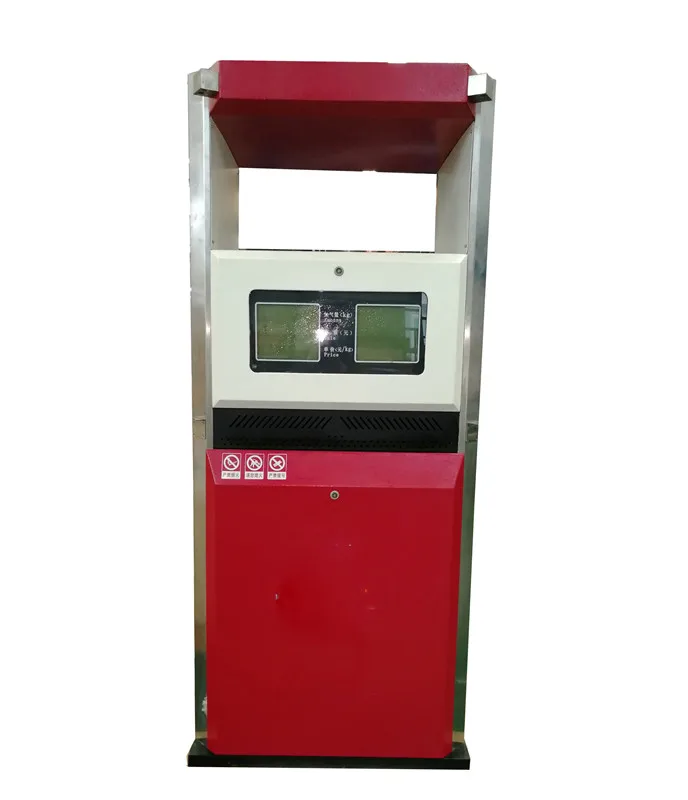

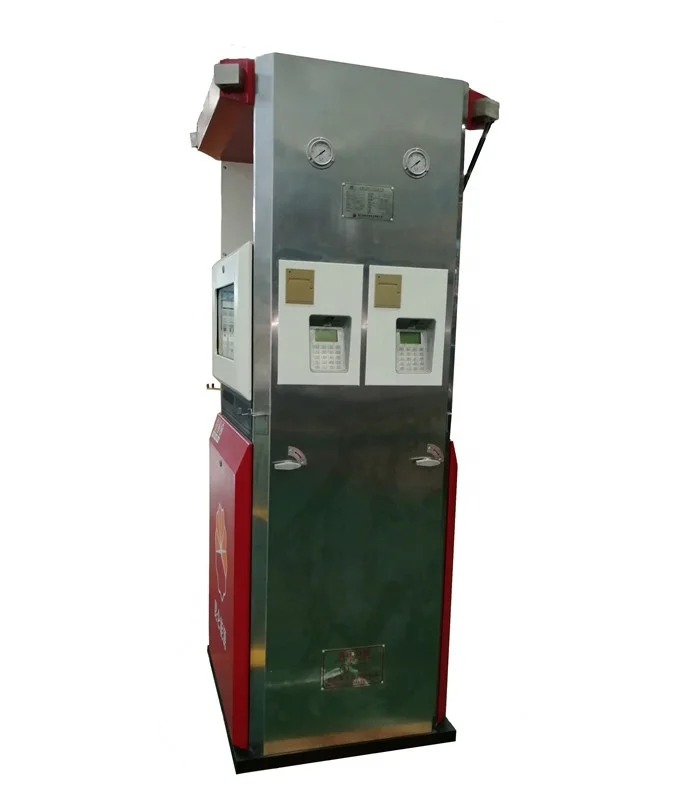

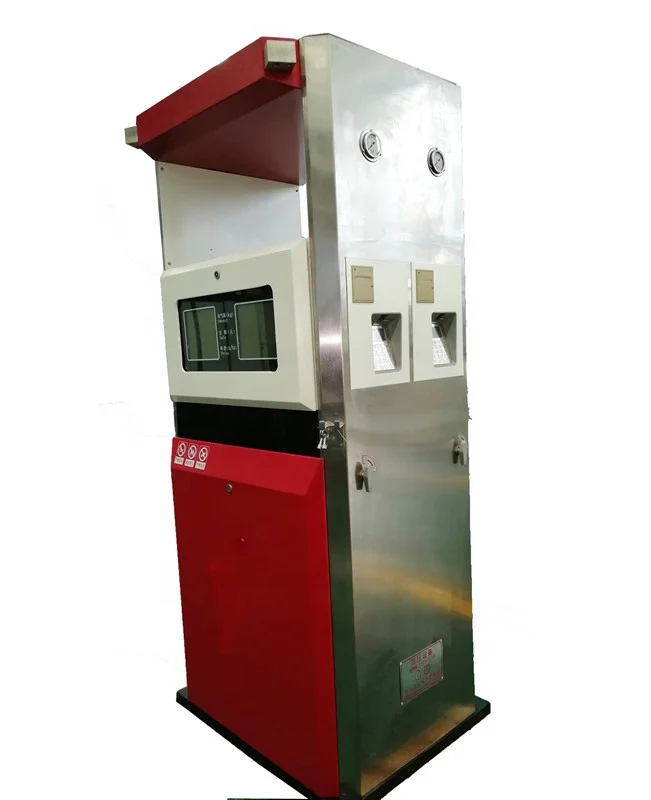

The CNG dispenser machine has four dispensrs which fill the compressed natural gas to the NGVs in the CNG stations.
Product features:

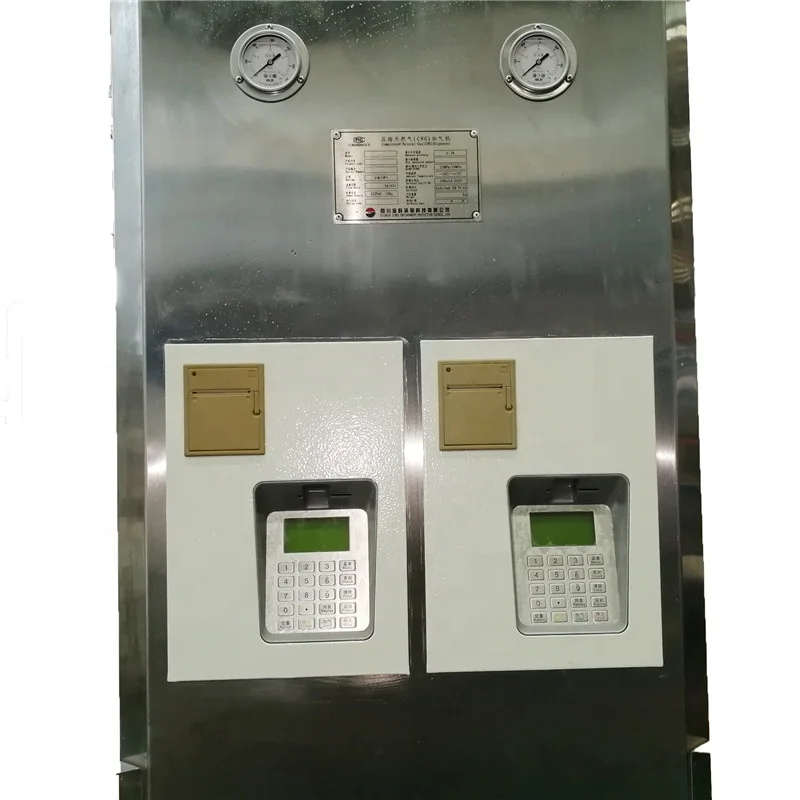

1. The interface for IC card to upgrade easily.
2. The interface for a bill printer to realize operating by plug-in.
3. The interface for computer communication to ready for upgrading and installing the management system for a refueling station.
4. The modularized triplet solenoid valve can be maintained and repaired on-line.
5. Re-display the records in many times and inquiry information.
6.1/2 inch stainless steel pipe to ensure the refueling speed.
7. The refueling pressure for the automobile can be preset by manual.
8. The refueling mode can be shifted to the quick speed for a bus.

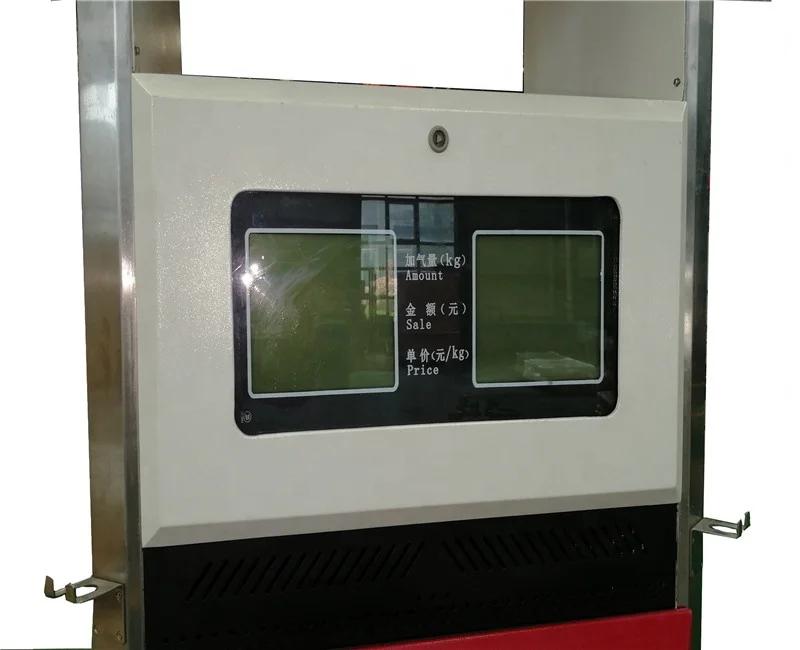

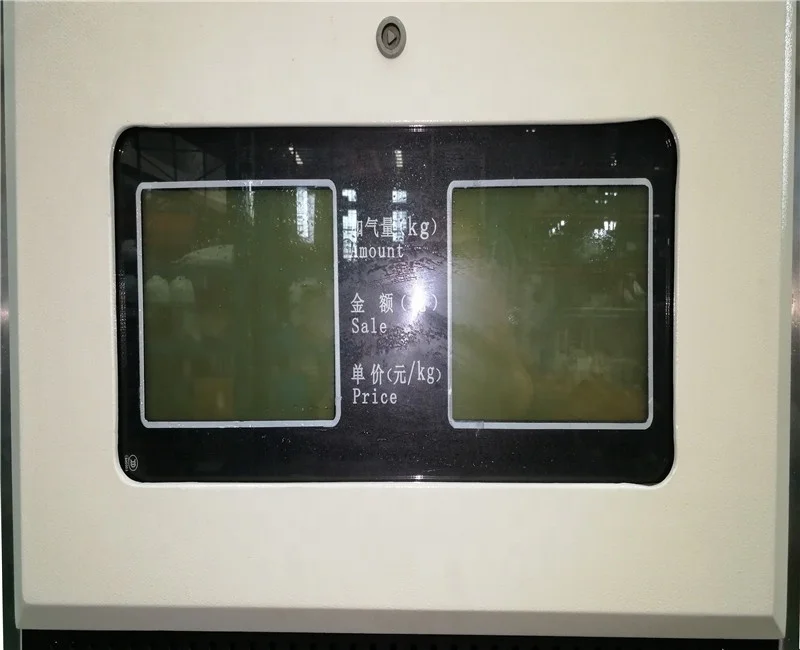

9. The back light display panel, stand low temperature.
10. Self-protection for over-voltage, over-pressure, and over-current, overflow.
11. Advanced protective mode only with one-key, emergency stop in easy way.
12. The cumulative data can be stored for 10 years.
13. Automatic diagnose and display trouble code.
14. Various models: single-hose, double-hose, single-pipeline, double-pipeline, three-pipeline.
Technical parameters
| 1 | Ambient temperature | -35°C~ +55°C |
| 2 | Humidity | ≤90% |
| 3 | Flow rate | 5~60L/min or 5~90L/min |
| 4 | nozzle | Auto shut-off |
| 5 | Suction distance | 6m(Vertical), 50m(horizontal) |
| 6 | Accuracy | ±0.30% |
| 7 | Repeating tolerance | ≤0.15% |
| 8 | Hose | 3m(low hang), 4.5m(high hang) |
| 9 | Inlet pressure | ≥54kPa |
| 10 | Outlet pressure | ≤0.3MPa |
| 11 | Voltage | 220V/380V (50/60Hz) |
| 12 | Power | 1HP(0.75kw) |
| 13 | Noise | ≤80dB(A class) |
| 14 | Unit price range | 0.01~999.99 |
| 15 | single volume range | 0.01~999999.99 |
| 16 | accumulative volume range | 0.01~9999999999.99 |
| 17 | Explosion-proof signal | ExdmbIIAT3 |
Company profile
 |  |
Sichuan Rongteng Automation Equipment Co., Ltd. Is the wholly-owned subsidiary of Sichuan Jinxing Clean Energy Equipment Holding Co., Ltd. We have been in natural gas industry since 1995. We specialize in designing and manufacturing the below products and services. Natural gas purification and treatment CNG, LNG, L-CNG filling station equipment CNG, LNG dispenser CNG compressor PLC control cabinet and explosion proof cabinet
view more >> |
R&D
Our R&D center is authorized as “national technology center”.Have acquired more than 100 patents.
The R&D team owns 180 personnel.Can provide solution and design for the natural gas and CNG industry. |  |
Company display
Our projects
Our cerficate
Are you factory or trade company?
- - - We are factory .
What's your delivery time?
- - - 15 days .
Can you customize the CNG gas station?
- - - Yes, We can. Let us know your requirements, we will present the best solution.
Do your factory has gained ISO9001:2008 certificate?
- - - Yes, we have.
How does your factory do regarding quality control?
- - - Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.
Do you have spare parts in stock?
- - - Yes , we have
How about your customer service and after-sales service?
- - - 24 hrs on-line service, engineers and oversea agent technical support .
