Holykell OEM Handheld Ultrasonic Water Level Sensor with Display

Product profile

The ultrasonic flow meter has been upgraded based on the previous ultrasonic flowmeter which is still the main product line of the company. The new Version retains most of the excellent features and functions of the previous versions: the pulse measurement technology, the ultrasonic igniting and the small signal receiving circuits etc. The main improvements are made on the battery supply circuit and on the transmitting circuits. All other circuits are simply integrated into this new version without major modifications, due to the fact that we have already applied the most advanced measurement technologies and attained a more reliable model of ultrasonic flow meter.

Features

* Large-screen LCD                                    * Non-contacting measuring

* Built-in data-logger                                   * Built-in rechargeable battery

* High accuracy measuring                         * Wide measuring range

* Small and light                                          * RS-232 serial interface

Principle of measurement

The China Wall-Mounted Ultrasonic Flow Meter transit time flowmeter utilizes two transducers that function as both ultrasonic transmitters and receivers. The transducers are clamped on the outside of a closed pipe at a specific distance from each other.  The transducers can be mounted in V-method where the sound transverses the pipe twice, or W-method where the sound transverses the pipe four times, or in Z-method where the transducers are mounted on opposite sides of the pipe and the sound crosses the pipe once.

This selection of the mounting method depends on pipe and liquid characteristics.  The flow meter operates by alternately transmitting and receiving a frequency modulated burst of sound energy between the two transducers and measuring the transit time that it takes for sound to travel between the two transducers.  The difference in the transit time measured is directly and exactly related to the of the liquid in the pipe, show as follows:

Where

θ is the include angle to the flow direction

M is the travel times of the ultrasonic beam

D is the pipe diameter

Tup is the time for the beam from upstream transducer to the downstream one

Tdown is the time for the beam from downstream transducer to the upstream one

ΔT=Tup –Tdown

Specifications for Wall-Mounted Ultrasonic Flow Meter

 Product details:

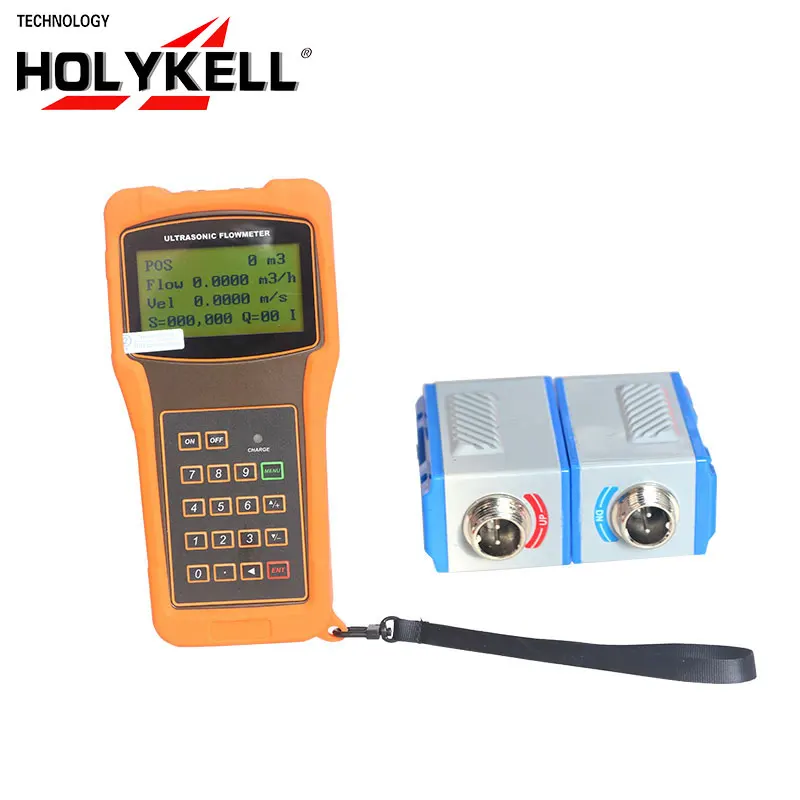

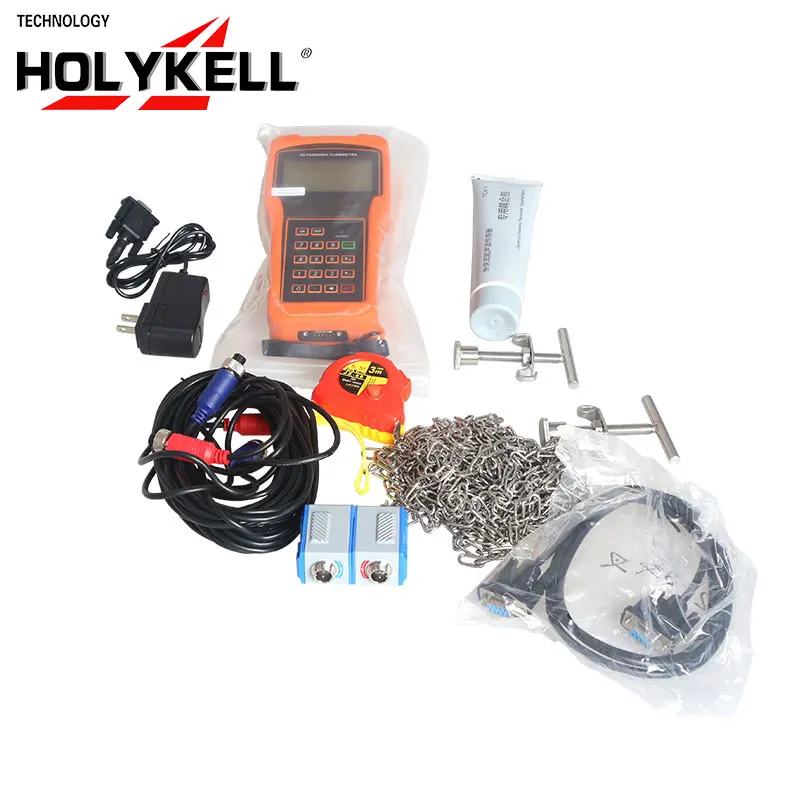

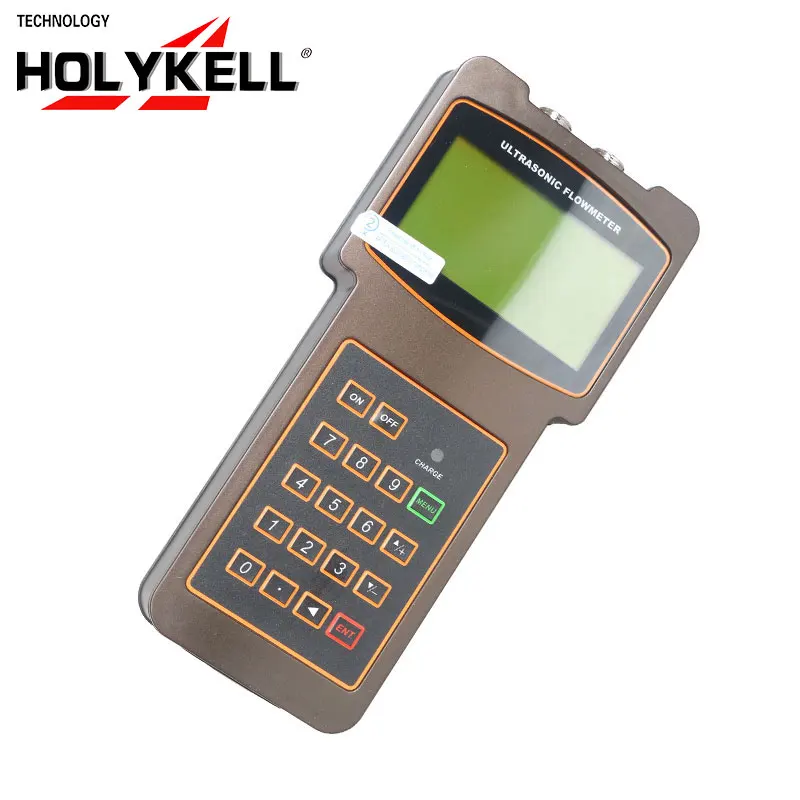

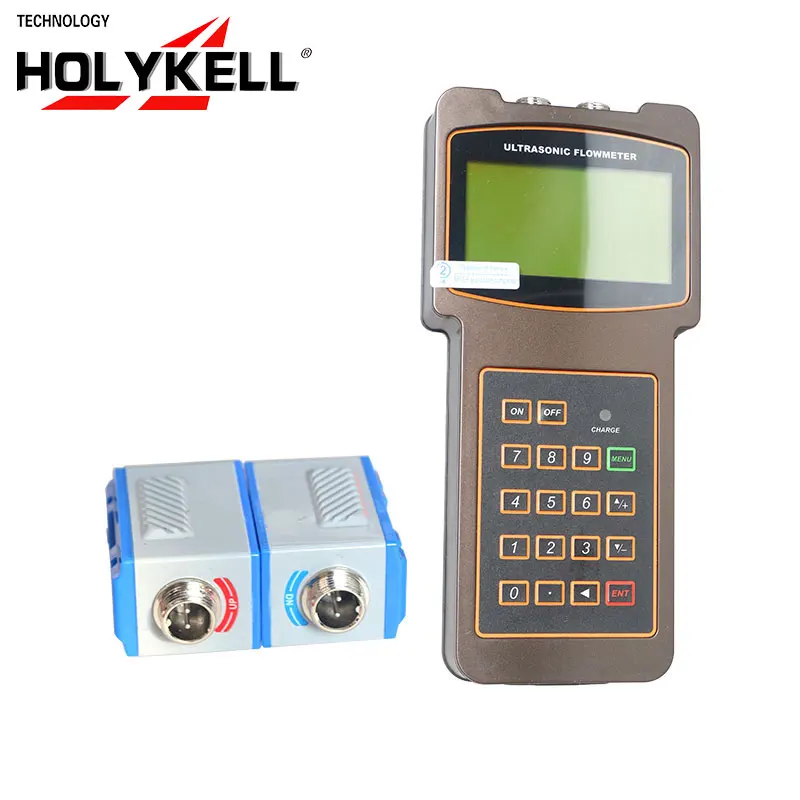

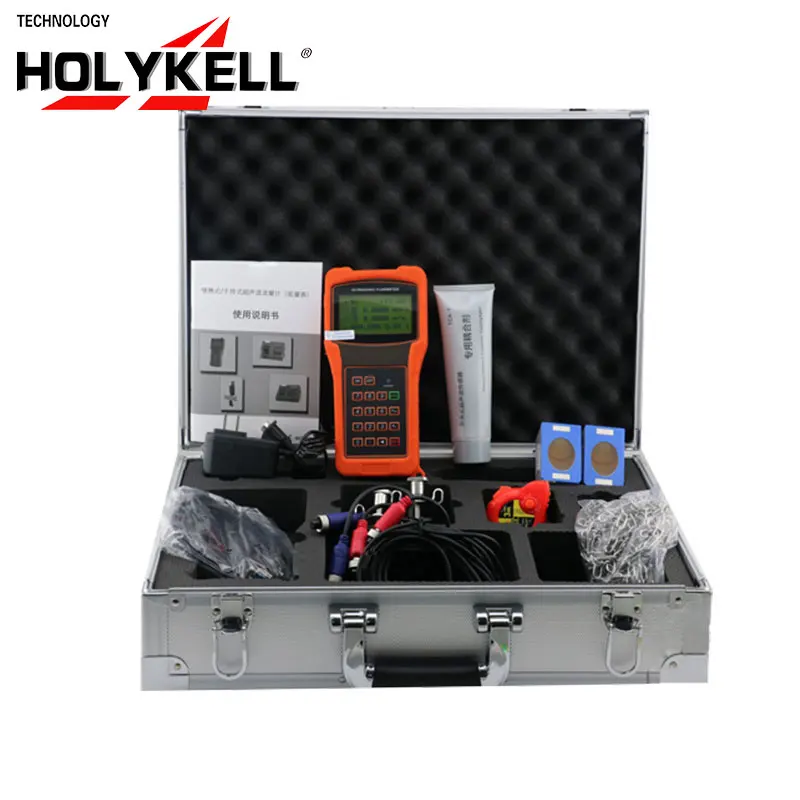

1.Handheld Ultrasonic flow meter with printer

Outstanding Features:

----the signal receiving circuits feature self-adapting performance so as to ensure that the user can easily operate the instrument without any adjustment.

----the built-in rechargeable Ni-H battery can work continuously for more than 12 hours without recharging.

2.Wall -Clamp On Ultrasonic Flow Meter

HOLYKELL always devotes ourselves in specialty manufacturing pressure sensors,pressure transducer,pressure transmitters,level sensors,level transmitters, ultrasonic sensors and now we can apply nearly all kinds of sensor techniques in the field of electric pressure measurement. Owing to the devotion to electric pressure measurement techniques, our enterprise holds inimitable core competition in the industry.
HOLYKELL pressure and level Instruments has been certified with ISO 9001 (2008) Enterprise Quality Management System by the United Kingdom Accreditation Service and our products are approved by many international authority institutions for the certificates of CE and RoHS, intrinsic safety explosion-proof and isolated safety explosion-proof. Our employees with the professional and high quality will make sure to provide you with high-quality products and superior services at any time and at any place. Our products are widely applied in the fields of chemical industry, petroleum, pharmacy, electricity, municipal works, environmental protection, food and paper-making.

HOLYKELL sensor is manufacturer of all kinds of Pressure Sensor (Transmitter/Transducer): Application: Refrigeration, Cooling System, Industry, Water, Pump, Cars, Generator etc.

Level Sensor (Transmitter/Transducer)  Application: Water, Fuel, Sea Water, Sewage Water, Depth Well, Flood, Tanks, Diesel, Gasoline etc

Ultrasonic Level Sensor (Transmitter/Transducer)  Application: Water, Fuel, Sea Water, Sewage Water, Depth Well, Flood, Tanks, Diesel, Gasoline etc

Melt Pressure Sensor (Transmitter/Transducer) Application: Plastic, Rubber etc.

High-Temperature Sensor (Transmitter/Transducer)

Flow Meter (Electromagnetic/ Ultrasonic)

Industrial Control Indicator

If you don't find the products you want on this page, please contact me or leave your message on below form, Even will offer you best suggestion and price! (It is better if can leave your email address on message)

Order remark:

If you want to know the price about products as soon as possible, pls tell below information:

---What's the application?

     Purity water, salt water, diesel fuel or other?

---What's the output?

    4~20mA, 0~5V DC or other?

---What's the pressure/level range?

    0~2bar, 0~30m or other?

---What's the temperature?

    -30℃~60℃ or other?

---How many quantity do you need?

   1 piece or 10 pieces?

---Other sepcial requirements?
