Линия по производству плетеных мешков из ПП, экструзионная и обмоточная машина
- Category: Bag Making Machines >>>
- Supplier: Shandong Weiao Machine Equipment Co. Ltd.
Share on (62130367672):
Product Overview
Description
PP Woven Sack Production LIne
The machine,using material of polypropylene &high density polyethylene ,through heating ,extruding and drawing ,makes tape that is then winded for the weaving of the circular loom .
Main technical parameters:
Type Item | LH-FS140/2000B | LH-FS150/2200B | LH-FS150/2400B | LH-FS160/2600B | LH-FS160/2800B |
Diameter of screw(mm) | 150-155 | 155 | 155-165 | 165 | 165 |
L/D ratio Of screw | 26:1 | 26:1 | 28:1 | 28:1 | 28:1 |
Rotational Speed of Screw(r/min) | 20-70 | 20-70 | 20-65 | 20-65 | 20-65 |
Width of Die(mm) | 2000 | 2200 | 2400 | 2600 | 2800 |
Motor power Of extruder (kw) | 55 | 55 | 55 | 75 | 75 |
Heating power of extruder (kw) | 95 | 100 | 100 | 110 | 120 |
Power of driving Motor(kw) | 5.5-11 | 5.5-11 | 5.5-11 | 5.5-15 | 7.5-18.5 |
Heating power of the oven(kw) | 40 | 40 | 45 | 45 | 55 |
Thickness of Tape(mm) | 0.03-0.08 | 0.03-0.08 | 0.03-0.08 | 0.03-0.08 | 0.03-0.08 |
Capacity(kg/h) | 110-220 | 120-260 | 140-280 | 140-300 | 160-320 |
Drawing speed (m/min) | 20-150 | 50-150 | 50-150 | 50-150 | 50-150 |
Installing dimensions (L*W*H)(mm) | 24000*3700*1450 | 24000*3900*1450 | 24000*4100*1450 | 24500*4600*1450 | 24500*5200*1450 |
Weight(kg) | 20000 | 21500 | 23000 | 24500 | 2500 |

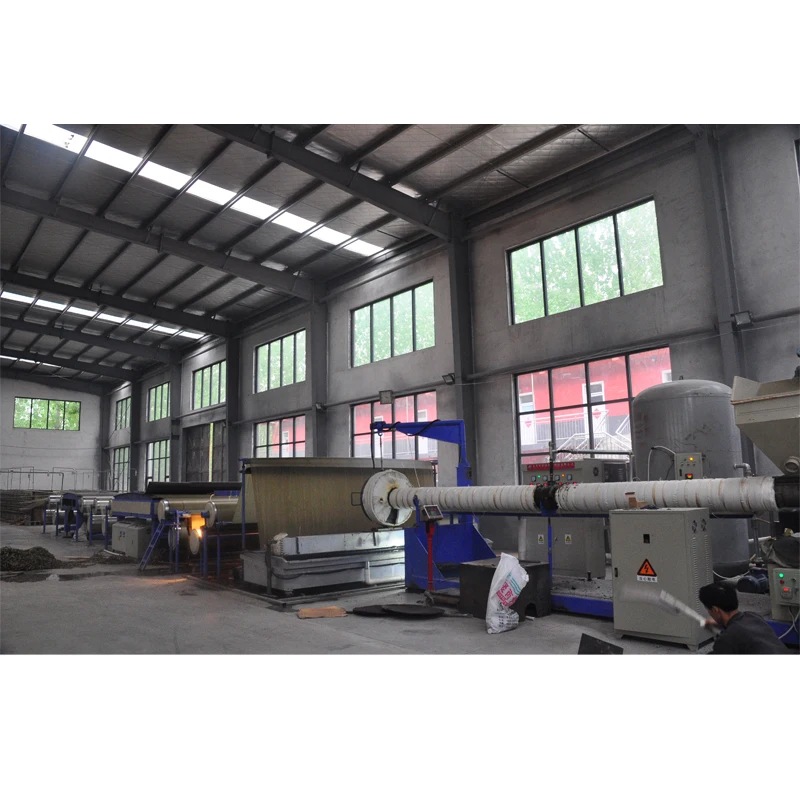

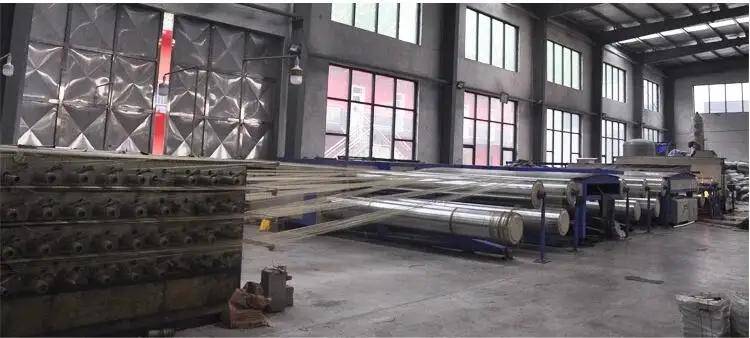

Whole Machine Picture

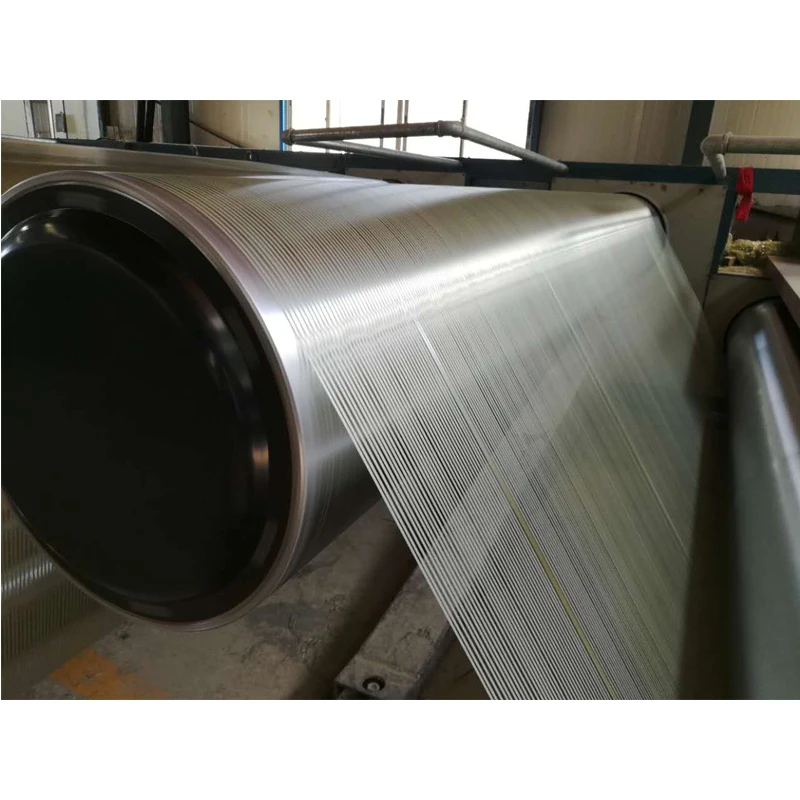

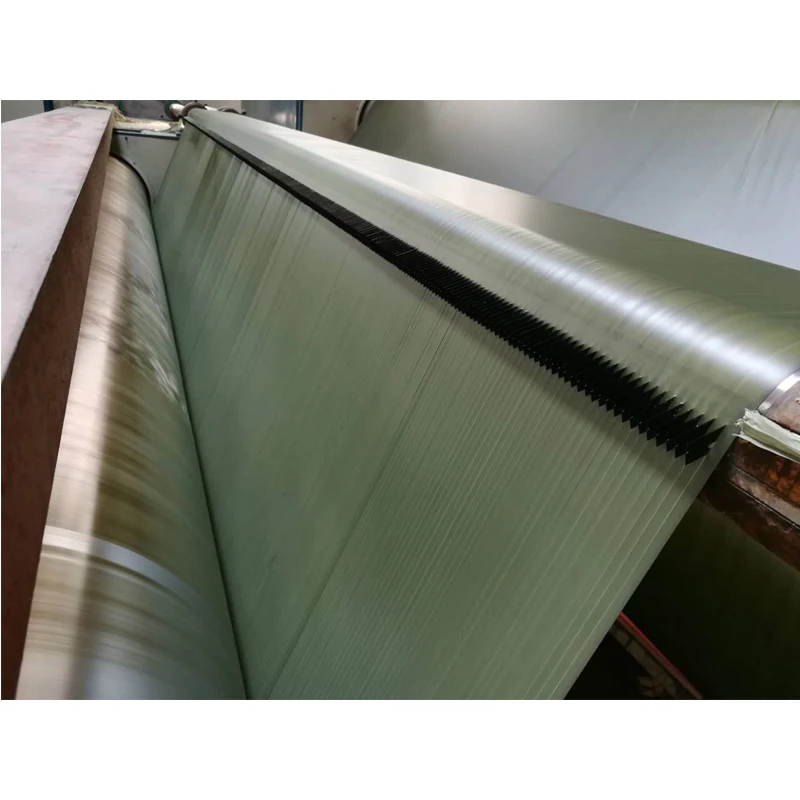

Machine Detailes:
