0.5 to 200m2 Industrial Food Freeze Dryer Fruit Dehydrator
US $25000-$28000
5 кг один ключ старт промышленная фруктовая овощная еда пилот Вакуумная сушилка
- Category: Freeze Drying Equipment >>>
- Supplier: Senova Biotech (Shanghai) Co. Ltd.
Share on (62131881799):
Product Overview
Description
5Kg One Key Start Industrial Fruit Vegetable Food Vacuum Drying Machine
5Kg/Batch Food Industry Freeze Dryer with Conductive Oil Heating
Model: NovaDryer-FD5
Online Technical Support & Video Technical Support Available!
Features

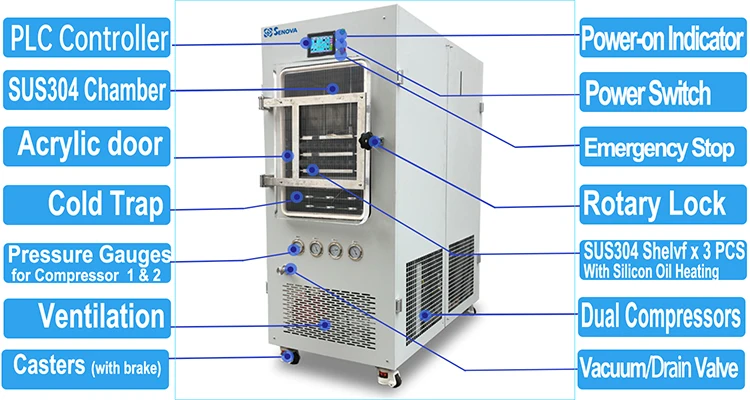

5Kg/Batch food industrial freezer dryer with PLC control system
Mirror polished stainless steel chamber with round corners and strengthening ribs
Mirror-polished stainless steel cold trap with water vapor channel to ensure small molecule moving resistance and high water-capturing efficiency
World-class compressor, safe and stable
Vacuum system with automatic tracking welding
Side leakage of vacuum is tested with helium mass spectrometer to ensure high vacuum

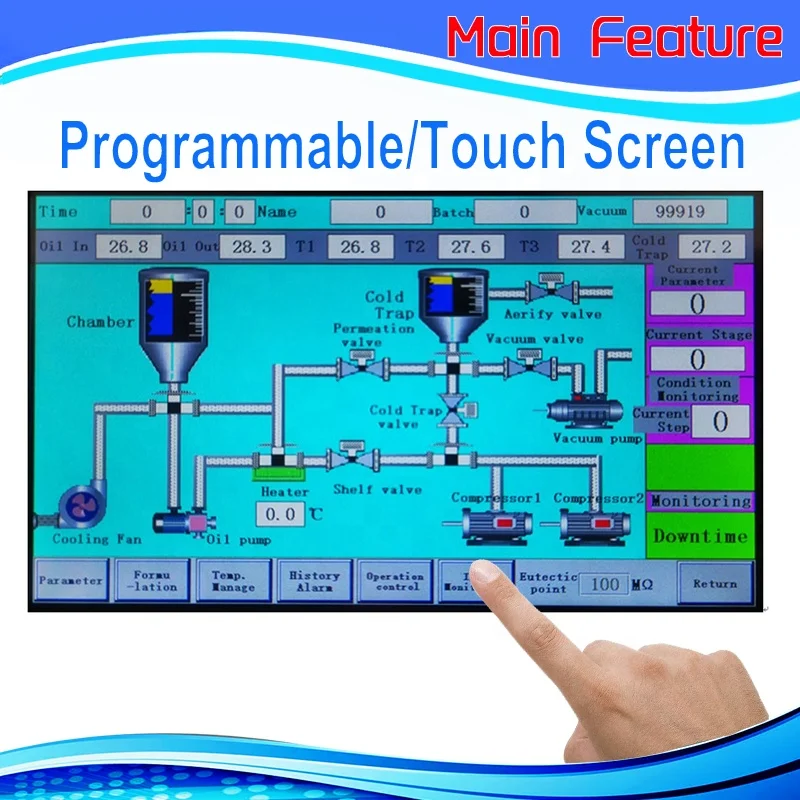

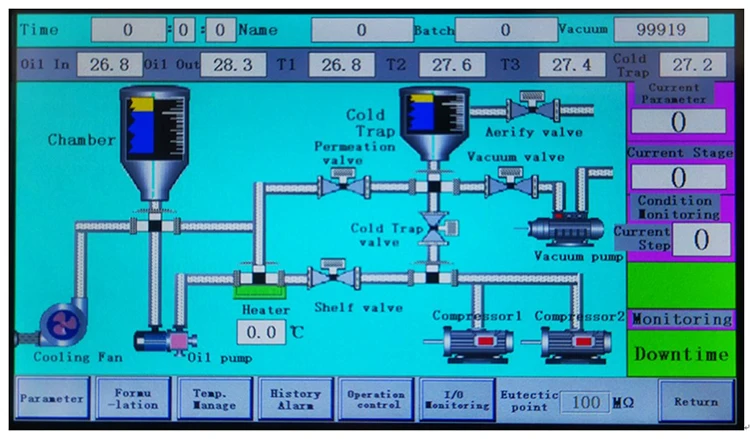

LCD display for working status, system running history and record, alarm and alarm history, parameter setting, saving and recall
Self diagnostic system
Specifications
| Model | NovaDryer-FD5 |
| Freeze-drying Shelf Area (m2) | 0.5 |
| Shelf Temp. (℃) | -30~+80 |
| Shelf Temp. Uniformity | ±1 ℃ |
| Cold Trap Temp. | ≤ -35℃ |
| Dewatering (Kg) | 5 |
| Ultimate Vacuum (Pa) | 15(wihout load) |
| Cooling Water Flow Volume (T/H)(≤25℃) | / |
| Defrosting Method | Hot Fluoride Defrost |
| Total Power (KW) | 4 |
| Shelf Qty (PCS) | 6 |
| Shelf Size (LxW,mm) | 360*480*20 |
| Shelf Space (mm) | 65 |
| Dimensions (DxWxH,mm) | 780*1470*1680 |
| Power Supply | 220V/60Hz, 1 Phase |
Company Profile
With R&D and production base in Shanghai as well as over 15 years of experience in international market for refrigeration equipment, Senova is the international sales center to serve our global distributors with both reliable products complying with international standard and after-sales service.
