1. PLC control (CNC), convenient operation and flexible settings.
2. Powerful hydraulic clamping and customized, specially designed clamp dies make the clamp firm enough without damaging the pipe surface.
3. Forming is driven by hydraulic. The forming moulds are designed by the professional engineers with much experience. Precise processing makes the moulds more delicate and accurate.
4. Adopting the premium linear slide rail, providing stable propulsion.
5. The hydraulic system is all assembled by the imported and premium components, which makes the system more powerful and stable.
6. Equiped with all kinds of forming moulds, for tube end forming like expanding, contracting, reducing, making flange and other special formings.
7. Hydraulic cooling system to ensure the equipment long-time work stably under the high temperature.

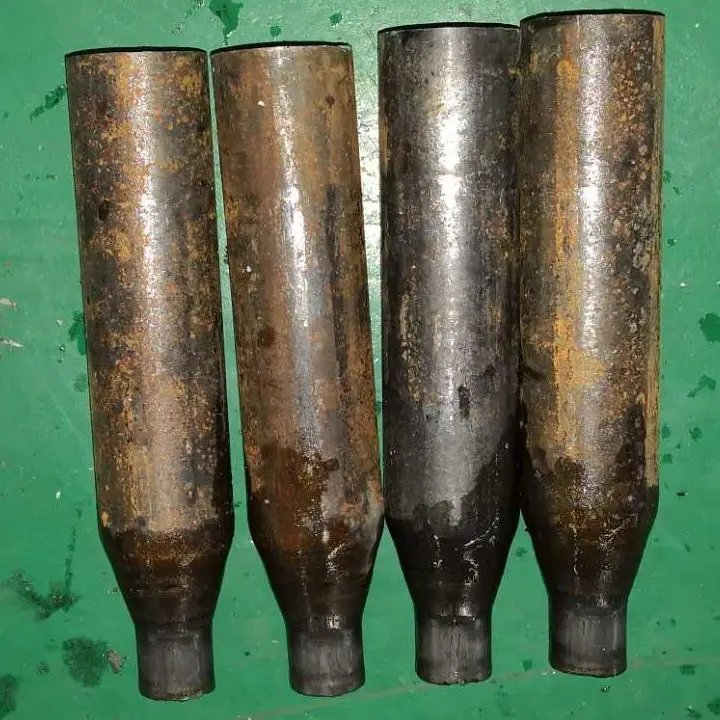

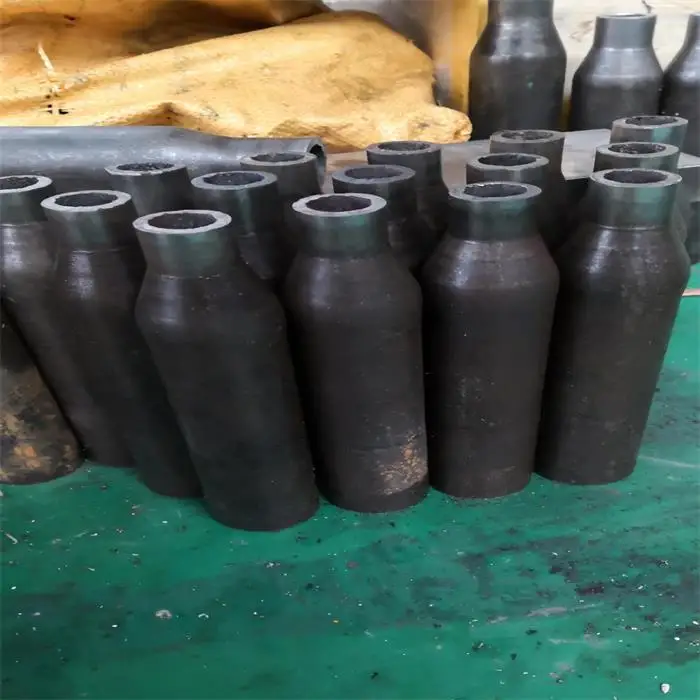

Samples:
Technical parameters
The main model/specifications
SG-100CNC-V
Remarks
Applicable Pipe Diameter
Φ60mm*2mm
Maximum Working Stroke
Maximum Working Stroke
130mm
Oil Hydraulic Output
12Mpa
Working Speed
100mm in 3-4/s
Machine Size
3750*1800*1850mm
Machine Weight
6500kg
Company Information
Company Details
Professional: 10 years into machinery. Brand: NUOEN Engineers: 9professional and experienced engineers Certificates: CE,ISO9001:2008 Letters patents: 12official patents Examining report: 5official examining reports Innovation project: 2innovative program awards Exported Countries: South Africa, India, Australia, Russia, UK, Mexico, Ukraine etc
Trade information: FOB Shanghai, CIF your port Payment Terms: T/T, L/C Delivery Terms: 30% deposit, 70% paid before shipment. Delivery Time: 30days after receiving deposit Minimum Order Quantity: 1 set Warranty: 1 year Package Details: wooden box Supply Ability: 30 Sets per Month Free Sample: No
Contact: Contact person: Jackie He Mob: +86 15950109098
FAQ
Q1. What's your payment terms and delivery time? A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support? A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines? A3: No, most of our machines are built according to customers specifications, using top brand components. Q4. What will you do if the machine is broken? A4: We provide 12 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. But any men-made or inappropriate conduct damage will be excluded.If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport? A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. Are you looking for distributors? A6.We cherish every chance to cooperate with every distributors or willing to assist buyer develop into a local distributors. Distributors will enjoy more supports from us, regarding of price terms, technical support, customization, technical cooperation, exclusive policies, etc.
Q7. How to visit your company? A7: Fly to Shanghai airport, By high speed train From Shanghai to Wuxi (1 hour), then we can pick up you.
