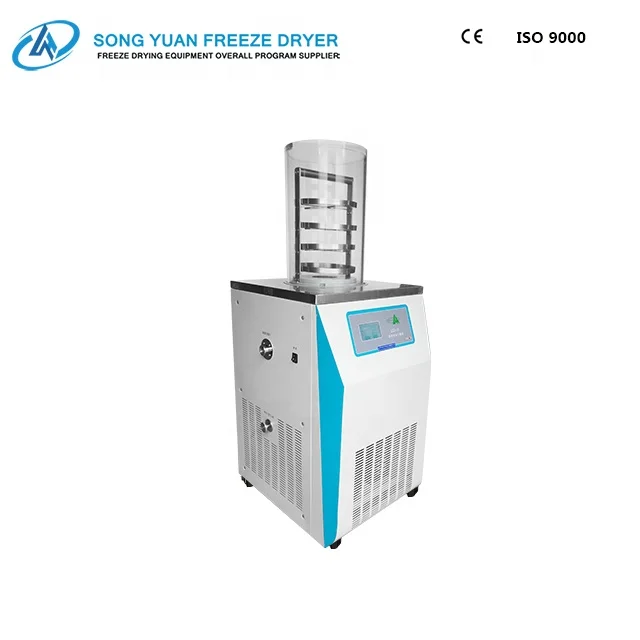

Suitable for freeze-drying bulk(liquid, paste or solidity) conventional materials.
specification
unit
LGJ-18A
shelf area
m2
0.18-0.27
input capacity
L
1.8-2.7
shelf number
layers
4
material tary diameter
mm
240
shelf spacing
mm
70 mm
ice condensing capacity
Kg/24H
6
condensr temp.(no loading )
℃
<-56℃
cooling method
-
air cooling
defrosting
-
Natural
final vacuum (no loading )
Pa
<5pa
installation rate
Kw
1.4
copressed air
L/S
4
hexternal dimension (L*W*H)
mm
630×580×970 (+460 as drum height)
total weight
KG
105
Main Features
* Modular design, optional with multiple functions and accessories * Main contact parts are made of stainless steel to meet GLP requirements * 4.3-inch color LCD touch screen and new generation Lyo-EMB dedicated control system * Can set time, temperature (°C/°F) and vacuum (Pa/mbar) * With batch data browsing and export, maintenance information prompt function * Optional mobile APP control system
Applications
1.Suitable for freeze-drying bulk(liquid, paste or solidity) conventional materials. 2.It is often used in the laboratory or at home. 3.Can make fruit, dried flowers, serum, medicine and so on.
Our Company
Beijing Songyuan Huaxing Technology Development Co., Ltd. was founded in 2000 and specializes in the R&D, production and sales of vacuum freeze-drying products. With the vacuum freeze dryer as the core product, forming different scales and different applications of three series of products as well as targeted solution for scientific research experiment, medical, and food industry. We are well-known on providing the vacuum freeze-drying equipment and targeted solution in China. We are one of the first domestic enterprises engaged in vacuum freeze-drying technology and safety production standardization of Beijing industrial enterprises. Our head office is in Beijing. We have the branches and special maintenance stations in Shanghai, Guangdong, Wuhan, Xian, and Chengdu. Our products are exported to the United States, Russia, South Korea, Japan, Singapore, Malaysia, Canada and other countries.
Certifications

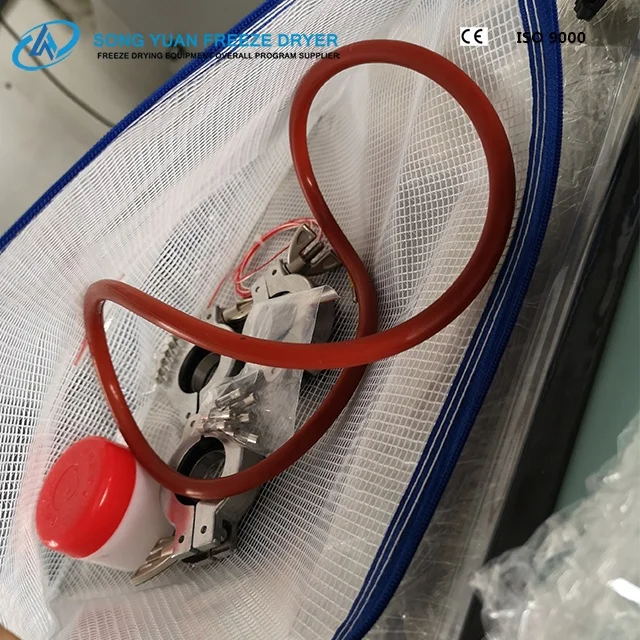

Packing & Delivery
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
