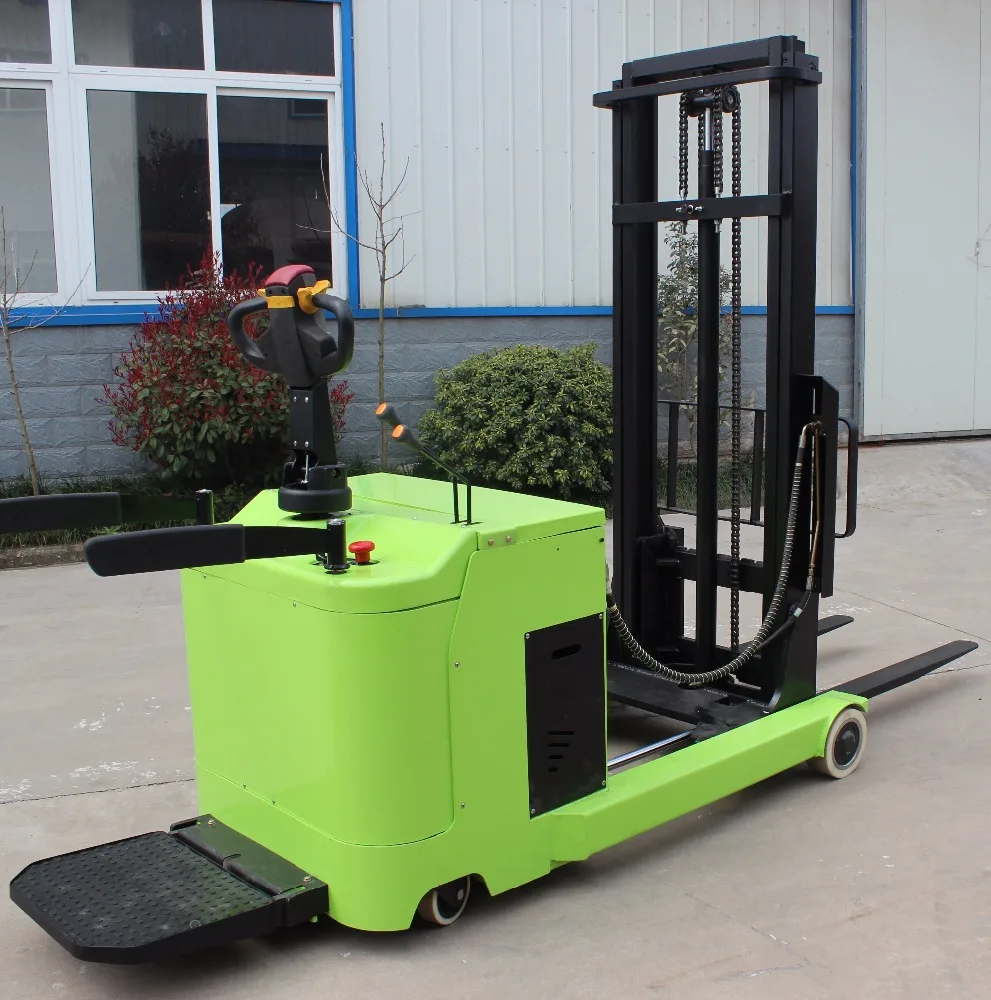

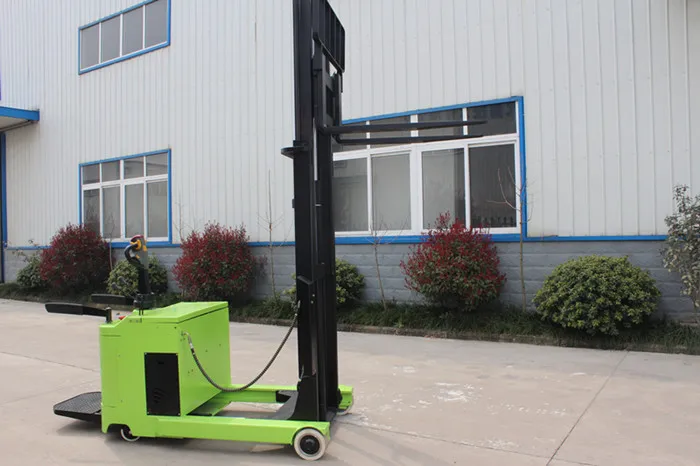

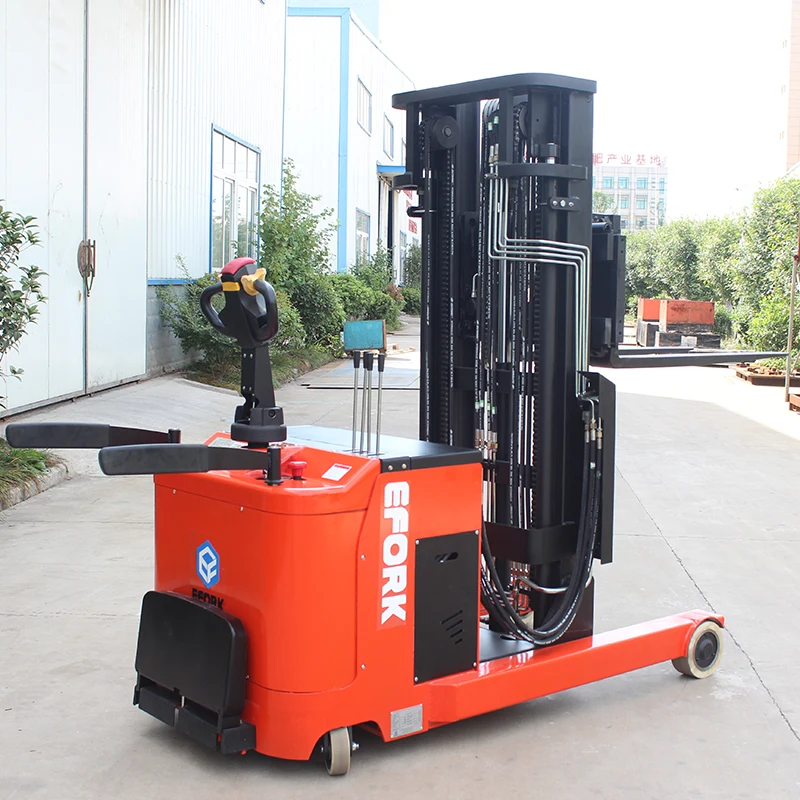

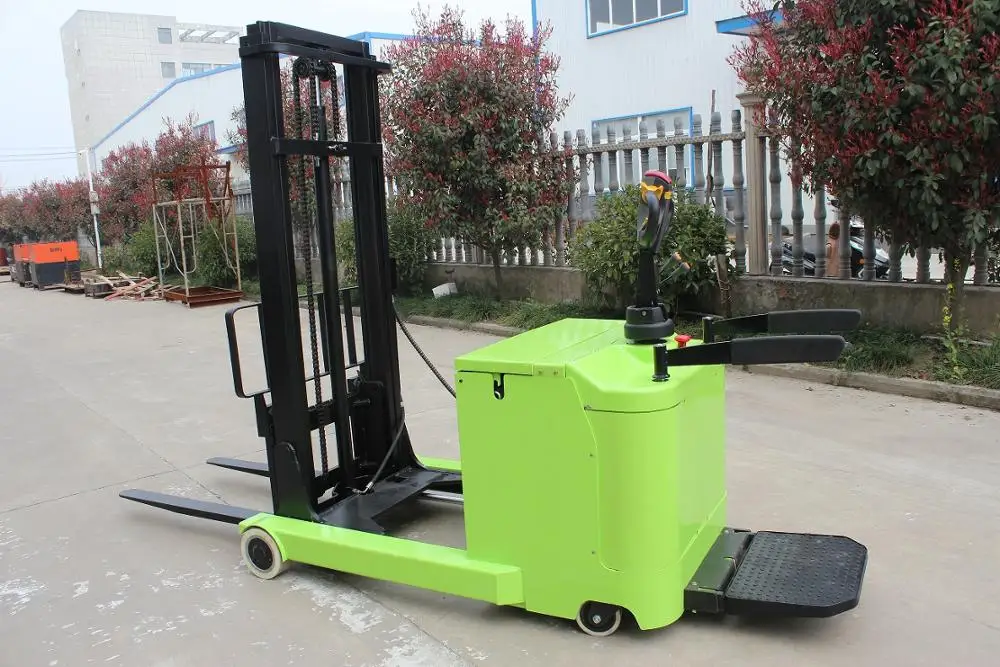

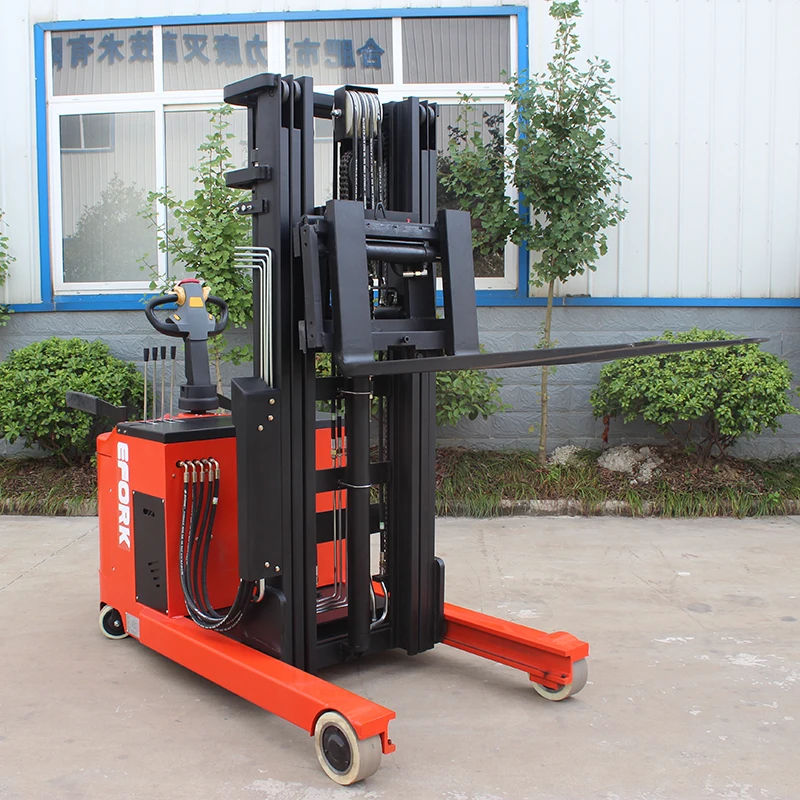

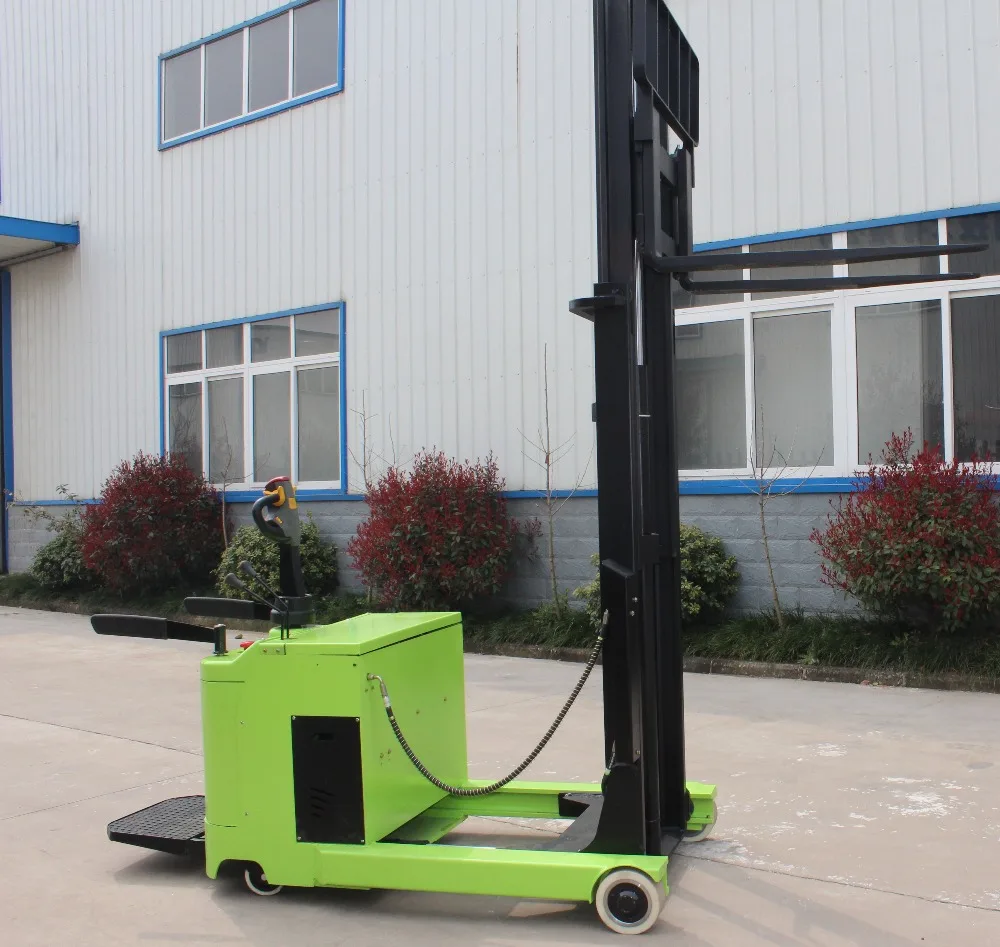

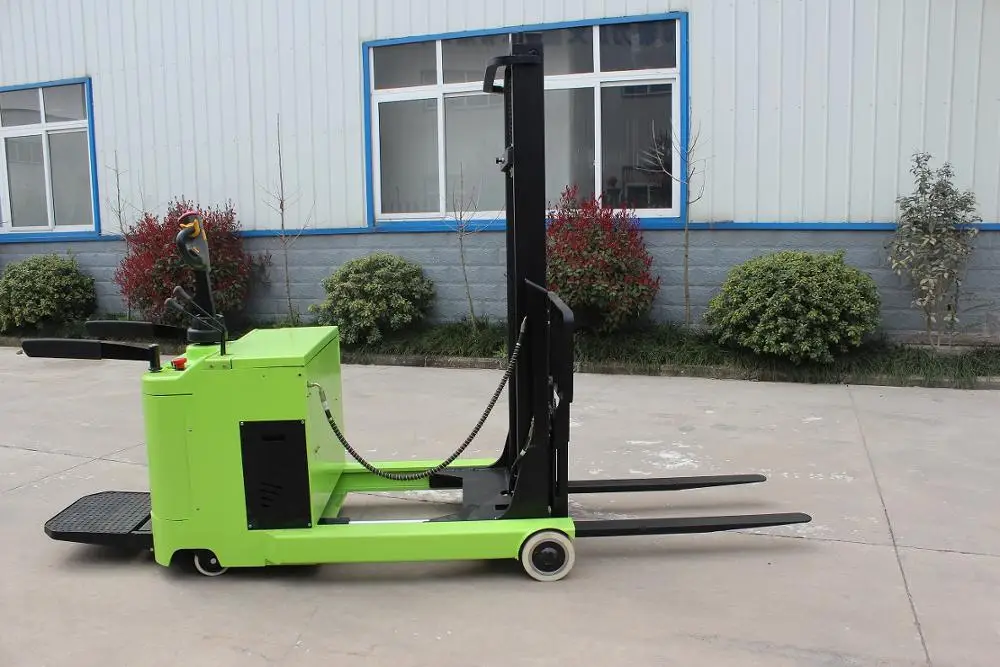

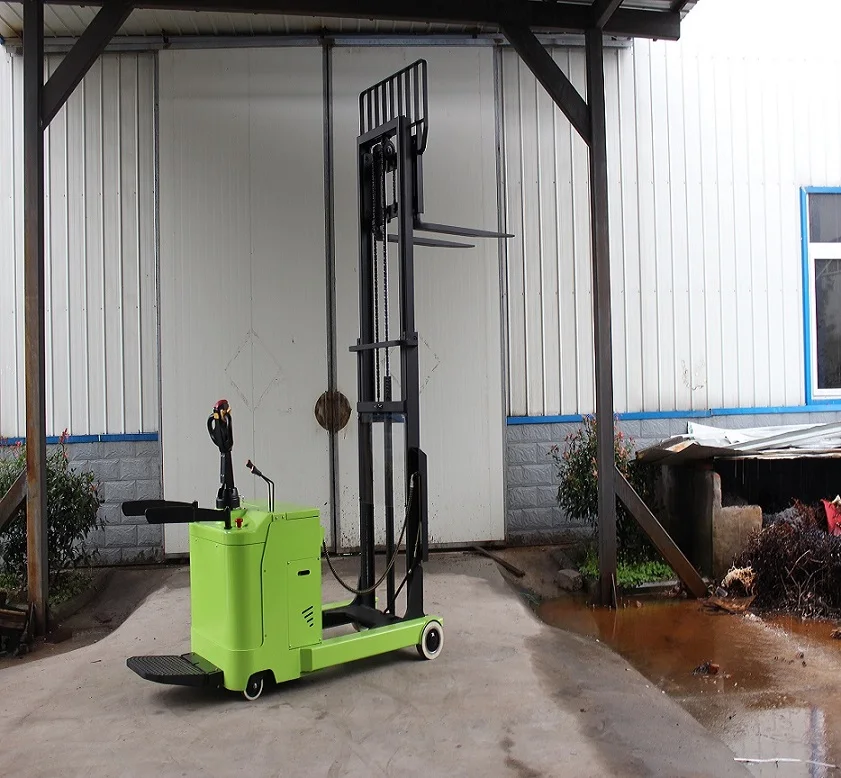

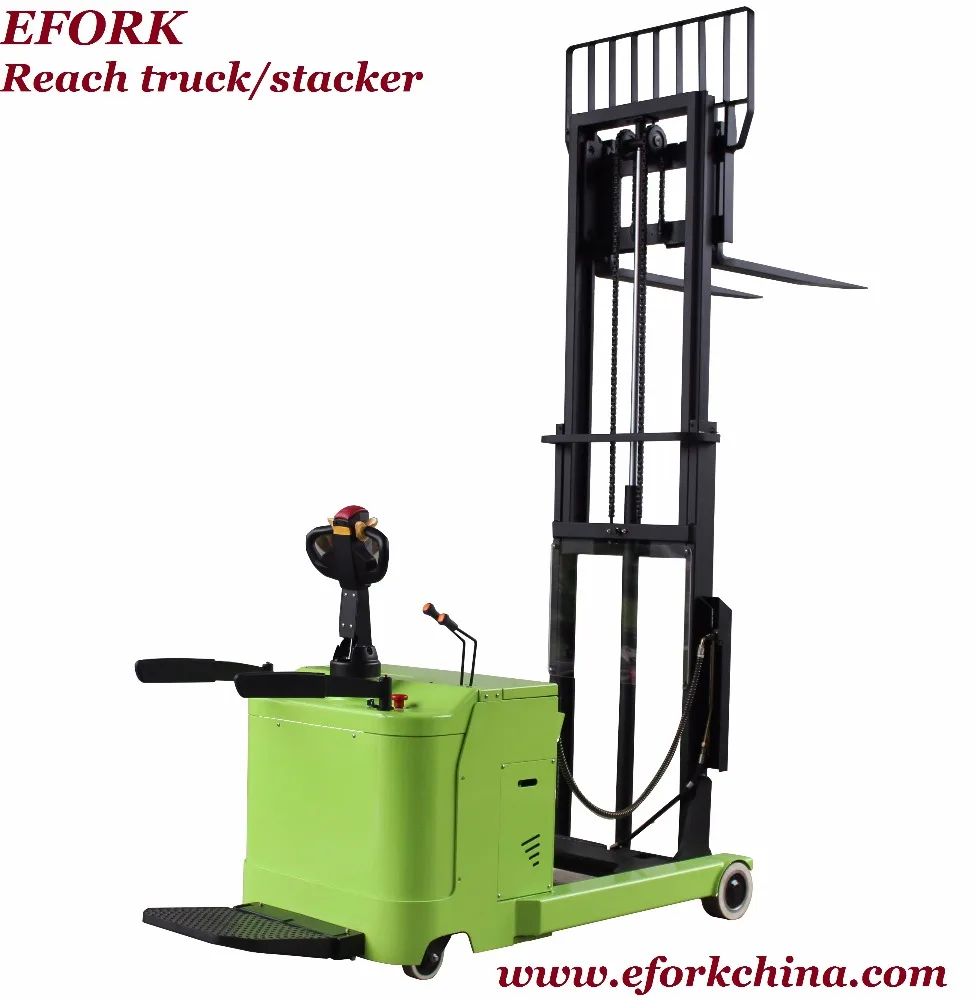

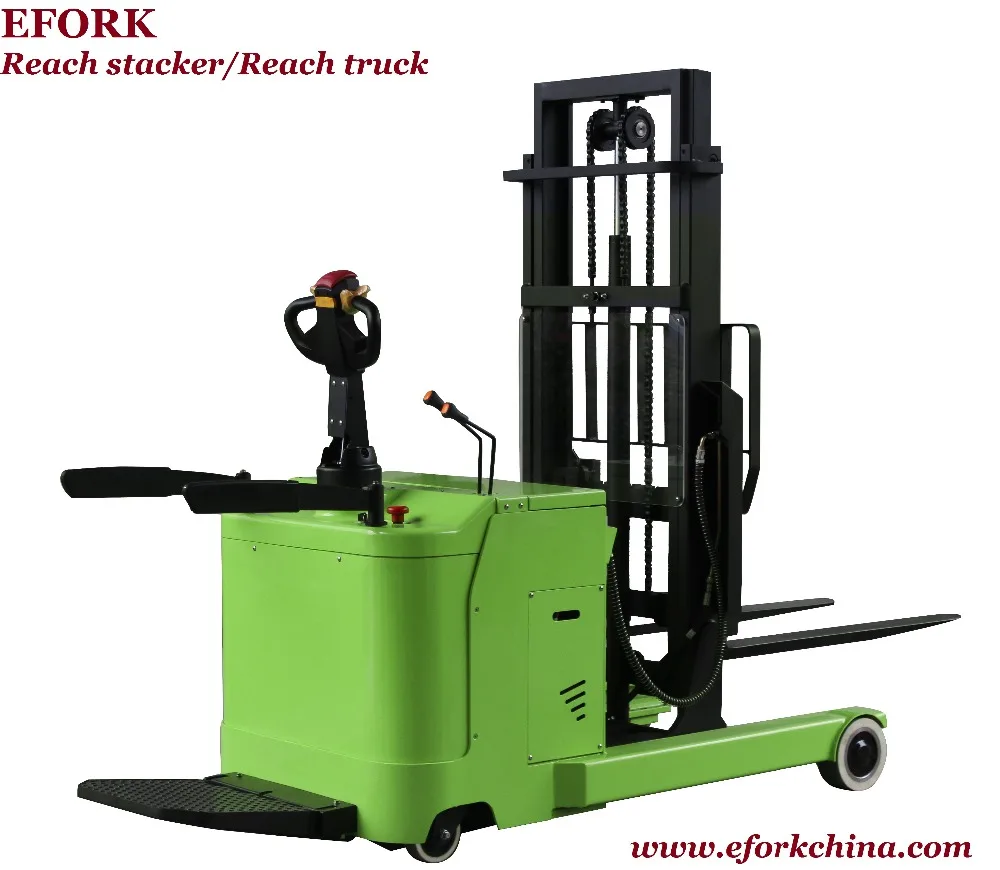

24V Electric Reach Truck Reach Forklift Pallet Truck Side Standing hot sale
Forklift Industry|Electric Forklift|Forklift Industry Company|Forklift Industry|Electric Forklift|Forklift Indus
Features:
1. Because of CURTIS electronic control, so we have multiple automatic protection system controllers.
2. Without frequently adjustment, Damping suspension spring can take the initiative to adjust vertical drive unit according to road conditions, reduce the impact of the drive unit, balance the force of the balance wheel, raise the efficiency and smoothly of the running.
3. High quality with buffer hydraulic pump station has the character of low noise, low vibration, sealing good, smooth and reliable hoisting and falling.
4. Anti-skid brake function prevent the car from declining when car driving out of control or at slope.
5. Alternating current driving, no carbon brush, free maintenance, highly efficient motor, accuracy control, powerfully output.
6. We have Multi-function handle and integrated control (Like acceleration, horn, emergency direction, lift button). All this function makes the operation more comfortable.
7. The door frame design is wide field of vision, dedicated channel steel, high strength. It has the characteristics of moving forward for overall door frame. Adjustable forged fork can easily apply to a variety of pallet. Furthermore, it has small turning radius and can neglect obstacles from the bottom of the shelf.
ach Forklift|1ton Electric Reach Forklift|Reach Forklift Electric|Reach Forklift|1ton Electric Reach Forklift|Reach Forklift Electric|
Name | Standing Type Reach Truck(A 24V) | |||
Operation type | Standing posture | |||
Model No. | Unit | CQD15A-25 | CQD20A-25 | |
Power type |
| Full-Electric | Full-Electric | Full-Electric |
Load Capacity | KG | 1000 | 1500 | 2000 |
Max Lifting Height | H2(mm) | 2500 | 2500 | 2500 |
Load center | C(mm) | 500 | 500 | 500 |
Wheel type |
| Pu solid tire | Pu solid tire | Pu solid tire |
Fork dimensions | mm | 1070*100*35
| 1070*100*35
| 1070*122*40
|
Fork spread | mm | 200-650 | 200-650 | 245-665 |
Reach distance | mm | 500 | 600 | 675 |
Overall length including fork | L(mm) | 2305 | 2305 | 2380 |
Overall width | S(mm) | 1034 | 1034 | 1034 |
Height--Mast Lowered | H1(mm) | 1840 | 1840 | 1840 |
Maximum height when fork is lifting | H(mm) | 3416 | 3416 | 3416 |
Turning radius (outside) | Wa(mm) | 1740 | 1650 | 1890 |
Min. stacking aisle(Pallet 1000x1200)(when the pedal fold) | mm | 2705 | 2735 | 2830 |
Min. ground clearance | mm | 70 | 70 | 70 |
Grade ability | % | 5-8 | 5-8 | 4-6 |
Max. travel speed | Kw/h | 4.0/5.0 | 4.0/5.0 | 4.0/5.0 |
Total weight | KG | 1875 | 1900 | 2050 |
Driving Wheel | mm | Ø230*75 | Ø230*75 | Ø230*75 |
Front wheel | mm | Ø210*85 | Ø210*85 | Ø210*85 |
Balance wheel | mm | Ø150*50 | Ø150*50 | Ø150*50 |

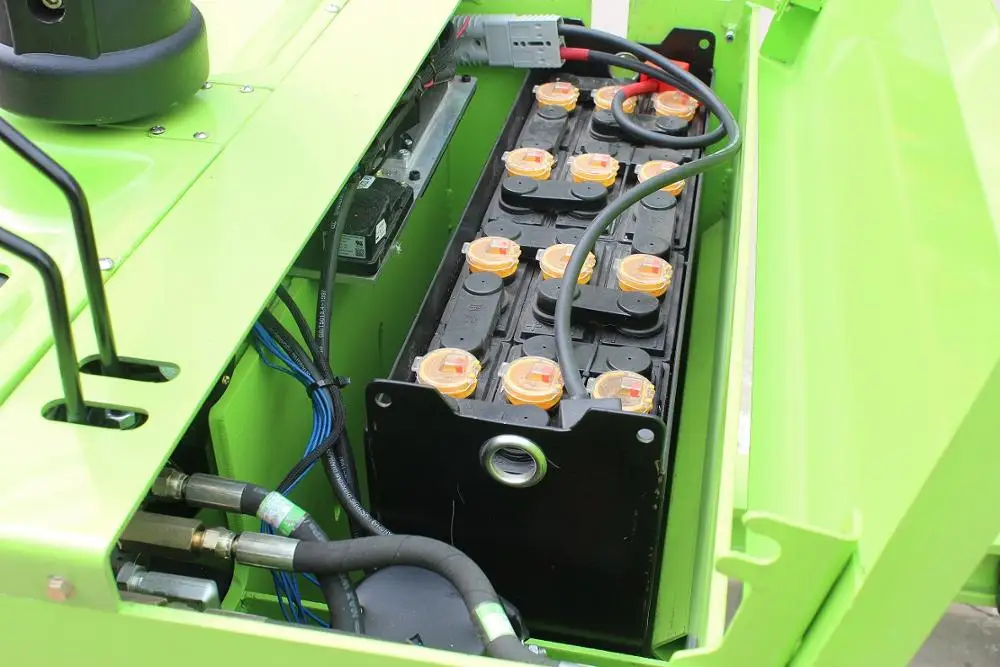

Battery capacity | V/Ah | 24/210 | 24/210 | 24/210 |
Charger-Intelligent | V/A | 24/30 | 24/30 | 24/30 |
Driving motor | Kw | 1.5 | 1.5 | 2.5 |
Lifting motor | Kw | 2.2 | 2.2 | 2.2 |
Drive Controlling Type |
| 1.5(AC) | 1.5(AC) | 2.5(AC) |
Walking Adjustable Type |
| Holzer type accelerator | Holzer type accelerator | Holzer type accelerator |
Brake Type |
| |||
| Electric steering | Electric steering | Electric steering |
Packaging Details:
1. Anhui Yufeng Equipment Co.,Ltd. is a high-tech enterprise professionally specialized in R&D, production, sales, service of electric storage and intelligent industrial system.
2. It is located in Feixi Huagang industrial park in Anhui, with advanced forklift manufactory technology, processing equipment and perfect product testing center. Our company is the China Automobile Industry Association member unit.
3. We won the honorary title such as “Outstanding Enterprise of Quality Management, Credibility and Service AAA level”, "National Enterprise of Good Creditworthiness", "National Quality Management Advanced Enterprise" and "Anhui Famous Brand" etc.
4. The company has already passed the safety production standardization and the quality authentication of ISO9001 and European Union CE certification, fit-out national patent certificate.
5. Our main storage equipment are electric truck, stacking car, reach forklift trucks, towing vehicle, order picker, AGV pilotless truck, counter balanced weight forklift and so on.They are widely used in various places of modern logistics.
More Products maybe you interested, please contact us
How to contact us? please visit //www.eforkchina.com
Send your Inquiry Details in the Below, Click "Send" Now!
our whatsapp is 0086-19855199372
After-sale Service
All the product of EFORK supplied with one year or 1000 working hours (which occurs first) period quality warranty.Detail clauses and policies please check our website and consult our customer service executive.
1. How long it will take to deliver the products after I pay for it?
Above delivery time is 26 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, tow tractor, order picker etc?
Our equipment quality warranty is 1 year or 1000 hours which comes first.
4. What kinds of engine do you have and any gurantee?
Electric motor, CURTIS controller. Absolutely high quality.
5. How many colors of forklift you can supply?
Green, Orange, Yellow, Red. Or As Per Your Request.
6,What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat, direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
