Copper Rod Breakdown Machine with Individual Drives
- Category: Wires, Cables & Cable Assemblies >>>
- Supplier: Jiangsu Brainpower Intelligent Technology Co. Ltd.
Share on (62142067307):
Product Overview
Description
Aplication
Copper Rod Breakdown Machine with Individual Drives is used for drawing copper and aluminum or alloy wire with high speed.
Feature
1)Raw material type: Copper wire
2)Capstan Diamter: 450mm
3)Max.Dies Quantity: 13
4)Individual drives: 55-75KW
5)Speed Range: 25m/s
Main Specification
BRN-LSD450 Copper Rod Breakdown Machine With Individual Motor Controlled | ||||
Machine type | LSD450/13 | LSD450/11 | LSD450/9 | |
Drawing Capstan Dia.(mm) | φ450 | φ450 | φ450 | |
Max. Die No. | 13 | 11 | 9 | |
Inlet Dia.(mm) | Copper | φ8 | ||
Outlet Dia. (mm) | Copper | φ1.2-φ4.2 | φ1.5-φ4.2 | φ2.0-4.2 |
Max.Drawing Speed (MAX) (m/s) | 25 | 25 | 20 | |
Single Motor Power (KW) | 37 / 55 (AC) | |||
Capstan Arrangement | Horizontal Type | |||
Lubrication Type | Full Immersion | |||

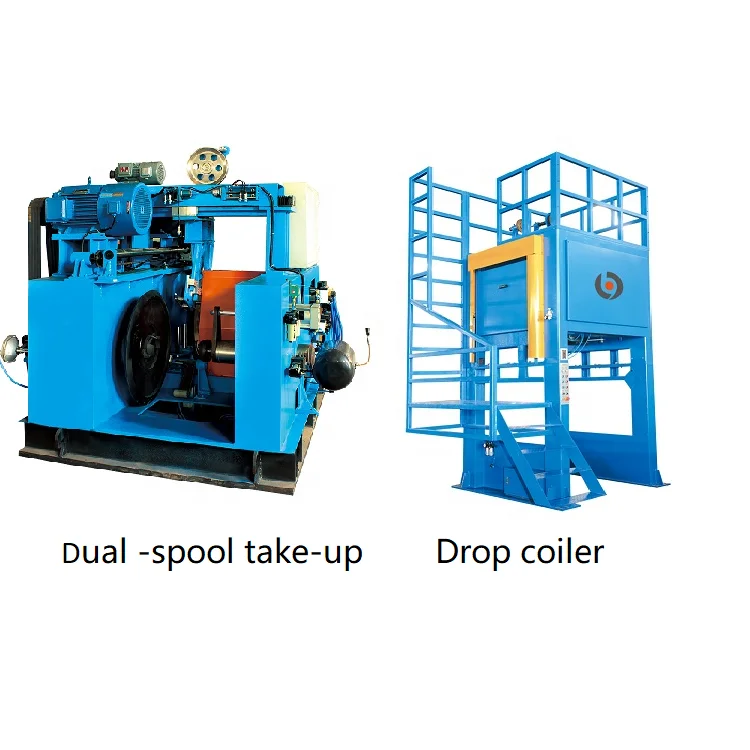

Take-up Type (Optional) | Double Take-up/ Single Take-up / Coiler | |||
Optional Equipment for copper wire | Horizontal continuous annealing | |||
On-line Continuous Annealing Device | ||||
Type | 450T | 450TB | ||
Annealing Wire Dia.( mm ) | φ1.2 ~ 3.5 | φ1.2~4.2 | ||
Annealing Voltage ( V ) | 0 ~ 60 | 0 ~ 60 | ||
Annealing Current ( A ) | 0~6000A (DC) | 0~5000A (AC) | ||
Max. Annealing Speed ( m / s) | 25 m/s | |||

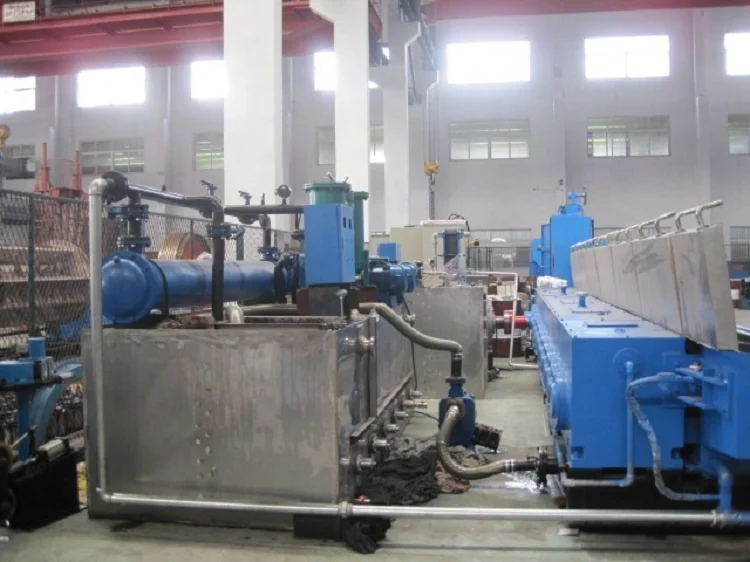

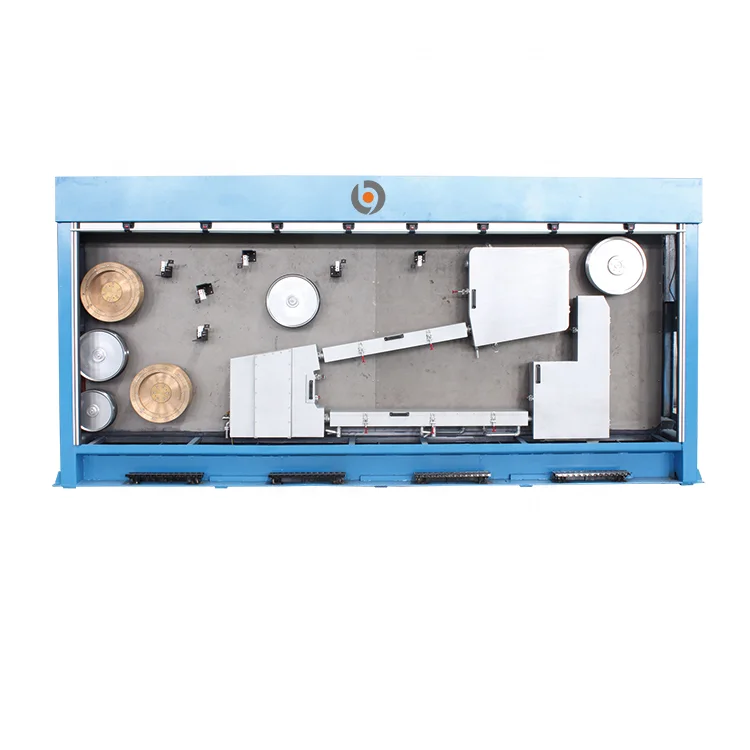

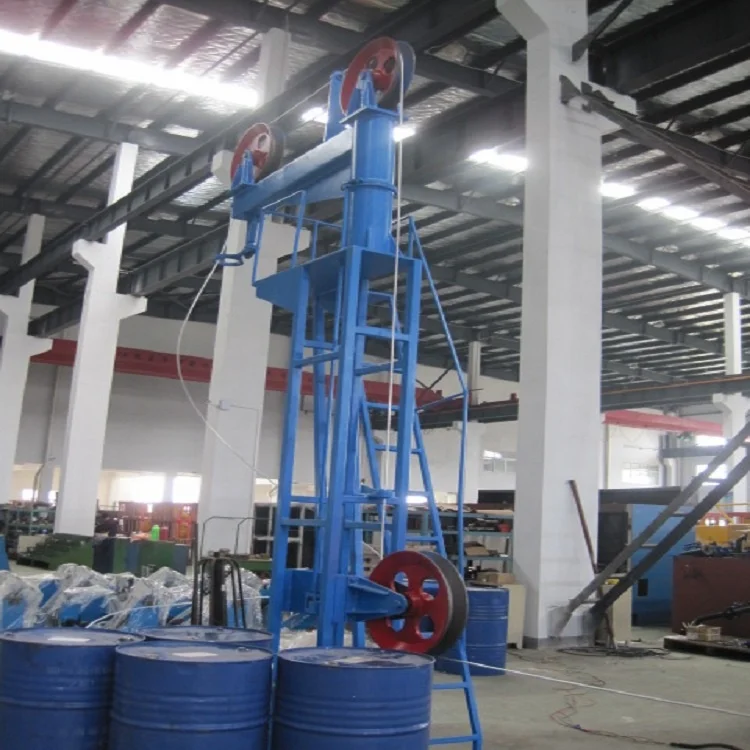

Photos show
Advantages

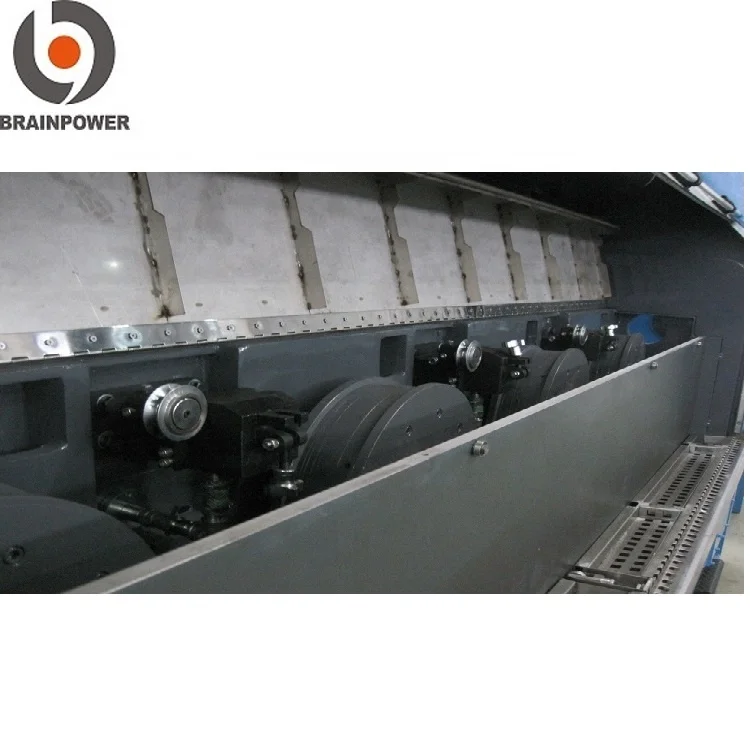

1) Every drum is run by single motor with drivers.
2) Door up and down automatically make threading easily.
3) Tension rate can be adjustable according to different raw material.
4) Quick die change system.
5) Full immersion guarantee the wire’s cooling and lubrication.
6) Drum box body is separated with transmit part, mechanical labyrinth seal type,
to avoid drawing oil and gear oil mixed.

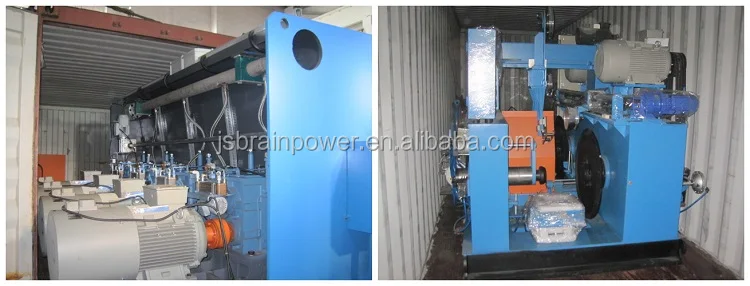

Packaging & Shipping
Trade Shows
FAQ
1) What’s the payment terms?
Standard type is 30% T/T as deposit, 70% T/T before shipping.
2) How about the after-sell service?
Engineer will be dispatched at needed.
3)How much need pay for after-sell service?
The buyer provides engineer's roundtrip flight tickets, board and lodging,
the security as well as each person of daily wage.
4)What kind of Gurantee you can offer?
12 months since shipping date and charge for repair the whole life.
5) Can you support complete project instead of single machine?
Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.A
