Liquid control flow meter price electromagnetic flowmeter water meter medidor de flujo marcas
- Category: Flow Meters >>>
- Supplier: Henan Dafang Dingsheng Flow Instrument Co. Ltd.
Share on (62144093558):
Product Overview
Description
Liquid control flow meter price electromagnetic flowmeter water meter medidor de flujo marcas
Product Description

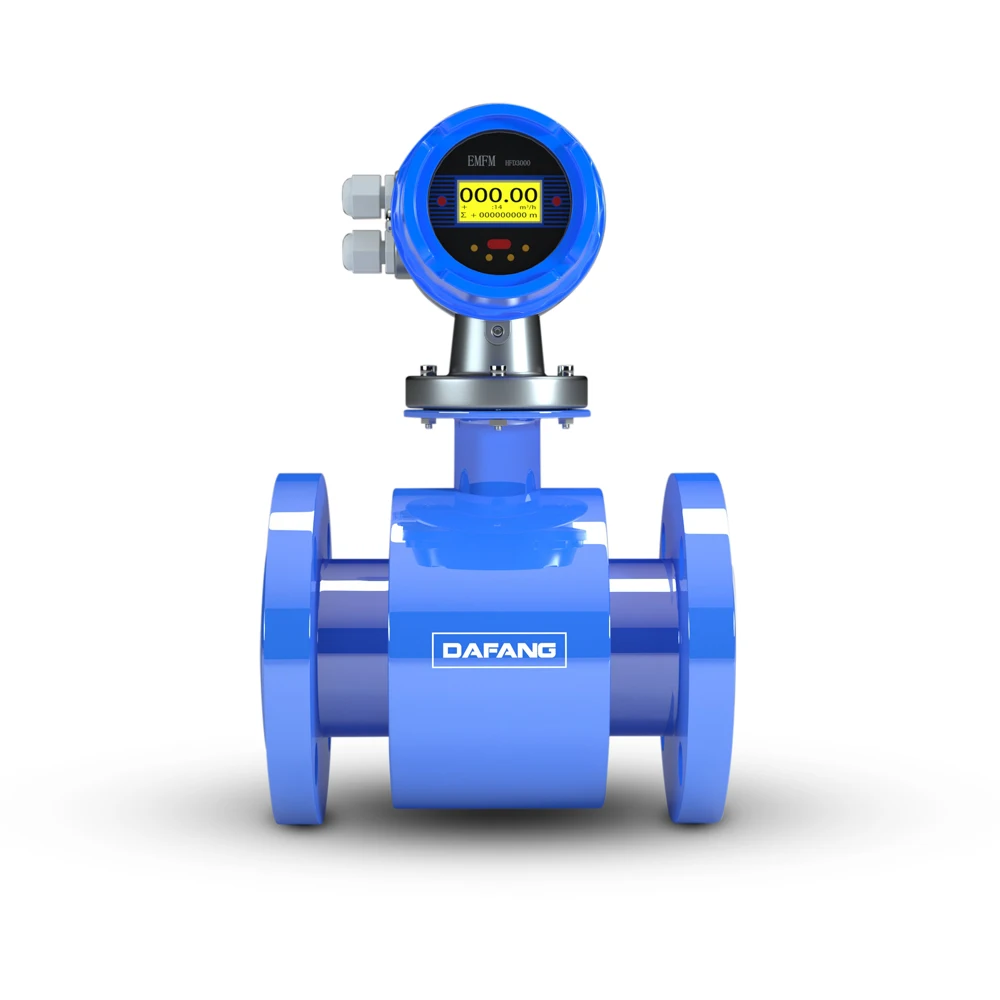

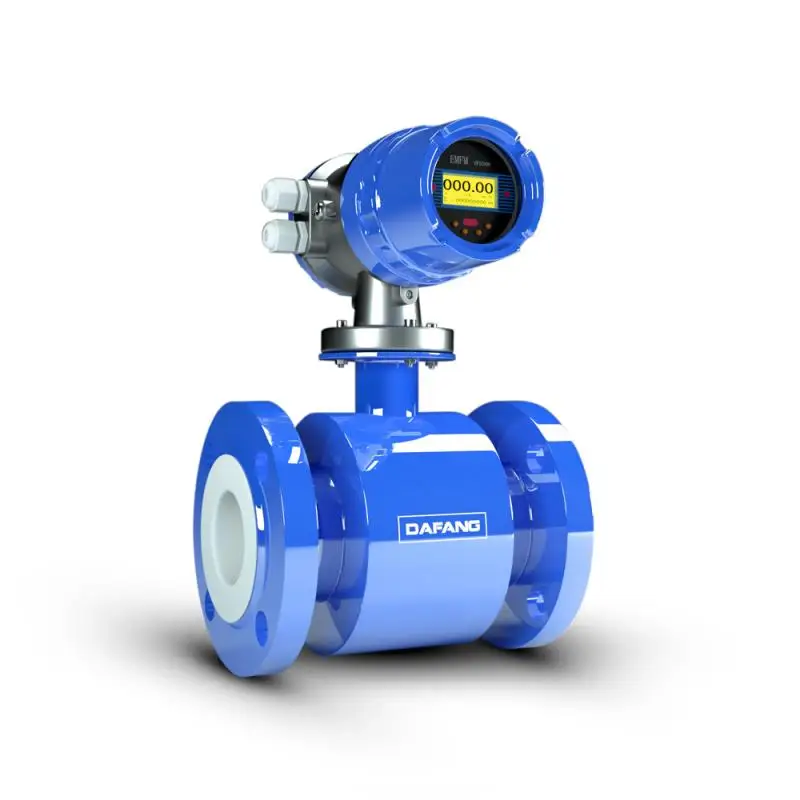

DFDS-YGD Integrated Type
 |
|
Carbon steelThe raw material of the main body is made of GB/T699-88 carbon steel, anti-rust paint spraying process, special requirements, paint color can be Customized. |
Stainless steelThe raw material of the body shell is made of stainless steel (SUS316 and SUS304 are optional), and the mirror surface is polished. |

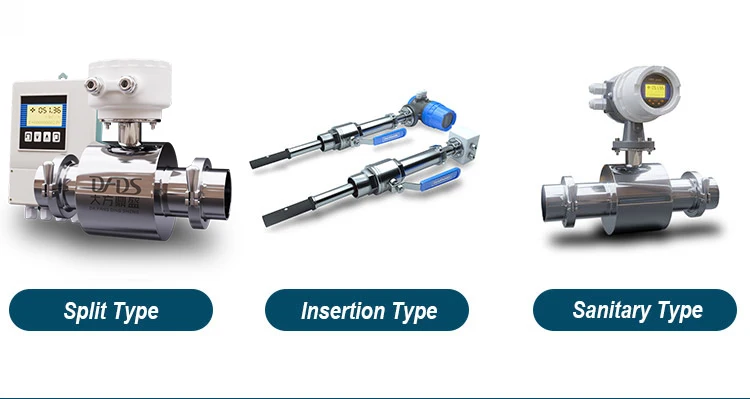

Related types
Technical performance parameter
| Nominal Diameter | DN10~DN3000mm |
| Nominal Pressure | 0.6~4.0MPa (Higher Pressure can be customized) |
| Main Power | AC220V 50Hz / DC24V / 3.6V |
| Language | English, Others can be customized. |
| Display | Instantaneous flow, flow unit, cumulative flow |
| Unit | Liter, m³, Gallon (Optional). |
| Accuracy | ±0.5%, ±0.3% |
| Output Signal | RS485 / 4-20mA / Pulse / Analog |
| Communication | RS232, RS485 (MODBUS), HART is optional |
| Lining Material | Neoprene, Polyurethane Rubber, PTFE, F46, PFA |
| Electrode Material | SUS316, HB, HC, Titanium, Tantalum, Platinum-iridium alloy, Wolfram |
| Medium Temp. | -20°C ~ +180°C |
| Ambient Temp. | -25°C ~ +60°C |
| Medium Electrical Conductivity |
≥5us/cm |
| Measuring Range | 1500:1, flow rate<15m/s |
| Protection Class | IP65, IP67, IP68 (Optional) |

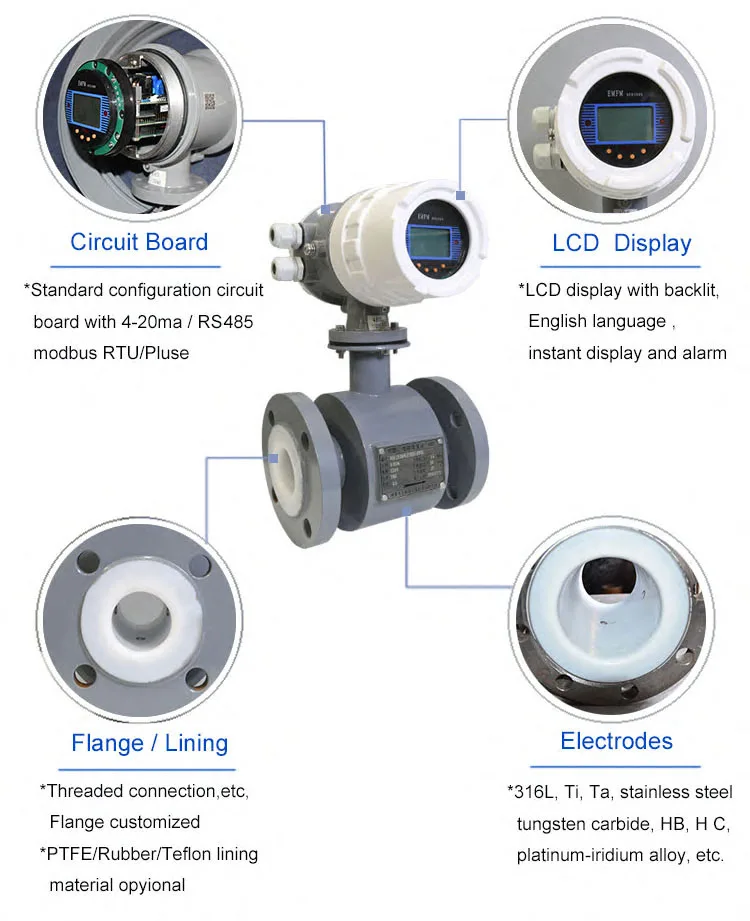

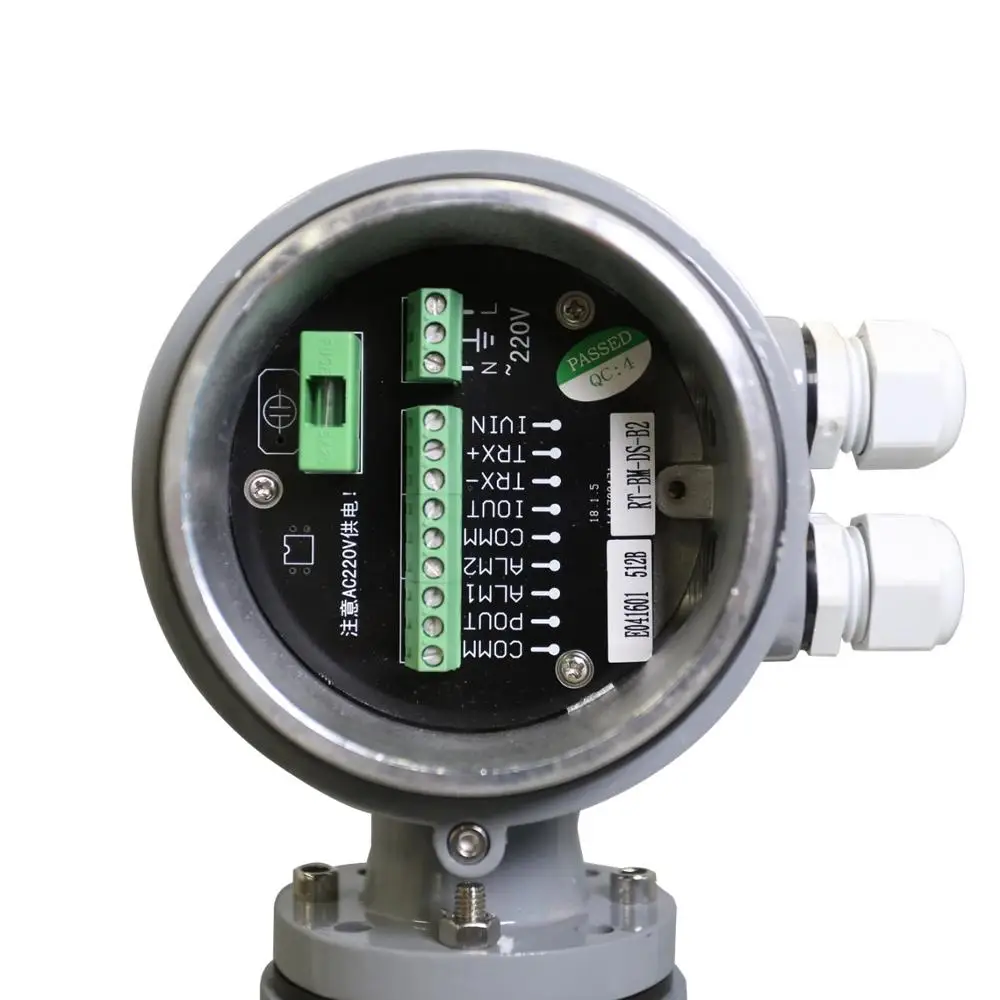

Product Details
Product Details
Why Choose US
Why Choose US
• We will reply to you within 1 hour.
• Offer the professional solutions and product selection advice.
• Online / Wechat / Skype / WhatsApp / email are all available according to your preference.
Order Guide for fast understand:
*What liquid do you measure?--- Water, Slurry, Beer, or...
*The pipe DN/Inch? ----DN50, DN200 or...
*Voltage? ---110~220V, 12~24V or 3.6V
*If any special requirement, pls advise us.
