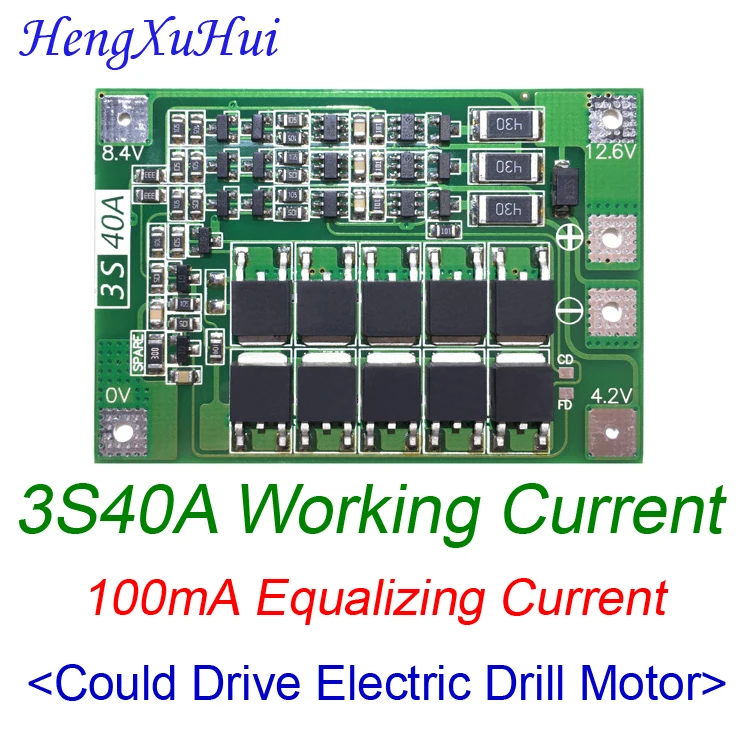

3S40A BMS Li ion Battery Protection Board with Balance 100mA Current
- Category: Electronic Components, Accessories & Telecommunications >>>
- Supplier: Shenzhen HengXuHui Technology Co. LTD
Share on (62149457116):
Product Overview
Description
Product Description

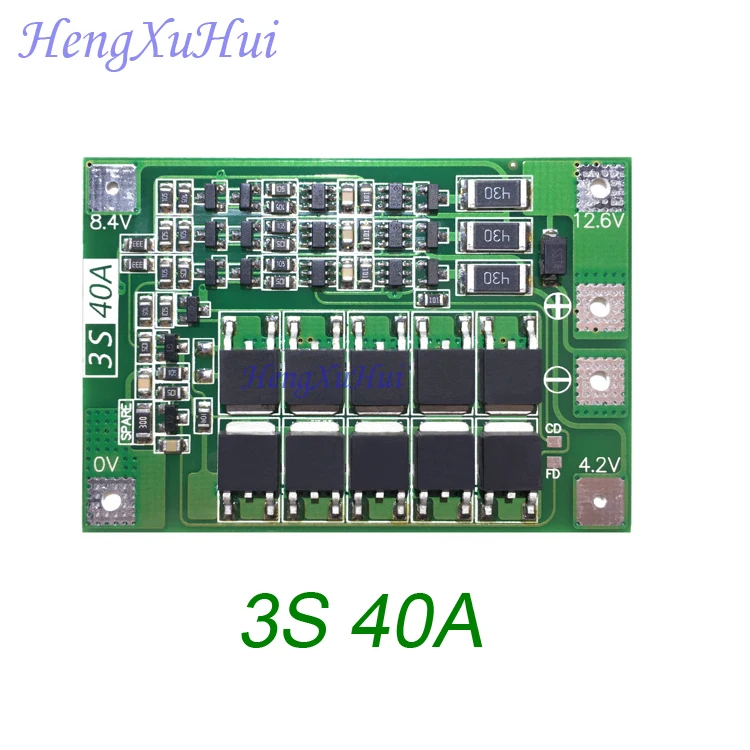

3S40A BMS
11.1V 12.6V 3S 40A BMS 18650 Lipo Battery Charger Protection Board with Balance Equalized Charging BMS Drive Drill Motor
Product details
| Product Keywords | 3S40A BMS |
12.6V 11.1V 3S 40A Li-ion Lithium Battery PCB Protection Board AUTO Recovery
(with Equalizing Charging )
1. Features:
Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)
2. Precautions:

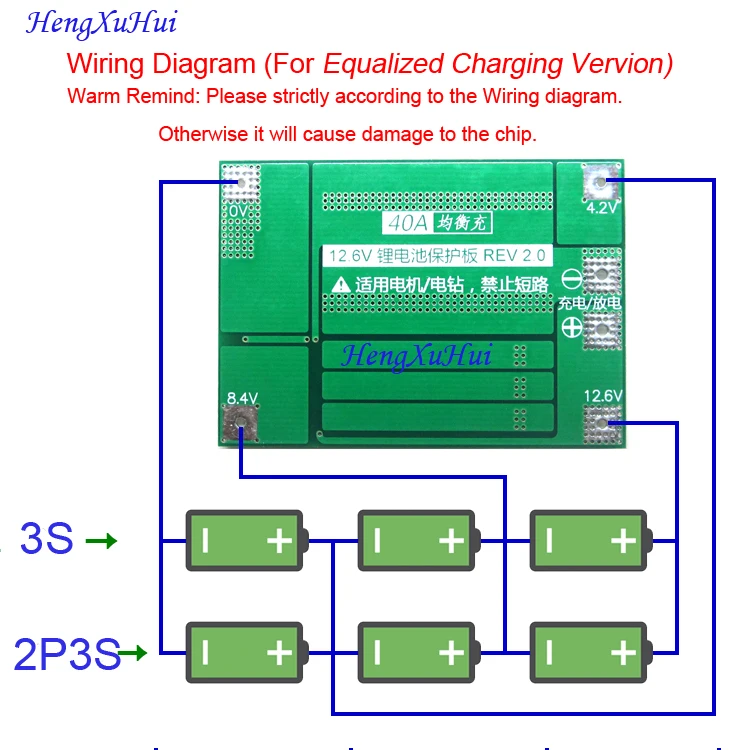

1) Please strictly according to the circuit: 0V/4.2V/8.4V/12.6V. Otherwise it will cause damage to the chip.
2) After connection,it need to first charge activation, then will have the output.
3) If used in driving Motor Drill , The battery pack needs 3 pcs 10C-15C Power Battery or 6 pcs 5C-10C power battery.
( Normal 18650 battery could not Drive motor drill )
3. Attention:
Do not mix the good battery and poor battery to use.
The internal resistance of 3 battery capacity are closer will be better.
Please buyers know the professional knowledge of this module before buying

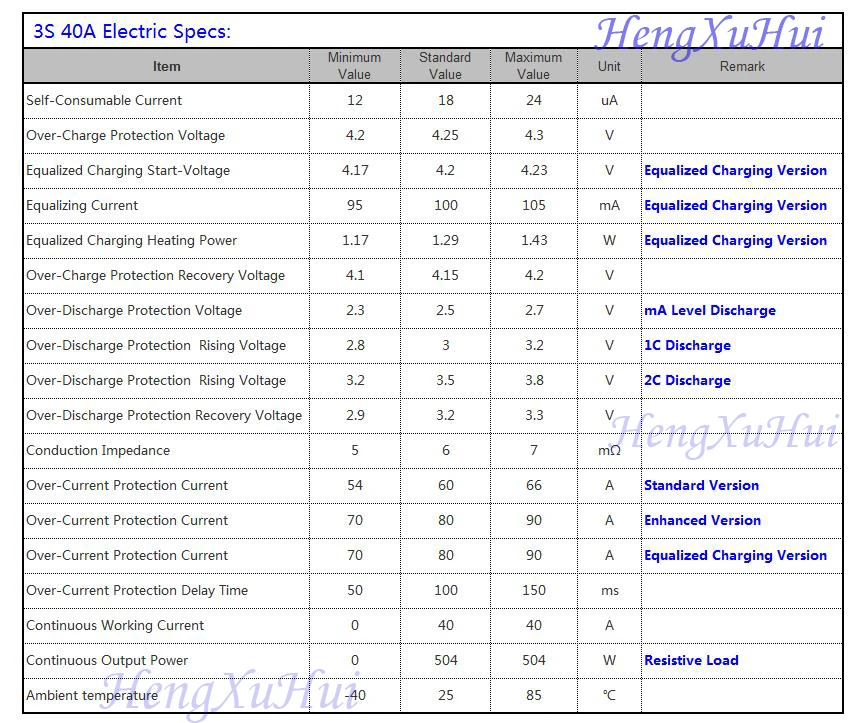

4. Specifications:
1) Product Size : 42*60*3.4MM
2) Net Weight : 9.8g
3) Charging voltage: 12.6V- 13.6V
4) Maximum output current: 40A
5) Maximum charging Current: 20A
5) Maximum charging Current: 20A
6) With Equalized charging current 100mA. Starting Current below 80A , Power below 135W Motor Drill and Resistive Load below 504W.
5. Package Contents:
5. Package Contents:
1 x PCB Protection Board1
