Sand Recycling Machine for Sand Washing Machine, And Sand Classifier

Product Overview

Description

Sand Washer Recycling Machine for Slurry Dewatering, Remove medium, Desliming equipment

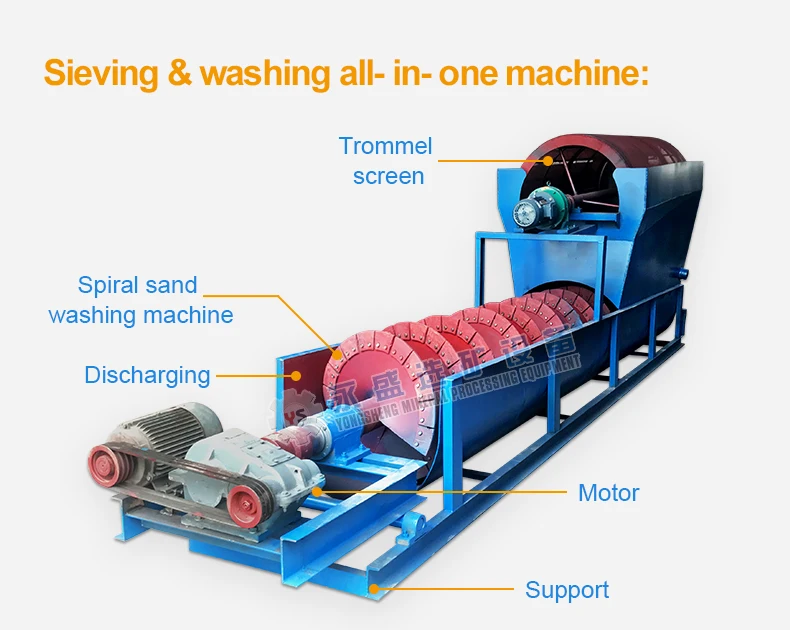

Sand Washer Recycling Machine is development for Slurry Dewatering, Remove medium, Desliming equipment, the machine is the biggest characteristic is can well solve the sand erosion problems in the system of sand industry, from the domestic and foreign large and medium-sized stone factory, sand washing, artificial sand production line, more than 90% is applied wet line, generally USES Hopper Bin ---- Feeder Machine ---- Crusher (primary or secondary, tertiary crushing equipment) ---- Washing equipment (Spiral sand washer or Impeller sand washer) ---- Screening equipment---- Finished product. As the name implies, wet production line USES washed aggregate, which cannot avoid the loss of some finished sand from the sand washing machine, especially the most serious loss of fine sand below 0.16-0.2mm, the loss rate is up to 20%, the consequences are as follows:



1. Fine sand loss below 0.2mm affects the grading of sand, resulting in unreasonable grading and unreasonable fineness modulus, which greatly reduces the product quality of mechanical sand;



2. too much sand and sludge into the sedimentation tank, causing sedimentation tank sedimentation, not only pollution of the environment, and frequent cleaning of sedimentation tank cost is very high;



3. a large number of fine sand loss, greatly reduced the customer's income.



In general, before buying equipment, the first thing to consider is the fine sand recycling machine technical parameters, the so-called technical parameters and fine sand recycling model number is similar, so we produce the fine sand recycling machine technical parameters include what content? Today we will simply introduce the fine sand recycling machine:

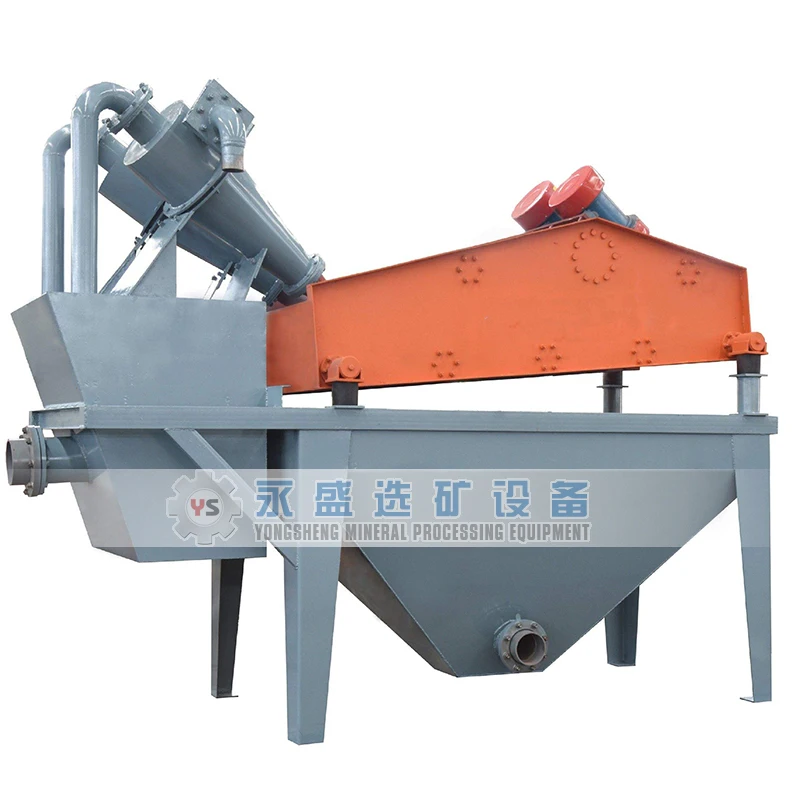

-First is the cyclone specification, the cyclone specification can determine the fine sand recycling machine processing capacity, the larger the cyclone specification, the corresponding processing capacity is larger.



-The second is the slurry pump, slurry pump in fine sand recycling machine role is to transport the sand water mixture to the cyclone, which requires the size of slurry pump to match the raw material, too big or too small, will lead to problems in the process of recycling fine sand.



-The third is the dehydration screen, dehydration screen can ensure the efficiency of screening, screen screen area is larger, the power is greater, the production of fine sand output is greater.

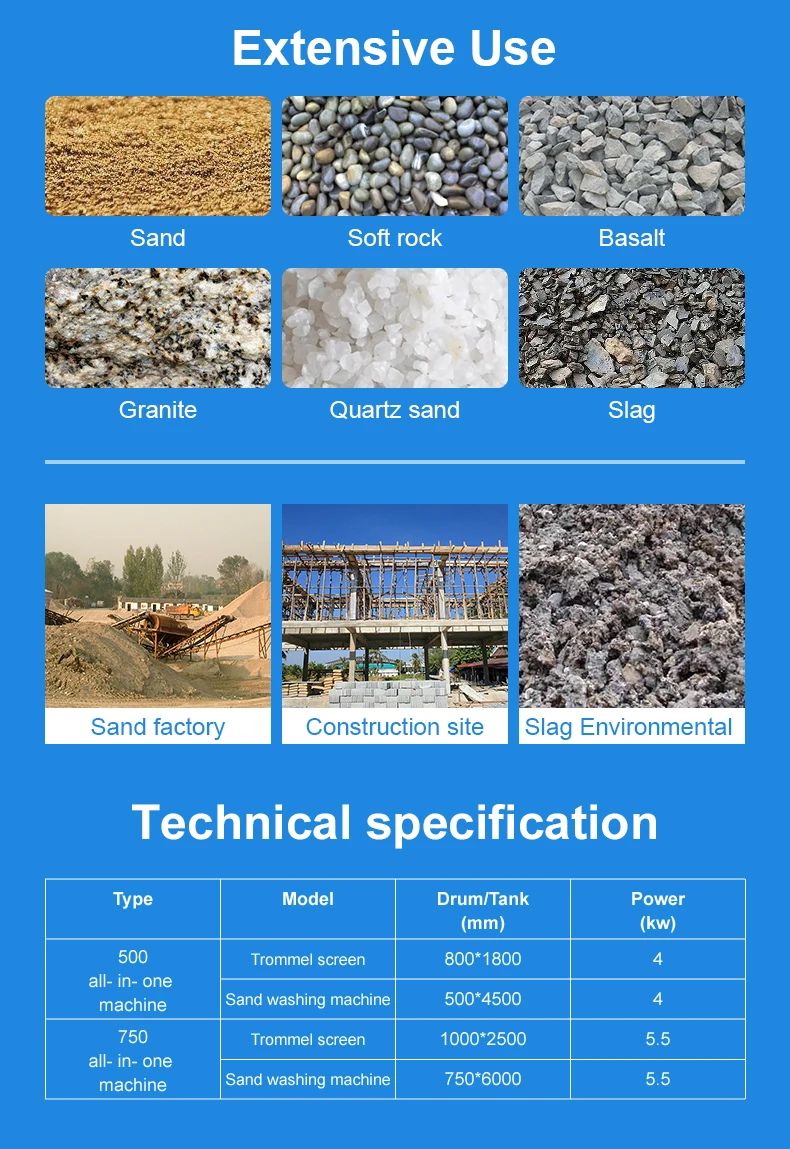

Sand Washer Recycling Machine Main Technical Parameters
