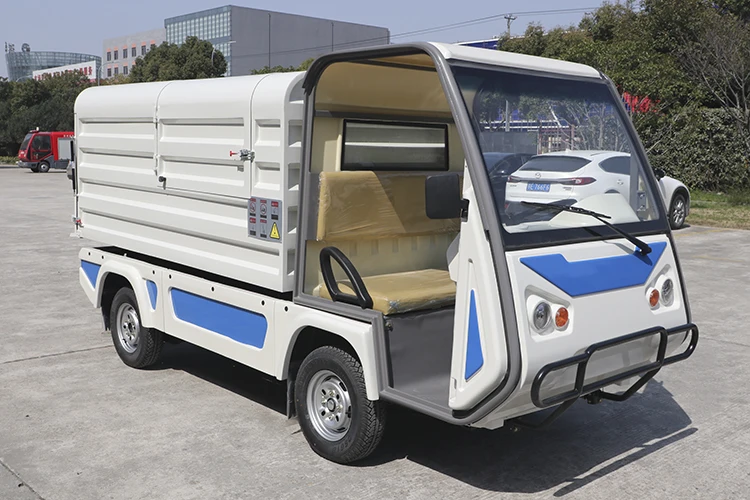

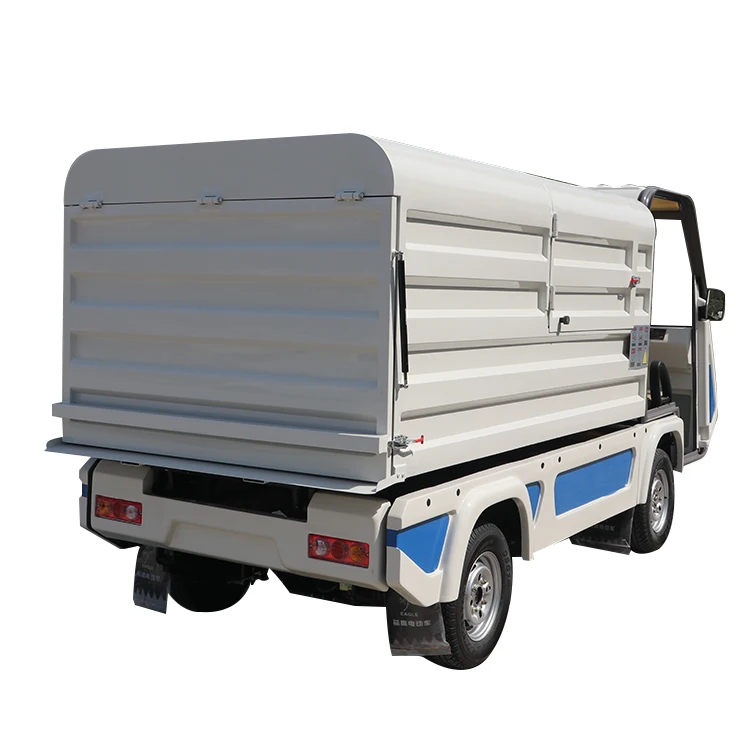

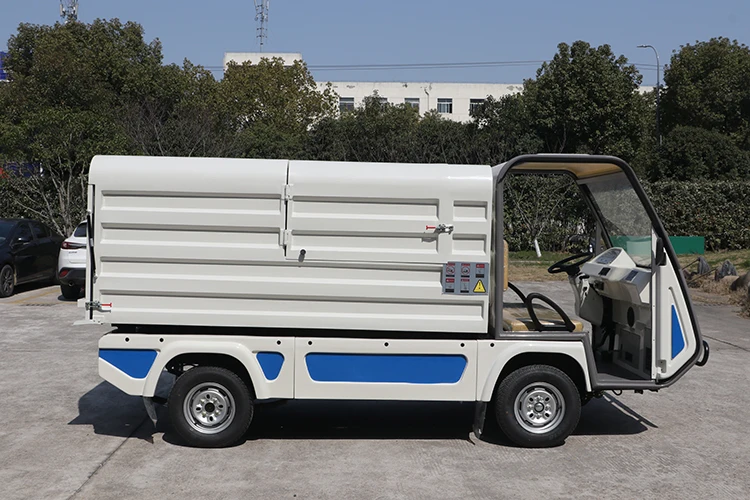

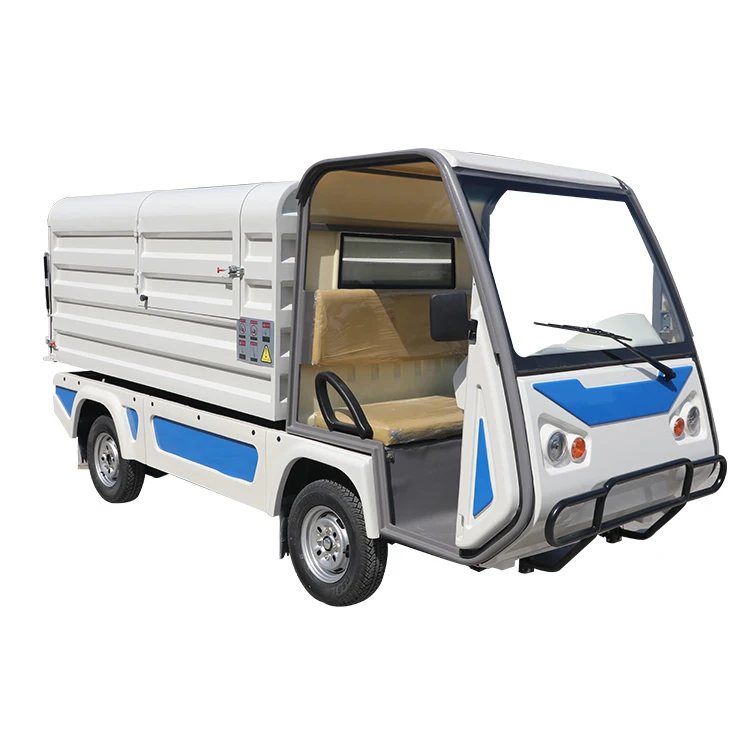

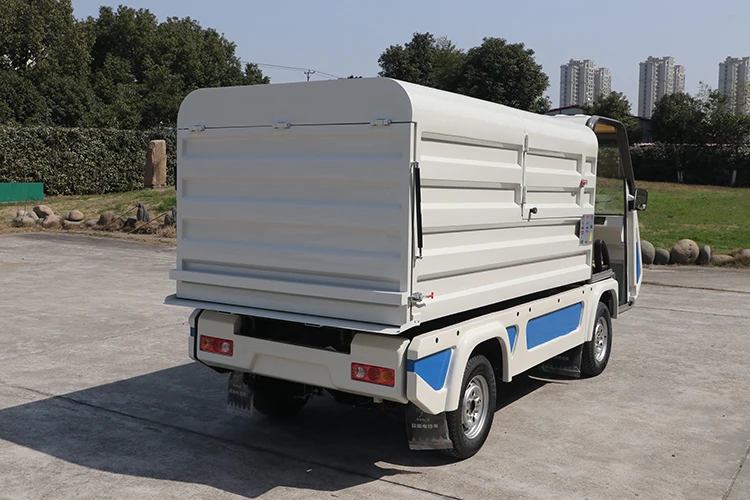

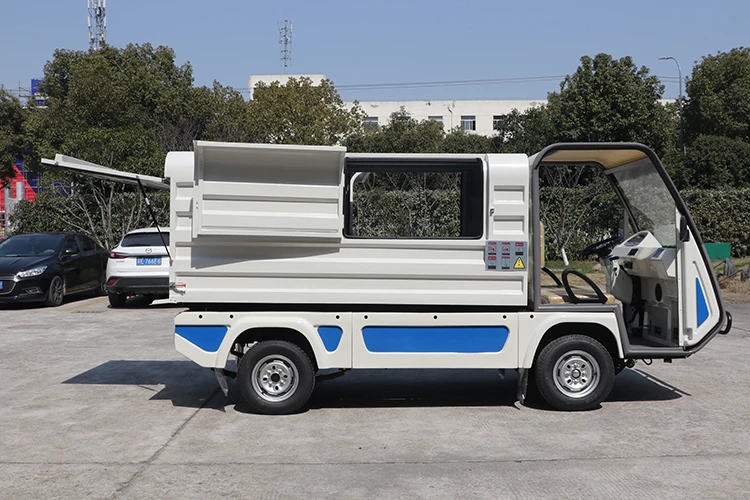

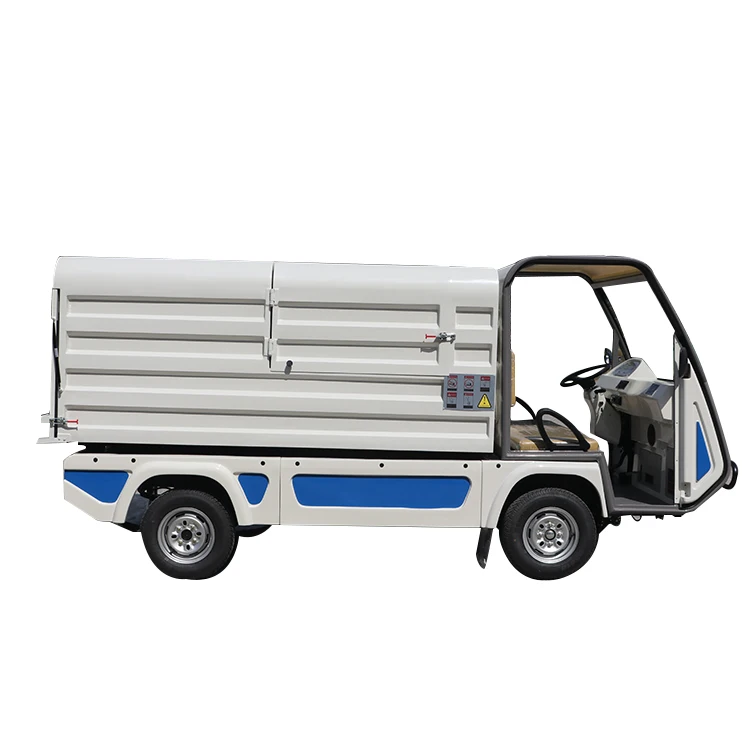

Экономичный Электрический уличный грузовик
- Category: Garbage Truck >>>
- Supplier: Suzhou Eagle Electric Vehicle Manufacturing Co. Ltd.
Share on (62155960928):
Product Overview
Description
Product Description
| Model | EG6023X | |
| Description | 1.0T electric garbage truck | 1.0T electric garbage truck |
| System | 72V/5KW Series | 72V/7.5KW Series |
| Key Components | ||
| Battery | 12xT105(185Ah@5hr rate) | 12xT105(185Ah@5hr rate) |
| Motor | 5KW Chinese motor | 7.5KW AC motor |
| Controller | Curtis 1205M-6B403 (400A@1minute) | ZAPI AC2 (400A@1minute) |
| Performance | ||
| Passenger capacity | 2 | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >80 | >80 |
| Max. speed(km/h) | 30 | 30 |
| Max. climbing ability (loaded) | 15% | 20% |
| Max. movement after brake at speed of 20km/h | ≤NA | ≤NA |
| Max. loading weight | 1000kgs | 1000kgs |
| Net weight | 1535kgs | 1535kgs |
| Dimensions | ||
| Overall dimensions (mm) | 4200X1500X2150 | |
| Rear cargo bed dimension(mm) | 2555*1400*1100 | |
| Min. ground clearance (mm) | 150 | |
| Wheelbase (mm) | 2370 | |
| Front wheel tread (mm) | 1220 | |
| Rear wheel tread (mm) | 1220 | |
