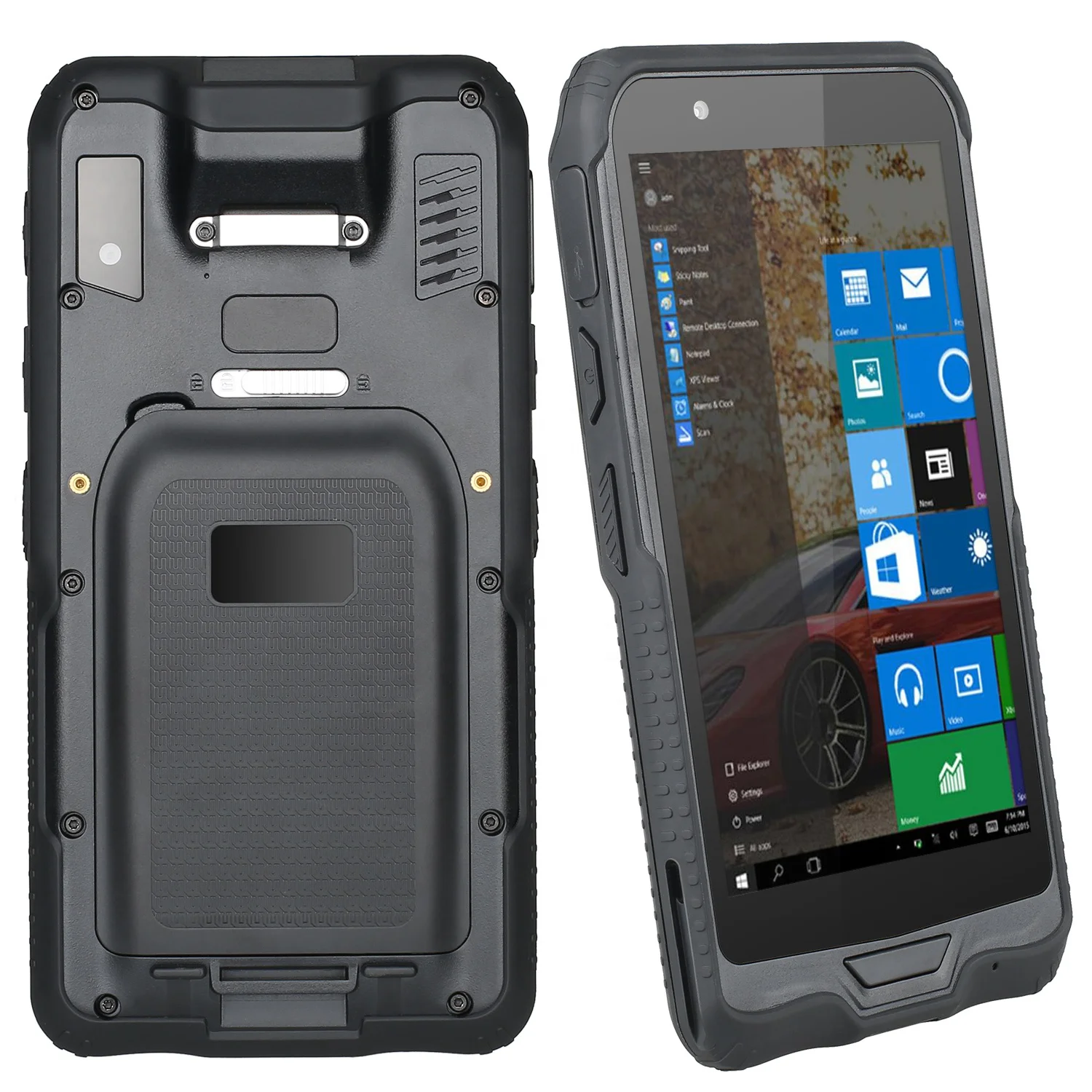

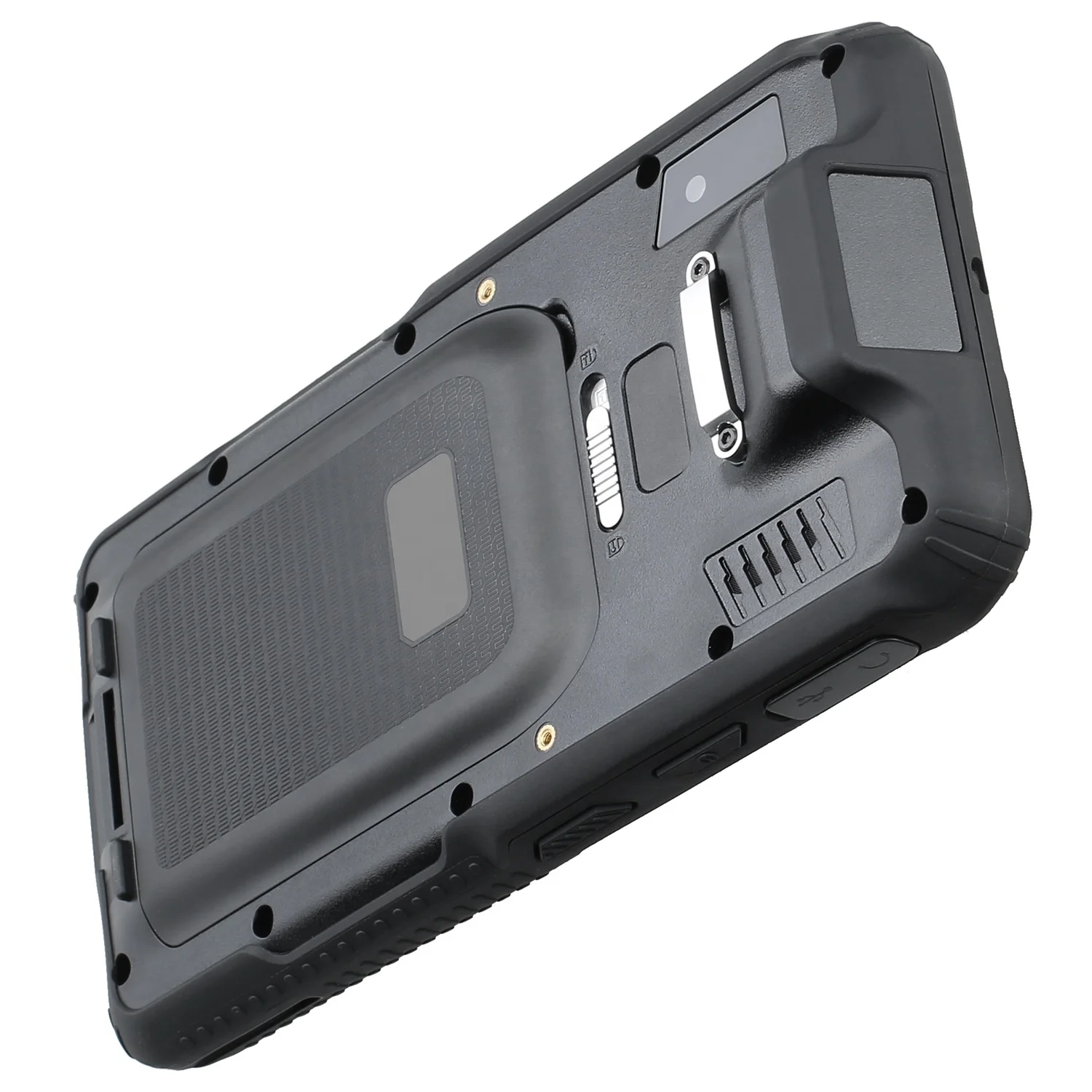

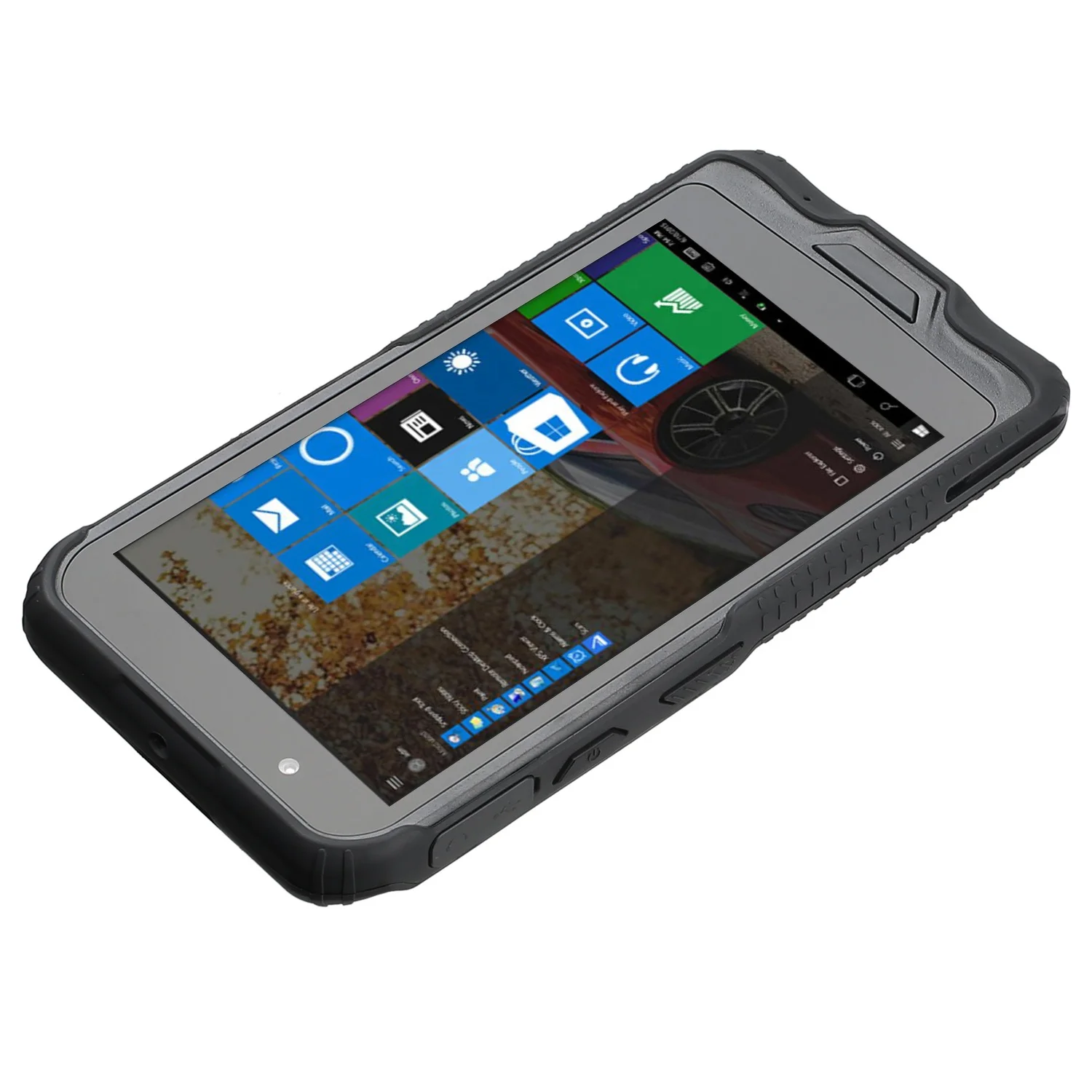

Industrial PDA Handheld data collecot with Win 10 OS

Share on (62160628968):


Price:$430.00 - $440.00

Quantity:


Product Overview

Description


Product Description

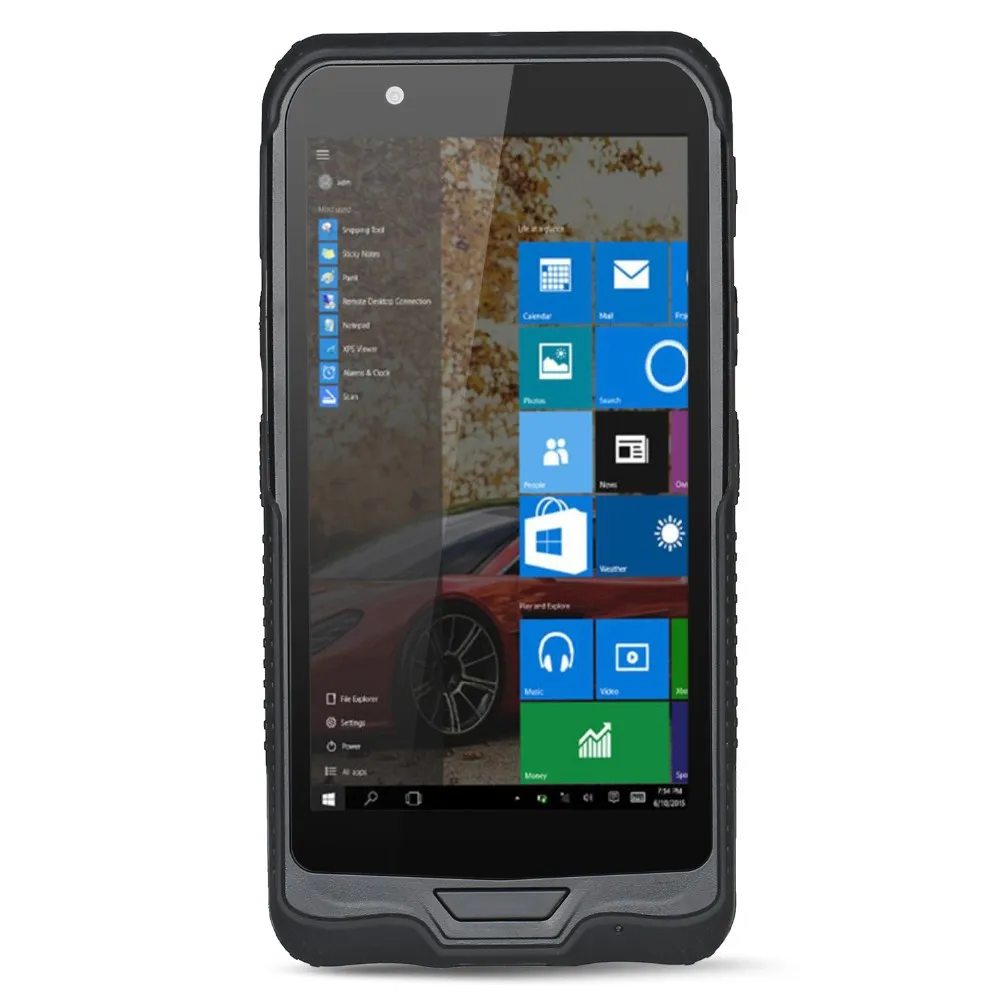

Industrial PDA Handheld data collecot with Win 10 OS


--6.0 inch screen with Gorilla glass

--QR Barcode scanner and NFC optional

--Inter processor with 2G/32G memory

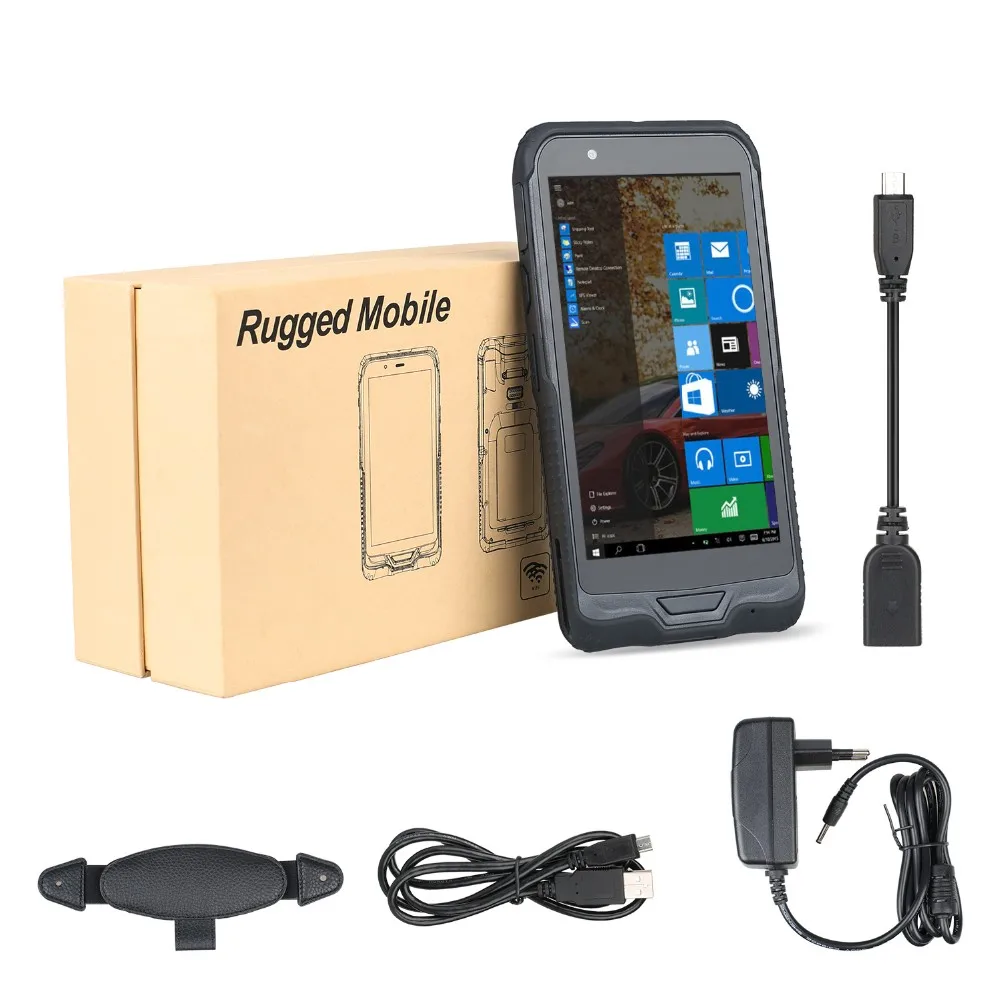

--Full range of accesorries option."

\t
Type
\t
Details
\t
Standard Configuration
\t
Product
\t
Type
\t
Rugged handheld device ( Rugged PDA)
\t
Dimension
\t
185*93*20.7mm
\t
DDR:2 GB / Flash:16GB up to 64GB
\t
Weight
\t
device unit 380g
\t
1080 x 1920 5.0" TFT,400 cd/m2
\t
Device Color
\t
black
\t
Capacitive Touch Panel,5 points
\t
LCD
\t
Screen Size
\t
5.98",16:9 (TP and screen adopts full joint technology)
\t
Resolution
\t
720*1280, 720P,IPS screen
\t
Front:500MP / Rear:800MP(Auto-Focus)
\t
Brightness
\t
430Nit
\t
Wi-Fi 802.11 a/b/g/n ; Bluetooth 4.0
\t
TP
\t
Touch Panel
\t
5points Capacitive,G+F,Corning Gorilla Glass, Rigidity: above 7H-Anti-scratch,
TP thickness:1.1mm,COF,support glove/wet hand touch
\t
Camera
\t
Front
\t
front 2.0MP
\t
Rear
\t
Rear 5.0MP
\t
Speaker
\t
Built-in
\t
build in 8Ω/0.8W waterproof speaker x 1
\t
Mic
\t
Built-in
\t
Sensitivity::-42db, output resistance2.2kΩ
\t
Battery
\t
Type
\t
Li_polyment, removeable battery
\t
Capacity
\t
3.7V/5000mAh
\t
Endurance
\t
4hrs(default 50% volumn,default200 lumens brightnessplay 720P HD video)
\t
1D
\t
OPTIONAL
\t
Honeywell N4313/Optical resolution: 5mil/scan speed: 50 times/s
supportive code:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,
GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11
\t
2D
\t
OPTIONAL
\t
Honeywell N3680 hard decode
Optical resolution:5mil,scan speed:50times/s
supportive decode:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,
Han Xin Inverse
\t
CPU
\t
Type
\t
Intel cherrytrail Z8350,1.44Ghz-1.92GHz
\t
GPU
\t
Type
\t
Intel® HD Graphics
\t
RAM
\t
DDR3L
\t
2GB (4GB optional)
\t
ROM
\t
Emmc
\t
32GB (64GB optional)
\t
G_sensor
\t
Built-in
\t
Gravity acceleration sensor
\t
compass
\t
Built-in
\t
electronic compass
\t
gyroscope
\t
Built-in
\t
gyroscope
\t
indicator light
\t
Built-in
\t
start and shut down indicator light
\t
WIFI
\t
WIFI module
\t
WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI
\t
Bluetooth
\t
build-in
\t
BT4.1 (BLE) class 1 transmission distance:10m
\t
3G
\t
build-in
\t
IC:H350_A30 :WCDMA(900/2100MHz) GSM(900/1800MHz),HSDPA 7.2Mbps,
HSUPA 5.76 Mbps
\t
GPS
\t
build-in
\t
support satellites:GLONASS,QZSS,GPS;Capture sensitivity:-160 dBm;
Cool Start Time:<30 seconds,hot Start Time:<28 seconds,frequency:0.25 Hz
 ... 10 MHz (configurable)
\t
NFC
\t
build-in
\t
NXP NFC 13.56MHz support under ISO/IEC 14443A/14443B/15693/18092/
mifare protocol,Card reading distance:4cm
\t
operation System
\t
OS version
\t
win 10 home(without key) Optional:WIN10 IOT(With key)

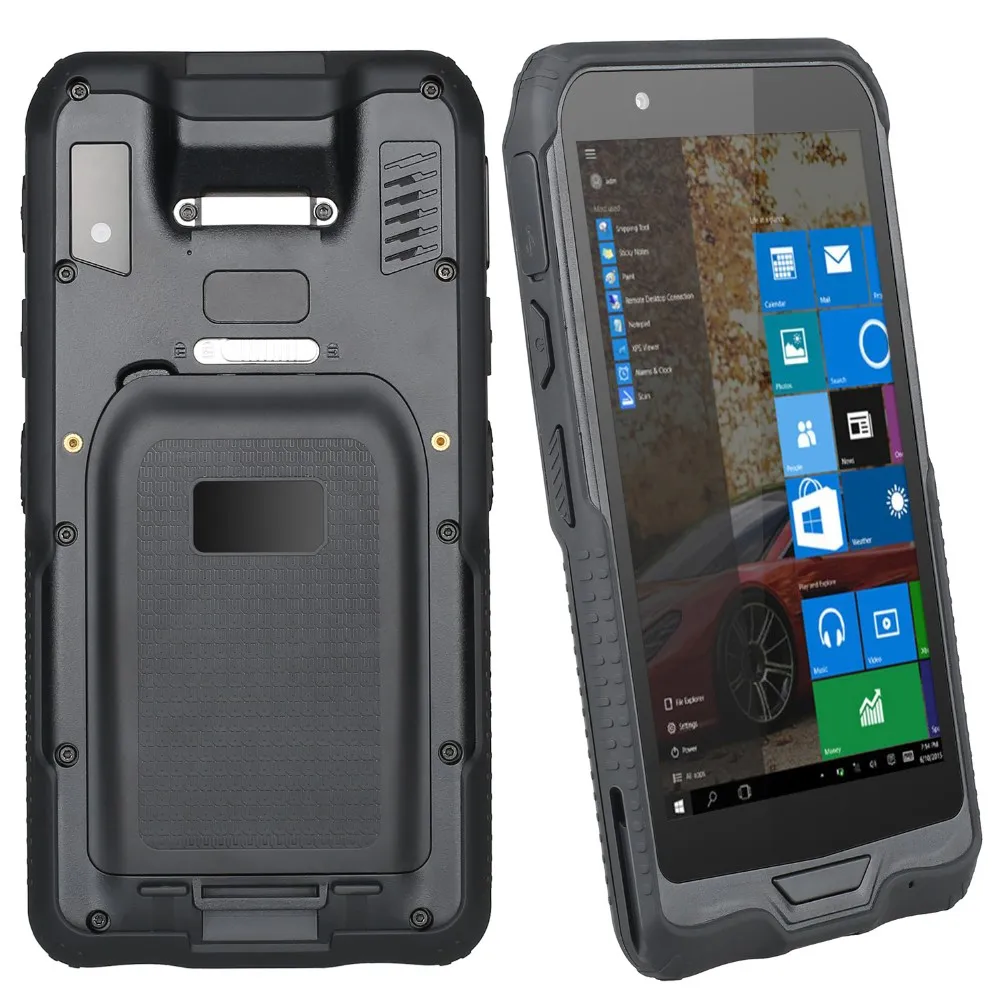

Products Show
Our Company

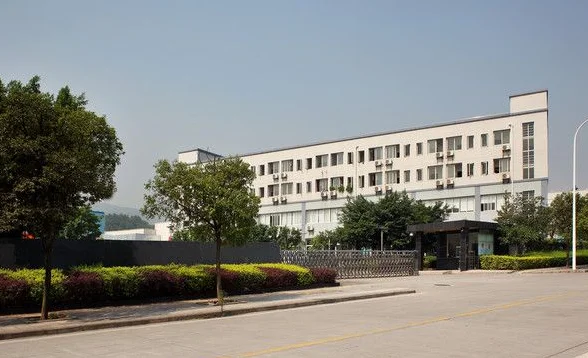

Factory

Our Factory

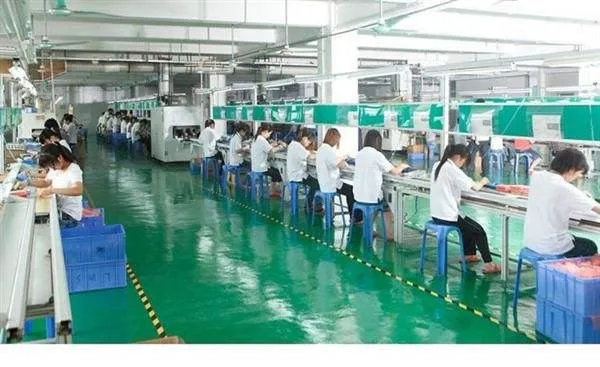

Workshop

Our Workshop

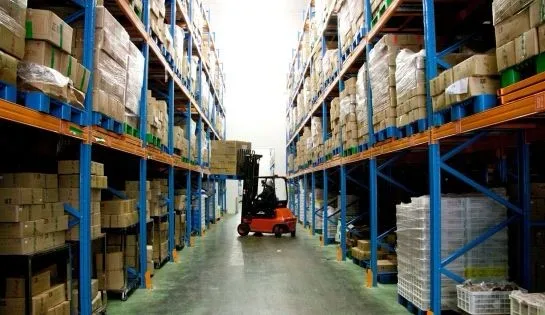

Warehouse

Our Warehouse

Team

Our Team

Our Certifications
FAQ

Q: Are you trading company or manufacturer ?

A: We are handheld mobile computer manufacturer

Q: How long is your delivery time?

A: samples order:3-5 working days.

Bulk order:10-20 working days.

Q: Do you provide samples ?

A: Yes, the sample order is available before bulk order.

Q: What is your terms of payment ?

A: Samples order:100% TT.

Bulk order:30% pepayment start production,70% balance before shipping.

About US

MobileX put the technology innovation and customer value as the core for many years in order to win the competition in the market home and abroad. we are in charge of solving the technical difficulties and give guides for the hardware designs, background software programs.

With the core value of Customer Supreme, Staff Value, Team Work, Result First, MobileXer is shouldering the mission of on-site Management and Mobile Payment Experts to elevate customers' value by scientific management and good service and finally realize our enterprise prospect "Chinese First Brand of Mobile data collection and Application Solution " Currently,we have more than 125 employees,R&D stuff more than 20.And have long cooperation relationship with our OEM factory which in Shenzhen as well."Innovation" is the label of our staff members. We have a professional and experienced technical development group. The members of this group have been improving product quality and trying to develop new products with the latest technology. Definitely we can provide powerful and timely support for technical issues and further development. Meanwhile, we design and make our products according to customers' specifications or requests. ODM&OEM orders are welcome!

"Quality" is the final quest of our members. All our products must be 100% tested to ensure their functionality, reliability, security and durability before shipment. During the past few years, our No.1 priorities have always been customer service and customer satisfaction. We have done a lot to raise quality levels. We are striving to establish a sound quality management and guarantee system.

We are increasingly expanding our international market share based on quality products, excellent service, reasonable price and timely delivery. Selling well throughout the domestic market, our products are also warmly welcomed by clients in Japan, India, South Africa, Brazil, the UK, America, Mexico, Peru and so on. We are looking forward to cooperating with more clients worldwide for common development and mutual benefits.



Service after sales

Thank you for the interest about our products,we will handle the service after sale as following:

1).We offer 1 year warranty,any terminals with quality issue(Exclude human factors) can get

repaired or replacement from us during this period.

2).If clients handle the service locally,we will free offer 1% complete units as spare terminals,2%

LCD,Housing and keyboard.1% other spares.All the quality issue terminals should take picture

and be reported,we will supply it if our spare parts is not enough.

3).For the product maintenance,we will send the video for your reference.If necessary,we will

send technical staff to train client's repairer for free.

4).Wewill provide technical assistance for the whole life.

In case clients would like to extend 1 year warranty period in their market,we would suggest

clients buy 2.5% terminals for replacement.And 2% LCD,Housing and keyboard.1% other spares.
