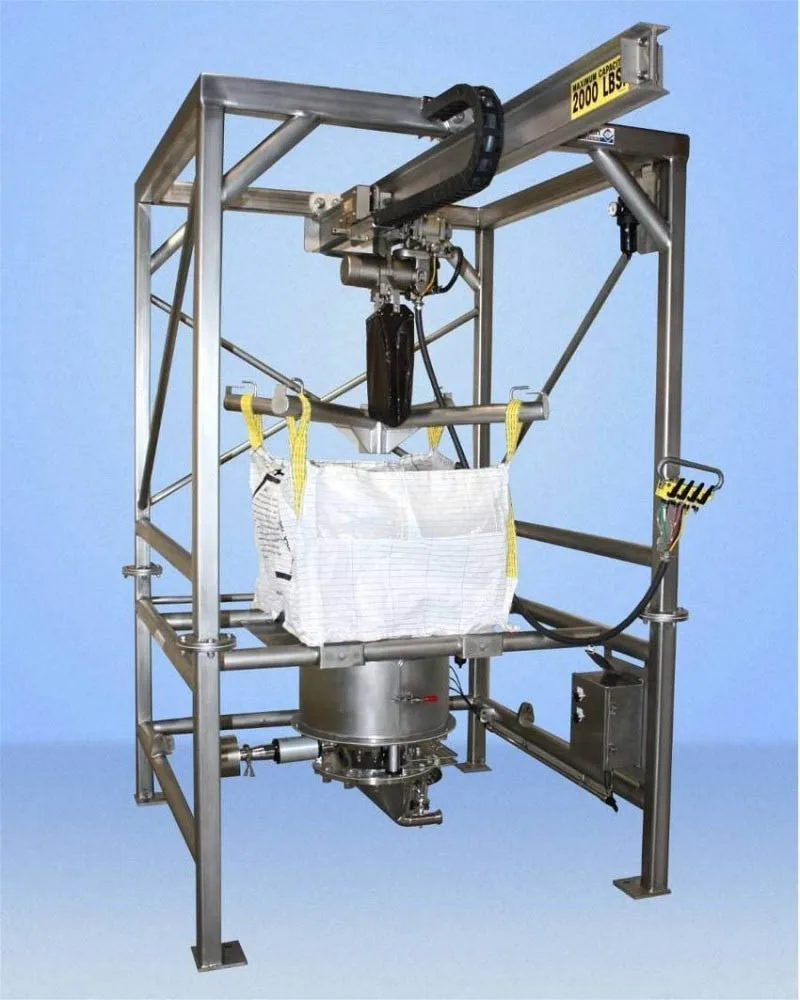

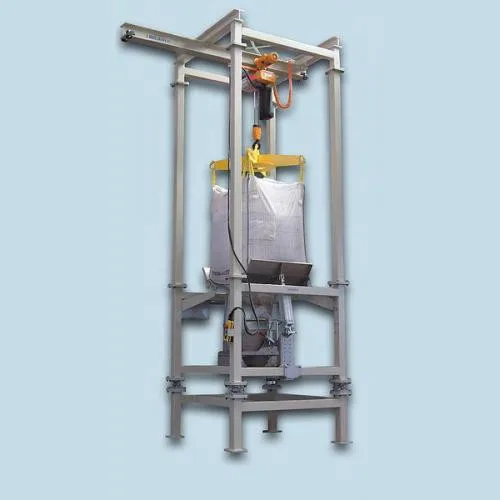

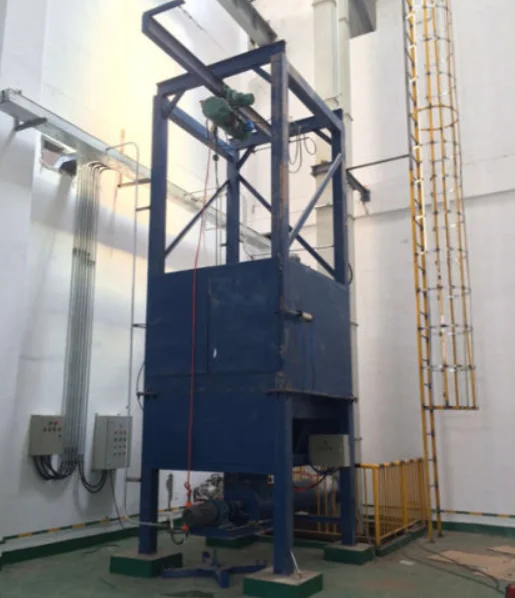

Big Bag Unloading Station

Product Overview

Description

INTRODUCTION:

Big bag, or bulk bag, super sack, FIBC (Flexible Intermediate Bulk Containers) bags are widely utilized in loading, transporting and unloading powder materials these days. SQH-CB4 series Big Bag Unloading Stations used to unload powder materials from big bags with easy, efficient and safe operation, and transfer them to other equipment such as conveyor or mixer, etc.

The bulk bags can be lifted by either a forklift or an integrated overhead hoist and trolley. The height of the beam of SQH-CB4 series Big Bag Unloading Station is adjustable according to individual request.

Frame is made by robust carbon steel or stainless steel for heavy duty job. For delivery, the frame of SQH-CB4 series Big Bag Unloading Station can be separated to knock down parts or half assembled two pieces.

A lot of useful options can be selected for easy operation, such as vibrator/massager to shake the bag bottom in order to improve the flowing of the materials, dust filter to prevent dust, weighing device for automatic discharging, etc.



SPECIFICATIONS:

Model	CB4-1000	CB4-2000
Lifting method	Overhead hoist or Folklift
Capacity, kg	1000	2000
Frame material	Carbon steel or SS304
Unloader unit	SS304
Options	V-massager (Vibrator), Iris valve, Weighing system, etc

1. All specifications are as accurate as is reasonably possible, but they are not binding.

2. Customized sizes are available against request.

3. ZJY reserves the right to modify the design without notice.

ADVANTAGES:

1. Safe and dust free working environment

2. Easy handling of big bags

3. Flexible to work with different conveying and storage systems

4. Different sizes available up to 2,000kg

5. Easy to clean

6. Maintenance free



OPTIONS:

1. Manual or pneumatic V vibrator/massager to raise and lower the bottom edges of the bag to improve the flow of compacted or sticky powder material

2. Iris valve, flexible spout connection

3. Dust filter and collector

4. Accurate weighing system

5. Receiving bin





DOWNSTREAM CONVEYOR:

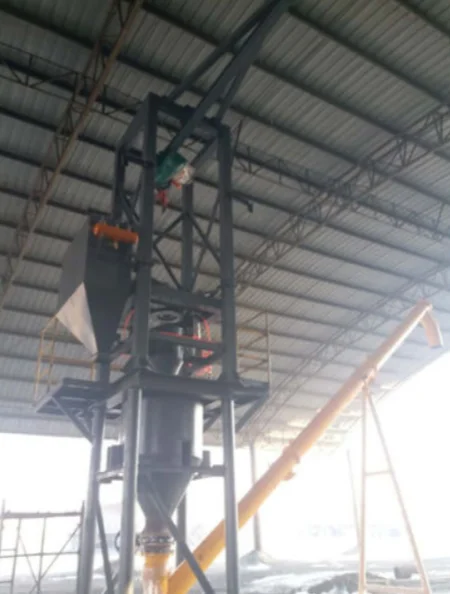

After discharging from the SQH-CB4 series Big Bag Unloading Station, there are many ways to convey the bulk materials to the next process or containers: Pneumatic conveyor, Flexible screw conveyor, Tubular chain conveyor and others.
