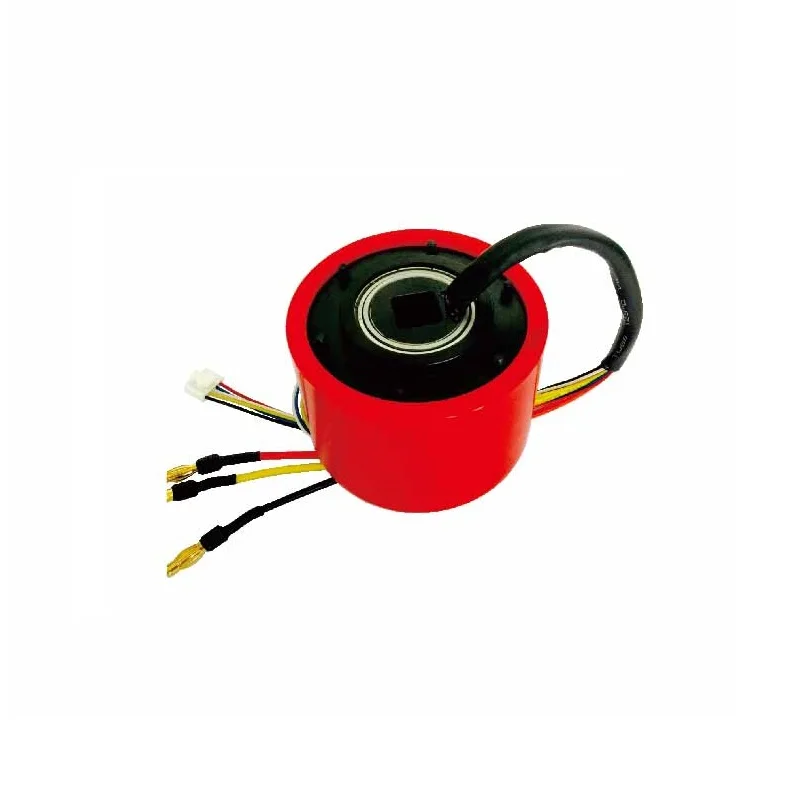

4131 90kv 58kv 24v 36v scooter hub parts with hall sensor brushless skateboard motor

Product Overview

Description

4131 90kv 58kv 24v 36v scooter hub parts with hall sensor brushless skateboard motor

It is widely used in electric skateboard, electric scooter, electric vehicle, drone, etc.

Technical Parameters:

Model Number	KV (rpm/V)	Voltage (V)	Load Current (A)	Load Speed (rpm)	Torque (kg.cm)	Power (W)	Stall Current (A)	Stall Torque (kg.cm)	Max Power (W)	Weight (g) Approx
H4131	90	24V	4.2	1780	3.0	86	19.5	28	400	560
	58	36V	3.0	1850	3.8	95	17.2	35	530





More models:



Standard export carton.

Delivery time:

Pls feel free to contact us and inform the quantity you need. Then we will check if we have motors in stock. If yes, we will send motors out in 7 days. If not, we need some days to prepare your orders. The specific delivery time will be different according to your quantity.



1. We can accept L/C, T/T, Western Union and MoneyGram.

2. 30% TT advance, 70% before shipment.

How to order:

1. If you have any questions, pls feel free to contact us. And pls let us know the model and the quantity you need. Motors are customizable products. If you have any requirements, pls feel free to contact us.

2. After confirming all details, we will send you a quotation.

3. Sample confirmation. We will prepare the sample you need and send out in 7 days.

4. After you confirm the bulk order, we will send you the PI.

5. After confirming the PI, you transfer 30% deposit.

6. After receiving your deposit, we arrange to produce your order. We will prepare products within 30-35 days.

7. After testing and packing, we will send product pictures and packing pictures for your confirmation.

8. You transfer the 70% balance. After we receive your payment, we will ship out and offer you the tracking number.

9. If the details of the page are all ok for you, you can place the trade assurance order directly. We will prepare your order asap.

10. After-sale services and feedback.

After-Sale Service:

We will track the order until you received.





If you have any questions, pls feel free to contact us. Thank you!
