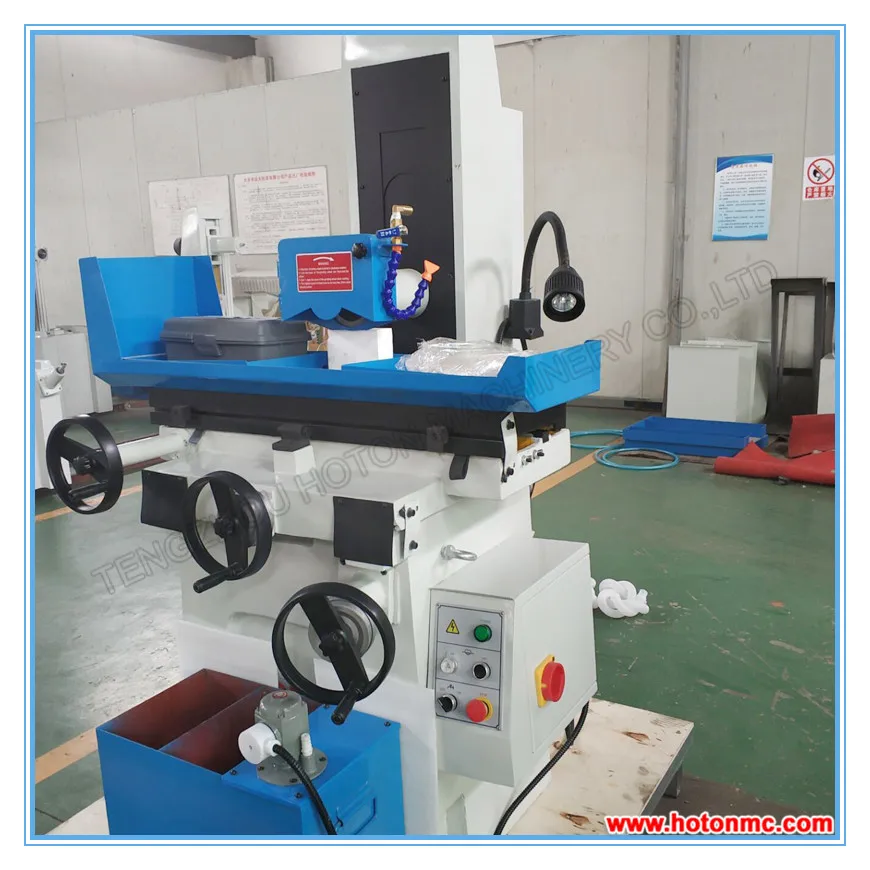

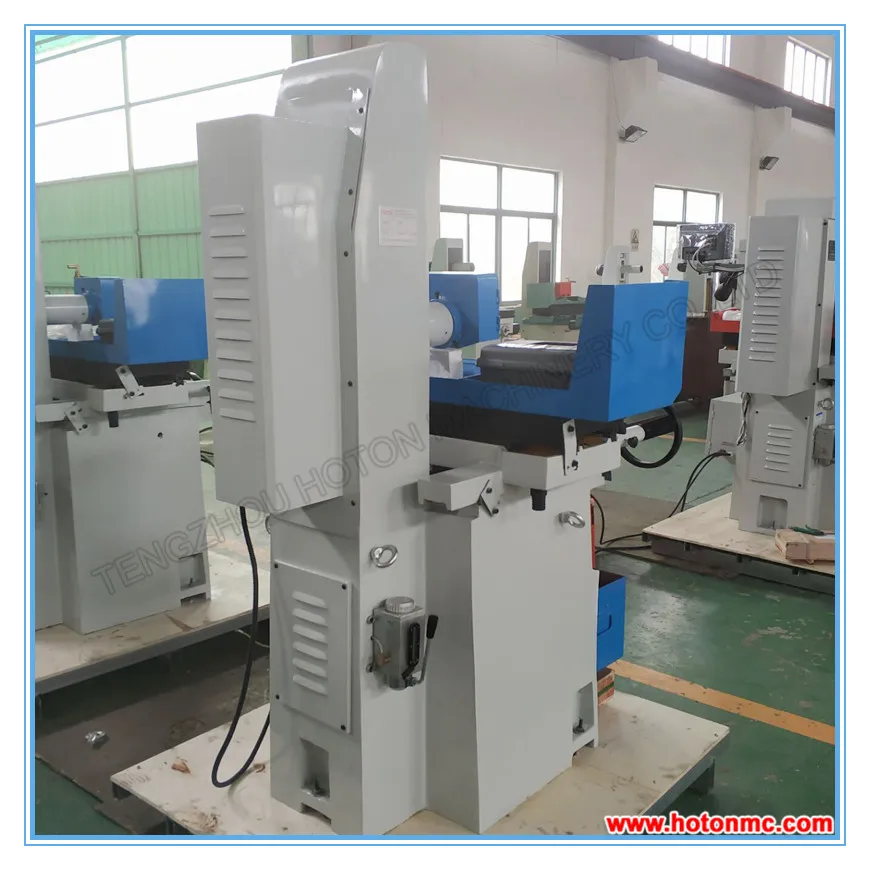

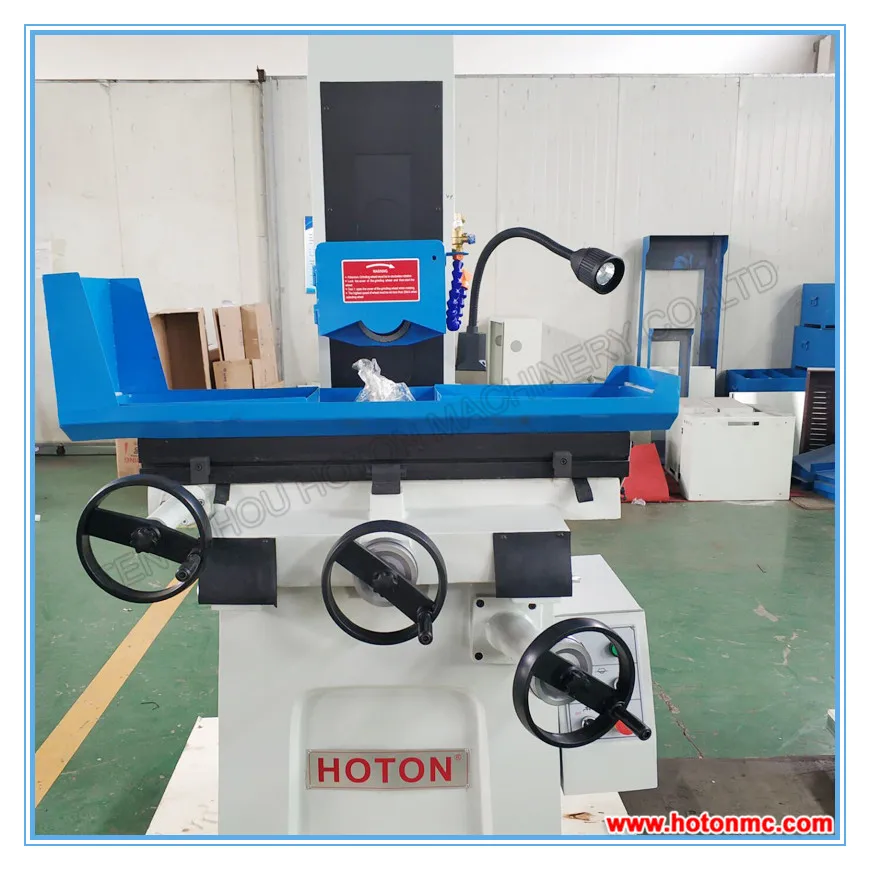

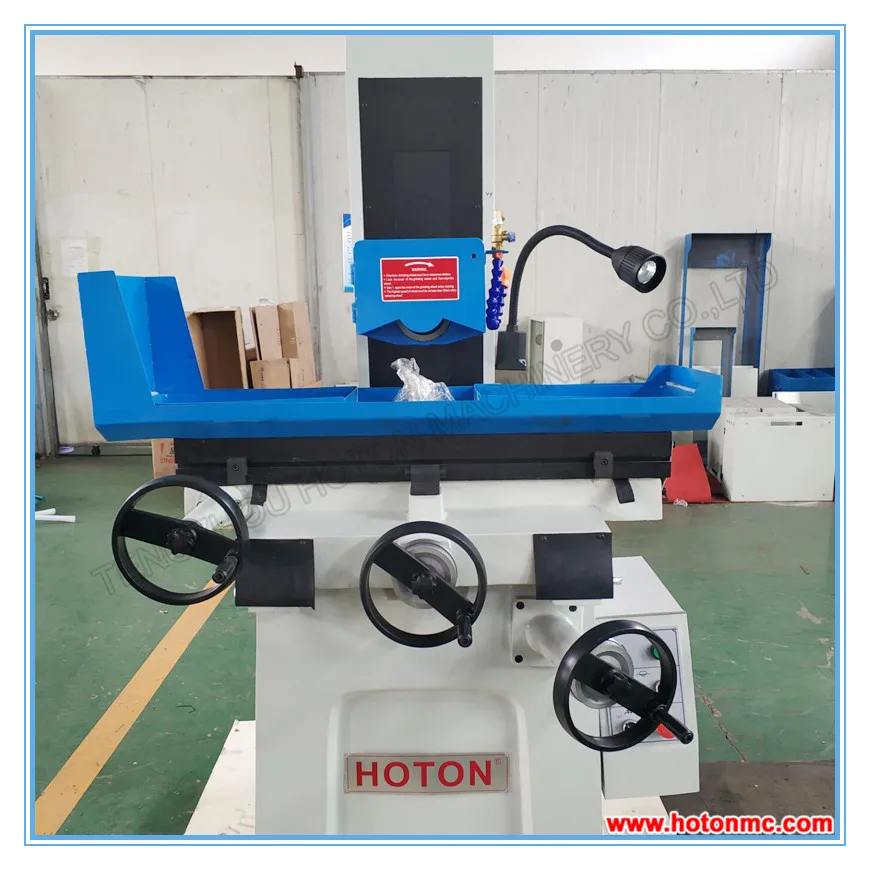

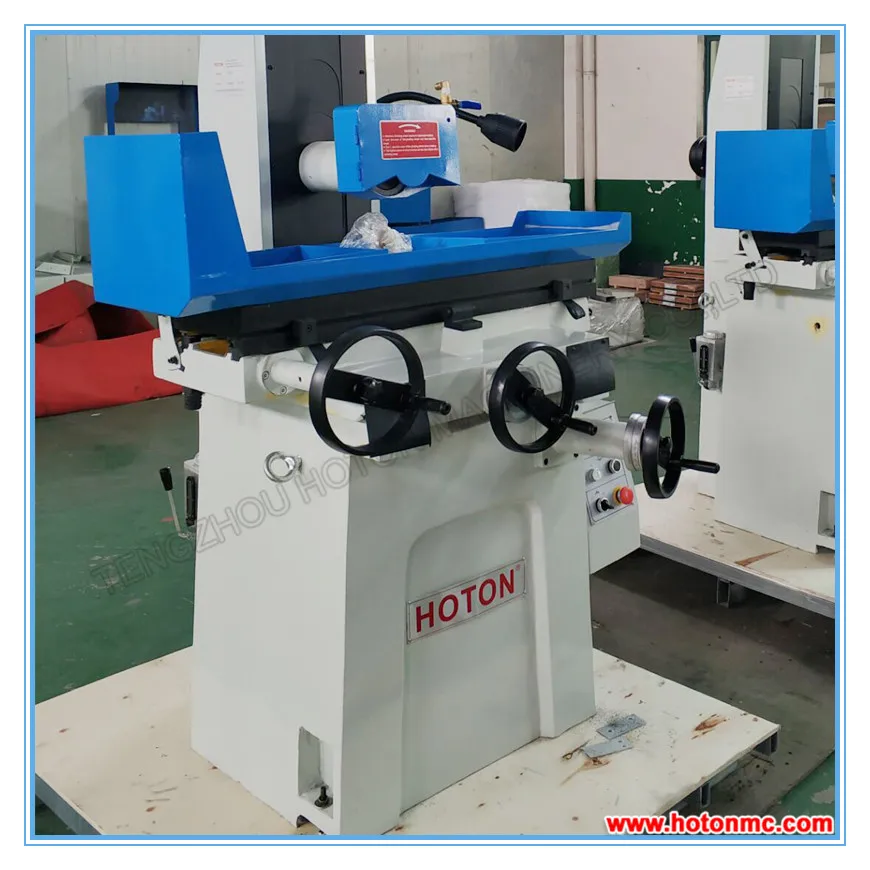

Easy operate manual surface grinder machine M820
- Category: Other Grinding Machines >>>
- Supplier: Tengzhou Hoton Machinery Co. Ltd.
Share on (62167109499):
Product Overview
Description
WELCOME
MANUAL SURFACE GRINDING MACHINE FEATURES:
1 Adopt the exceeding precise class7(P4 level) ball bearing for spindle
2 Bring transmission by synchronous belt, operating simple and convenient
3-axis manual operation, X, Y axis can be eletric auto operation.
High rigidity H-frame column with spindle center to table
Enhanced ribbed full cast iron base
Enlarged spindle housing for heavier grinding
Cartridge w / 4 preloaded class 7 (P4) bearing
Roller steel balls on linear table ways for easy and smooth longitudinal movements.
Double-V saddle ways for rigidity
Manual lubrication system
TECHNICAL PARAMETERS | UNITS | M618A | M818A/M820 | |
Max.work piece to be Ground( L×W×H) | mm | 500×190×335 | 470x220x350 | |
Max. Grinding Length | mm | 500 | 470 | |
Max. Grinding Width | mm | 190 | 220 | |
Distance From Table Surface To Spindle Center | mm | 335 | 450 | |
Slide way | V-type rail with Steel-ball | |||
V-type rail with Steel-ball | Kg | 200 | ||
Table Size (L×W) | mm | 460×180 | 210x450 | |
Number of T -Slot | mm×n | 12×1 | 12x1 | |
Speed OF Working Table | m/min | 3-23 | 3-23 | |
Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution | ||
Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution | ||
Wheel Size (dia.×width×bore ) | mm | 200×16×31.75 | 200x13x31.75 | |
Spindle Speeds | rpm | 2850 | 2850 | |
0-6000 | 3450 | |||
Spindle Motor | Kw | 1.1 | 1.5 | |
Coolant Pump | Kw | 0.4 | 0.5 | |
Machine Size (L×W×H) | mm | 1550×1060×1590 | 1330x1150x1675 | |
Packing Size (L×W×H) | mm | 1060×1170×1870 | 1400x1120x1985 | |
Gross,Net | T | O.75, 0.65 | 0.8 | |
