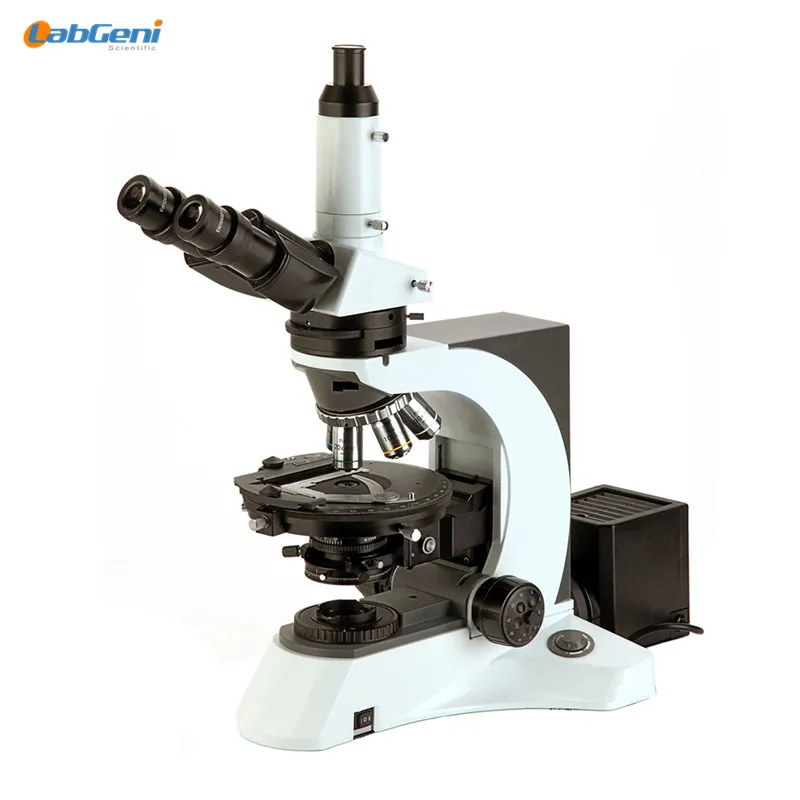

NP 800M из алюминиево магниевого сплава микроскоп

NP-800M

Optical System

Infinite optical system

♥

Viewing Head

Seidentopf trinocular head inclined at 30°, Interpupillary 48-75mm

♥

Eyepiece

Plan eyepiece EW10X/22

♥

Plan eyepiece with scale of crosshair, Plan eyepiece with cross, Plan eyepiece with gridding

♥

Strain-Free Plan
Achromatic Objective

4X/0.10/∞/-  WD 17.3mm

♥

10X/0.25/∞/0.17  WD 10.0mm

♥

20X/0.40/∞/0.17  WD 5.10mm

0

40X/0.65/∞/0.17  WD 0.54mm

♥

100X/1.25/∞/0.17  WD 0.13mm

♥

Nosepiece

Backward quintuple nosepiece, Center adjustable

♥

Analyzer

360° dial rotation  Minimum scale reading:0.1°(Vernier scale)

♥

Conoscopic observation
attachment

Switch between orthoscopic and conoscopic observation, Bertrand lens position adjustable

♥

Optical Compensator

First-order red plate, Guarter-wave plate, Quartz wedge

♥

Polarizing Rotatable
Stage

Diameter Φ170mm, Center adjustment, 360° scale, Minimum division 1°, Minimum reading 6 by means of vernier scale, 45° Click stop knob

♥

Attachable Stage

Moving range 30mmX40mm

0

Condenser

Strain-free swing condenser NA0.9/0.25

♥

Focusing

Coaxial coarse & fine adjustment, Range 32mm, Fine division 0.001mm, Coarse stroke 37.7mm per
rotation, Fine stroke 0.1mm per rotation

♥

Polarizer

360°rotatable 0°position adjustable

♥

Illumination

24V/100W Halogen lamp, Brightness adjustable

♥

Filter

Blue filter Φ45mm

♥

ND6 Neutral density filter Φ45mm

0

ND25 Neutral density filter Φ45mm

0

Attachment

Video attachment

0

0.01mm Micrometer
