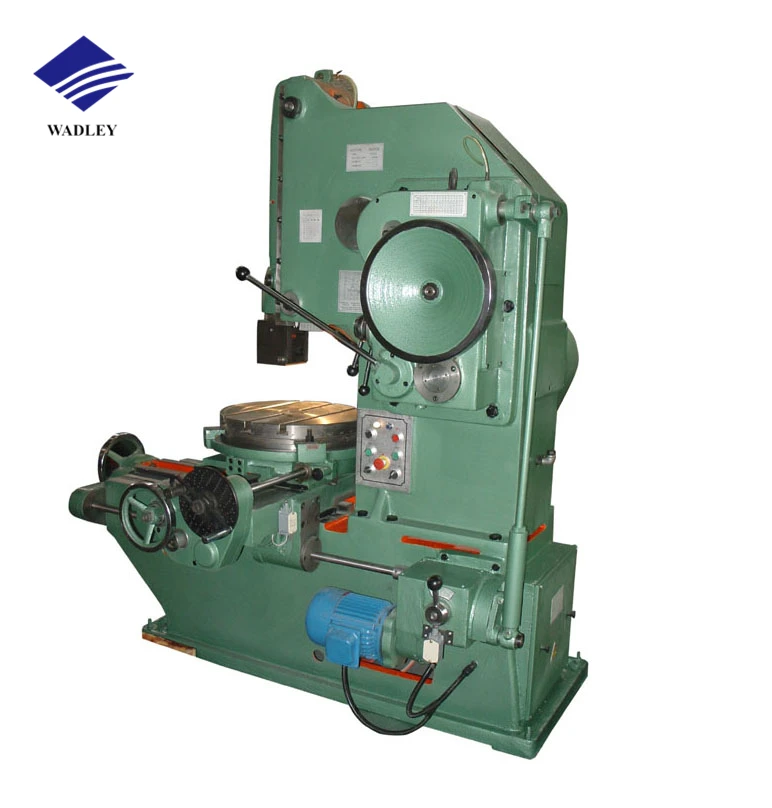

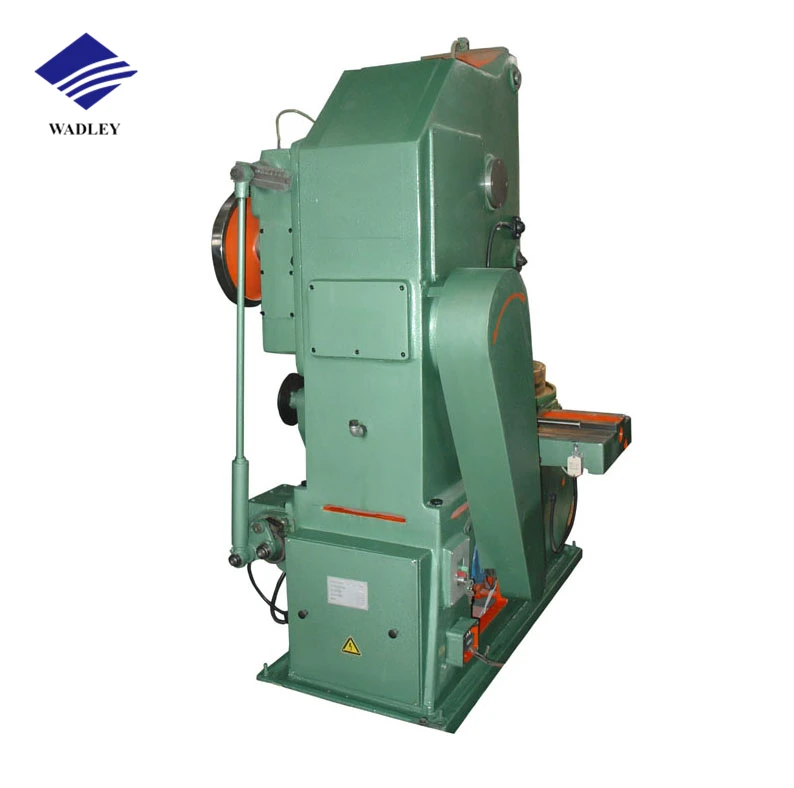

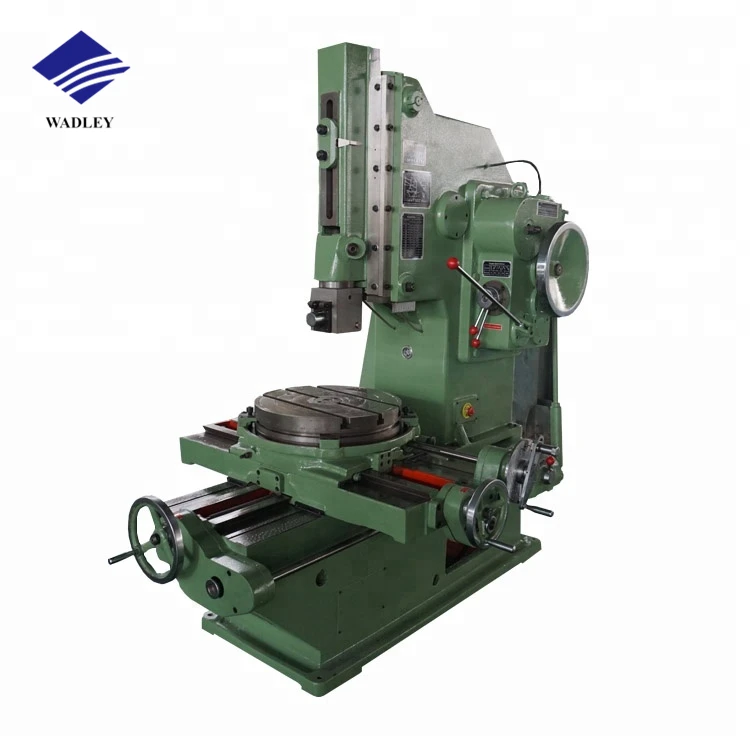

Wholesale price cnc slotting machine cutting tool

Share on (62172101015):


Price:

Quantity:


Product Overview

Description




Product Description

1.The main performance characteristics:

(1).  The working table of the machine tool is provided with three different directions of feed     (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining
(2).  Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed   device for working table.
(3).  The sliding pillow has the same speed in every stroke, and the movement speed of the ram and   the working table can be adjusted continuously.
(4).  Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to   hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.
(5).  Use hydraulic feed the slotting machine, Is when the work is over  turning back instantaneous   feed, Therefore be better than mechanical slotting machine used drum wheel feed.

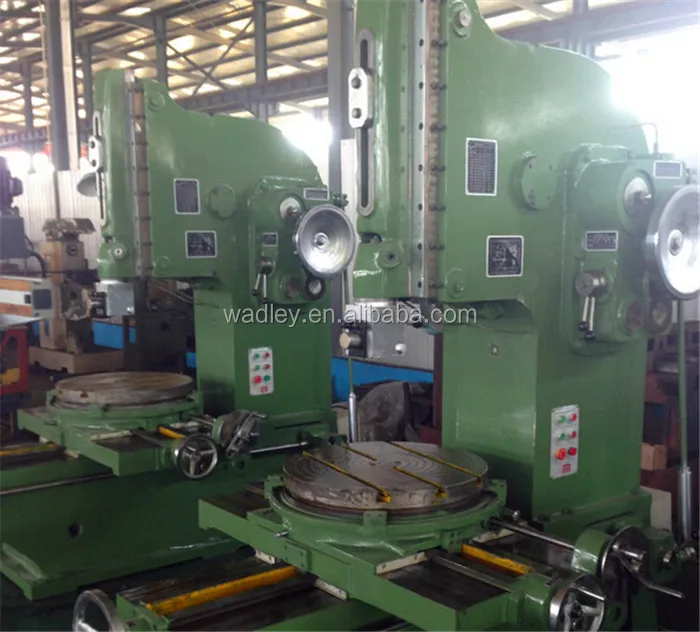

image (6).jpg

Parameters

Specification

Unit

B5032

Max. stroke of RAM

mm

340

Ram maximum slotting length

mm

320

Ram motion frequency

times/min

20.32.50.80

Ram tilt angle

°

0-8

Ram vertical adjustment distance

mm

315

Cutter head bearing surface to the distance between the forearm bed

mm

600

Table Diameter

mm

630

The distance between the lower end of the sliding frame to work table

mm

490

Max. longitudinal moving distance of working table

mm

630

Max. transverse moving distance of working table

mm

560

Table maximum rotation angle

°

360

Vertical and horizontal table power feed range

mm

0.08-1.21

Table rotary feed range

mm

0.052-0.783

 Motor power

kw

4

Motor speed

r/min

960

Machine weight

kg

3000

Outline dimension

mm

2261*1495*2245

Product details

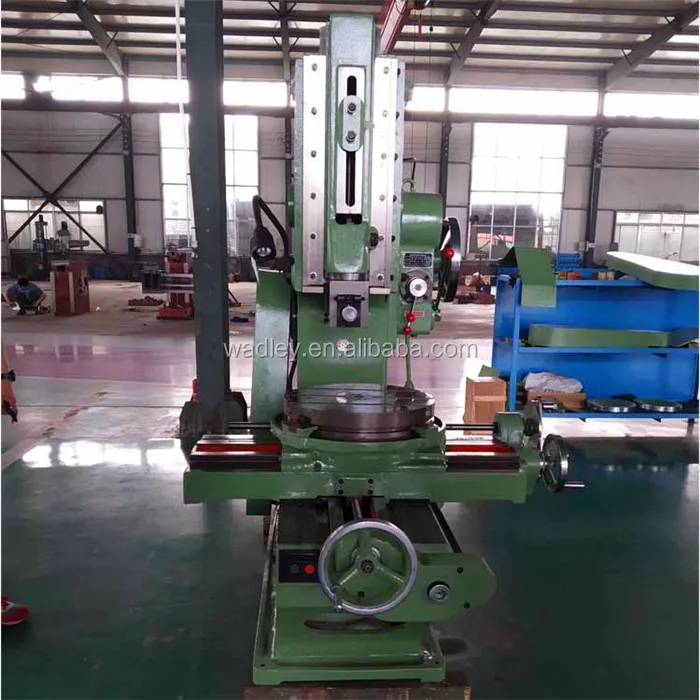

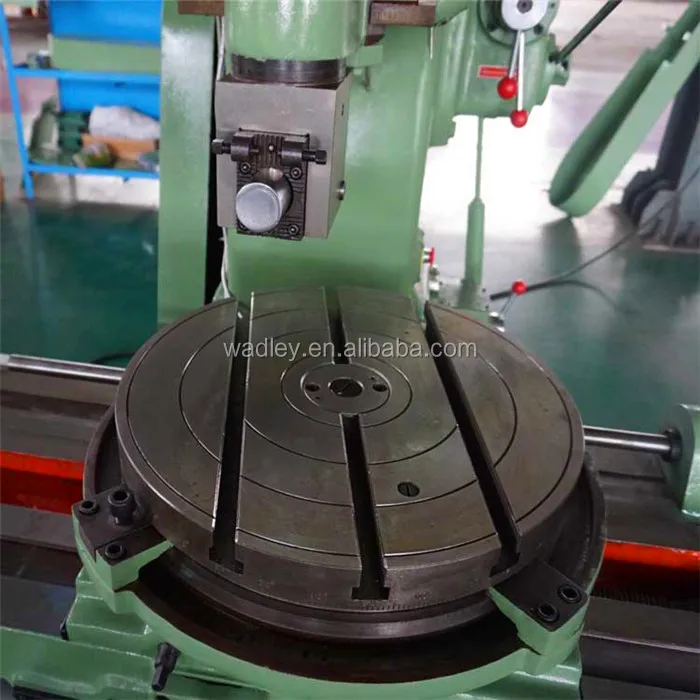

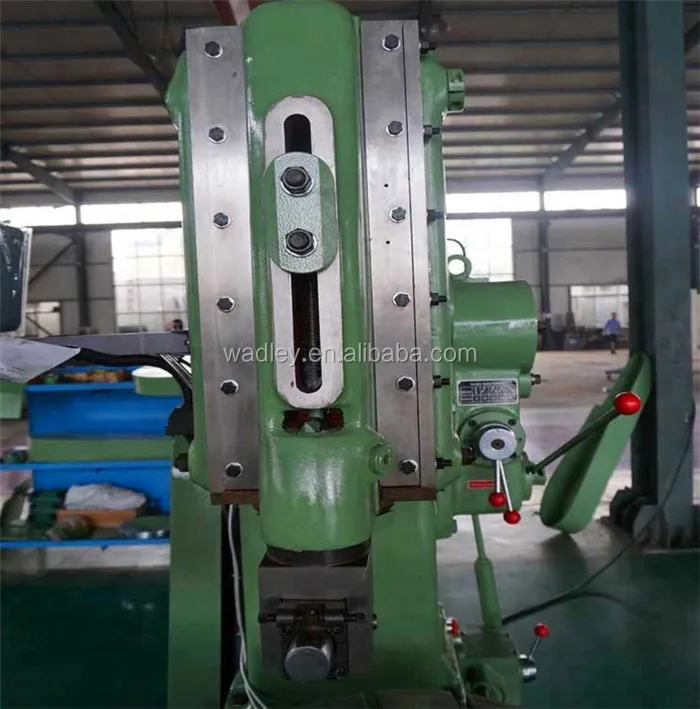

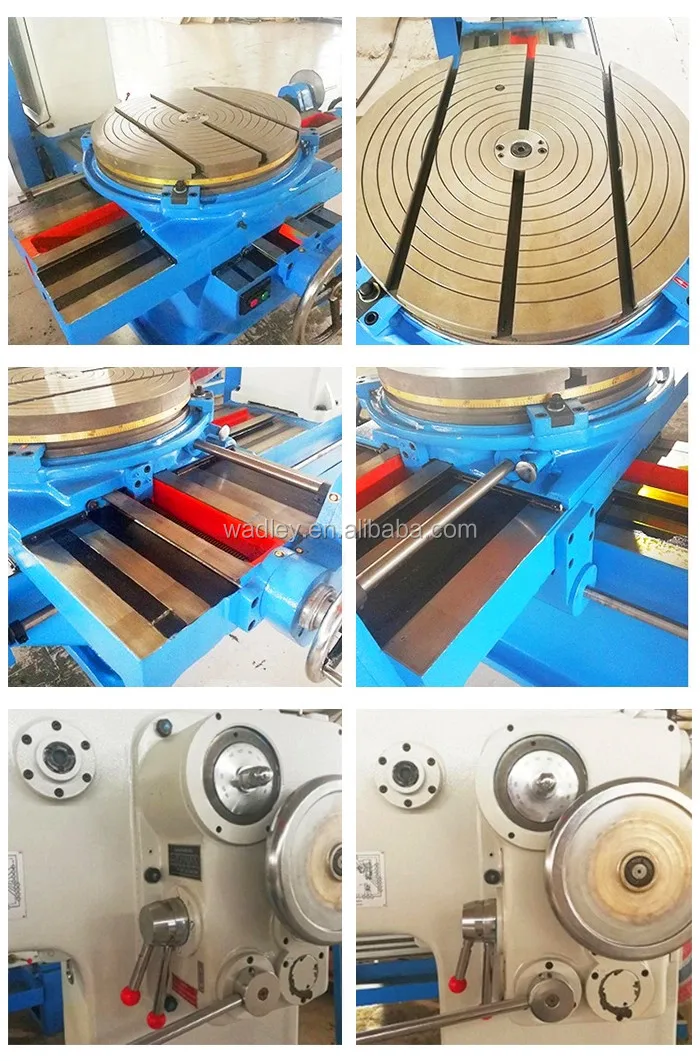

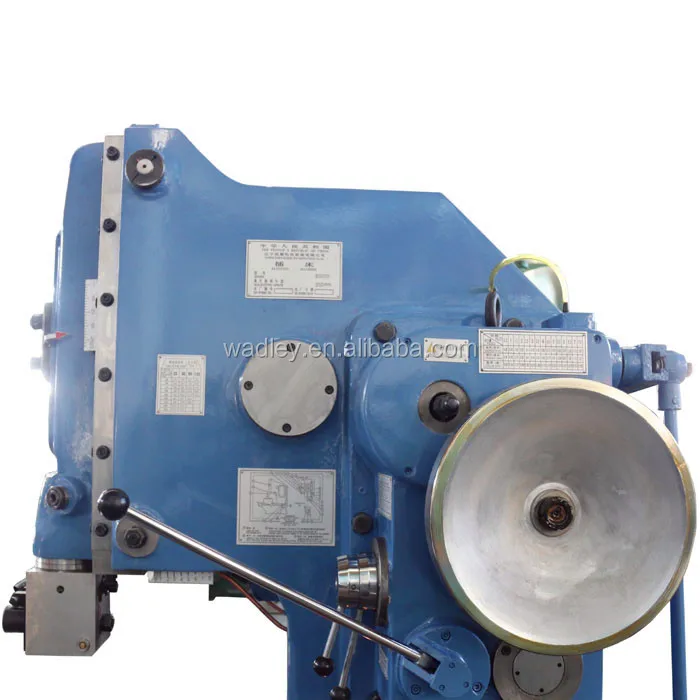

image (7).jpgimage (8).jpgimage (9).jpgimage (10).jpgimage (13).jpg

About us

2


FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

5: What's the MOQ?
A: 1 set .



We want to know:

a.What's your Industrial Voltage?
b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
c.If need CIF Price, please kindly tell us the port of destination.
