Product Overview

Description


Product Description



Production Application

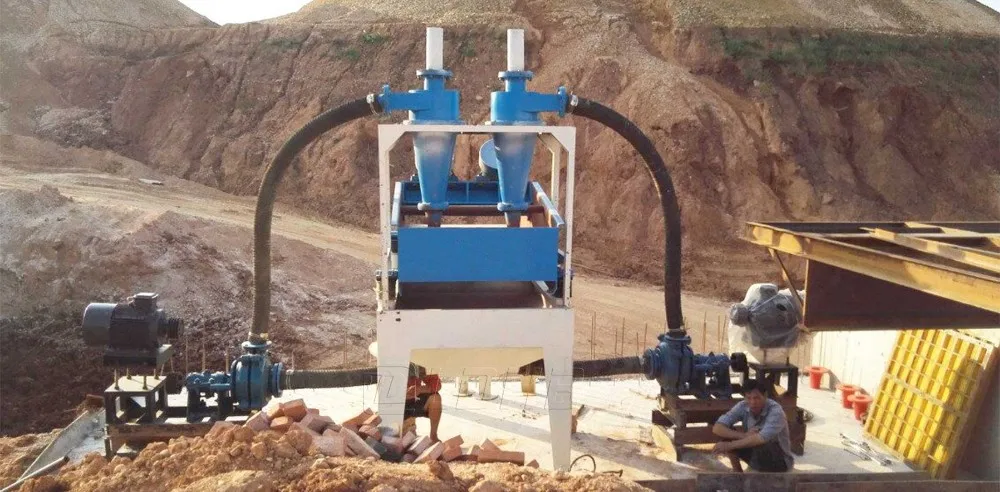

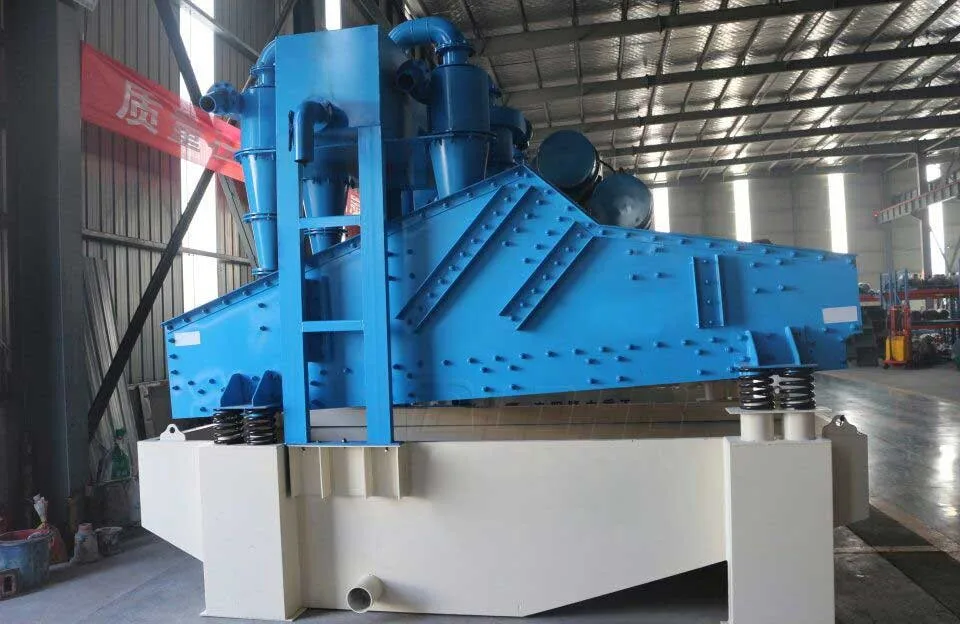

Fines recovery units is a combination of dewatering screen and hydrocyclone that is specifically developed integrates dewatering, screening and fine material recovery on the basis of the original recycling machine, and achieves the effect of multi-purpose machine. Fines recovery unit is generally directly used at the rear of sand washer, dewatering screen further dehydrates the finished material of sand washing machine, and recovery system effectively extracts and recovers the fines in tail water overflowed by sand washing machine to realize the coarse and fine sand centralized dehydration and recovery.

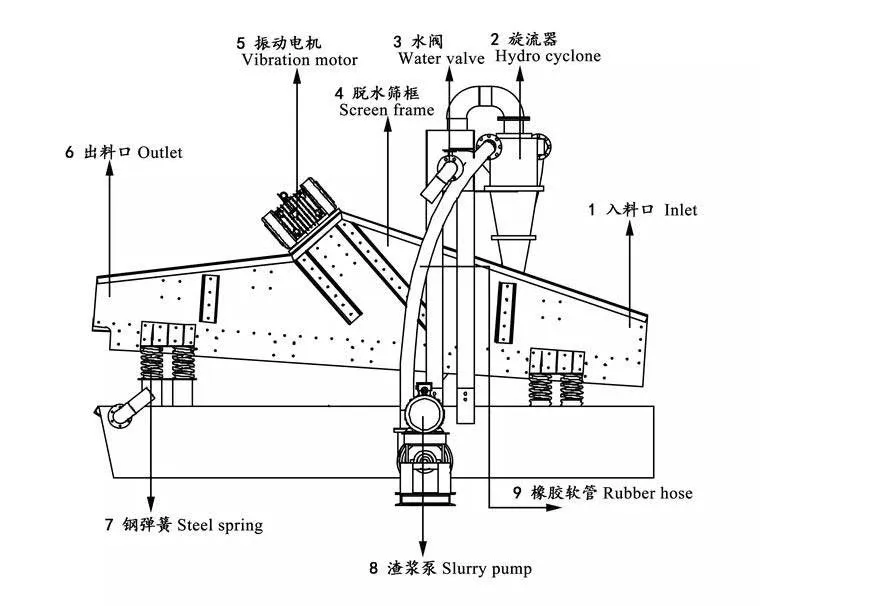

Structure
Detailed Images





Machine Parts

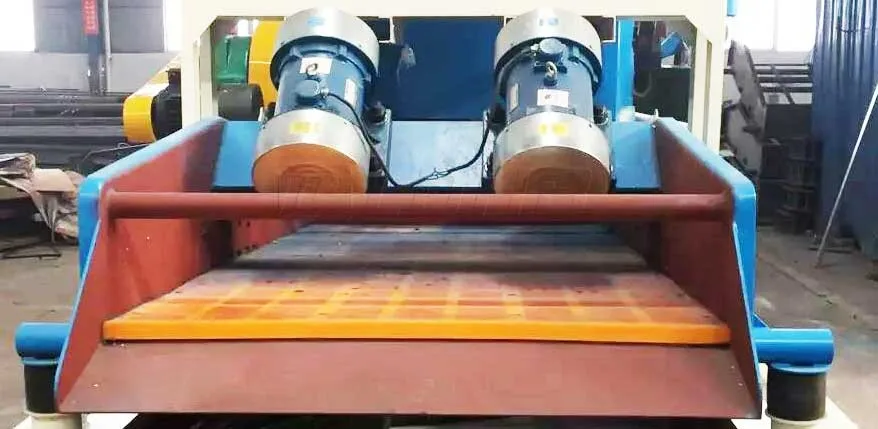

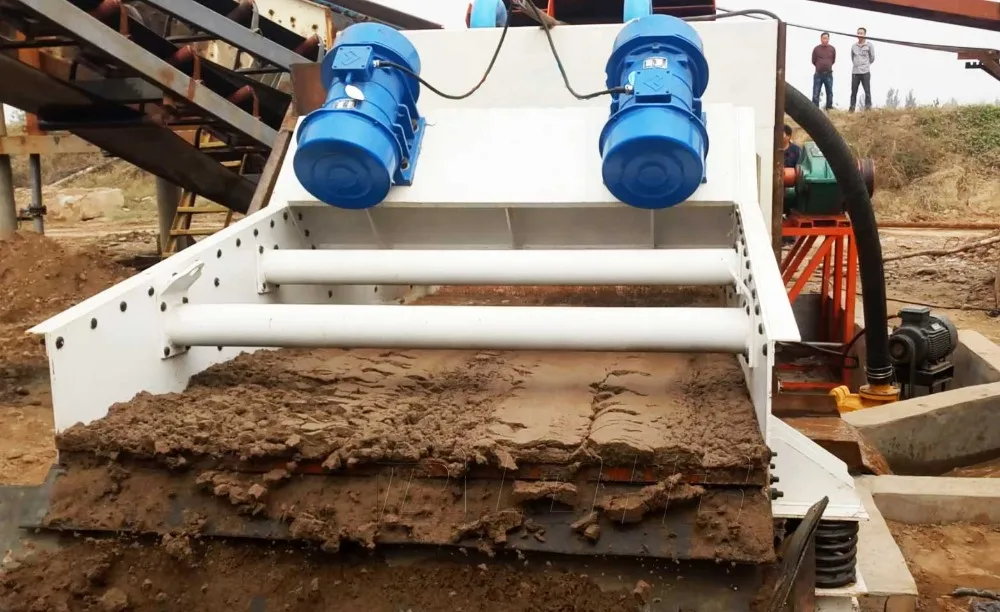

Name: Dewater screen
Brand: LDHB
Motor beam steel plate thickness 32mm.
The material of the sieve machine is polyurethane.




Machine Parts

Name: Cyclone group
Brand: LDHB
The cyclone is divided into 3 sections, the big cone, mid cone and small cone, lined with polyurethane.
Equipped with different underflow ports for easy replacement.

Tech Specifications
\t

Model
\t
Sieve plate size
 (mm)
\t
Productivity  (m³)
\t
Cyclone size
(mm)
\t
Power
(kw)
\t
Weight
(kg)
\t
Overall Dimension
(L*W*H) (mm)
\t
LD1530-65
\t
1500*3000
\t
80-100
\t
300*2
\t
36
\t
2600
\t
3015*5560*3200
\t
LD1530J-65
\t
1500*3000
\t
80-120
\t
300*2
\t
36
\t
3745
\t
3300*5560*3000
\t
LD1836-75
\t
1800*3600
\t
100-140
\t
350*2
\t
48
\t
5150
\t
3800*5560*2768
\t
LD1842-100
\t
1800*4200
\t
100-140
\t
250*4
\t
55
\t
5650
\t
4500*5560*2768
\t
LD1836D-75
\t
1800*3600
\t
100-140
\t
350*2
\t
48
\t
5400
\t
3960*5560*3000
\t
LD1836J-100
\t
1800*3600
\t
100-160
\t
250*4
\t
59
\t
5600
\t
4000*5560*3520
\t
LD1842D-100
\t
1800*4200
\t
100-140
\t
250*4
\t
55
\t
5900
\t
4570*5560*3520
\t
LD1842J-100
\t
1800*4200
\t
100-160
\t
250*4
\t
59
\t
6120
\t
4600*5560*3520
\t
LD1848J-100
\t
1800*4800
\t
100-160
\t
250*4
\t
59
\t
6436
\t
5200*5560*3520
\t
LD2442-100
\t
2400*4200
\t
140-180
\t
250*4
\t
66
\t
8354
\t
4600*6450*3600
\t
LD2448-120
\t
2400*4800
\t
140-180
\t
300*4
\t
82
\t
9386
\t
5220*6450*3600
Packing & Delivery

Packaging details

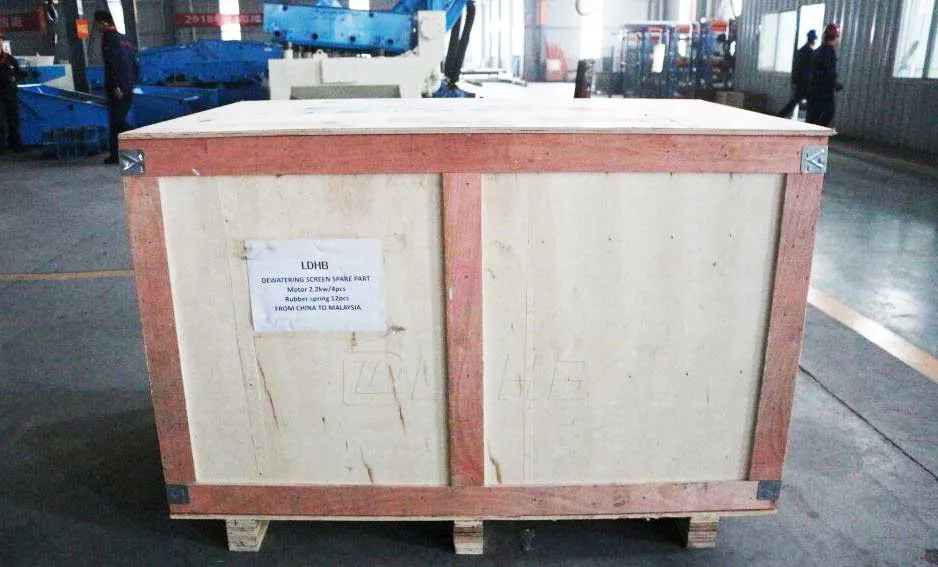

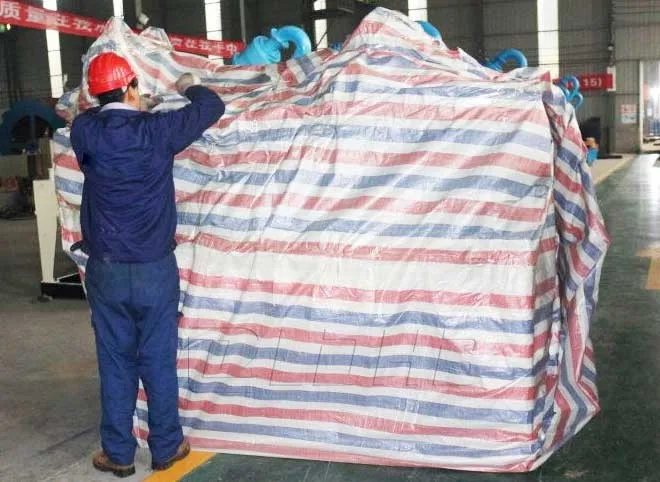

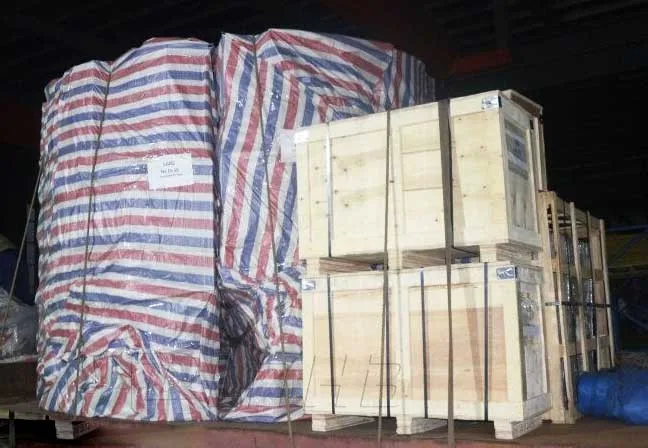

The normal package is plastic cloth for main machine and wooden box for the parts.The wooden box will be fumigated, And it can be also packed according to customers special request.

About Us

Manufacturing Area

Office Area

Working Time

Spare Time


        Consummate Technology



                                                                                Participation in Famous Exhibitions ↑


                Customer Cases ↓

Australian customers came to inspect the equipments he ordered.

Indonesian customers was invited to visit our plant.

Sales manager signed purchase agreements with Sri Lankan customers.

Customer Jonathan visited our workshop.

Jonathan was satisfied with our equipments and signed long-term supply contracts .

Our technicians went to Uganda to provide after-sales service to customer Jonathan's plant.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* 24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.
