PLF80 Series Planetary Gearbox,750W Servo Motor GearBox

Product Overview

Description





PLF80 series detailed parameters of planetary gearbox:

Reduction ratio:3-100

Rated output torque:100-160NM

Maximum Output Torque:1.5 times rated torque

Rated input speed:5000RPM

Maximum input speed:10000RPM

Backspace:≤ 5-8 Arcmin





Average service life:20000h

Full-load transmission efficiency:≥   97%

Use temperature range:-10~+90℃(Customizable lower or higher temperatures)

Lubricating grease:Total synthetic grease

Noise value :≤58dB

Protection level :IP65

Weight           :5KG

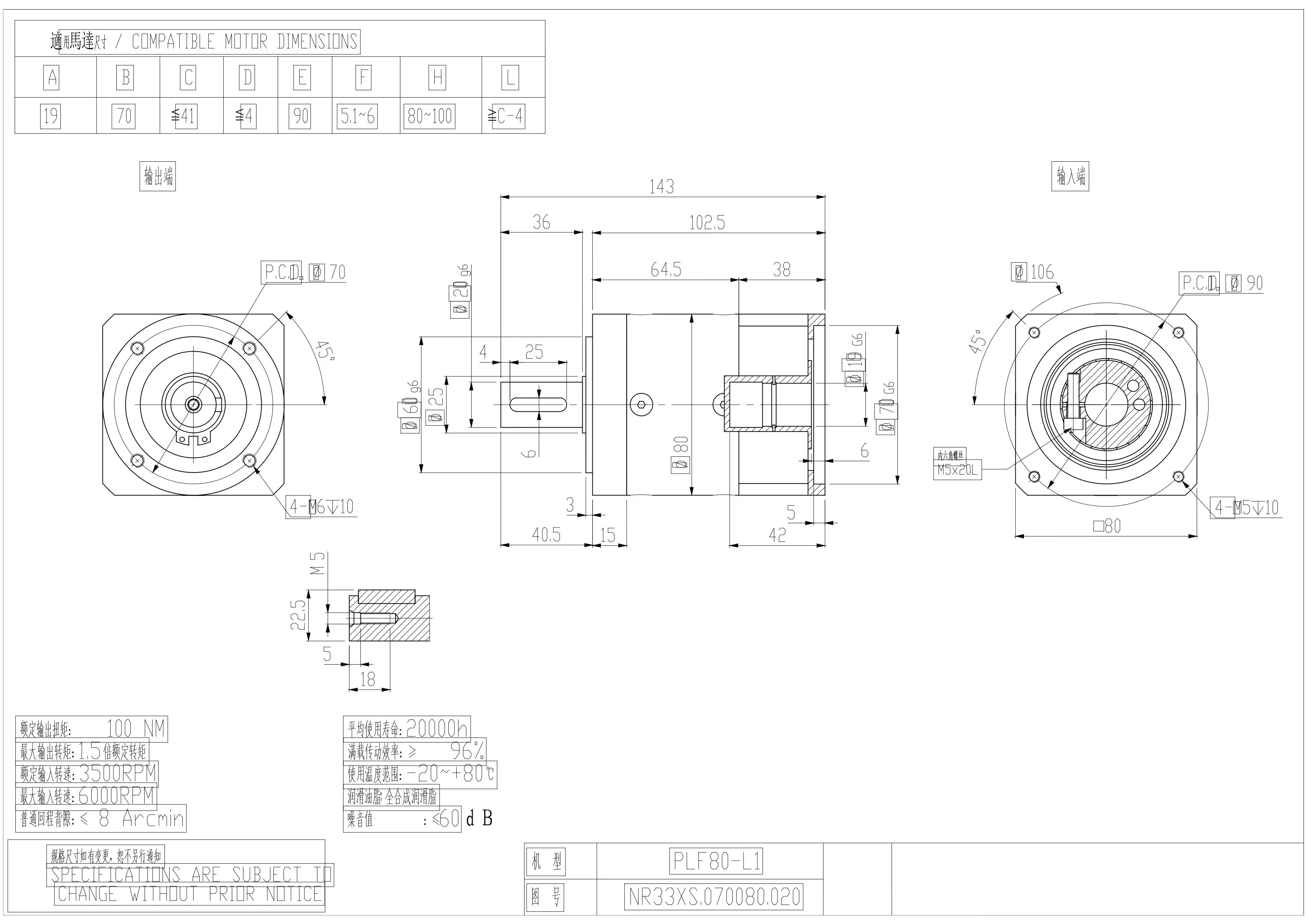

PLF80 Dimension Diagram



PLF80 1 STAGE(ratio:3-10)





PLF80 2 STAGE(ratio:15-100)
