Product Overview

Description



Why Choose Us


We are manufacturer specializing in producing conveyor belt scrapers, primary belt cleaner, secondary belt cleaner, v plough belt cleaners, we accept custom.



We will be your reliable partner and supplier.
1. Over 20 years experience in wear products and conveyor accessories.
2. Over 10 years experience in exporting, UK, France, Chile, Canada, USA, Finland, Australia, Russia, Indonesia, Thailand, etc.
3. SGS audited supplier.
4. ISO9001:2015 certified factory.
5. Strict QC/QA makes sure high quality and consistency.



Product Description

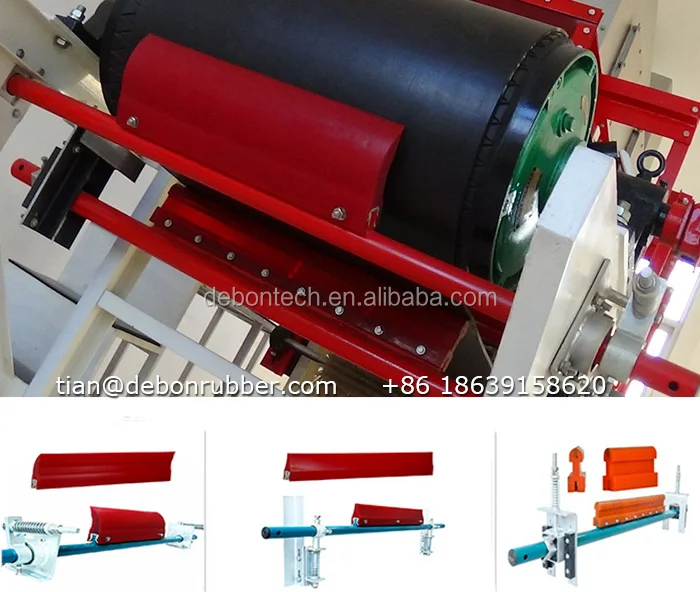

Primary Secondary V plough Polyurethane Conveyor Belt Cleaner /Scraper

Conveyor belt cleaners / Conveyor Belt Scrapers are designed to maintain the correct angle of attack and appropriate pressure against the conveyor belt throughout the service life of the blades, and under normal conditional there is no need for adjustments.

The Polyurethane blades are shaped for maximum removal of carry back and minimum material build up the cleaner itself. The blade shape and the spring tension maintain are efficient relatively constant cleaning pressure against the conveyor belt as the blade wear down.

Self-adjusting spring tensioners make sure consistent pressure and effective cleaning. When the blade wears or the belt jumps,the scraper will follow up automatically to ensure good contact.





Features of Primary Belt Cleaner / Conveyor Belt Cleaner / Cleaner for Conveyor Belt:
* one-piece polyurethane blade scraper, better cleaning
* belt width: 450-2400mm
* Self-adjusting left and right spring tensioners
* easy maintenance and replacement
* reduce downtime and maintenance cost
* high wear resistant,protect belt and prolong service life

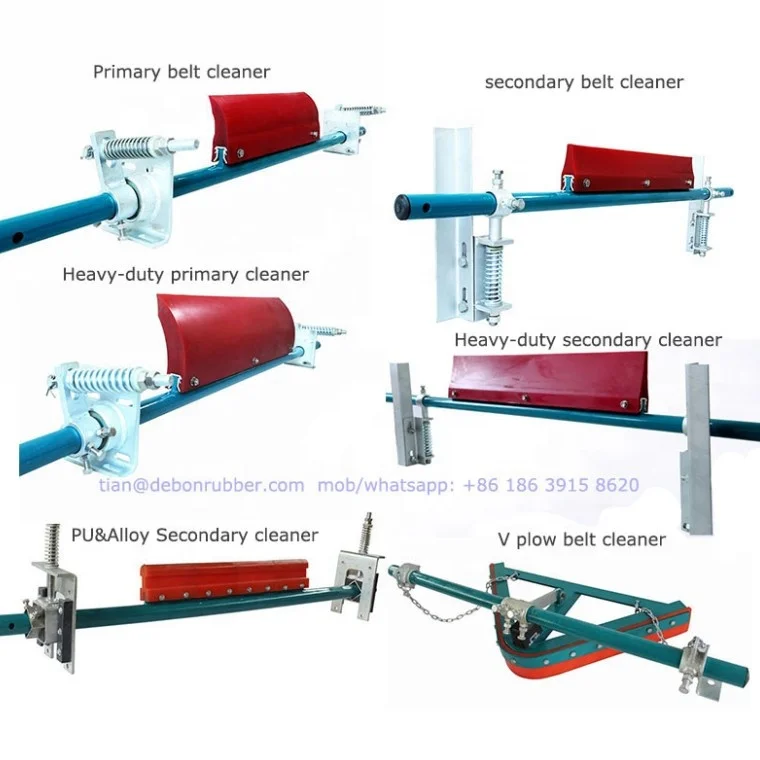

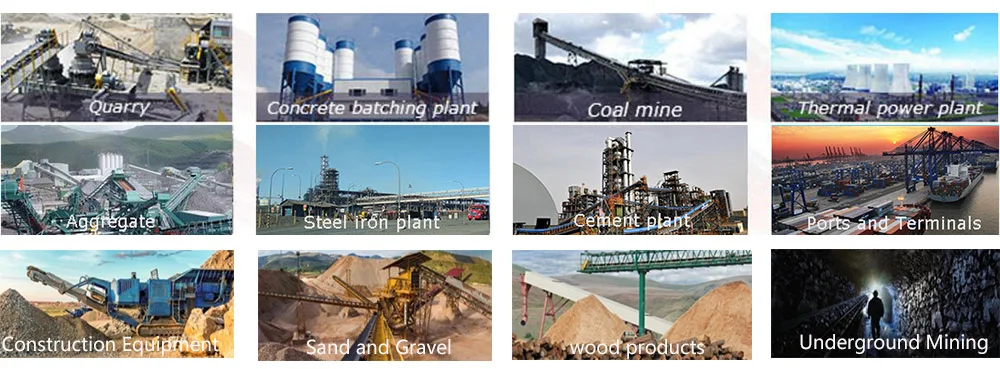

Application of conveyor belt cleaners:


1.Primary covneyor belt scraper cleaner to remove big stuff / eliminated carryback.
2.Secondary polyurethane blade conveyor belt scraper to remove sticky fines.
3.V-plow conveyor belt cleaner/scraper to cleaner inside of belt.

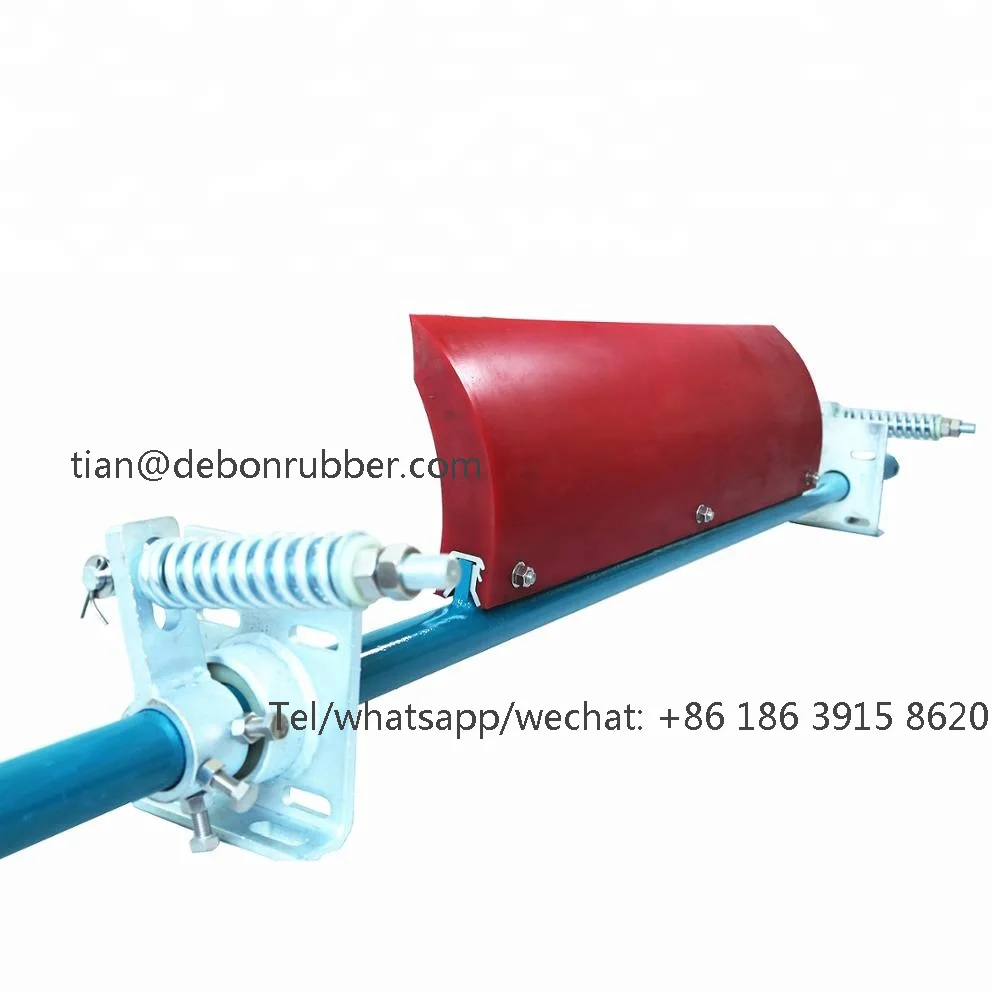

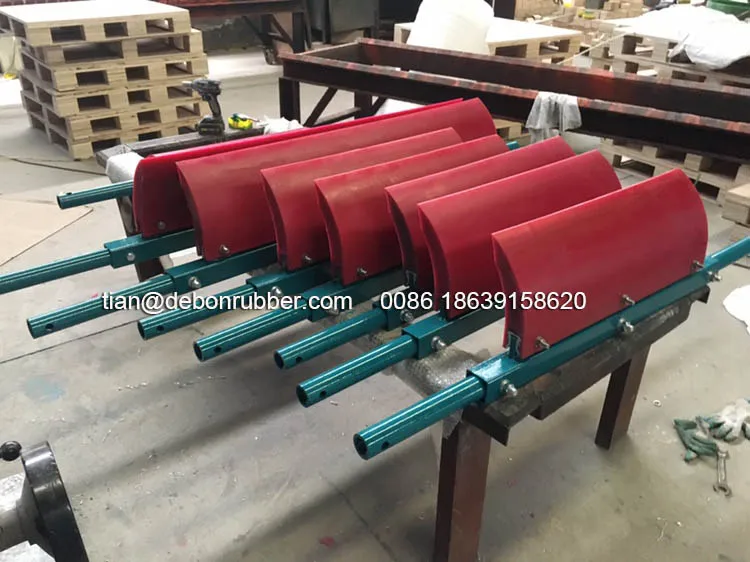

Description of Polyurethane Primary Belt Cleaner for conveyor belt cleaning:

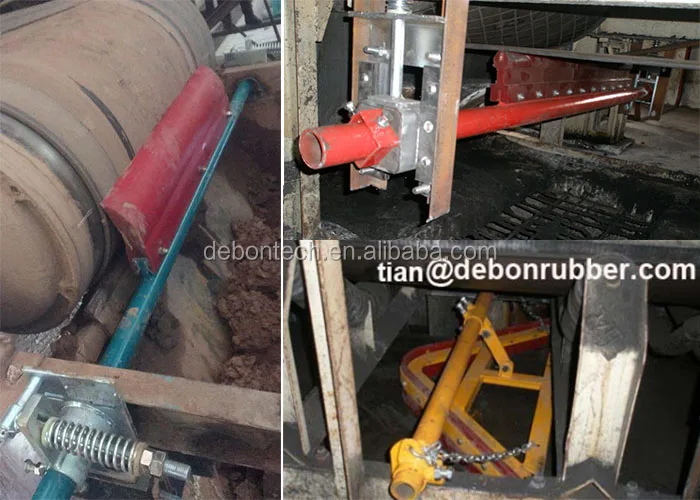

Primary belt cleaners or Precleaners are an essential part of any conveyor system, which are installed on the head pulley to provide effective cleaning.
Wear-resistant polyurethane blade doesn't damage the belt and extend belt life.
Self-adjusting spring tensioners make sure consistent pressure and effective cleaning. When the blade wears or the belt jumps,the scraper will follow up automatically to ensure good contact.

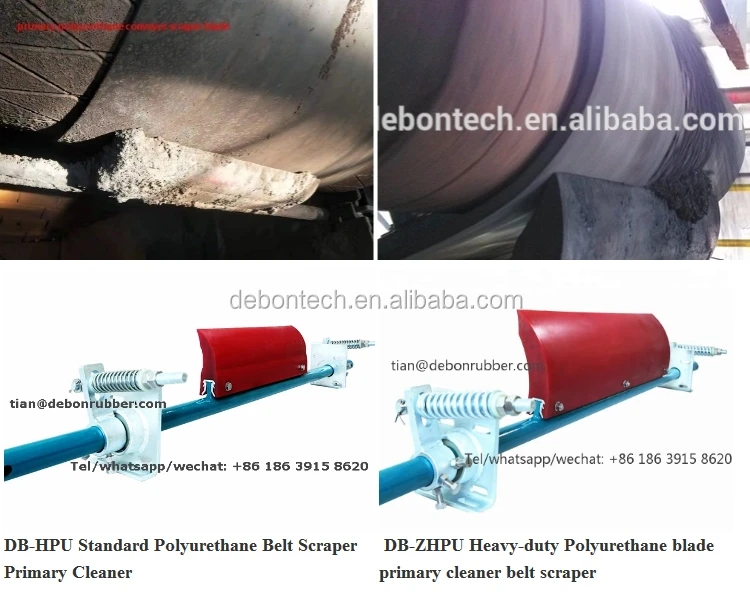

DB-HPU(ZHPU) (Heavy-duty) Polyurethane Blade Primary Belt Cleaner / Conveyor Belt Cleaner Technical Data:




Model (DB-HPU)
Belt Width (mm)
L1(Scraper Length)
L2(Total Length)
Height(mm)
DB-HPU-45
450
400
1400
182(242)
DB-HPU-50
500
400
1400
182(242)
DB-HPU-65
650
500
1600
182(242)
DB-HPU-80
800
600
1800
182(242)
DB-HPU-100
1000
800
2000
182(242)
DB-HPU-120
1200
1000
2200
182(242)
DB-HPU-140
1400
1200
2400
182(242)
DB-HPU-160
1600
1400
2600
182(242)
DB-HPU-180
1800
1600
2800
182(242)
DB-HPU-200
2000
1800
3000
182(242)
DB-HPU-240
2400
2200
3000
182(242)

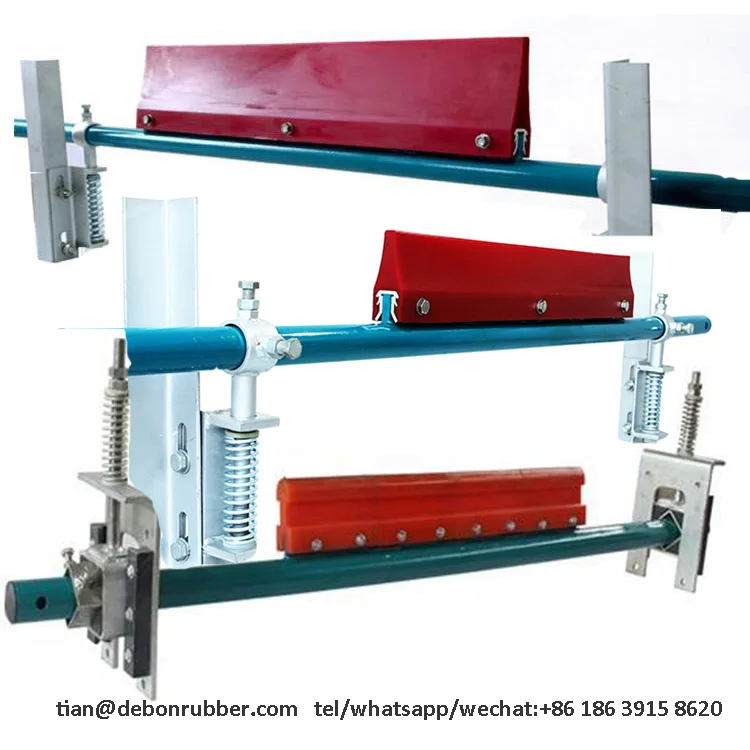

Description of Secondary Polyurethane Blade Conveyor Belt Cleaner /Scraper:


Our Secondary Conveyor Belt Cleaner / cleaners for conveyor belt are installed after the point where the belt leaves the head (discharge) pulley and or anywhere on the return side of the belt where it can be cleaned and maintained effectively. These cleaners are designed to deliver exceptional cleaning service, even in the most demanding applications.





DB-PPU(ZPPU) (Heavy-duty) Secondary Polyurethane Blade Conveyor Belt Cleaner / Cleaner for Conveyor Belt Scraper Technical Data:




Model(DB-PPU)
Belt Width(mm)
L1(Scraper length)
L2(Total Length)
H(mm)
DB-PPU-50
500
500
1400
130/200
DB-PPU-65
650
600
1600
130/200
DB-PPU-80
800
800
1800
130/200
DB-PPU-100
1000
1000
2000
130/200
DB-PPU-120
1200
1200
2200
130/200
DB-PPU-140
1400
1400
2400
130/200
DB-PPU-160
1600
1600
2600
130/200
DB-PPU-180
1800
1800
2800
130/200
DB-PPU-200
2000
2000
3000
130/200



Description of V plough Polyurethane Blade Conveyor Belt Cleaner /Scraper:


V-plow conveyor belt cleaner uses a specially designed suspension device in the installation, it is possible to adapt to change due to the belt tension or belt run lead fluctuates in the belt of the occasion. Moreover, it can automatically adjust the cleaning blade under wear for best cleaning results. The product is suitable belt speed does not exceed 900 fpm (4.6m / s) applications.



DB-KQ(ZKQ) (Heavy-duty) V Plow / V plought Polyurethane Blade Conveyor Belt Cleaner Scraper Technical Data:



Model(DB-KQ)
Belt Width(mm)
L1(scraper length)
L2(total length)
H(mm)
DB-KQ-50
500
322
1000
180/250
DB-KQ-65
650
395
100
180/250
DB-KQ-80
800
460
1300
180/250
DB-KQ-100
1000
566
1500
180/250
DB-KQ-120
1200
672
1700
180/250
DB-KQ-140
1400
772
1900
180/250
DB-KQ-160
1600
866
2100
180/250
DB-KQ-180
1800
972
2300
180/250
DB-KQ-200
2000
1072
2500
180/250

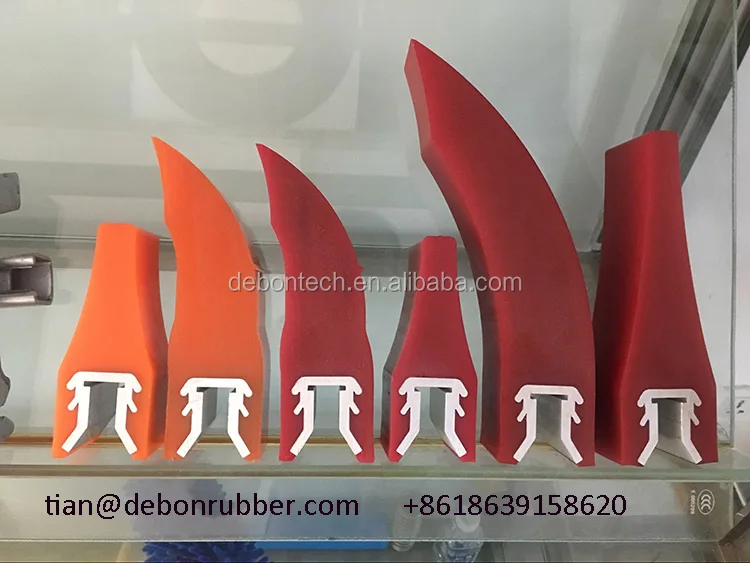

Replacement polyurethane blade scraper- easy replace, easy install, cost efficient




Related Products

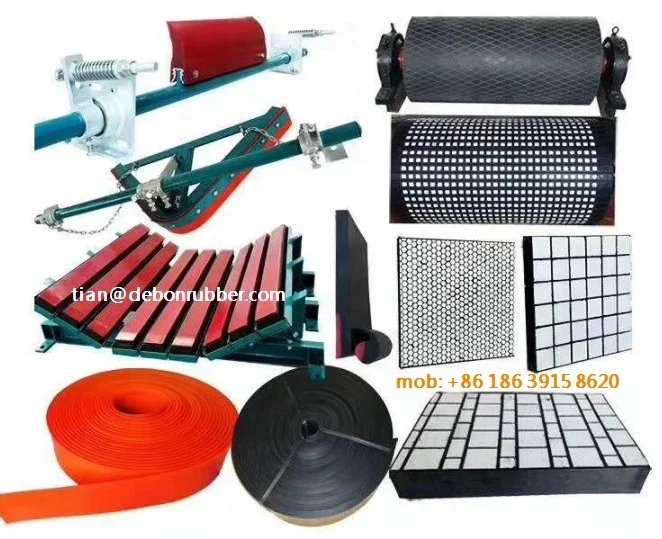

Main products: various kinds of Polyurethane Sheets, Rubber sheets, Rubber Ceramic Pulley Lagging, Conveyor Belt Cleaners / scrapers, impact bed / bar, Ceramic Rubber Wear Liner For Conveyor Chute,pipe,bin,hopper and other material handing equipment, custom rubber products and polyurethane products, steel cord stripper, etc.

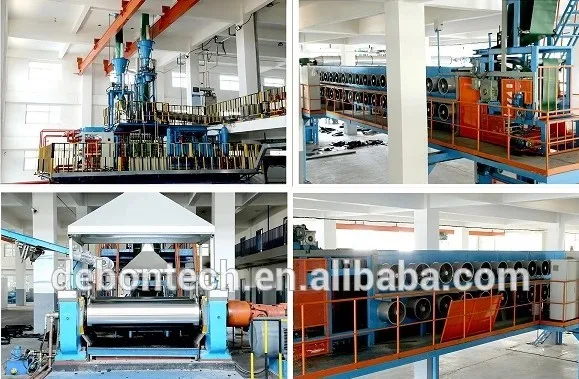

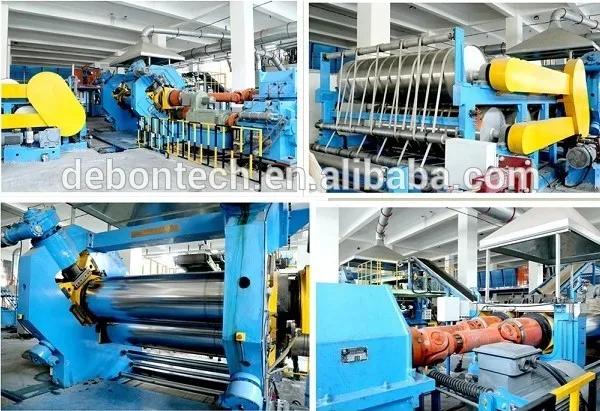

Our Company




23 Year Manufacturer:
Jiaozuo Debon Technology Co., Ltd., whose former name is Jiaozuo Zhuoer Machinery Manufacturing Co., Ltd, founded in 1996, with 126 employees, including 35 engineers, we are manufacturer specialized in designing and manufacturing Industrial Conveyor Belt Related Products.

11 Year Exportor:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Canada, France, New Zealand, Jordan, South Africa, Indonesia, Thailand, Vietnam, etc., good quality have be approved by our clients.

Our company is certified to ISO 9001:2008 Quality Management System, and rubber lagging products were certified to "SAFETY CERTIFICATE OF APPROVAL FOR MINING PRODUCTS". We are ISO SGS approved manufacturer, SGS audited supplier, ISO9001 certified factory.

Our products are exported to many countries including America, Canada, Australia, Russia, Kazakhstan, Chile Southeast Asia, etc.
We also have good performance and market share in domestic market. Our customers prove the high quality and consistency.









Certifications

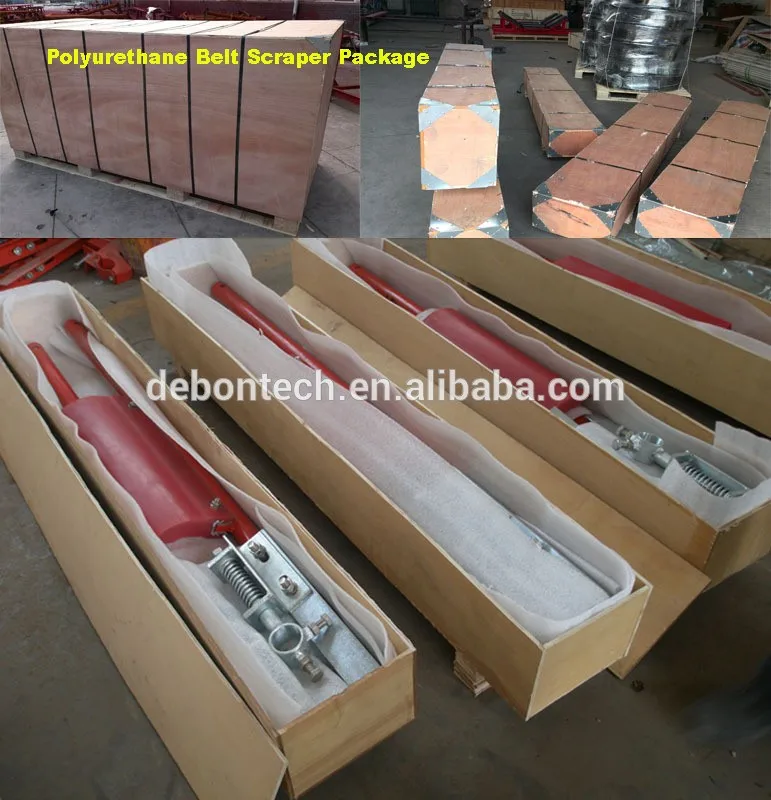

Packing & Delivery
