Product Overview

Description

PIR motion sensor switch operating instructions

Model:JL-028AQ

1. Features:

Our products adopt the most advanced imported internal sensor and circuit, when pedestrians into the sensing range light will start automatically. (light on), when they leave light will delay and shut down automatically.

1,Super saving electricity.

2,Wide working voltage.

3,Large power, impedance biggest load can reach200W

4,Non-contact, simple installation(Single line, no need for zero line.)

5,Strong anti-jamming capacity, more safe and reliable

Components have been doing rigorous testing and screening, before delivery we have been doing aging test, please be assured to use.

2. Specification:

Working power:AC90V~300V,50/60HZ.

Load power:LED≤40W,Energy saving≤80W,Incandescent≤200W,Fan≤50W.

Standby power:0.01W.

Delay time:15~300second.

Illumination:5LUX~5000LUX.

Induction distance:2~12m.

Sensor angle:110~140degree.

3. Application:

Corridor,toilet,basement, warehouse,garage ,and other places of automatic lighting, exhaust fan convulsions and other automatic control electrical, can be used for security purposes at the same time.

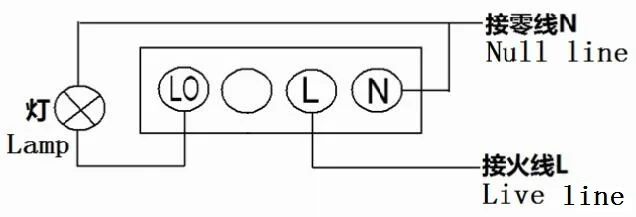

4. Installation wiring diagram:







Adjust schematic diagram: Adjustable product at the time of debugging, please must use a Straight screwdriver gently adjust.





1.time       2.range     3. Illumination



1: on the left to reduce time, on the right to increase time;



2: on the left to reduce scope, on the right to increase scope ;



3: on the left night work, on the right daytime work





Sensing range:



5.Attention:

1,To turn off power when installation, must be installed by professional.

2,This switch can work normally after 60 seconds when electricity, it is infrared sensor preheat time.

3,Do not overload to use.
