Super Fine Wire Annealing Machine and Tinning Machine
- Category: Wires, Cables & Cable Assemblies >>>
- Supplier: Jiangsu Brainpower Intelligent Technology Co. Ltd.
Share on (62180705274):
Product Overview
Description
Aplication
Super Fine Wire Annealing Machine and Tinning Machine special for annealing 32 copper wires 0.03-0.08mm at the same time.
Finished wire is wound by plastic bobbin.
Feature
1)Max.Wires Quantity: 32
2)Max speed: 300m/min
3)Annealing Body Length: 3.5m
4) Temperature Preservation: four insulation layers
Main Specification
Machine type | BRN-32H/3.5M |
Length of annealing tank | 3.5m |
Wire dia | Φ0.03-Φ0.08mm |

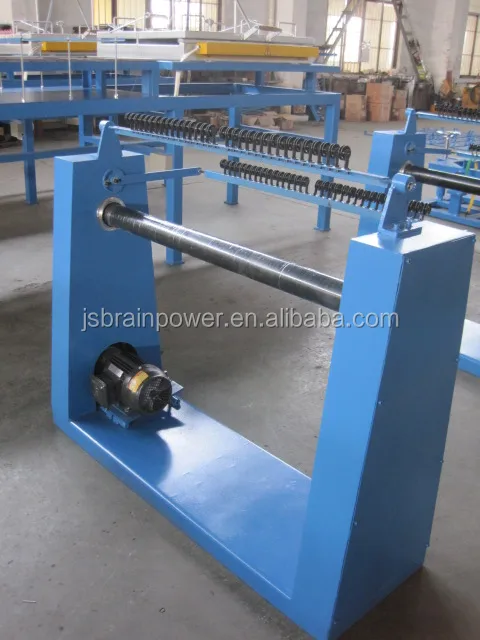

Pay-off stand | By brush wire |
Max. speed | 300m/min |
Tin-coating type | Dual parts by heater (optional) |
Pay-off bobbin size | Φ300 or customized
|
Spool bobbin size | PT5-PT25 or customized |
Take-up type | Single spooler drive by torque motor |
Annealing type | Continuous annealing by heater |
Total power consumption | 45KW |
Machine dimension | 20000L×2200W×1900Hmm |

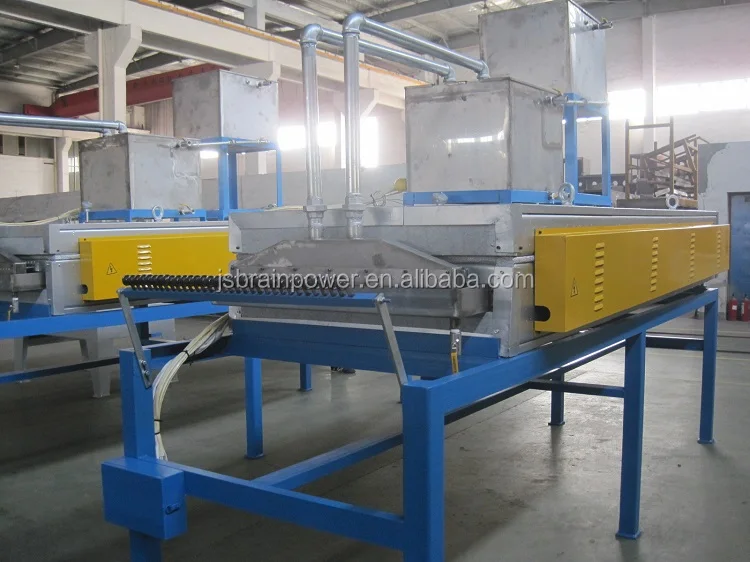

Photos show
Advantages
1)Add one room inside the annealing, which can make the temperature impartial distribution.

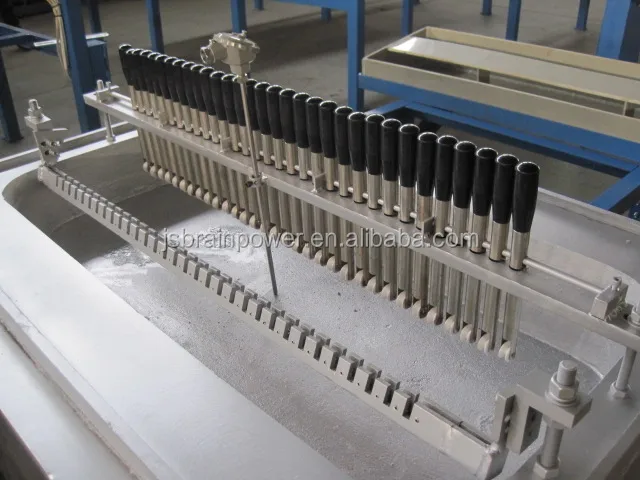

2)Dual tinning tank design, it can produce two kind of tin-coating copper wire in the same time.

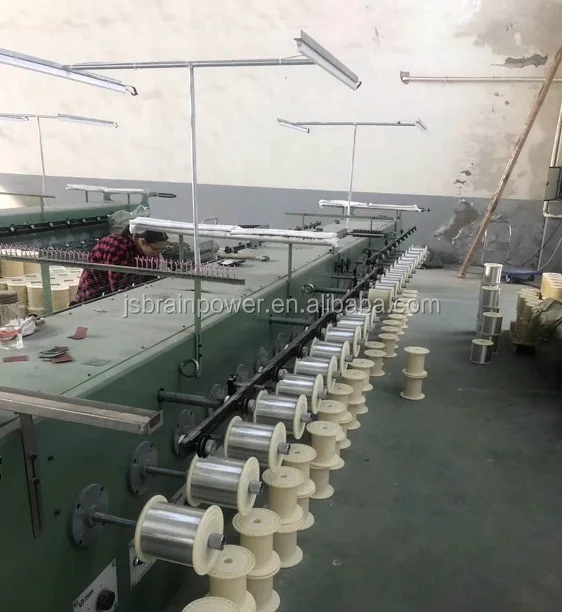

3)Spooler arranged in double layer can save space.
4)It is energy-saving (good heat preservation effect) and high efficiency (low Maintenance rate).
Support steel for annealing tube won’t touch up and down site of the annealing body,the heat won't be dissipated quickly.
Support steel for annealing tube won’t touch up and down site of the annealing body,the heat won't be dissipated quickly.

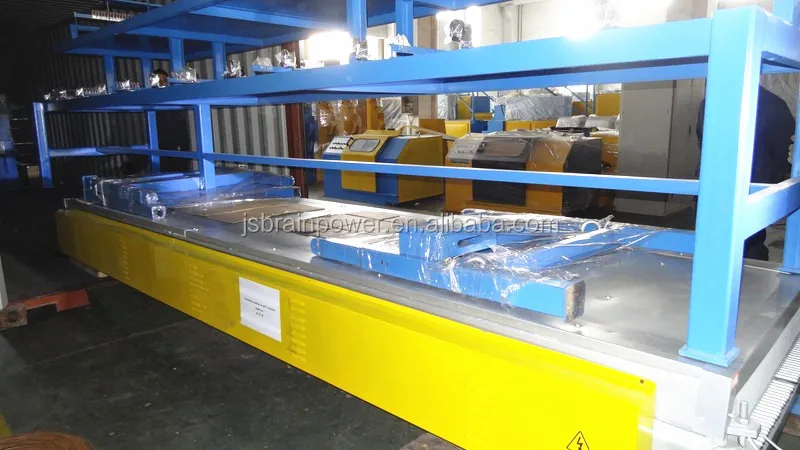

Packaging & Shipping
Trade Shows
FAQ
1) What’s the payment terms?
Standard type is 30% T/T as deposit, 70% T/T before shipping.
2) How about the after-sell service?
Engineer will be dispatched at needed.
3)How much need pay for after-sell service?
The buyer provides engineer's roundtrip flight tickets, board and lodging,
the security as well as each person of daily wage.
4)What kind of Gurantee you can offer?
12 months since shipping date and charge for repair the whole life.
5) Can you support complete project instead of single machine?
Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.
