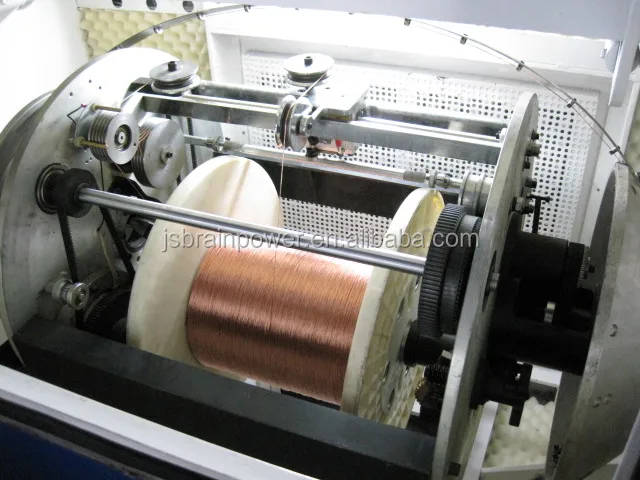

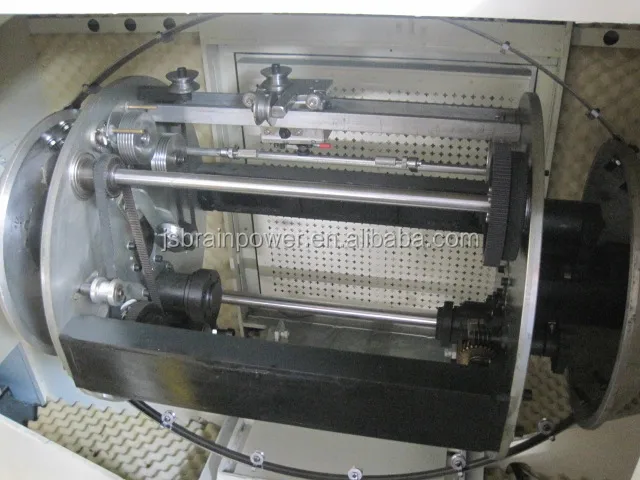

Copper Wire Bunching Machine
- Category: Wires, Cables & Cable Assemblies >>>
- Supplier: Jiangsu Brainpower Intelligent Technology Co. Ltd.
Share on (62184840517):
Product Overview
Description
Aplication
Bunching Machine is used for twisting copper wires more than 7 wires.
Feature
1)Max.Finished Twisting Section Area: 0.45mm2
2)Max speed: 3000r/min
3) Raw material: copper wire, tin coated wire,copper cladding aluminum wires, silver plated copper wires etc
4) Twisting type: double twist
Main Specification
Machine type | BRN-300P | BRN-500P | BRN-500P/B | BRN-650P | -800P |
Use | For bunching bare copper, tinned wire, enameled wire | ||||

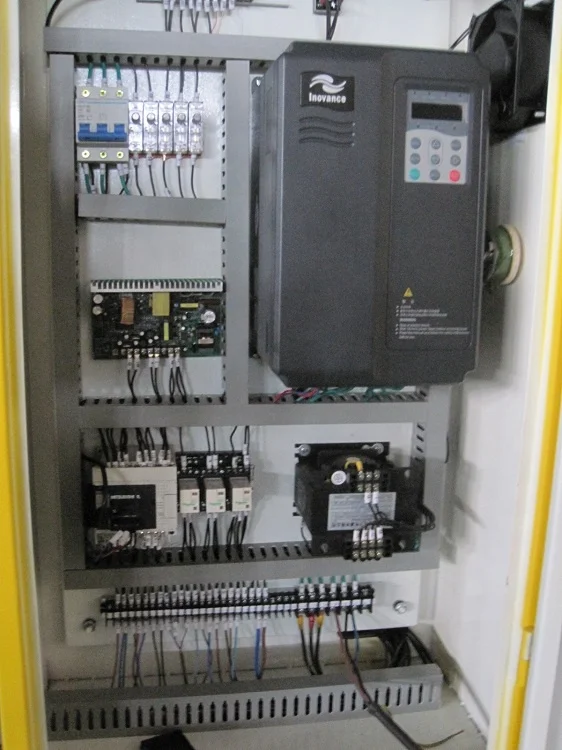

Control type | PPLC+HMI+Inverter control | ||||
Twisting section area((mm²) | 0.035~0.45 | 0.05~2.50 | 0.05~4.00 | 0.18~6.00 | 2.50~16.00 |
Copper wire dia.(mm) | 0.05~0.25 | 0.10~0.45 | 0.10~0.52 | 0.18~1.00 | 0.50~1.20 |
Twisting direction | S or Z | ||||
Take-up tension | tension controlled by magnetic clutch | ||||
Max main shaft speed | 3000r/min | 3000r/min | 2500r/min | 2000r/min | 1200r/min |
Bobbin loading&unloading type | Hydraulic type | ||||
Max bobbin dia. | 300 | 500 | 500 | 630 | 800 |
Auto stop unit | While reach setting length, inside outside wire break, or other error auto stops | ||||
Brake | Magnetic brake | ||||
Motor power(KW) | 4 | 5.5 | 5.5 | 7.5 | 11 |
Main shaft center height | 630mm | 700mm | 700mm | 850mm | 900mm |

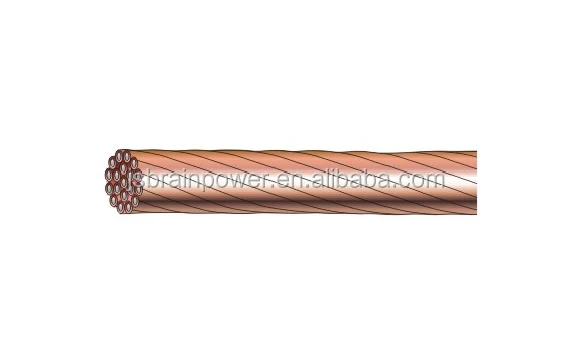

Finished Products
Advantages
1) More stability, high production efficiency, low noise and easy to operation.
2) Spring bow can prolong the life.
3) Take-up tension is controlled by magnetic powder clutch or mechanical type.
4) If the wire breaks, the machine can stop automatically.

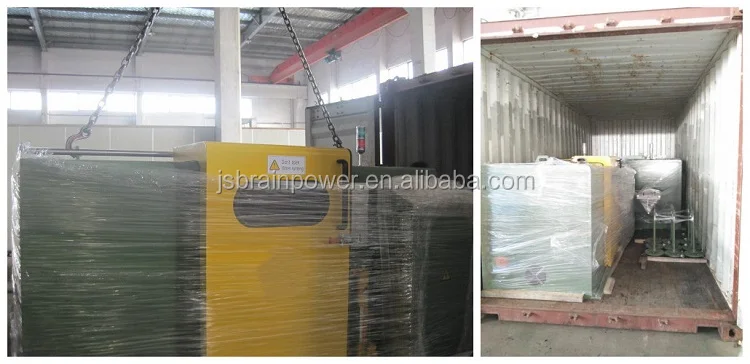

Packaging & Shipping
Trade Shows
FAQ
1) What’s the payment terms?
Standard type is 30% T/T as deposit, 70% T/T before shipping.
2) How about the after-sell service?
Engineer will be dispatched at needed.
3)How much need pay for after-sell service?
The buyer provides engineer's roundtrip flight tickets, board and lodging,
the security as well as each person of daily wage.
4)What kind of Gurantee you can offer?
12 months since shipping date and charge for repair the whole life.
5) Can you support complete project instead of single machine?
Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.
