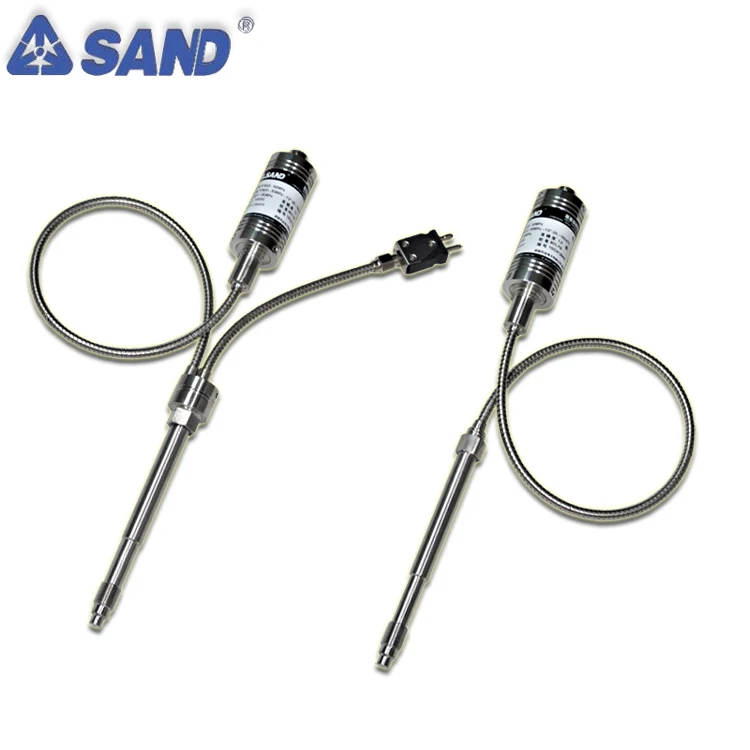

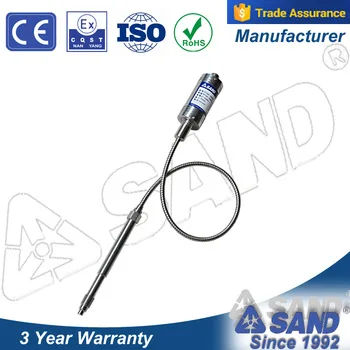

ROHS cetification PT3616B melt pressure transmitter



1 Adopt safe structure & non-toxic, pollution-free transmission medium;



2 Comply with U.S. FDA standards and the EU ROHS directive;

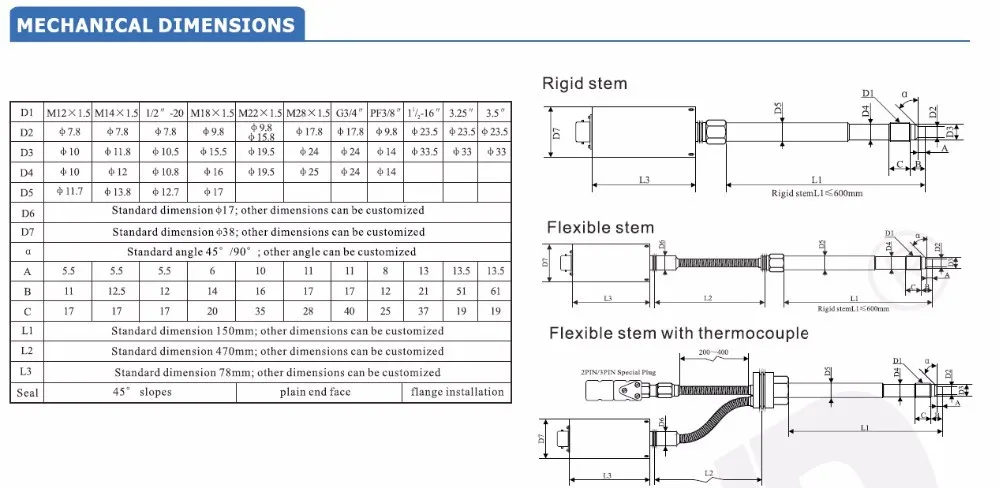

3 1/2 "-20, M14 x 1.5, M22 x 1.5, G3 / 4" a variety of mounting dimensions to facilitate the user to select;



4 Accuracy: ± 1.0% FS, ± 1.5% FS (default);



5 Green shell, elegant appearance;



6 Output signal:Pressure sensors; 2.0mV / V, 3.0mV / V, 3.33mV / V; Pressure transmitter: 0 ~ 10V, 4 ~ 20mA;



7 Corrosion resistant coating to extend the service life of3 to 5 times; (optional)



8 Thermometric Config:



Thermocouple: E, J, K type, etc., Thermal resistance: Pt100 etc. (Optional)

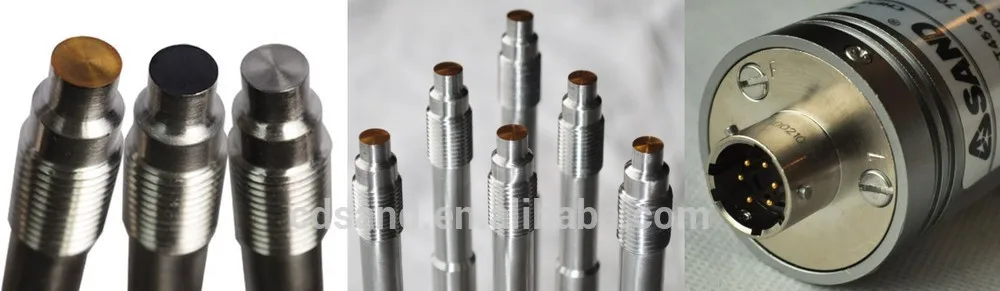

  * Anticorrosive wear-resisting coating: apply to high concentrations of rough media pressure measurement,

can improve the service life of 3 to 5 times (optional);



* Special requirement can make to order, delivery date 7 ~ 15 working days;



* Optional supporting intelligent digital pressure meter:



PS1016-43x series, PS4810-43x series, PS4812-43x series and PS9016-43x series.

 Example1:

PT3516-350bar-M18-150-3.33mV/V



Note:



Product design Model "PT3516".



Function code "Null" stands for melt pressure transducer.



Coating code "Null" stands for without coating .



Pressure range: 0 ~ 350bar.



Thread size : M18 * 1.5.



Rigid stem length:150mm .



Pressure output signal: 3.33mV/V
