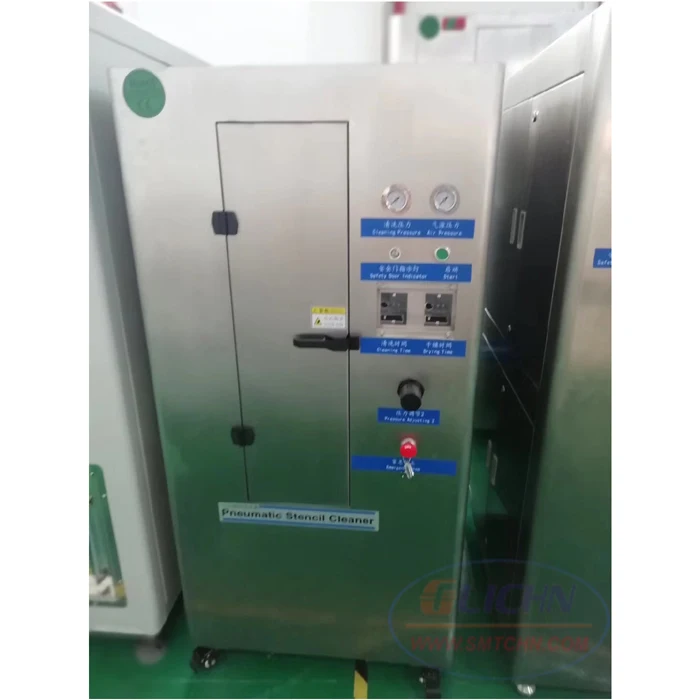

 SMT Pneumatic Stencil Cleaning Machine GW700

SMT Pneumatic Stencil Cleaning Machine GW700 is a pneumatic stencil
cleaning machine which is used to clean SMT solder paste or red glue printing
stencil. Famous pneumatic parts, strictly produce process, patented rotation
spray rods guarantee you a high quality stencil cleaning machine. Both solvent
and aqueous detergent can be use in GW700. Cleaning result is the same-100%
clean.
Features:
1. SUS 304 structure, Acid and Alkali corrosion resistance,10 years lifespan.
2. Only driven by compressed air, no use electric power at all.
3. One button easy operation, clean and dry complete automatically.
4. Patent 360°rotation spray rods on both sides, ensure good cleaning quality
and stable stencil tension.
5. Liquid recycle use, low consumption.
6. Inner-lock safety door and safety valve, once open, machine will be stopped
immediately.

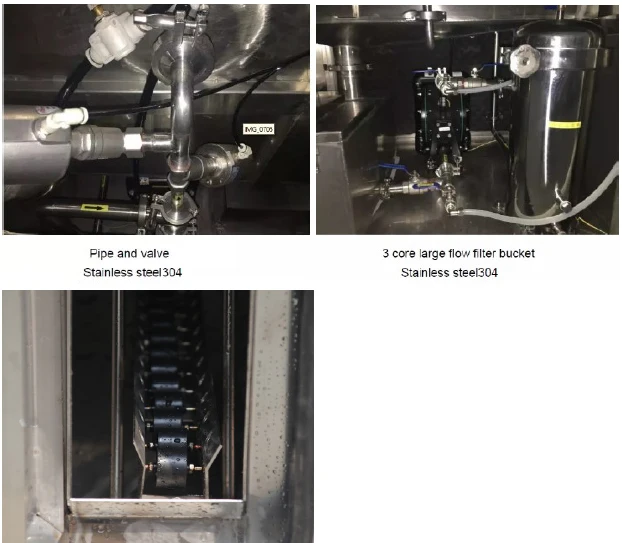

7. 3-level precise liquid filtering system.Liquid used repeatedly.
8. Super well-known Pneumatic parts from all over the word manufactures.
9. Modular design, easy maintenance.
Specifications
SMT Pneumatic Stencil Cleaning Machine GW700
Max stencil size (L*W*H) 745 × 745 × 40 mm
Clean method 360°rotation spray clean + compressed air blow dry
Compressed air pressure 0.45~0.7Mpa
Air flow rate 400~600L/min
Liquid tank 40L
Clean time 2~4min
Dry time 2~5min
First Filter system: 10μm (Filter impurities and labels)
Second Filter system: 5μm (Filter solder paste and rosin particle)
Third Filter system: 1μm (Filter solder paste and rosin particle)
Machine size (L*W*H) 950 X800X1680 mm
Machine weight 228KG

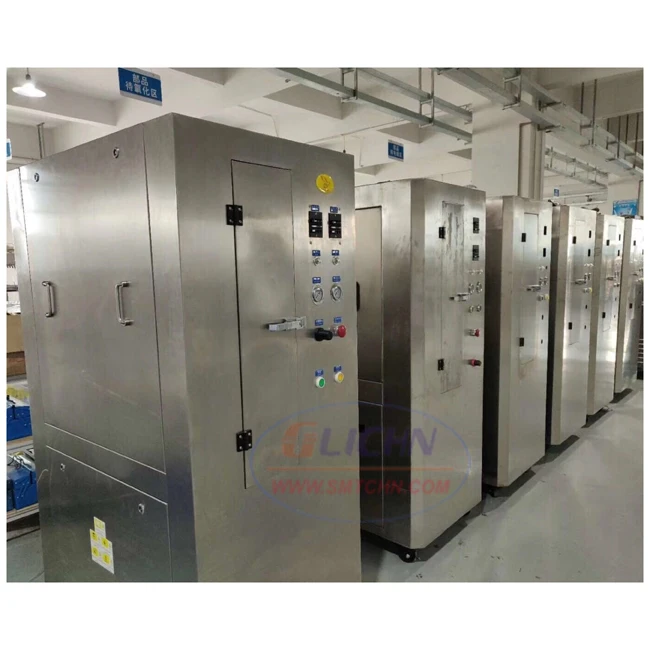

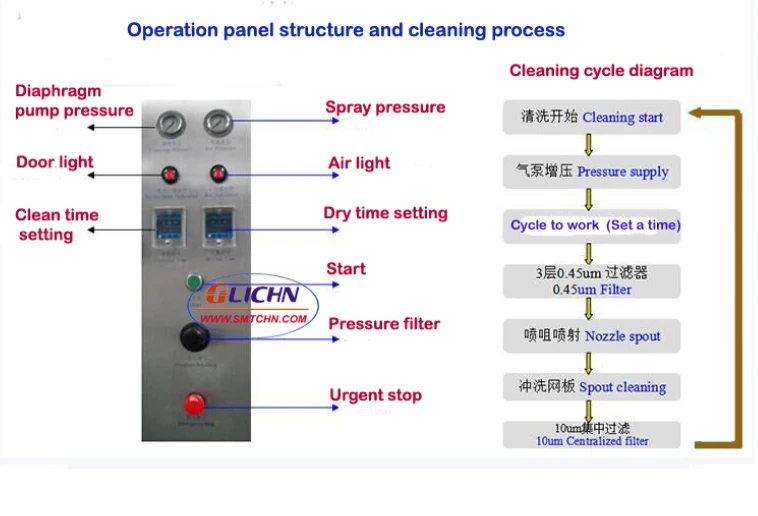

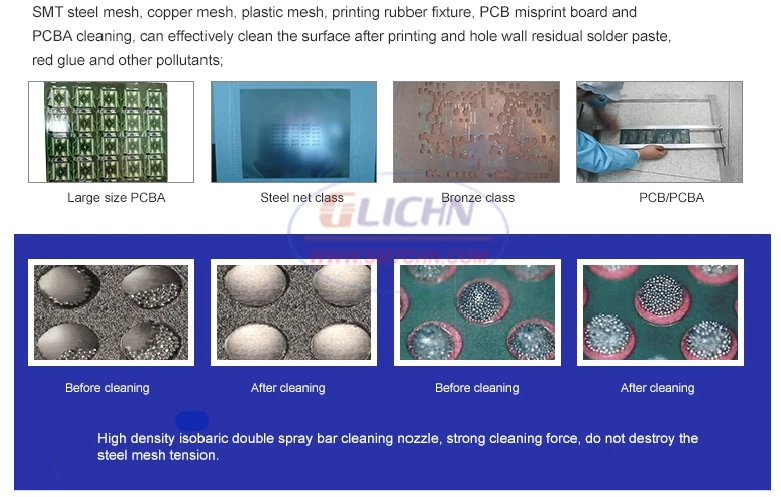

SMT stencil cleaning 3.jpgSMT stencil cleaning 4.jpgSMT stencil cleaning 2.jpgSMT stencil cleaning 6.jpg

Packaging & Shipping

Packing method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
SMT machine packaging 33.jpg
Shipping way:
1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS....
2)By sea, for large package and quantity;
3)By car or other ways as customer requested;

SMT transportation.jpg



Company introduction

GLICHN found in 2010,Specializing in SMT equipment manufacturing services and sales of peripheral products. Factory is located in shunyi district of Beijing and shenzhen baoan district
SMT class:pick and place machine,small and middle size reflow oven, manual and semi-automatic solder paste printer,PCB loader and unloader,PCB magazine rack,SMD component counter,solder paste and chip production line etc.
THT Class:wave soldering machine, Spray tin stove,cut foot and forming machine,Plug-in production line etc
Others :Spin coater,Dispensing machine,nozzles,feeder,belt ,driver, motor,cylinder,High temperature tape,valve,etc

smt pcb assembly.jpg

Our Service

1. We’ll have a good check and a test before shipping out.
2. We provide you the friendly English User manual or the operating videos for free;
3. 24 hours technical support by email or Skype or Trade Manager or Calling.
4. 1 year machine parts free warranty;
5.Engineers available to service machinery overseas.
