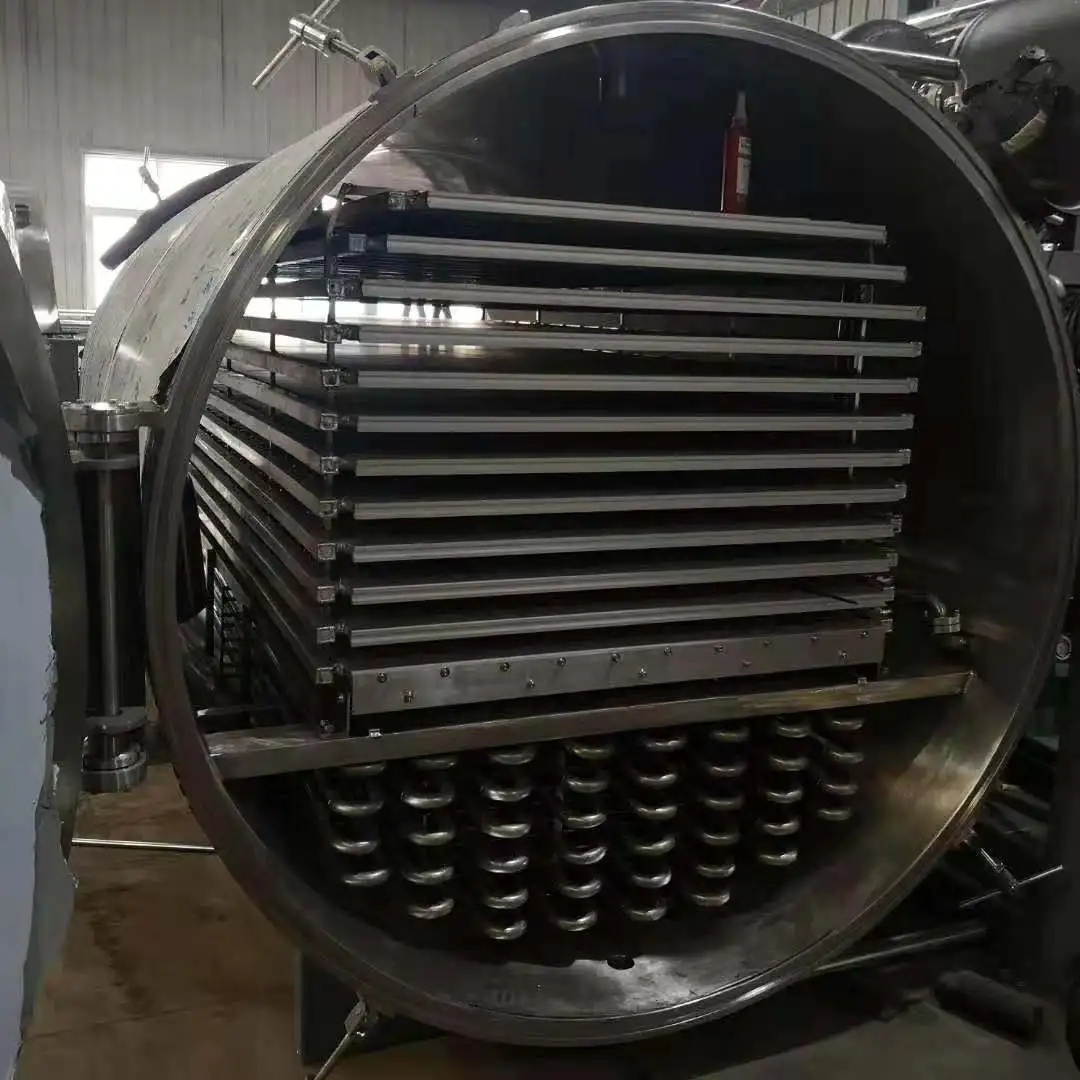

Large scale PID Control High Efficiency Industrial Vacuum Freeze Drying Machine For Fruit Dehydrator
- Category: Vacuum Drying Equipment >>>
- Supplier: Xiamen Ollital Technology Co. Ltd.
Share on (62188300988):
Product Overview
Description
Product Description
Vacuum freeze dryer is currently the most advance dehydrating processing technology in the world,the freeze dried food will not only can keep original shape,taste and fresh but also can be stored for a long time and easy transportation.It is widely used in the field of vegetables, fruits, spices, aquatic products, biological products, medicines, Chinese herbal medicine, beverage, and chemical etc.
We have Vacuum freeze dryer from 1 square meter -200 square meter which can be customized according to customer needs of production.
Technical Parameters
| model | unit | GS-15 | GS-20 | GS-30 | GS-50 | GS-100 | GS-200 |
| parameters | |||||||
| shelf area | m2 | 16.2 | 20.6 | 31.68 | 52.92 | 105.84 | 209.52 |
| shipping weight | kg | 150 | 200 | 300 | 500 | 1000 | 2000 |
| shelf numbers | layers | 9+1 | 8+1 | 8+1 | 9+1 | 18+1 | 18+1 |
| shelf dimensions | mm | 1200*1500 | 1200*2150 | 1200*3300 | 4900*1200 | 4900*1200 | 9700*1200 |
| shelf spacing | mm | 80 | 80 | 80 | 80 | 80 | 80 |
| cart numbers | set | 1 | 2 | 2 | 3 | 3 | 6 |
| temp. range | ℃ | normal temp.~120 | |||||
| ice collecting capacity | kg/b | ≥225 | ≥300 | ≥450 | ≥750 | ≥1500 | ≥3000 |
| cold trap temp. | ℃ | ≤-60 | ≤-60 | ≤-60 | ≤-50 | ≤-50 | ≤-50 |
| cooling mode | - | water cooled,water temp.<30℃ | |||||
| defrosting mode | - | spraying + soaking | |||||
| ultimate vacuum | pa | <5 | <10 | ||||
| power | kw | 50 | 96 | 120 | 150 | 230 | 440 |
| water cooled consumption | m3/h | 30 | 40 | 60 | 80 | 160 | 300 |
| compressed air | L/min | 20 | 30 | 30 | 30 | 30 | 30 |
| (P=0.5~0.8Mpa) | |||||||
| dimensions | m | 5.2*1.8*3.2 | 6.2*2.3*3.2 | 7.5*2.3*3.2 | 7*8.5*3.2 | 7*11*3.5 | 1.2*11*3.5 |
| L*W*H | |||||||
| overall weight | t | 6 | 10 | 16 | 29 | 46 | 95 |
Freeze Dried Food :
| Fruit | Apples, pears, strawberry, blueberry, gojiberry, raspberry, durian, banana, pineapple, papaya, mango, starfruit, guava, Jackfruit etc. |
| Vegetable | Broccoli, mushroom, onion, green beans, peas, sweet con, carrots etc. |
| Meat | Pork, mutton, beef, chicken etc. |
| Seafood | Fish, shrimp, sea cucumber etc. |
| Instant food | Instant coffee, tea, Instant soup ,honey etc. |
| Powder | Fruit powder, vegetable powder, instant soy milk powder, milk powder etc. |
| Pet food | Cat food, dog food , pig food, fish food, tortoise food etc. |
| Herbs | Chinese medicines,ginseng, pioseantler, chinese wolfberry etc. |

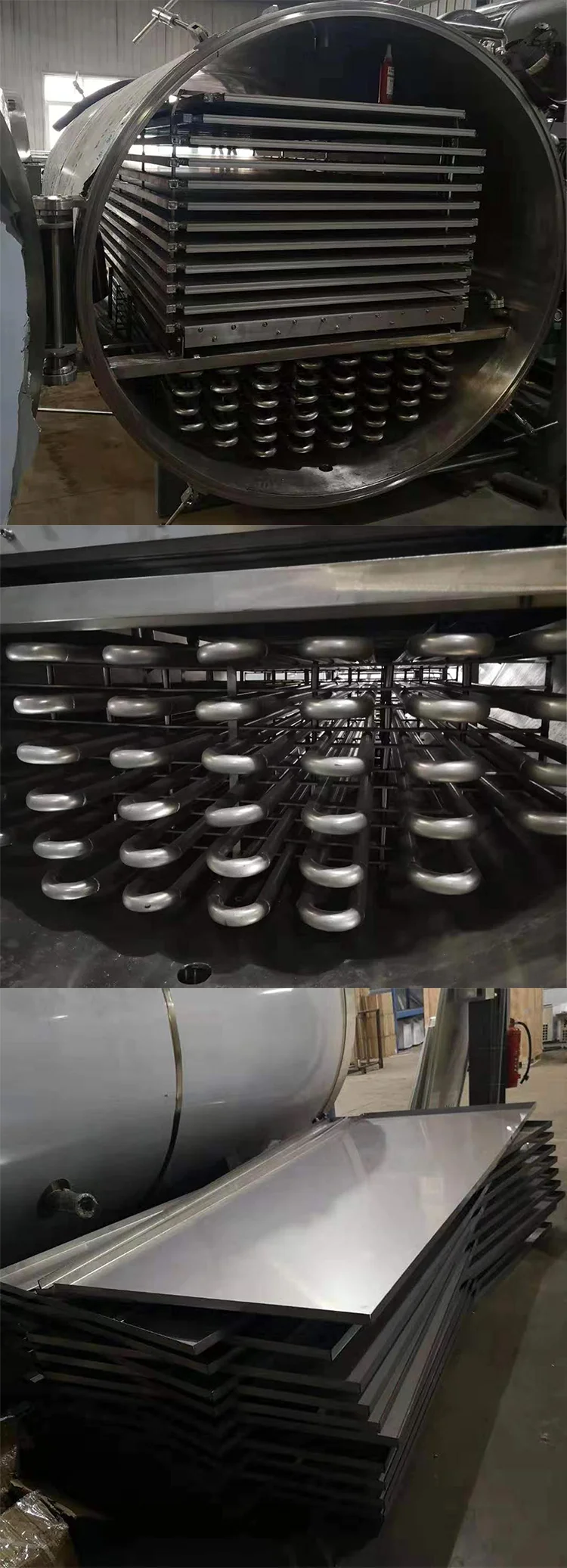

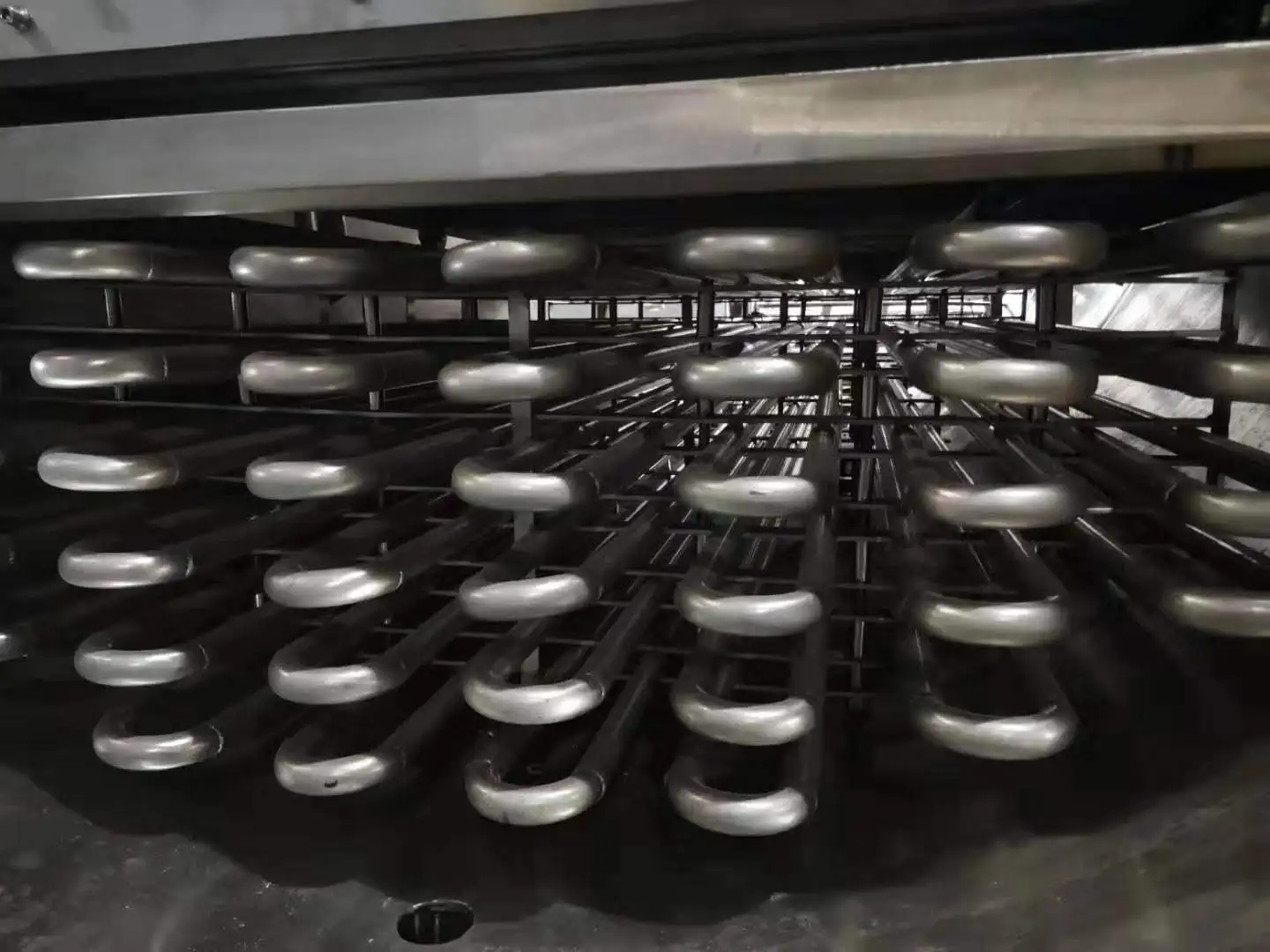

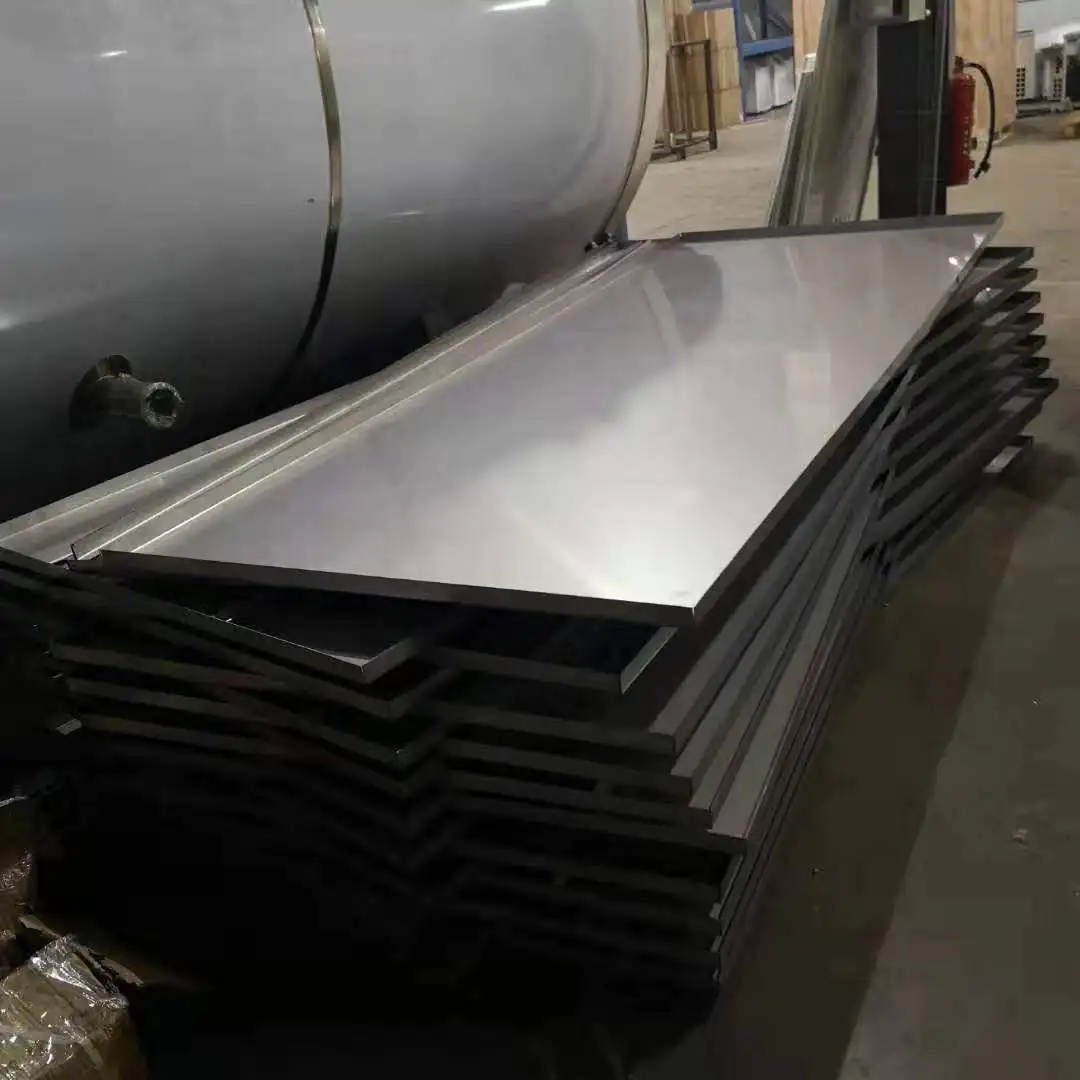

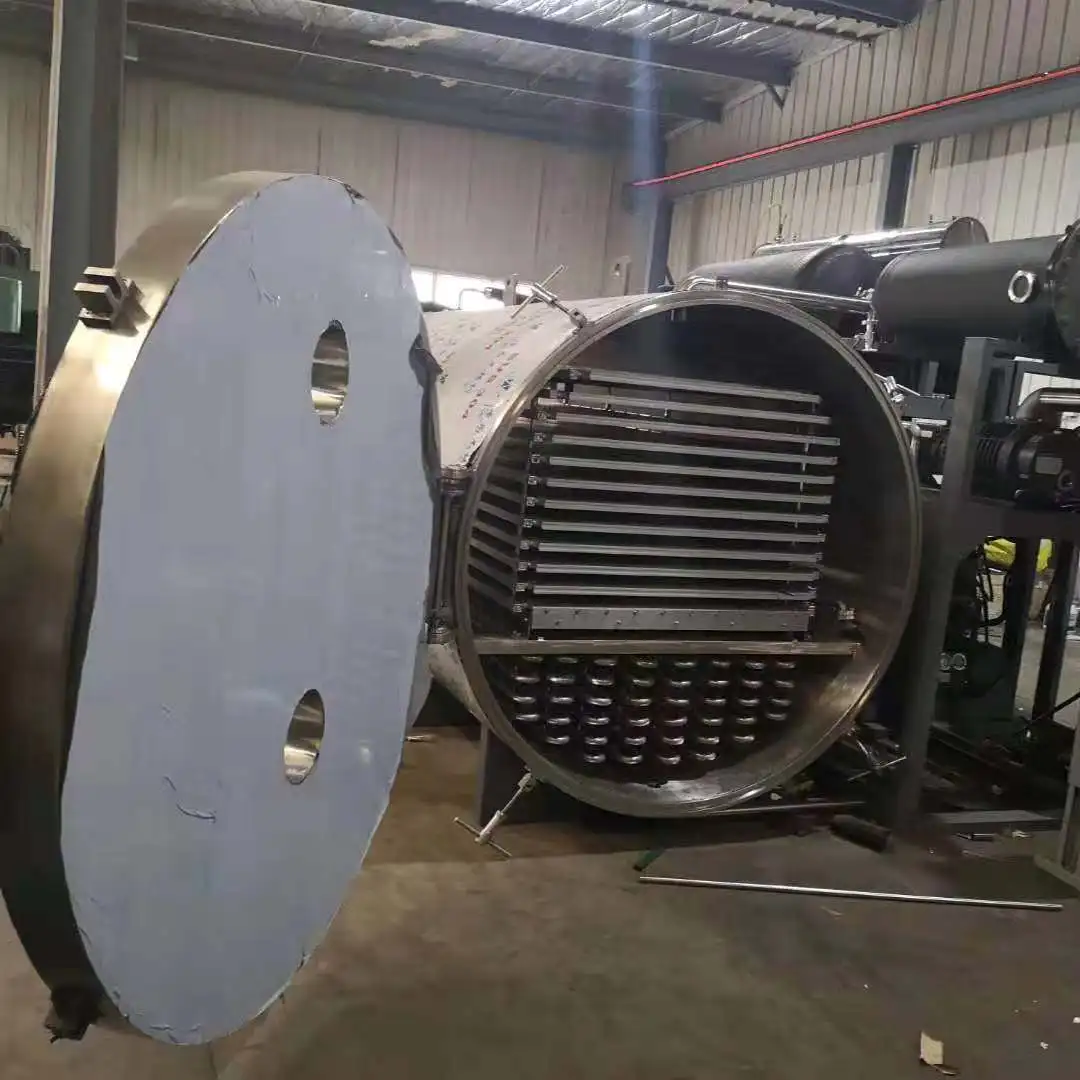

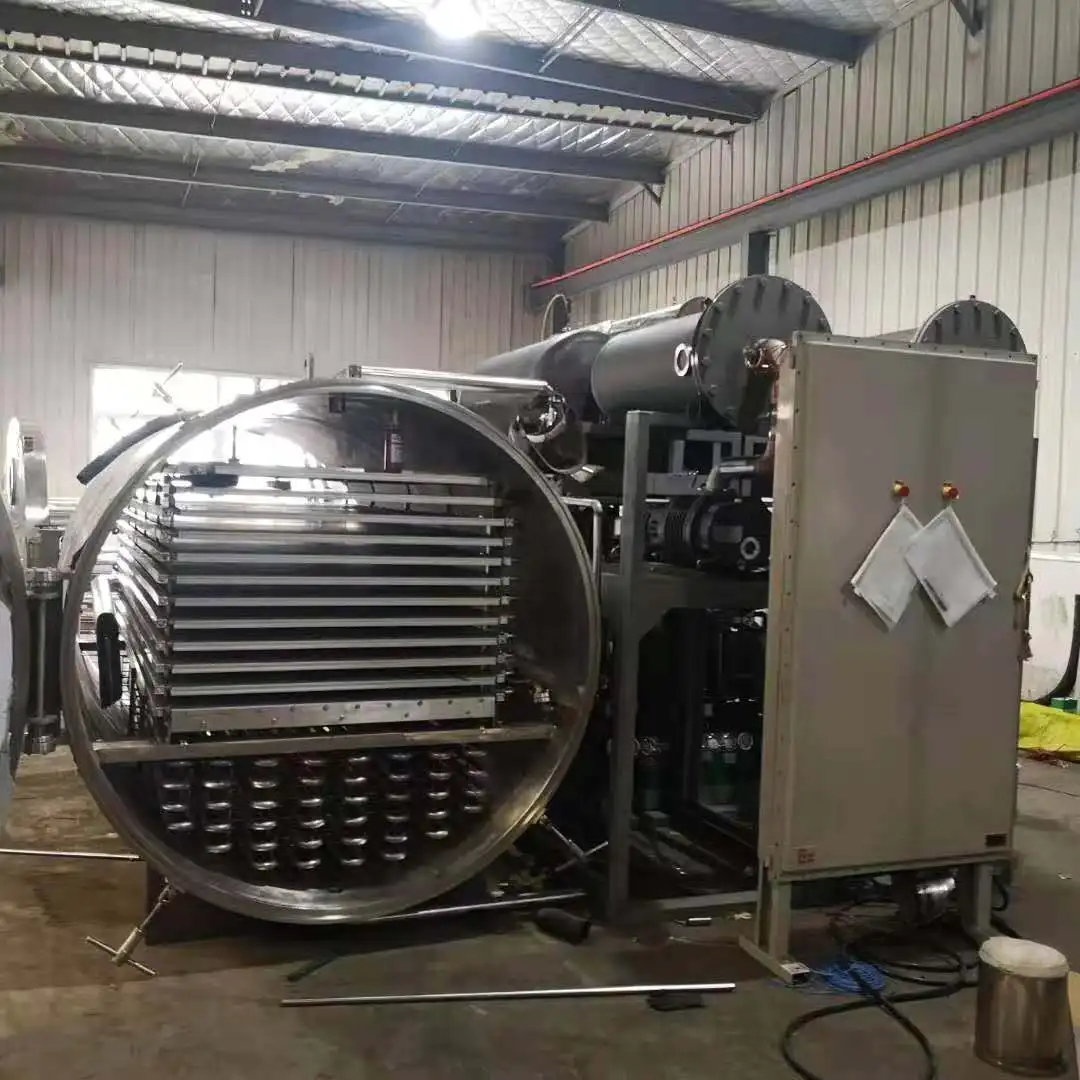

Detailed Images
Our Certification
Our Customers
Packaging & Shipping
