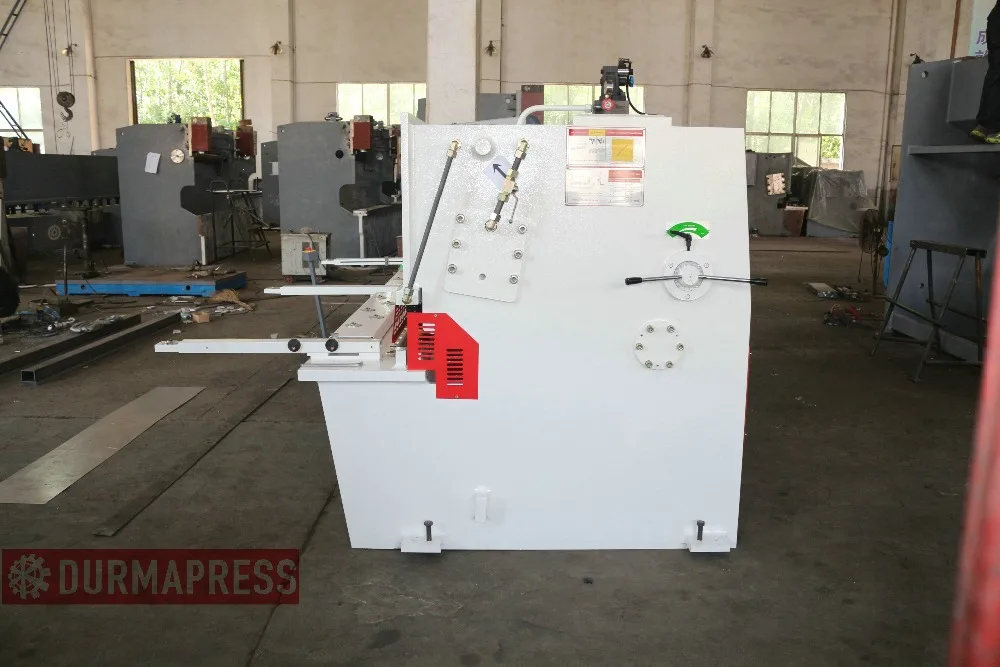

Sheet Shearing Machine With Cheap Price

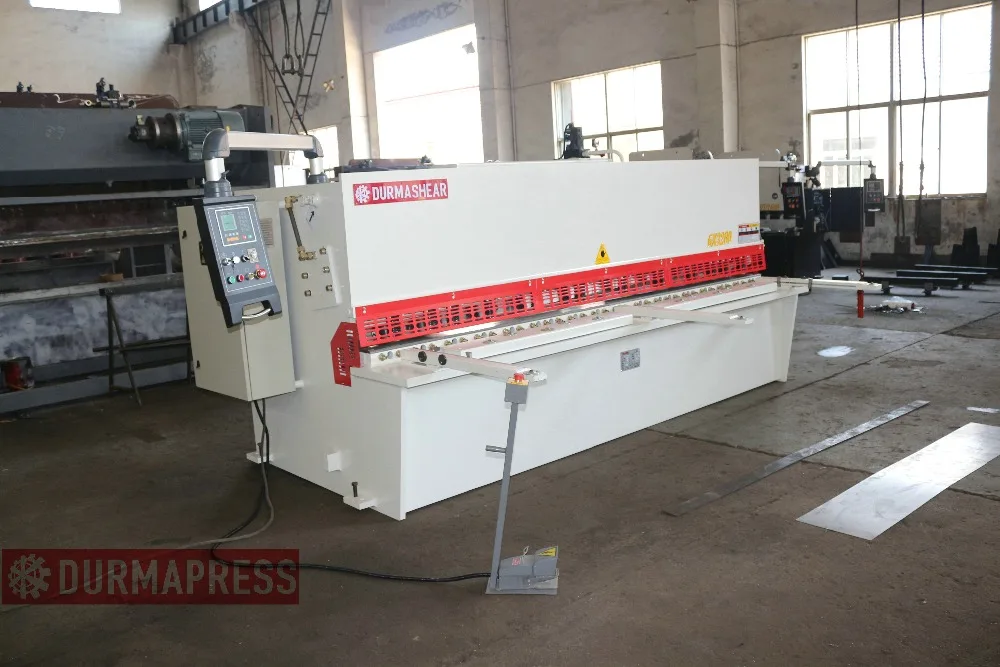

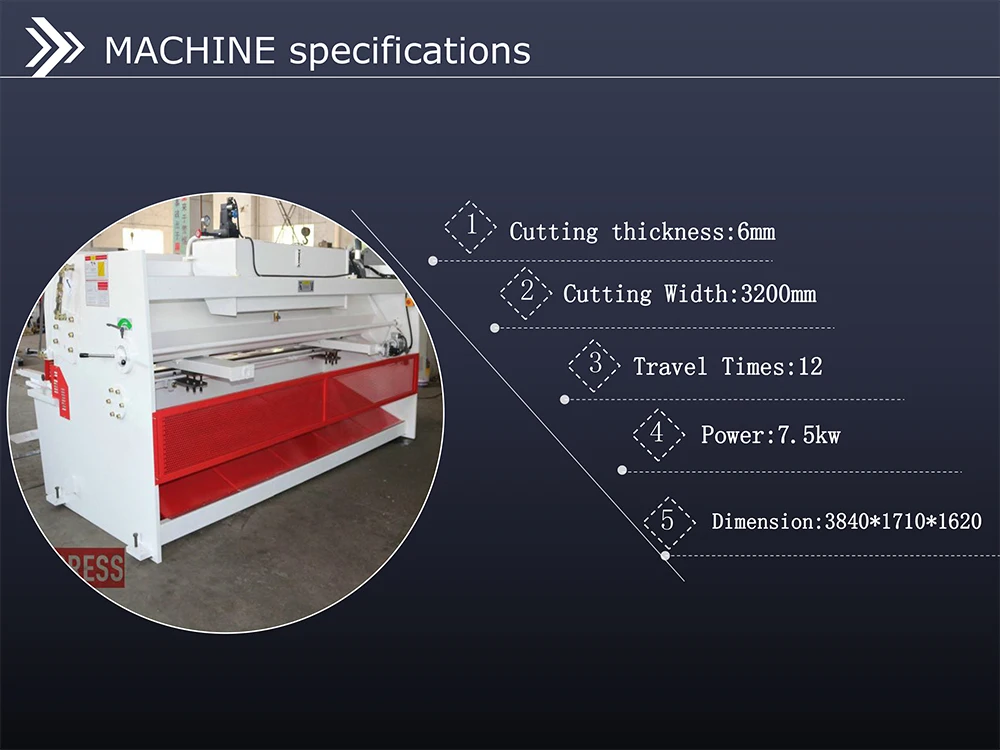

CNC hydraulic swing beam type guillotine shear machine for metal sheet cutting

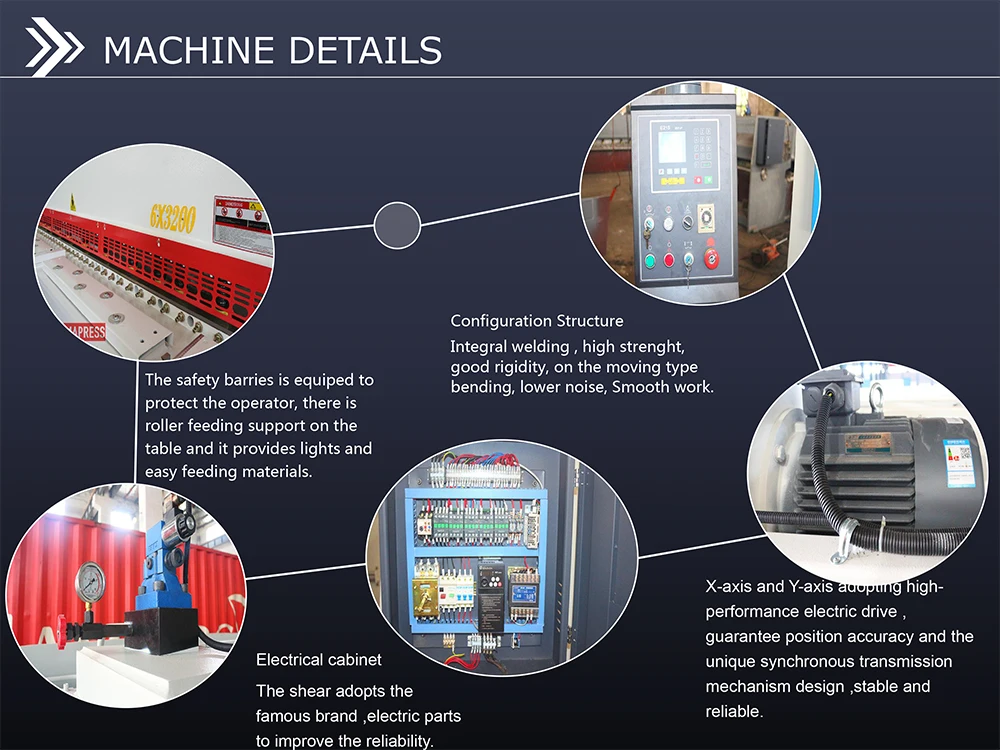

Performance characteristic
Hydraulic transmission, pendulum-type tool holder. The overall welding of the frame is hard and durable, and the use of a nitrogen cylinder returns smoothly and rapidly.
It has the function of stepless adjustment stroke. The amount of upper and lower blade edge clearance is adjusted by the handle, and the gap of the blade is even and rapid.
NC control system and position encoder, inverter, closed-loop control system, speed, high positioning accuracy, good stability, can accurately ensure the accuracy of the back gauge displacement size, while the CNC system has precision compensation and automatic detection A variety of additional features.

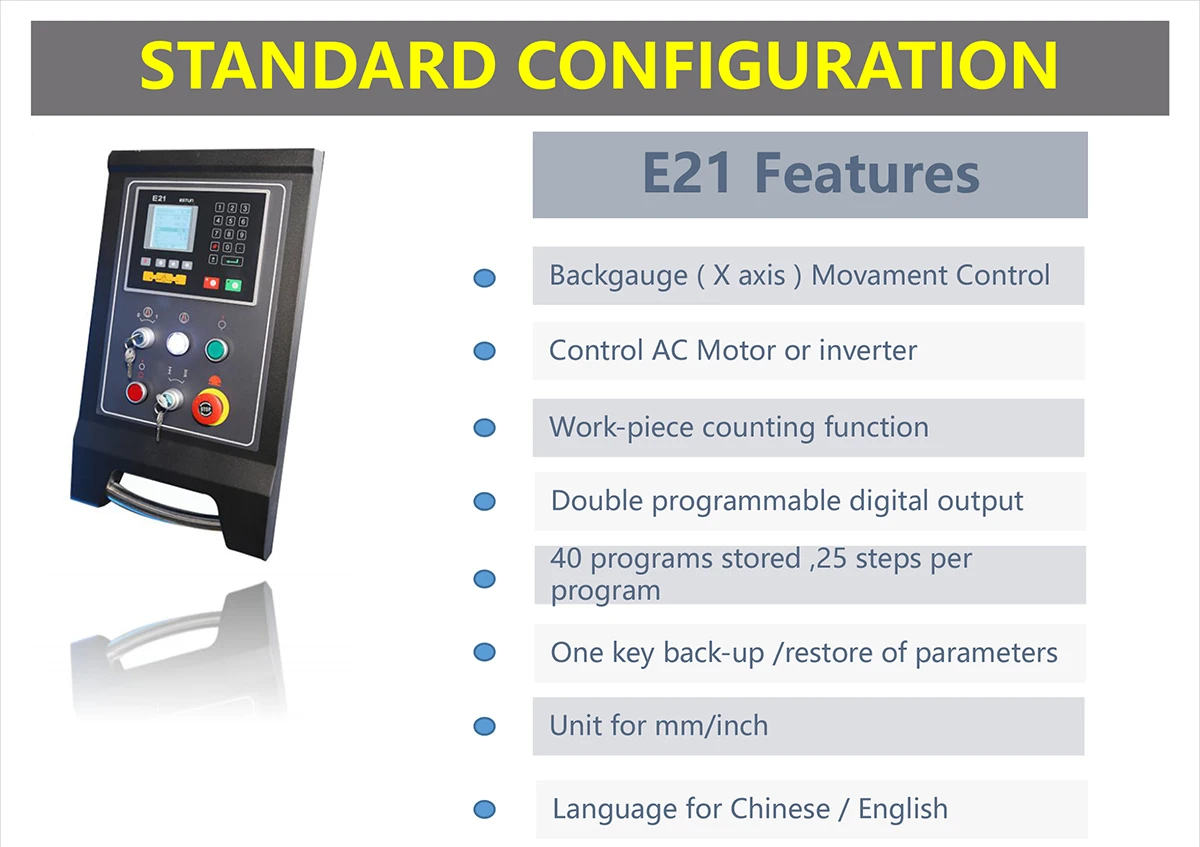

E21S controlle Features
# HD LCD display, with both Chinese and English language options, a display programming parameters, faster and more convenient programming.
# Backgauge control:Smart positioning, can also be manually adjusted as needed to remove the mechanical hand positioning device.
# Cut Stroke: Built-shearing time relay, simple operation, cost savings
# Shear angle: Built shear angle adjustment function, eliminating the angle indicators and buttons
# Blade gap: encoder feedback, time display blade gap size, simple operation
# Having a key parameter backup and restore functionality, you can always restore the parameters as required, reducing maintenance costs
# All keys on the panel are micro-switches, through EMC, high temperature, vibration and other rigorous testing to ensure product stability and service life.
# CE certified to meet the needs of overseas markets.

STANDARD EQUIPMENTS
√ Hardened blades.
- Top blades : 2 sides
- Bottom blades : 4 sides
√ E21S controller.
√ 250mm throat depth.
√ 600mm motorized backgauge system with 0,1 mm accuracy.

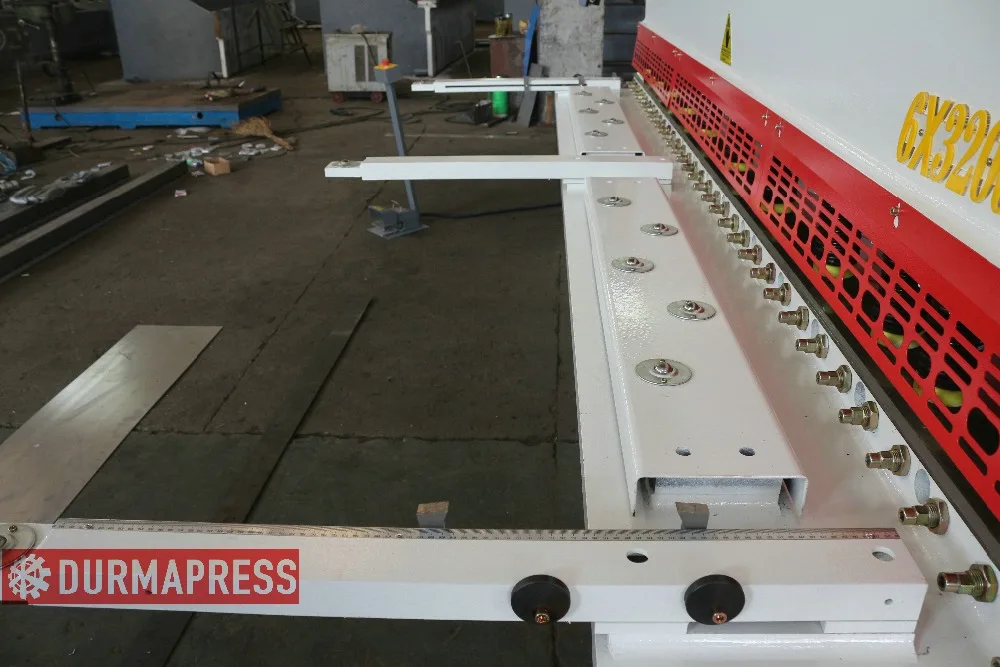

√ 800mm side gauge and front support arms.
√ Metric and inch rulers.

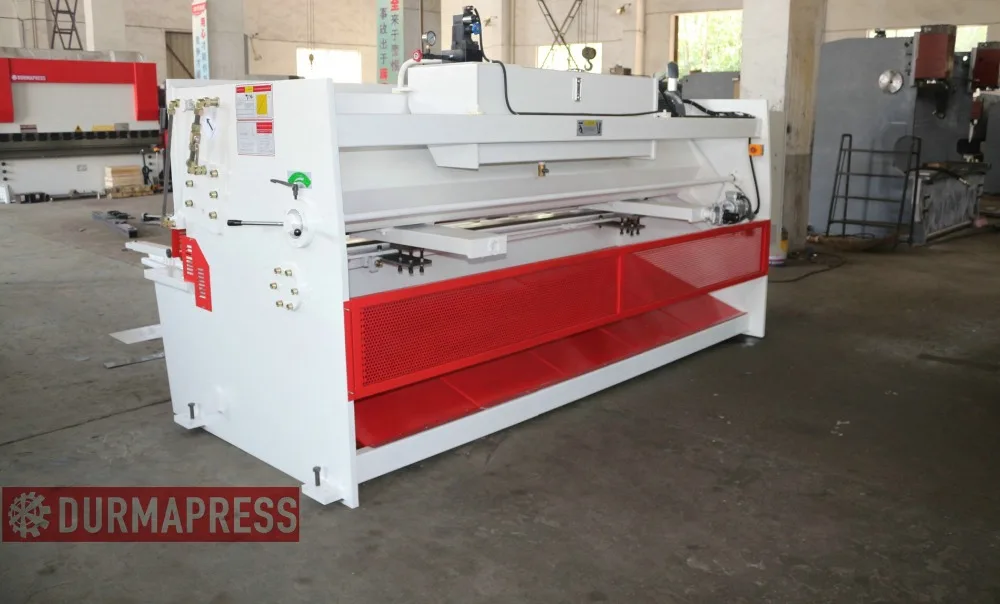

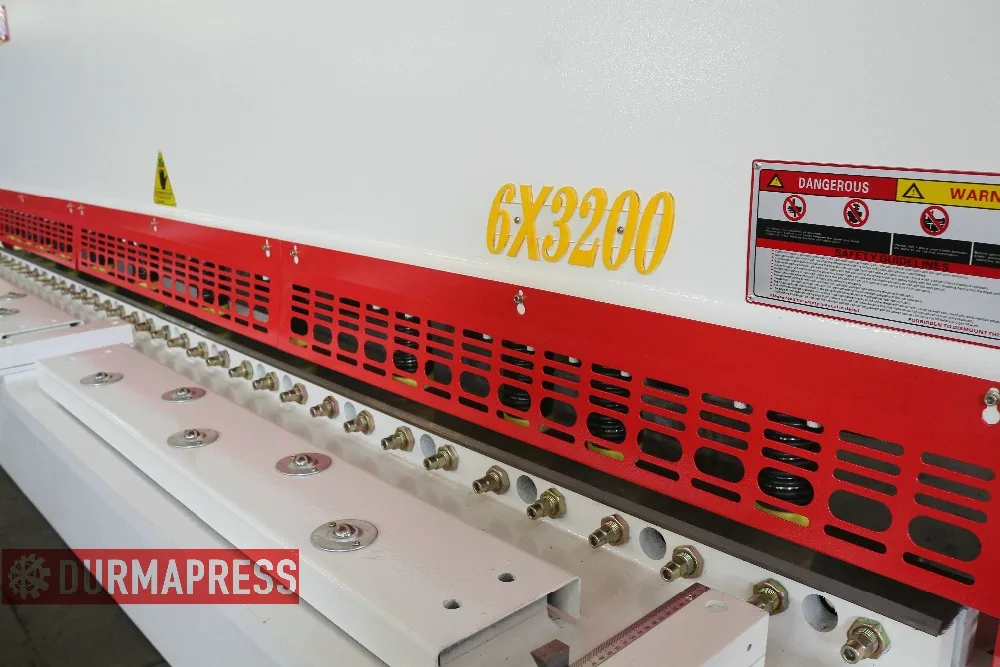

√ Front, side and back safety panels which are suitable for CE norms.
√ Sheet sliding system.

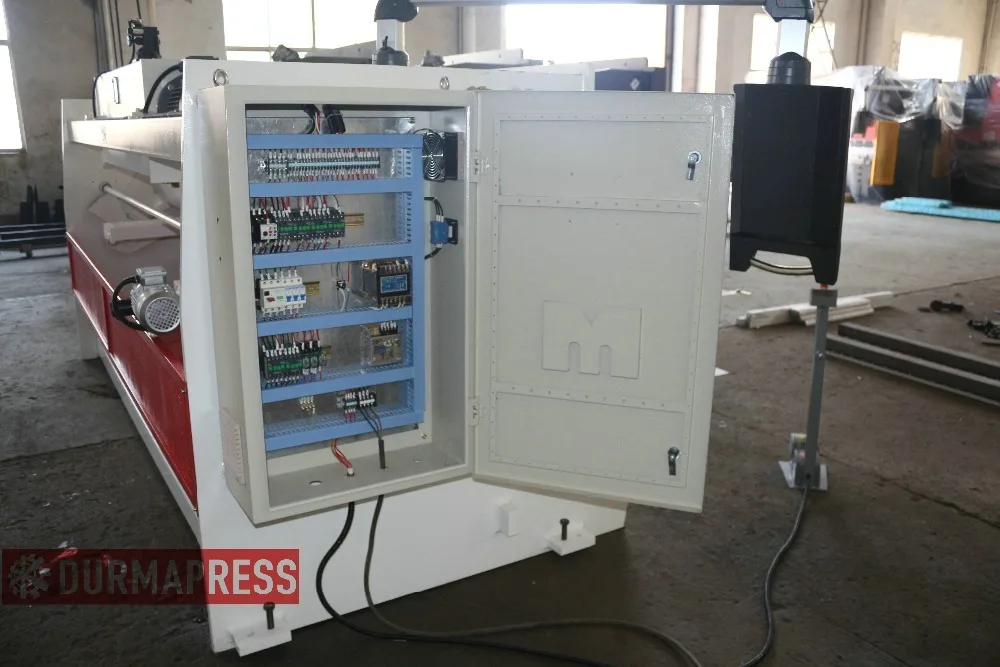

√ Schneider Electric System.
√ Rexroth hydraulic system.
√ Hold down cylinders.
√ Moveable foot pedal.
√ Manual blade gap adjustment.
√ Emergency stop button.
√ Collapsible finger protection.

OPTIONAL EQUIPMENTS
√ Optional throat depth.
√ Front angle gauge.
√ Side gauge and front support arms in optional lengths.
√ Sheet conveyor and stacking system.
√ Front Gauge X1, X2 axis and backgauge X3, X4 axis.
√ Optional backgauge stroke.
√ Sheet support system for thin sheets.

1- Pneumatic support system. (Lever type)
2- Pneumatic support system. (Monobloc panel type)

√ Hydraulic oil cooling and heating system.
√ Optional solid table.
√ Stainless steel blades.
√ Ability to increase stroke amount per minute.
√ Light safety system for finger protection.
√ Optional alternative colors.
√ Coolant system or heater can be placed in electric panel during ambient conditions.
√ Double foot pedal.
√ Electrical panel or controller can be placed on right side of the machine.
√ Laser cutting line.
√ Central lubrication system.

Q: How to get a accurate quotation from us ?
A:Prvide us the details of material , such as metal thickness and width .

Q:You are manufacturer or trading company ?
A: We are 100% manufacturer with 17 year's manufaturer experience.

Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.

Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% ,LC payment is also acceptable

Q:How to operate this machine ?
A:Video line of our factory or we send you the moive directly.

Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.

Q:Do you offer teaching & training ?
A:Training at supplier's plant
