West Tune WTVO series 1.9cf laboratory vacuum drying oven with 5 shelves

Share on (62201223164):


Price:

Quantity:


Product Overview

Description



Product Introduction


West Tune WTVO series 1.9cf Vacuum Oven With 5 Shelves

West Tune vacuum ovens are specially designed for degassing or purification of essential oil extracts. Using the technique of cold boiling, the oven works in a delicate ambient temp. heat atmosphere under reduced pressure conditions to expedite solvent degassing while perfectly preserving color, aroma, and overall solute quality. We've applied our extensive vacuum expertise and industry experience to produce a series of ovens designed exactly for your needs: low consumption, high-production, and easy operation.





Product Details






Product Parameters


Voltage
110V/60Hz NEMA 5-15p cable
Power
600W
Heating
4 sides heating (left, right, top, bottom)
Temperature Range
RT+ 20~150 ℉
Temperature Stability
±1℉
Dispaly type
LED
Display Resolution
0.1℉
Chamber Material
Stainless Steel
Chamber Dimensions (LxWxH)
16.5 x 14.5 x 13.8
Ultimate vacuum level
0.039 in. Hg

Shelf qty
5 removable aluminum shelves

Shelf Dimensions (LxW)
16.4 x 14.4

Shelf Capacity
238 inches²

Lights
2 strips of bright LEDs

Handle
Shock-resistant ABS plastic with metal parts

Dimensions (LxWxH)
28 x 22 x 21
Weight
210 lbs
Electrical
Fused for protection
Over Heating Alarm System
Yes

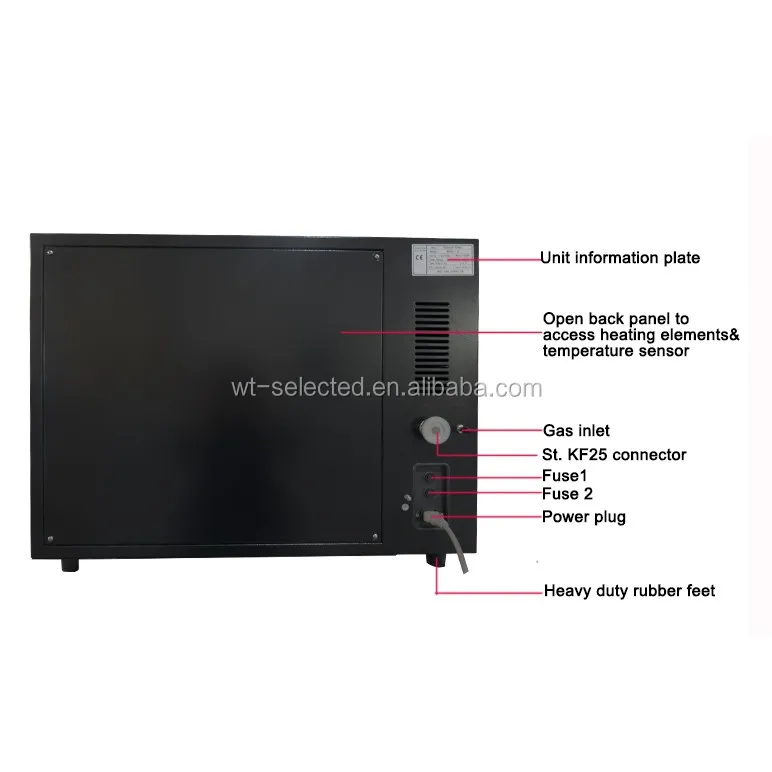

Vacuum Port
KF25 connector
Gas Inlet Needle Valve
Metal adjustable valve on the panel
3/8'' connector on the back side of oven

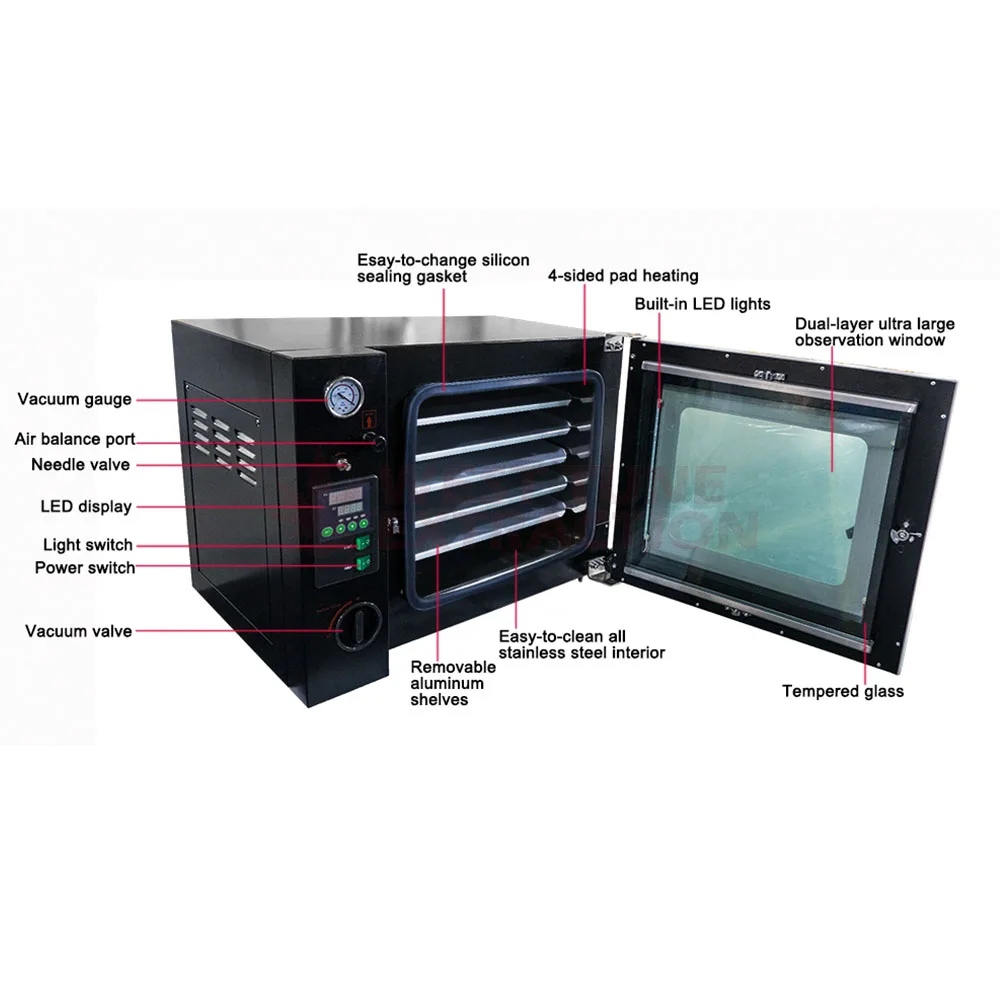

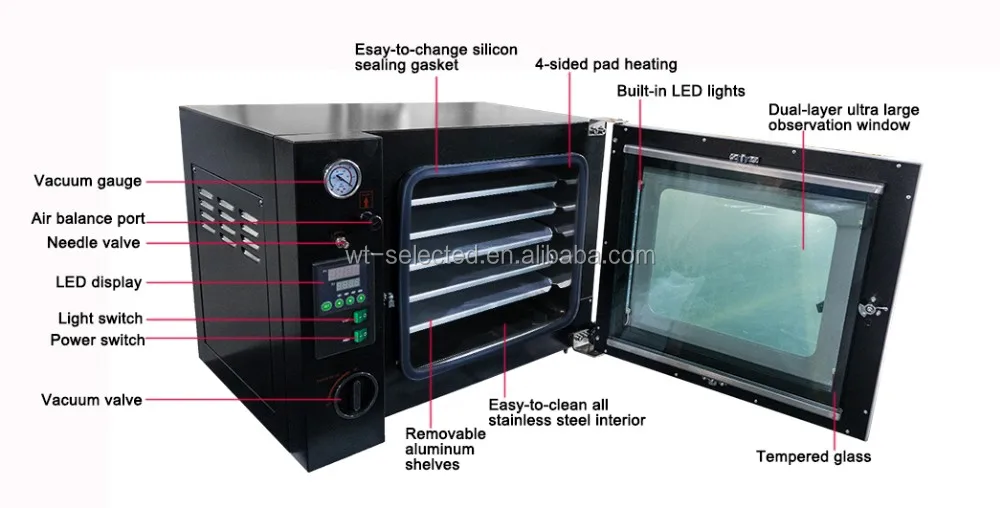

Product Features


- 4sides heating, distribute the heat uniformly under vacuum

- Temp stability reach to +/- 1 degree F

- Dual layer tempered glass door for clear observation

- High quality temperature PID controller, LED display

- Stainless steel working chamber

- Five removable aluminum shelves

- 110 Volt, 60 Hz, US standard plug

- Has been factory tested under vacuum for more than 24hr(English test report is available)

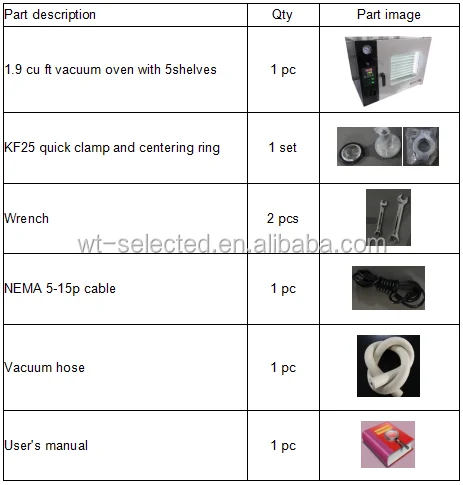

Packing List
