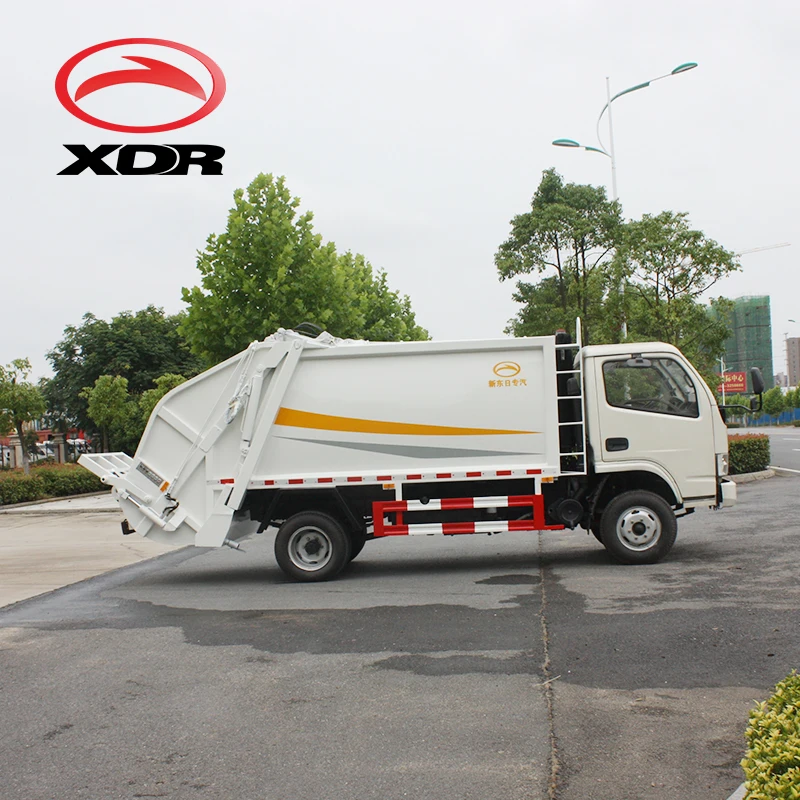

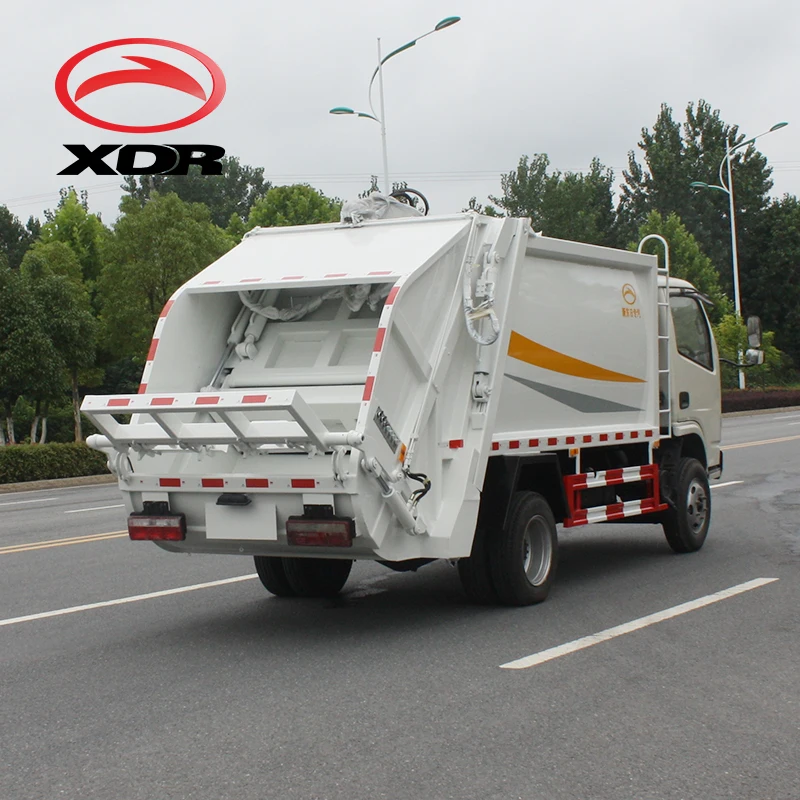

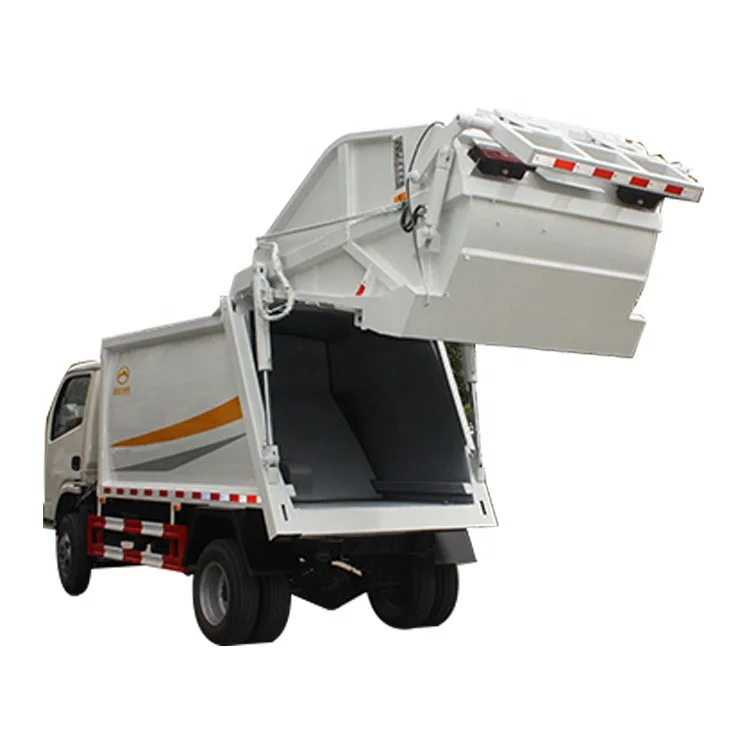

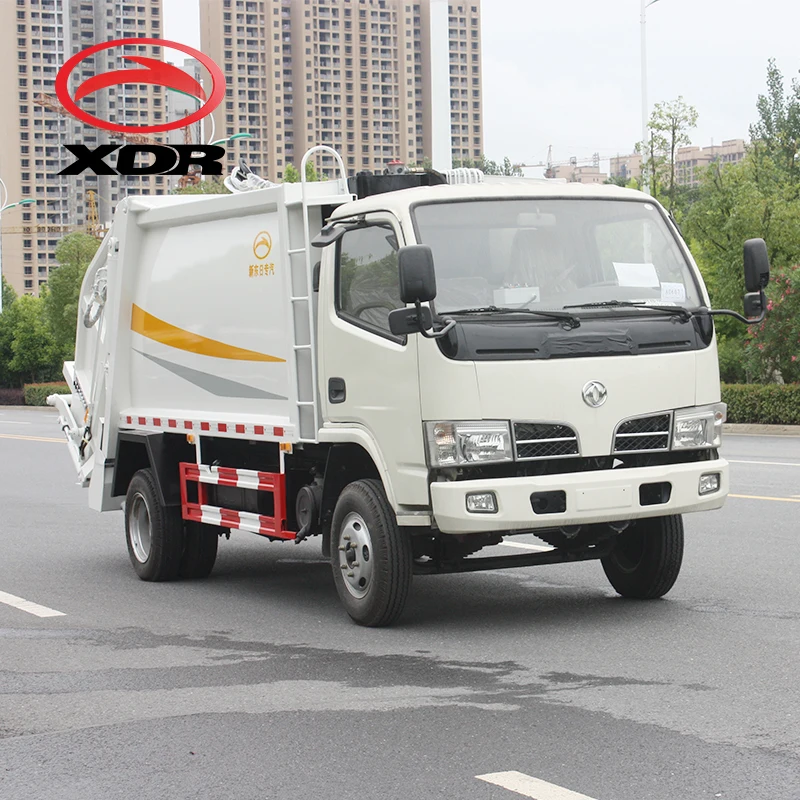

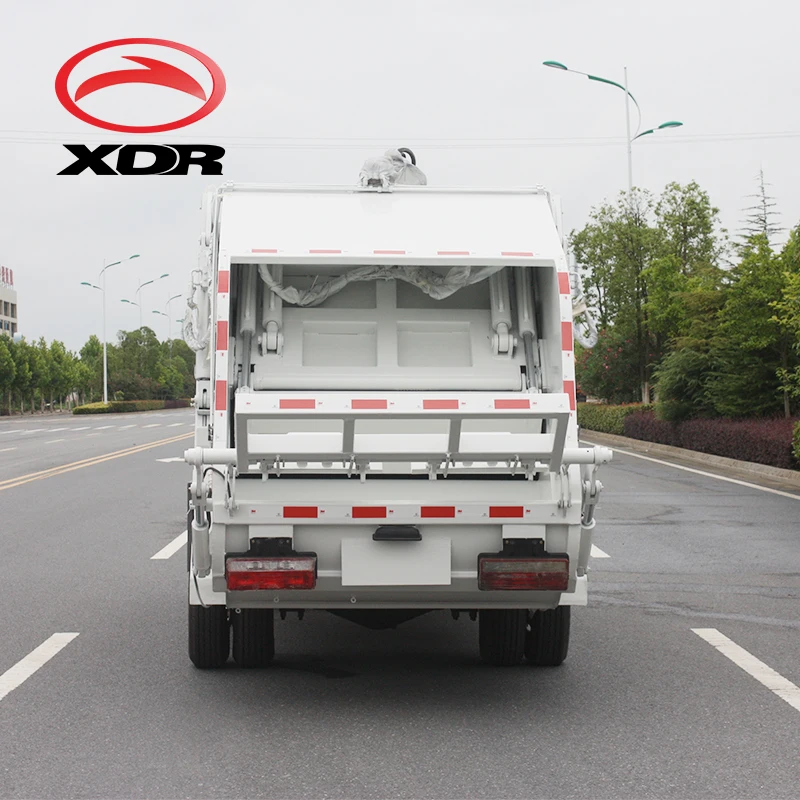

XDR 6cbm Dongfeng New Garbage Collection Truck, Capacity of Garbage Truck
- Category: Garbage Truck >>>
- Supplier: Hubei Xindongri Special Vehicle Co. Ltd.
Share on (62203870164):
Product Overview
Description
Product Description
Specification
Vehicle Parameter： | ||
Product Name | Compactor Garbage Truck | |
Model | YZR5070ZYSE | |
Chassis No. | EQ1060 | |
Driving Type | 4*2 | |
Gross Weight | 7350kg | |
Related Loading Mass | 2070kg | |
Curb Weight | 5150kg | |
Dimension | 6450×2000×2520mm | |
Wheelbase | 3300（mm） | |
Front Axle Loading Capacity | 2940kg | |
Rear Axle Loading Capacity | 4410kg | |
Approach angle | 24° | |
Departure angle | 12° | |
Front Suspension | 1070mm | |
Rear Suspension | 2080mm | |
Tire | 7.00-16,6+1 PCS | |
Max Speed | 90 (Km/h） | |
Engine parameters: | ||
Model | CY4100Q | |
Horse Power | 85hp | |
Displacement | 3707cc | |
Emission Standard | Euro 3 | |
Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling) | |
Gear Box | ||
Gear Box | 5 forward and 1 reverse | |
Superstructure Parameter： | ||
Tank Volume | 6CBM | |
Tank Shape | Arc-shape | |
Tank Material thickness | Bottom:4mm Side:4mm | |
Tank Material | Carbon Steel (high quality) | |
Compression Ratio | ≥2.5 | |
The effective volume of the bucket | ≥0.8m³ | |
Loading cycle time | ≤40 s | |
unload garbage time | ≤45s | |
control method | Automatic、Manual | |
Maximum pressure of hydraulic system | 20MPa | |
Control System | Siemens PLC | |
Engine power control | Fully automatic control | |
Tumbler mechanism | 240L Garbage bin（Others Optional） | |
