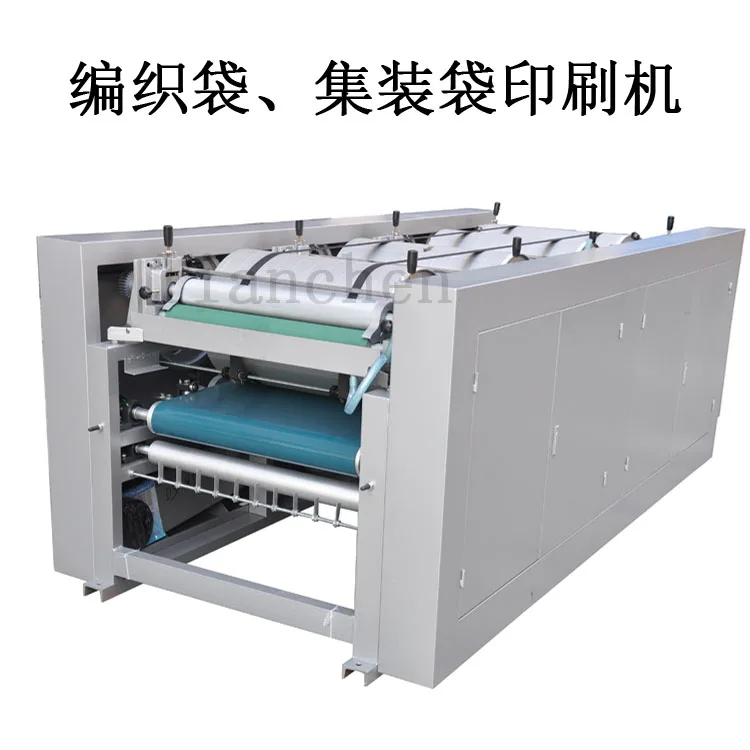

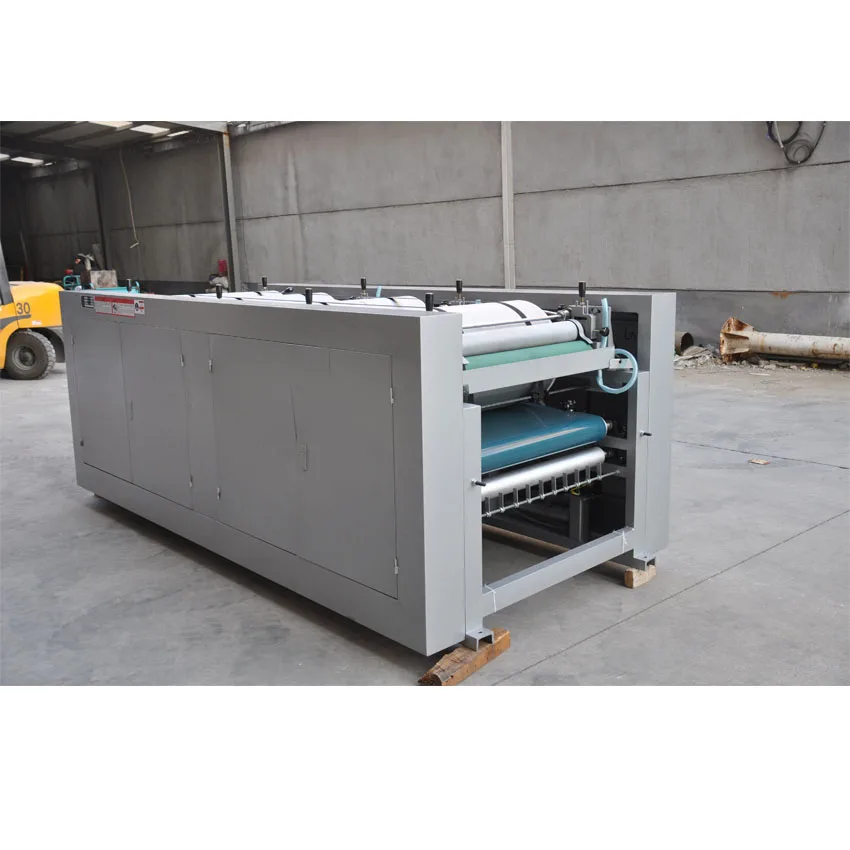

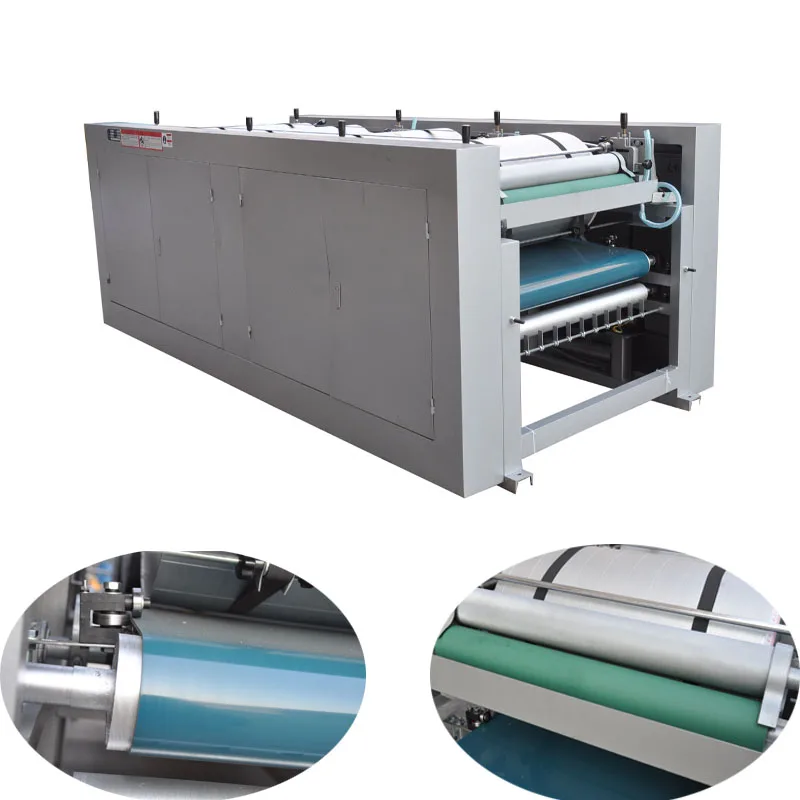

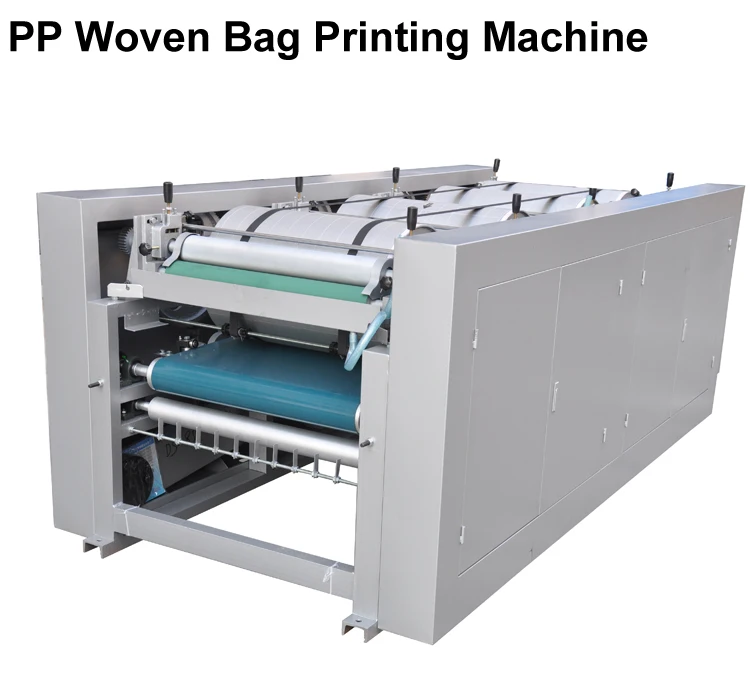

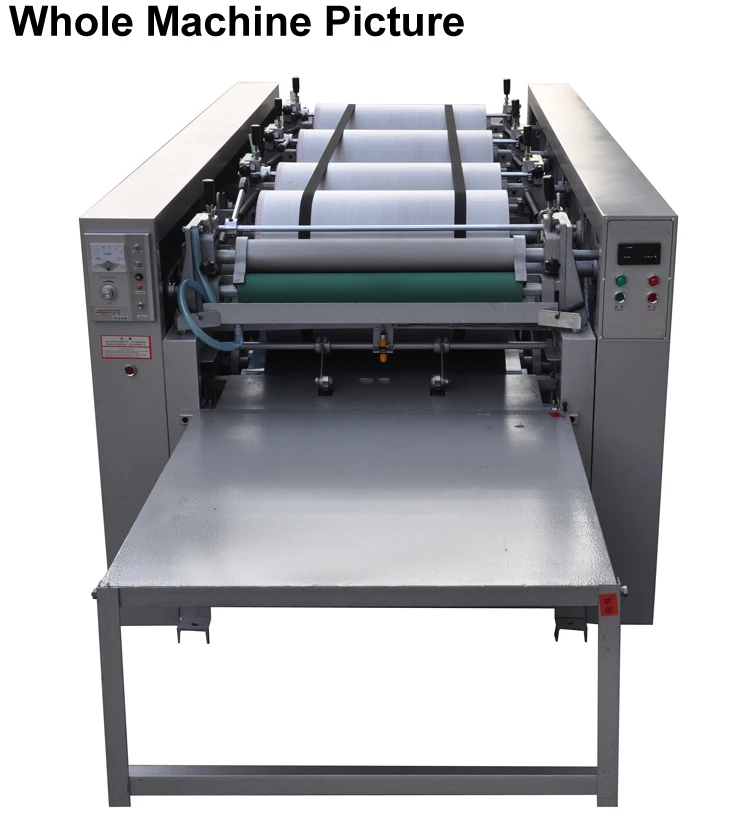

Semi-automatic Woven Bag Printing Machine Only Need One Person
Performances and Features:
♦ The motor power of the machine is 1.5Kw , and the output is 1500 to 3500 pcs . non-grade speed adjustment per hour .
♦ The machine boasts of the automatic track function to keep the transmission belt and the inverses of the knitting bags from sticking color.

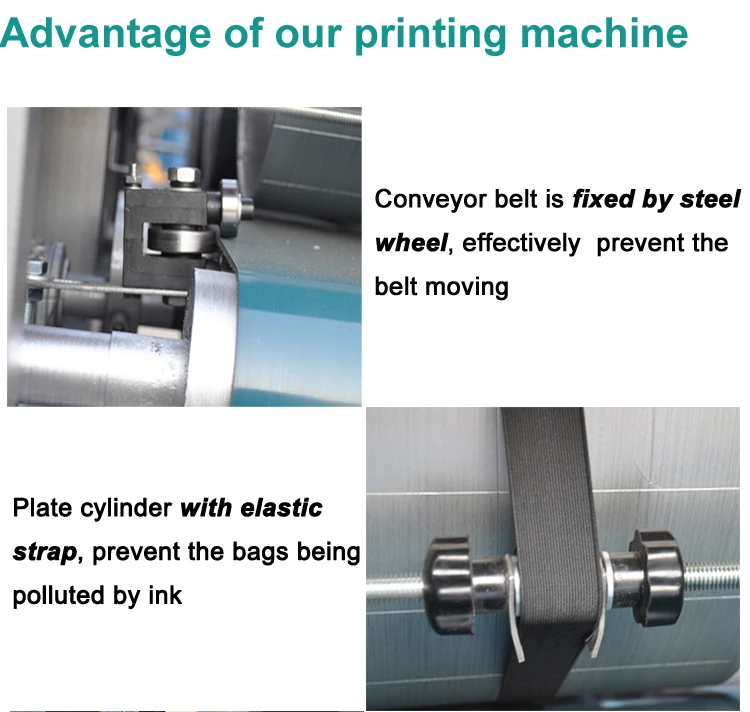

♦ The transmission belt adopts imported PVC oil rubber composite ,featured even width , no sagging , non-penetration , and wondrously desirable effect.
♦ The machine is matched with double functions of automatic clutch and foot clutch.
Specification:
Model | WA-800-3 |
Color quantity | 3colors |
Printing speed | 1500--3500 pcs /h |
Max bag width | 800mm |
Max printing width | 650mm |
Max printing length | 1350mm |
Printing Roll Diameter | 420mm |
Rubber Plate Thickness | 4-6mm |
Power(kw) | 2.0kw |
Weight | 1.5T |
Mounting dimensions (L*W*H) | 3000×1400×1400mm |
220V/380V (as customer requirement) |
Use Guide:
1. Connect power supply, and a null wire . Make the machine run normally (notice the null wire must be fastened)

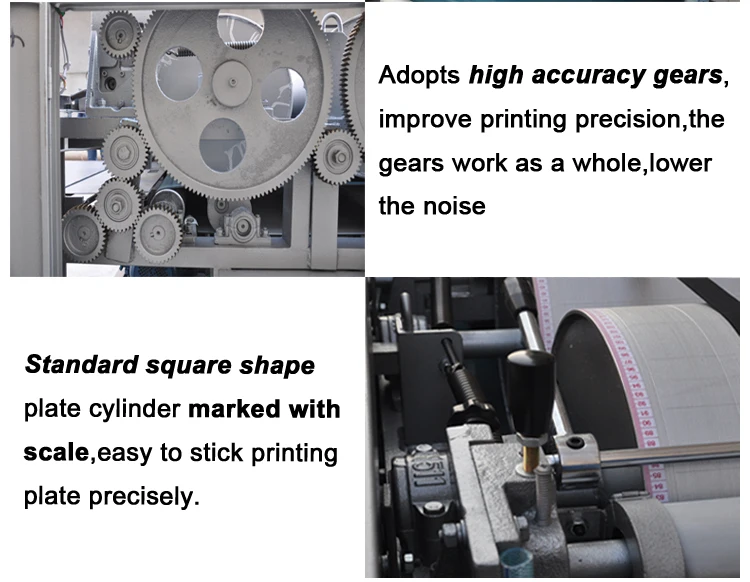

2. There is a starting-point line on each big barrel , and those lines and the forefront line of printing object are the same line when printing . According to the front line distance of printing object , word register and pattern stick in the same distance afterward the starting point.
3. Fiber sticking adopts double-face glue , with 4mm width of word register.
4. Add ink into the ink hooper according to the color needed . When printing , use rubber roll to press gently the roller . (Notice : If the pressure is too heavy , rubber roll and roller will be damaged , please refer to Adjustment Diagram).
5. If the transmission belt runs abnormally , you can adjust rear tranmission pipe .
