steel chemical spherical storage tank sphere tank Design, manufacture and installation

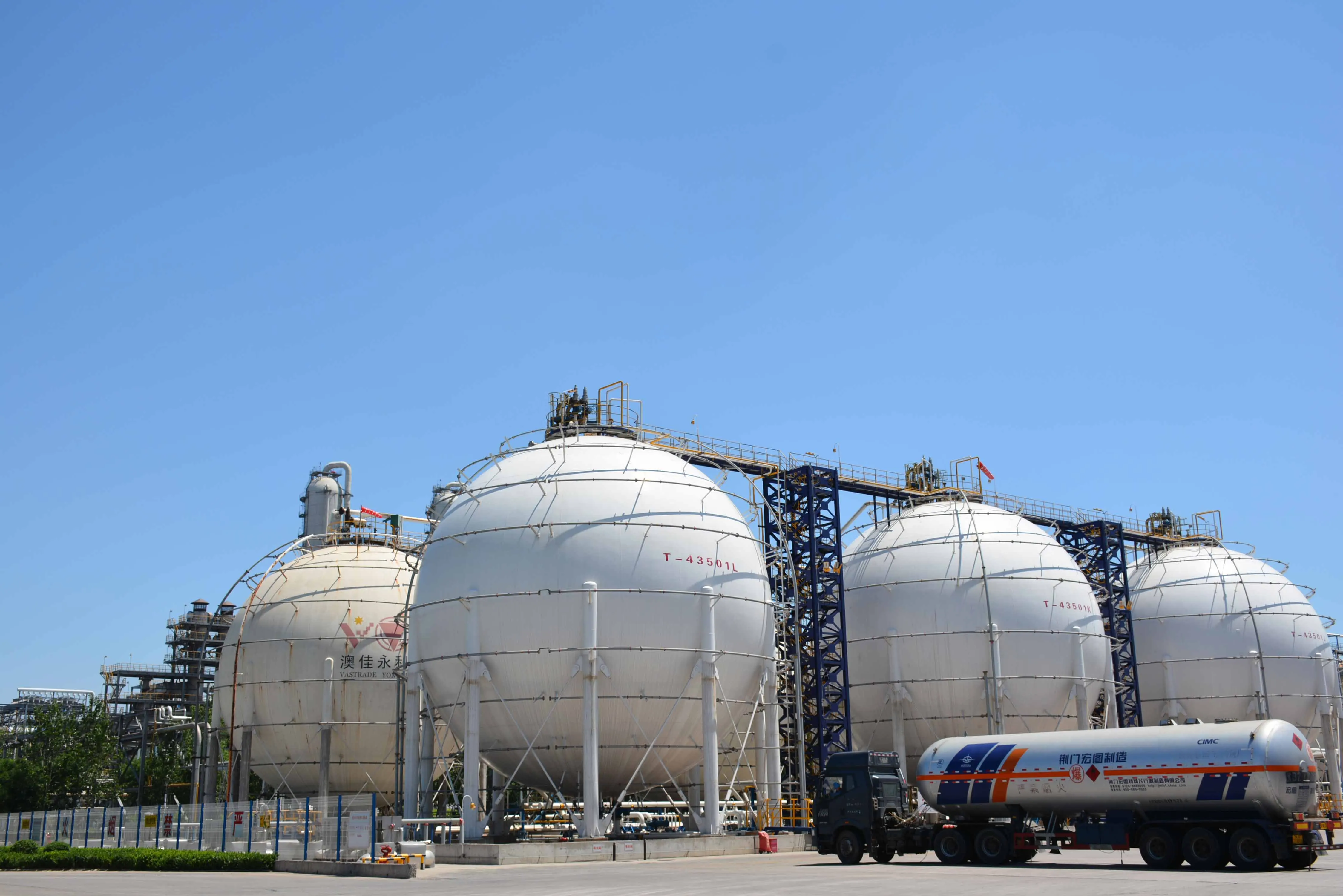

LPG Spherical Tank
Our company has the design and fabrication capability of large ASME codes spherical tanks and owns 5 sets of large hydraulic pressing machine. The maximum pressing capacity for spherical shell plate is thickness 80mm. Besides,Our company can also construct the spherical tanks made of special steel such as stainless steel, stainless steel clad carbon steel plate, 9Ni steel and etc. , and owns relevant project references.


Technical Specifications



Vessel Capacity: 50m3~10000m3 liquefied gas spherical tank, 200m3 ~20000m3 gas spherical tank
Material: SA-516,SA-537 CL1,SA-537 CL2,Q370R etc.






































































































Technical Parameters of 3000m³ LPG Spherical Tank



Woking pressure


1.70 MPa


Design pressure


1.80 MPa


Max. allowable working pressure


1.80 MPa


Working temperature


-34~40 ℃


Design temperature


-40/50℃


Medium


LPG(H2S≤20ppm)


Medium Sp.


Flammable


Spherical shell material


SA-537M Cl.2


MDMT


-20℃


Corrosion allowance


1.5 mm


Design working life


20 years


Joint efficiency


1.0


Total capacity


3000 m3


Charging efficiency


0.9


Wind pressure


2000 Pa


Snow pressure


300 Pa


Seismic intensity


8 degree (nearby seismic) - SZ3, SZF0.3


Field Soil Category


II - (SC)


Hydraulic test pressure


2.58 MPa


Air tightness test pressure


1.8 MPa


Net weight


636868 kg


Full water weight


5660000 kg


Design/Fabrication/Inspection Standard


ASME Code. SEC. VIII DIV.2 2015 EDITION
Refering to "STEEL SPHERICAL TANKS" GB12337-2014


030437



Packaging & Shipping
















Packaging Details:standard export packing and wood pallets packing
Delivery Detail:7-10 working days




Our Services


1.E-catalogue avaliable





2.OEM & ODM accept





3.Shipping port TIANJIN Port





4.Production Time usually in 25-30 days





5.Sample available by freight collect





7.Payment Terms T/T or  paypal





8.Small order accepted





9. After-sales service: Always ask the customer, tracking service





10.Sales Service: Profession ;Quality Control: Strict ;Logistics  Service: Speed





Company Information


Company:Hebei Anshu Langsheng Machinery Technology Co., Ltd





Address:  868 Construction Street, Jizhou, Hebei, China (Mainland)





 Tel:  0086-318-6176965





 Fax: 0086-318-6176966








FAQ


1. Q: Manufacturer ?


    A: Yes, professional factory in China


2. Q: Which area have you exported to ?


    A: Europe, America, Africa, Asia, South America and Australia


3. Q: Any advantage ?


    A: The Production area more than 4000 square meters, and 35 sets production equipments. We can supply the one-stop service from machining to welding
