Lora wireless energy saving street light control system with software and app
Product Description

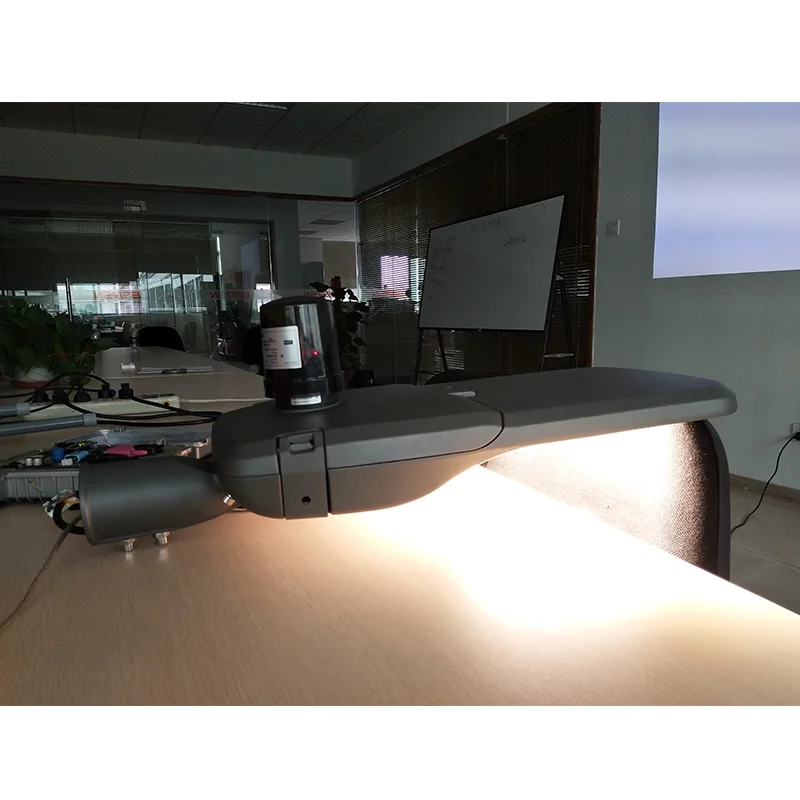

Smart LED Driver Integaraged with LoRa node controller, installed into the housing of each luminaire.
It controlled by Concentrator via LoRa. Provide load control (on/off) as well as dimming function on luminaires.
Product specification
| Model | Power | Input Voltage | PF | THD | Output Current (AOC) | Output Voltage | Eff | Working Temp | RF Tx Power | Size |
| BS-Y60-36L | 60W | 160-305V | 0.95 | <15% | 1.2-1.7 | 30-36V | 89% | -40~70℃ | 17 dBm | -- |
| BS-Y60-48L | 60W | 160-305V | 0.95 | <15% | 0.9-1.25 | 40-48V | 89% | -40~70℃ | 17 dBm | -- |
| BS-Y100-36L | 100W | 160-305V | 0.95 | <15% | 2.0-2.8 | 30-36V | 90% | -40~70℃ | 17 dBm | 222x74x42mm |
| BS-Y100-48L | 100W | 160-305V | 0.95 | <15% | 1.4-2.1 | 40-48V | 90% | -40~70℃ | 17 dBm | 222x74x42mm |
| BS-Y150-36L | 150W | 160-305V | 0.95 | <15% | 2.9-4.2 | 30-36V | 91% | -40~70℃ | 17 dBm | 230x74x42mm |
| BS-Y150-48L | 150W | 160-305V | 0.95 | <15% | 2.2-3.1 | 40-48V | 91% | -40~70℃ | 17 dBm | 230x74x42mm |
| BS-Y200-36L | 200W | 160-305V | 0.95 | <15% | 3.9-5.6 | 30-36V | 92% | -40~70℃ | 17 dBm | 258x75x48mm |
| BS-Y200-48L | 200W | 160-305V | 0.95 | <15% | 2.9-4.2 | 40-48V | 92% | -40~70℃ | 17 dBm | 258x75x48mm |
| BS-Y250-36L | 250W | 160-305V | 0.95 | <15% | 4.9-6.9 | 30-36V | 93% | -40~70℃ | 17 dBm | 258x75x48mm |
| BS-Y250-48L | 250W | 160-305V | 0.95 | <15% | 3.6-5.2 | 40-48V | 93% | -40~70℃ | 17 dBm | 258x75x48mm |

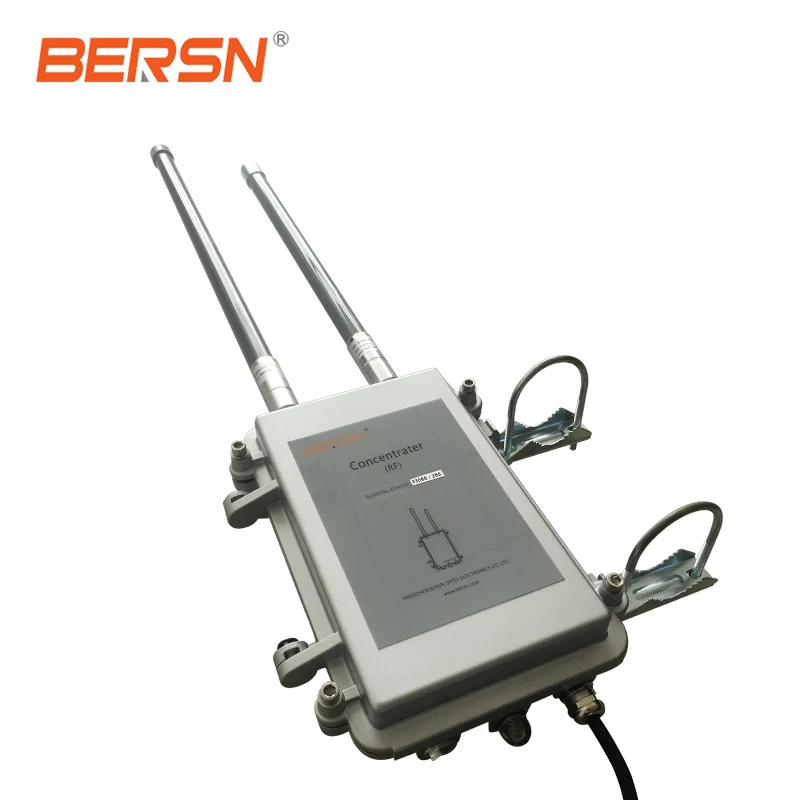

- Concentrator providing individual communication with nodes using 470/868/915MHz wireless interface.
- In addition to its master functions, concentrator controls all electrical equipment in the cabinet, collects data from electric meter and other connected devices and sends live status of overall LoRasystem to server via GSM/GPRS/3G mobile net. Programming of concentrator and light scheduling are performed remotely from the software.
Product specification
| Model No | SLGJ2-OLORA |
| Input Voltage | 100-277VAC 50/60Hz |
| Power | 2W |
| Power Factor | >0.9 |
| Communication | GSM/GPRS |
| Protocol | LoRa |
| Radio | 470/868/915 MHz |
| RF Tx Power | 17 dBm |
| Control Capacity | Max 250 nodes |
| Waterproof grade | IP66 |
| Working Tem | -40~+70℃ |
| Housing | Aluminium |
| Surge Protection | 10kV (L-N 4kV; L/N-GND 6kV) |
| Weight | 4 kg |
| Size | 230x200.5x85mm |
About Our System
Lora wireless energy saving street light control system with software and app
More Choise
Our Project
Our company
BERSN is innovative electronics designer and manufacturer of outdoor lighting and industrial lighting since 2001. BERSN passed ISO9001:2015 and authorized National High-Tech enterprise and LED benchmarking enterprise in Guangdong, China. Since 2009, BERSN has became PHILIPS China OEM partner. Main products line includes Smart Lighting Control System for Road & Street Light, Smart LED Driver, HID Electronic Ballast, & Outdoor LED Lighting Luminaries. The products pass the national and international quality certificates, including CCC, CE, RoHs, SAA, UL, FCC.
Working on the market of lighting controls solutions for over 18 years, BERSN grown to become an industry recognized developer and most progressive company with Head Office in Shenzhen, China. BERSN provides both ODM and OEM services. The company’s mission is to develop innovative, turn-key, fully integrated solution for lighting industry.
