Nema interface street lighting luminaries timer dimming controller
- Category: >>>
- Supplier: Shenzhen Bersn Opto-Electronics Co. Ltd.
Share on (62205504168):
Product Overview
Description
Nema interface street lighting luminaries timer dimming controller
Product Description

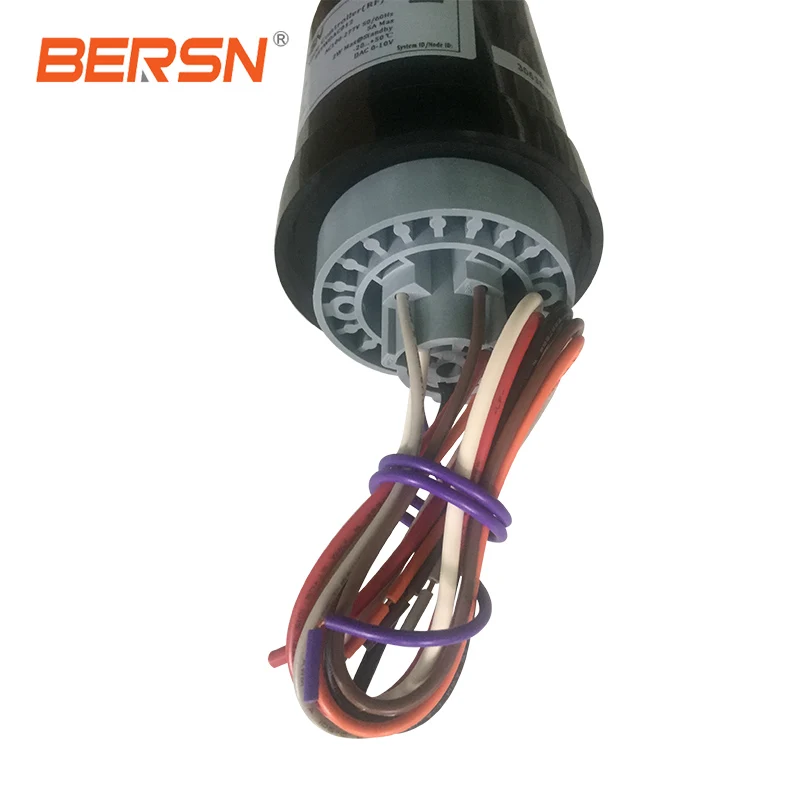

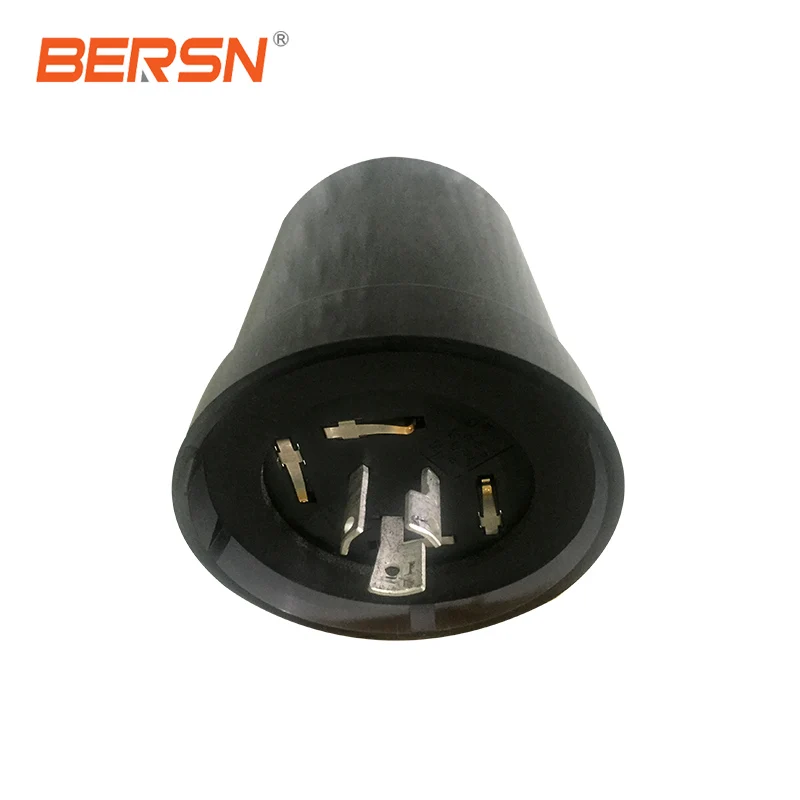

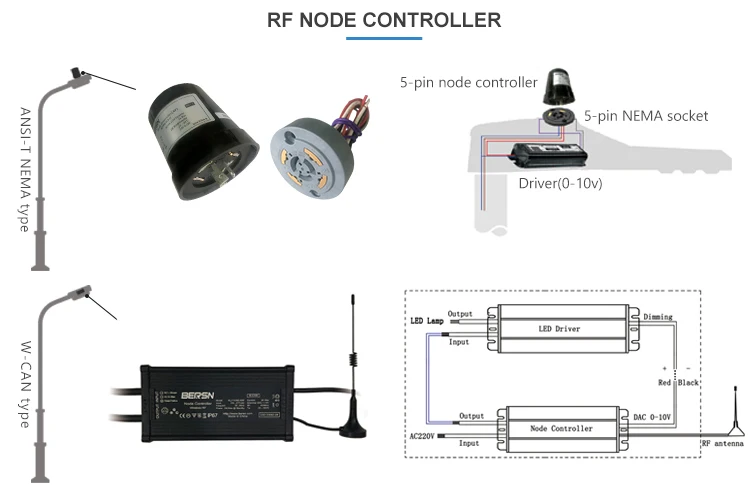

RF Wireless node controller, installed into the housing of each luminaire, and controlled by Concentrator via RF 433/865/868/915MHz. Provide load control (on/off) as well as dimming function on luminaires.
Product specification
| W-CAN Node Controller | ANSI-T Node Controller | |
| Input Voltage | 100-277 VAC 50/60 Hz | 100-277 VAC 50/60 Hz |
| Standby Power | ≤1.2 W | ≤1.2 W |
| Load Power | Max 1000 W | Max 1000 W |
| Load Current | Max 16 A | Max 16 A |
| Ripple Factor | <3% | <3% |
| Working Temp | -40~55℃ | -40~55℃ |
| Control Output Interface | DAC 1-10V/ PWM | DAC 1-10V/ PWM |

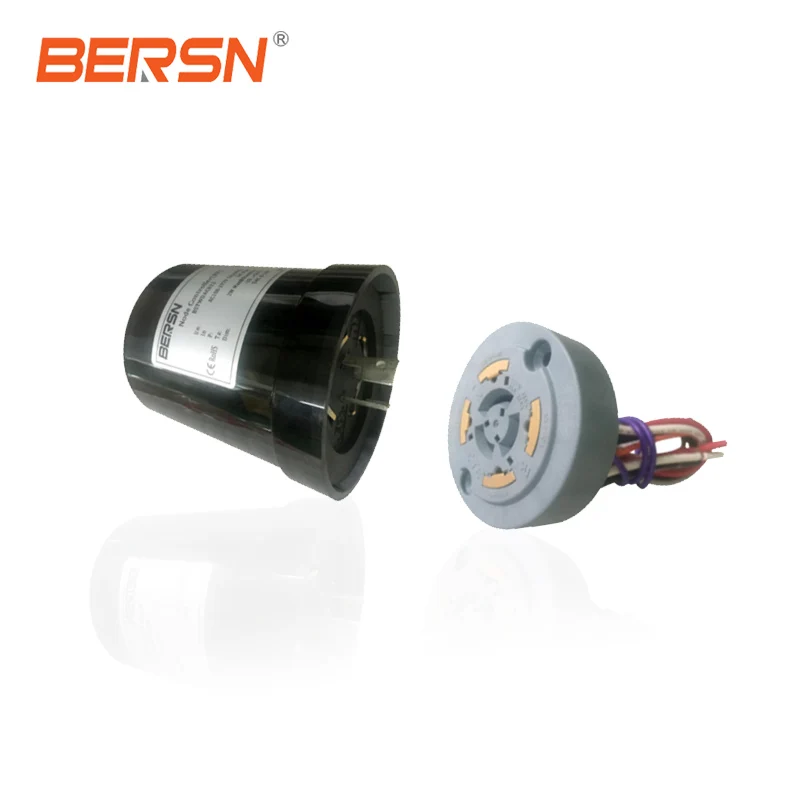

| Connectors ( In/Out) | Leads 5P, NENA Socket | Leads |
| Communication Mode | ISM Band RF 433/865/868/915 Mhz | ISM Band RF 433/865/868/915 MHz |
| Housing | Solid plastic case, IP66 | Aluminium, IP54/IP67 |
| Dimension | 94 x 97 mm | 161x70x42 mm |
| Weight | 0.3 kg | 0.3 kg |
| Input/Output Wire | Black-White/Red-White | Brown-Blue-Yellow/Green |
| Dim Control Wire | Purple (+)/Gray(-) | Red (+)/Black(-) |
- Providing individual communication with nodes using 433/865/ 868/915MHz wireless interface.

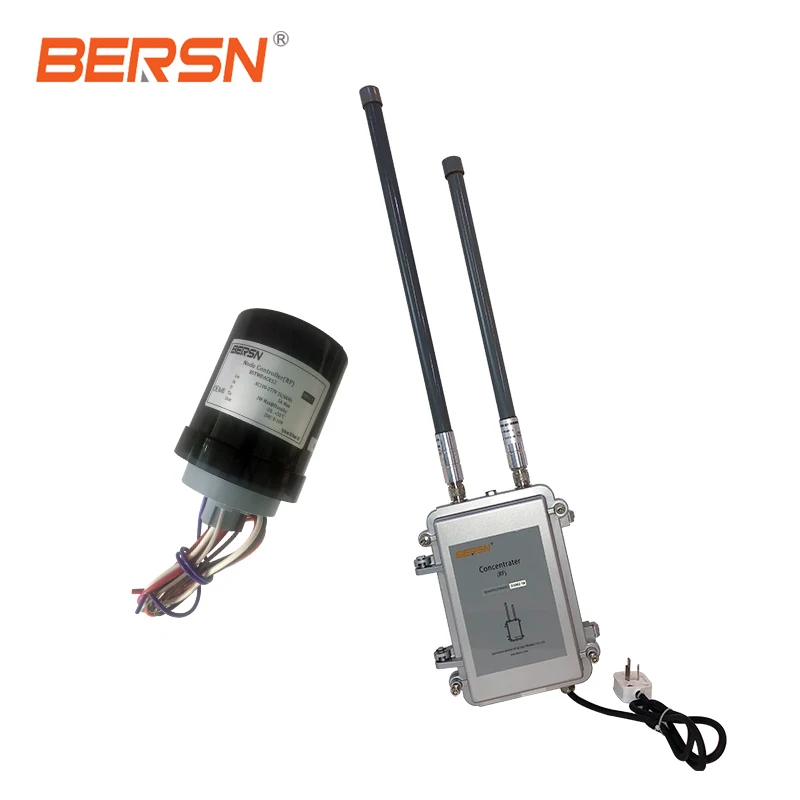

- In addition to its master functions, concentrator controls all electrical equipment in the cabinet, collects data from electric meter and other connected devices and sends live status of overall LiSmart system to server via GSM/GPRS/3G mobile net.
- Programming of concentrator and light scheduling are performed remotely from the software.
Product specification
| Model No. | SLGJ2-ORF |
| Input Voltage | 100-277 VAC 50/60 Hz |
| Power | 2 W |
| Power Factor | >0.9 |
| Communication Mode | GSM/GPRS |
| GPRS Frequency | 900-1800 MHz |
| Radio Frequency | 433/865/868/915 MHz |
| Waterproof grade | IP66 |
| Working Tem | -40~+70℃ |
| Housing | Aluminum |
| Surge Protection | 10 kV |
| Weight | 3 kg |
| Size | 230 x 190 x 70 mm |

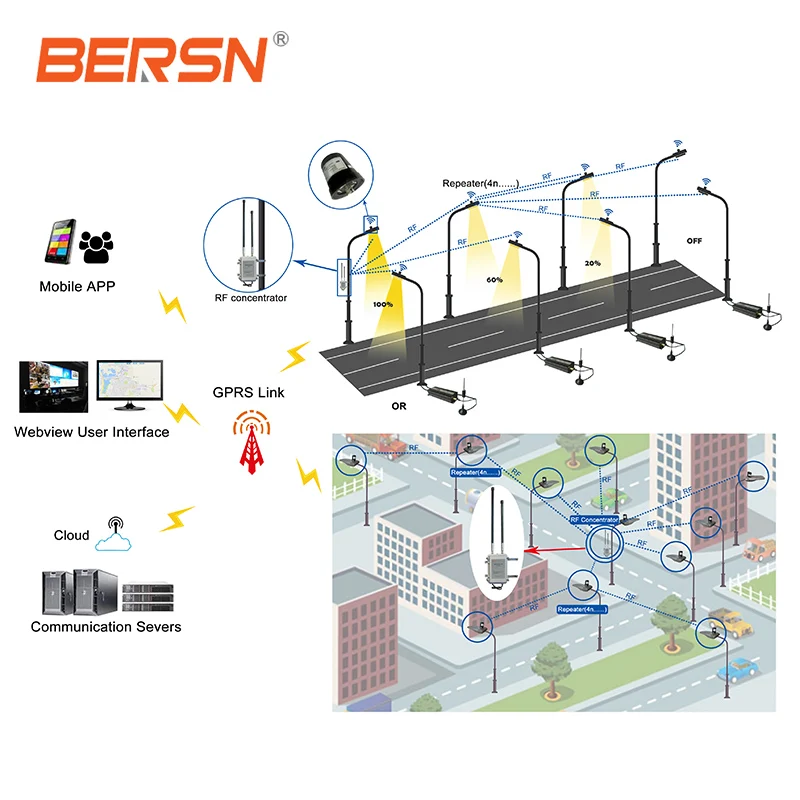

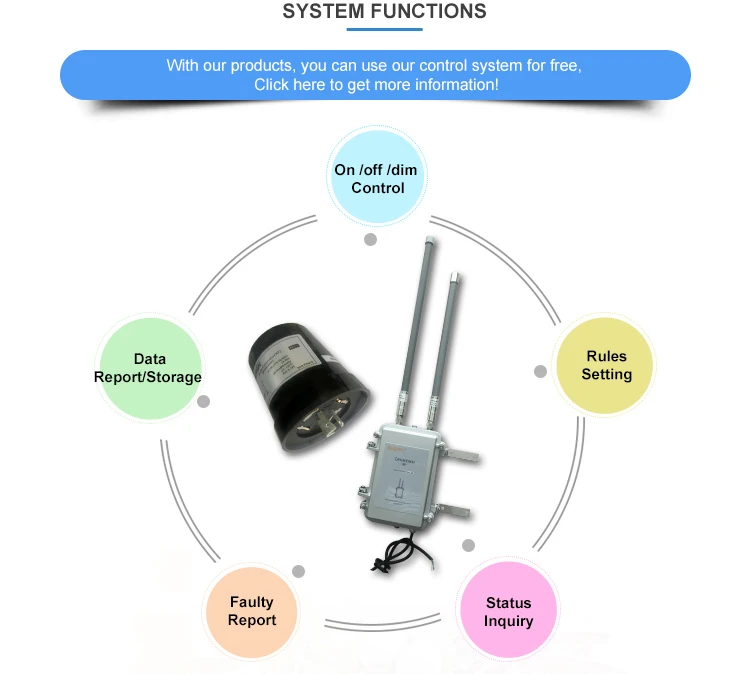

About Our System
Nema interface street lighting luminaries timer dimming controller
More Choise
Our Project
Our company
BERSN is innovative electronics designer and manufacturer of outdoor lighting and industrial lighting since 2001. BERSN passed ISO9001:2015 and authorized National High-Tech enterprise and LED benchmarking enterprise in Guangdong, China. Since 2009, BERSN has became PHILIPS China OEM partner. Main products line includes Smart Lighting Control System for Road & Street Light, Smart LED Driver, HID Electronic Ballast, & Outdoor LED Lighting Luminaries. The products pass the national and international quality certificates, including CCC, CE, RoHs, SAA, UL, FCC.
Working on the market of lighting controls solutions for over 18 years, BERSN grown to become an industry recognized developer and most progressive company with Head Office in Shenzhen, China. BERSN provides both ODM and OEM services. The company’s mission is to develop innovative, turn-key, fully integrated solution for lighting industry.
