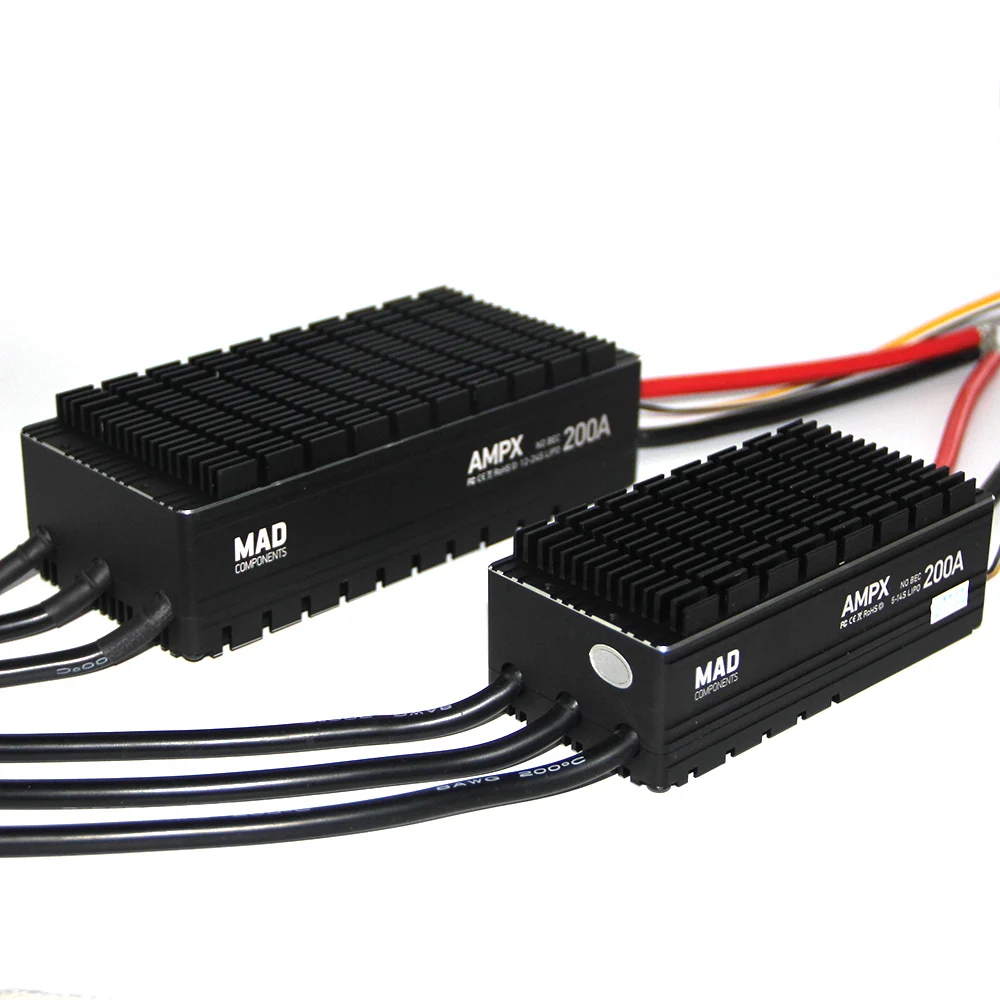

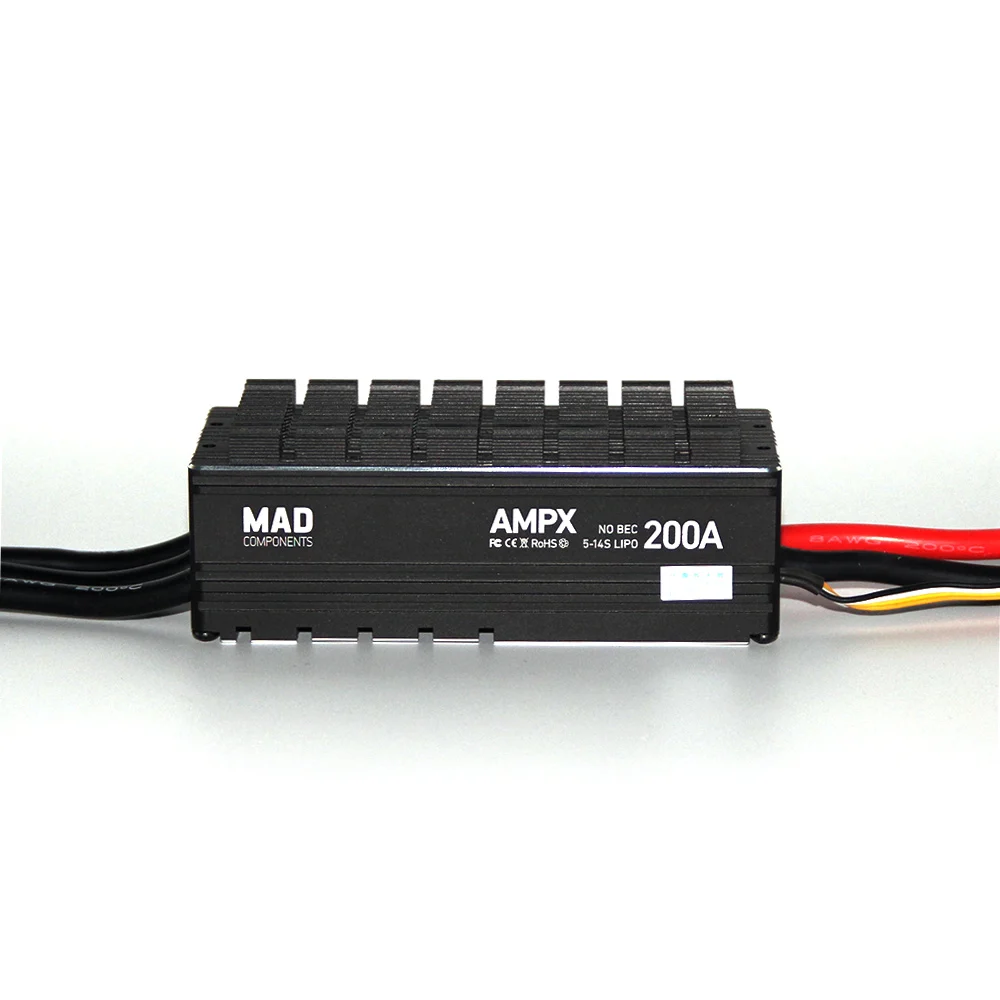

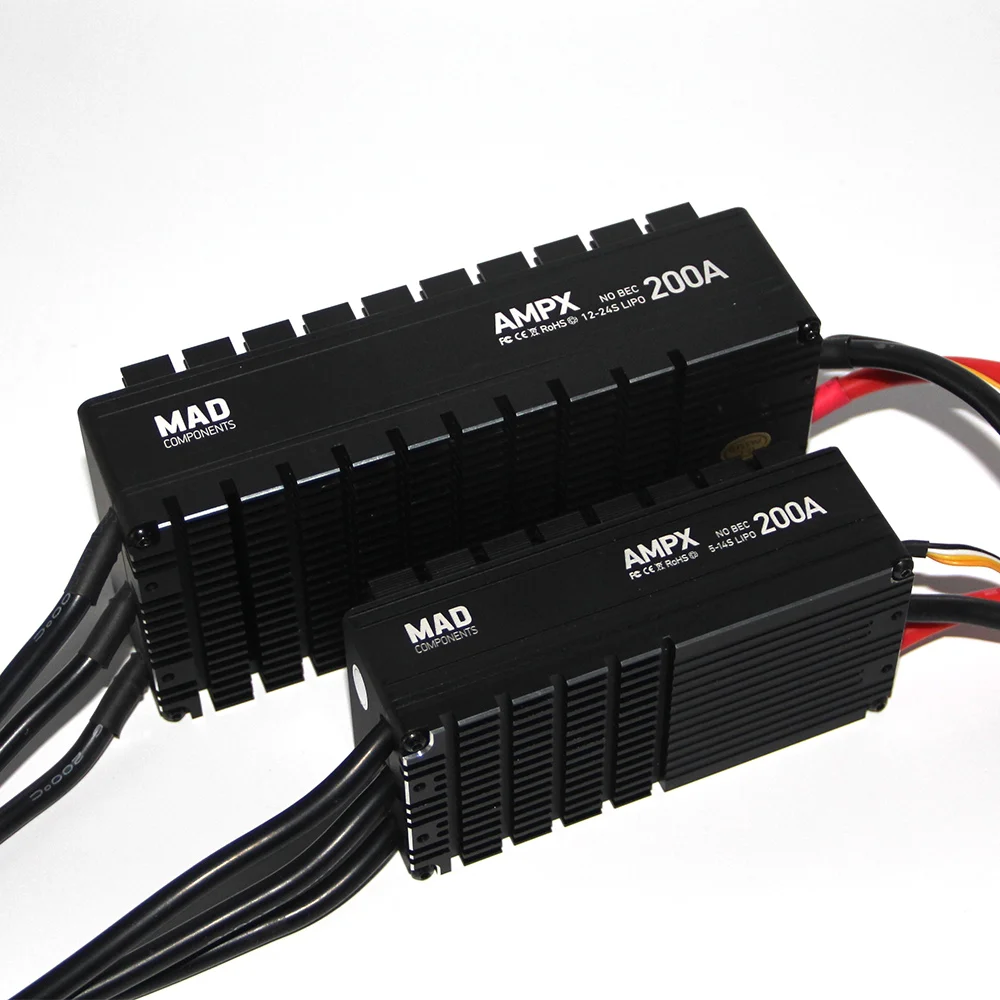

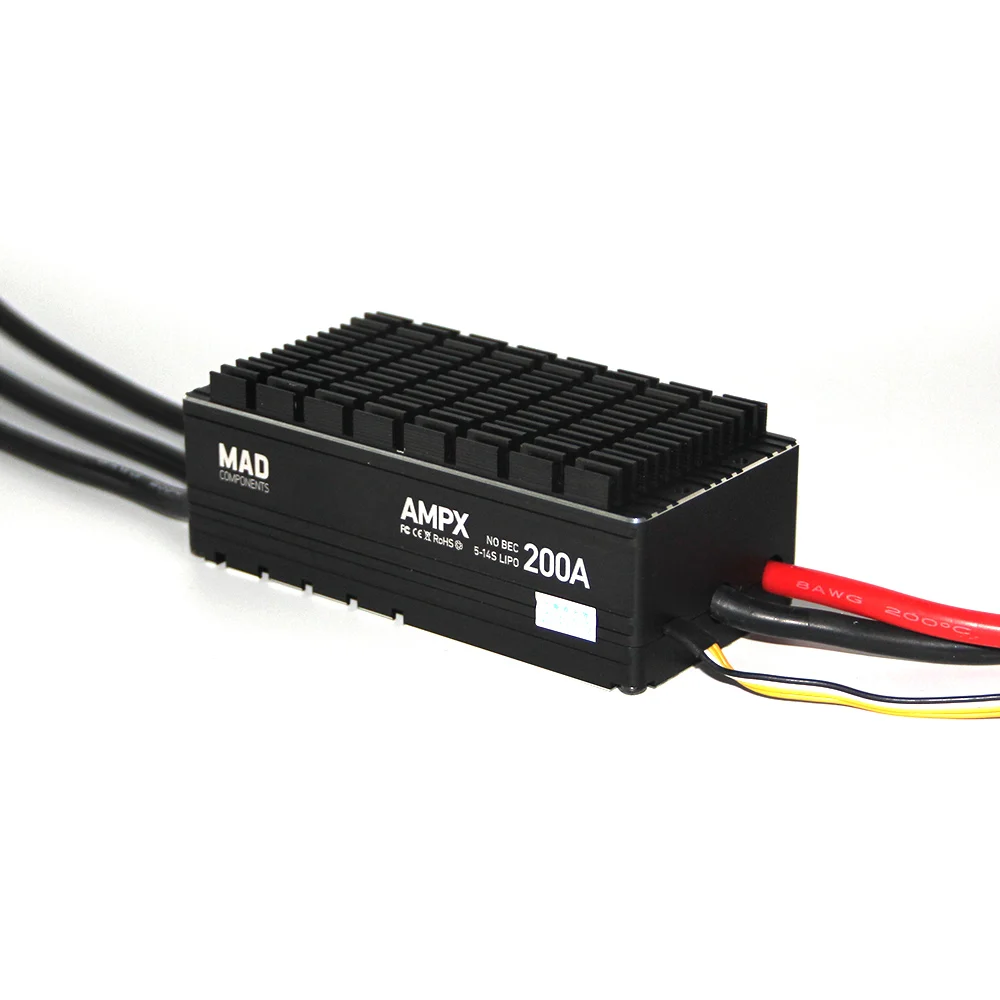

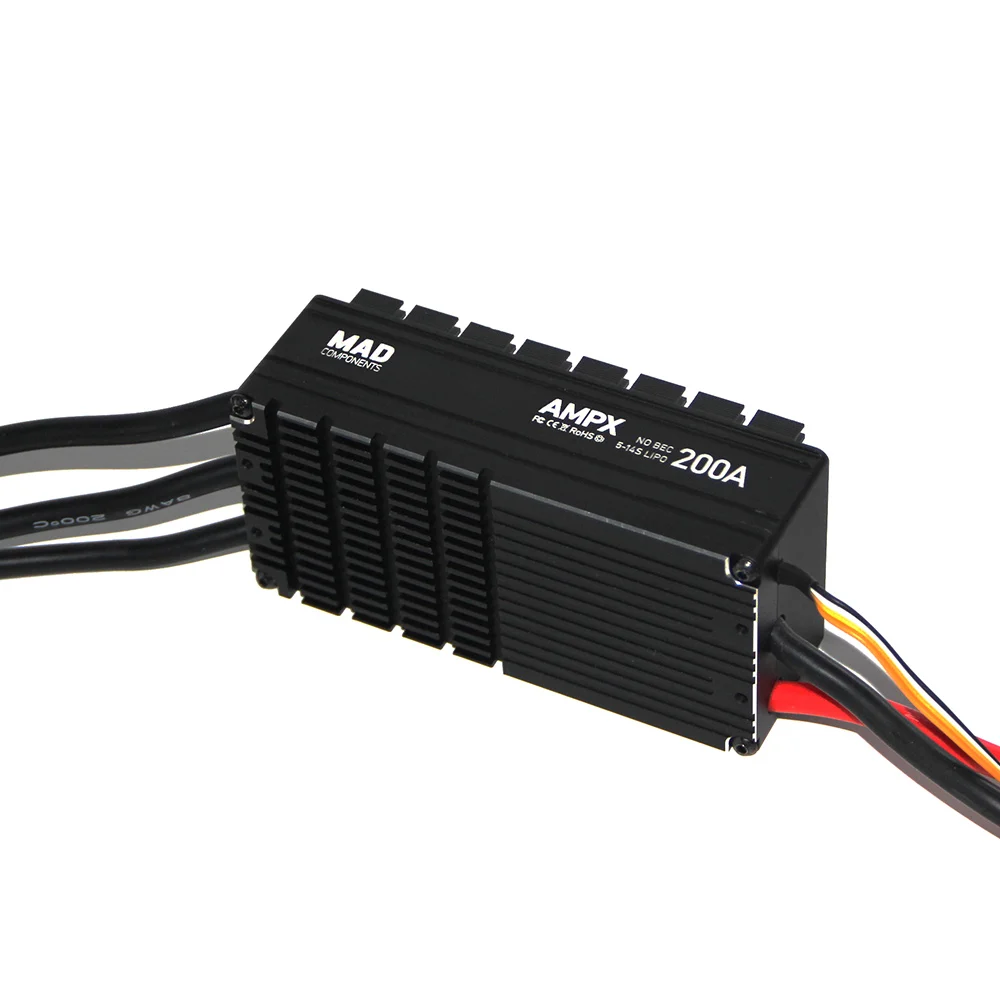

MAD AMPX 200A ESC 5 14S Multirotor Remote Control 200 Amp Drone Speed Controller ESC for drone motor

Product Overview

Description

MAD AMPX 14S Multirotor Remote Control 200 Amp Speed Controller for drone motor





Thank you for select this product. Please carefully read this manual before using this part. Using this part will indicateyou agree with all the -items in this manual. Please strictly follow these items for usage. We'll notcommit any responsi--bility including but not limited to indirect loss or joint responsibility caused by improper usage, private modihcationand: other faults. The maximum compensation will be not more than this partcost.

INDUSTRIAL GRADE ESC - DESIGNED FOR MULTIROTOR

 . Quick response. it will take only 0.28seconds from starting motor to full speed running-. Good       compatibility and stability with special control algorithm for disc motors.

. Synchronous freewheeling technology can bring better throttle linearity, driving effciencyand automatic energyrecovery when lowering motor speed. Have output interfaces of RPM and error signal.

. With 485 communication interface, it can communicate with the flight controller in real time.(Note: This featureneeds to match the flight controller).

. Convenient installation screw holes without considering ESC part front and back sides
