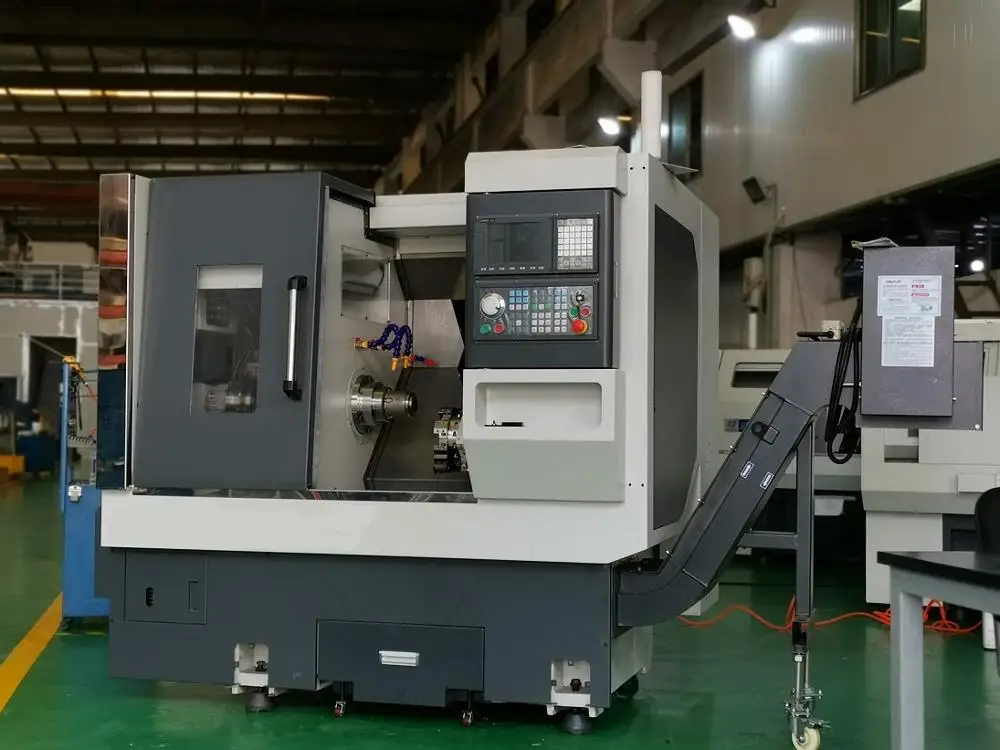

Chinese automatic standard series Slant Bed CNC tool Lathe machine turning center metal with Yaxis and C axis(BL H6Y)
- Category: CNC Lathe >>>
- Supplier: Ningbo Blin Machinery Co. Ltd.
Share on (62206901141):
Product Overview
Description
Quick Details
| Port: | Ningbo |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 500 Unit/Units per Year |
| Weight (KG): | 3000 |
| Max bar through dia.: | 44 |
| Max. Turned Length (mm): | 300 |
| Spindle Bore(mm): | 56mm |
| After-sales Service Provided: | Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service |
| Dimension(L*W*H): | 2200*1600*1700mm |
| Max.turning length: | 300mm |
| Machining Capacity: | Light Duty |
| Warranty of core components: | 1 Year |
| Repeatability (X/Y/Z) (mm): | 0.008 |
| Tool Post Stations: | 8 |

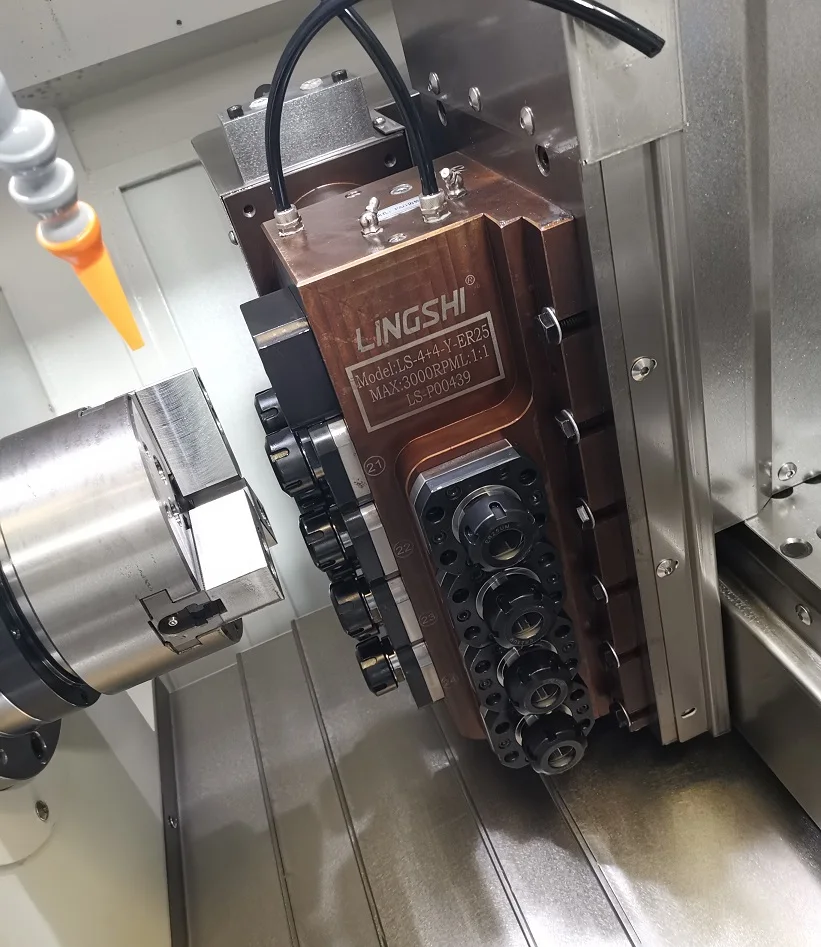

| Turret type: | 8T Hydraulic tool turret& 4+4 Independent live tool group with Y axes |
| spindle type: | A2-5 |
| Key Selling Points: | Competitive Price |
| Voltage: | 380/220/415 V |
| Max. Spindle Speed (r.p.m): | 5000 r.p.m |
| Local Service Location: | Turkey,Germany,Indonesia,Russia,South Africa |
| Max. Swing Diameter (mm): | 350 mm |
| Structure: | Slant Bed Lathe |
| Machinery Test Report: | Provided |
| Spindle Motor Power(kW): | 5.5 |
| Condition: | New |
| Travel (Z Axis)(mm): | 220 |
| Place of Origin: | Zhejiang China |
| Warranty: | 1 Year |
| spindle bore: | 56mm |
| X axes ball screw O.D/pitch: | 32/10 |
| Travel (X Axis)(mm): | 460 |
| Showroom Location: | Turkey,Germany,Indonesia,Russia,South Africa |
| No. of Spindles: | Single |
| Model Number: | BL-H6Y |
| Certification: | CE |
| Automatic Grade: | Automatic |
| Brand Name: | BLIN |
| Video outgoing-inspection: | Provided |
| Max. Length of Workpiece (mm): | 300 mm |
| Type: | Horizontal |
| Year: | 2020 |
| Core Components: | others |
| Marketing Type: | New Product 2020 |
| Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use |
| Number of Axes: | 6 |
| Max. Turning Diameter: | 200 |
| Spindle power: | 5.5/7.5KW |
| CNC Controller: | SIEMENS/FANUC |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service |
| Width of bed (mm): | 35 |
| CNC Control System: | Siemens |
| Positioning Accuracy (mm): | 0.01 mm |
| Packaging Detail: | Plywood Case(LCL); Wooden/steel Pallet(FCL) |
