With compressed air as medium and make use of expansion function of it, blade air motor converts pressure energy into mechanical energy.
It can be operated in tough environment which is damp, high temperature, excessive dust or other poor working environment.
So it is widely used as power in mine rock drilling or loading machinery and more popular in many fields, e.g. ship, offshore platform,metallurgy,papermaking and petrochemical industries, etc.

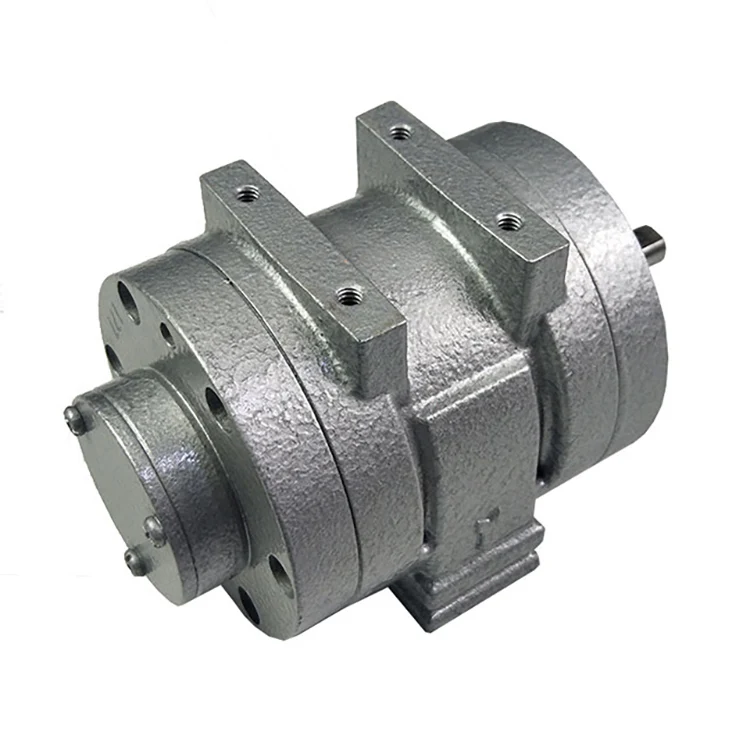

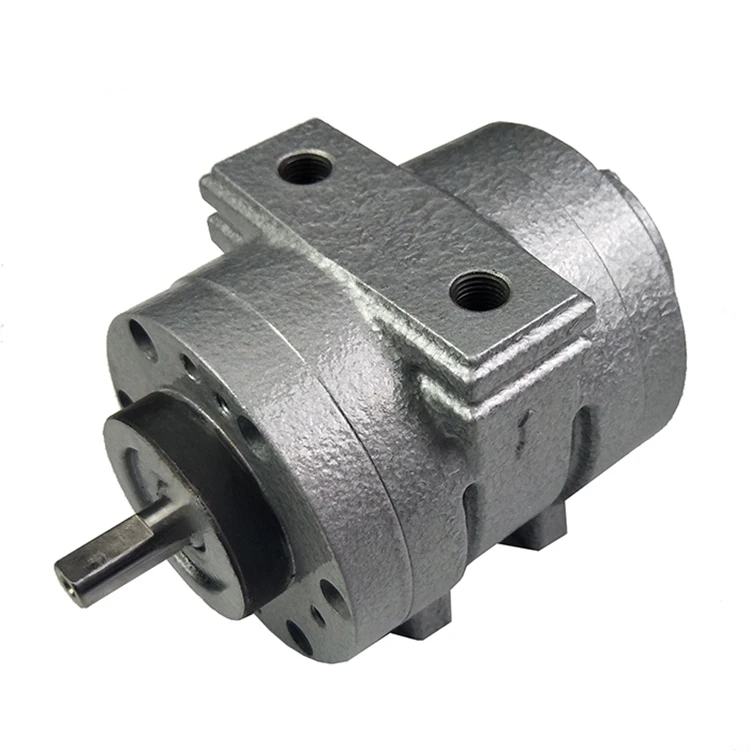

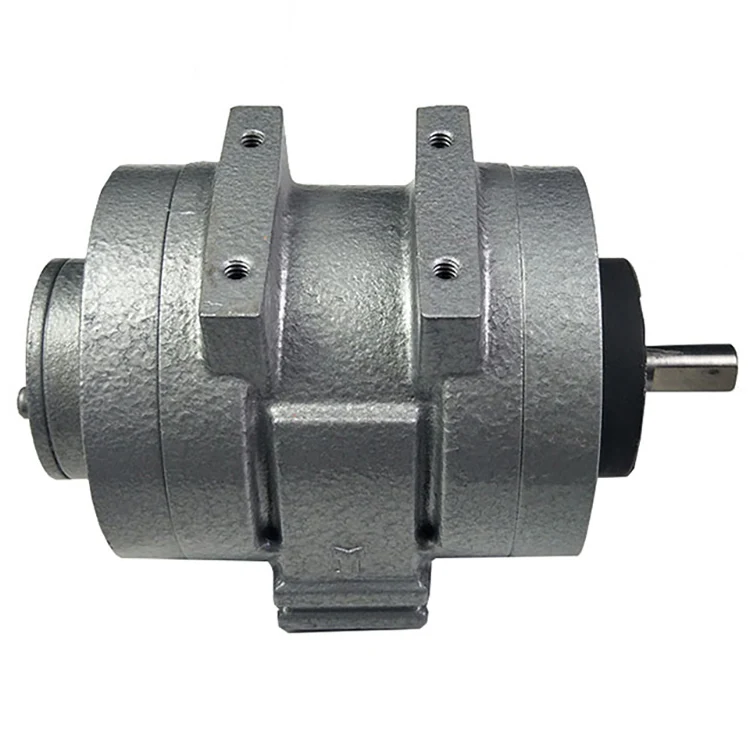

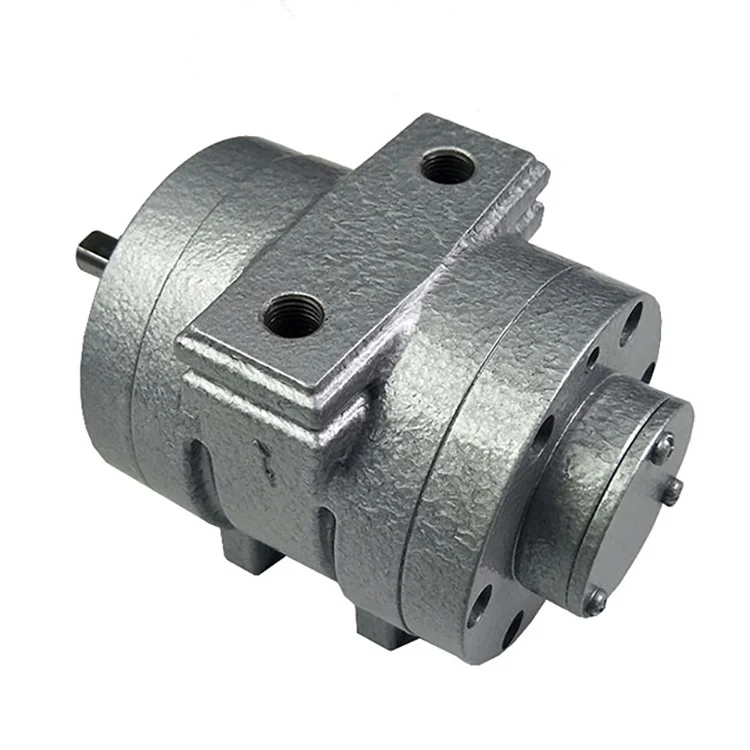

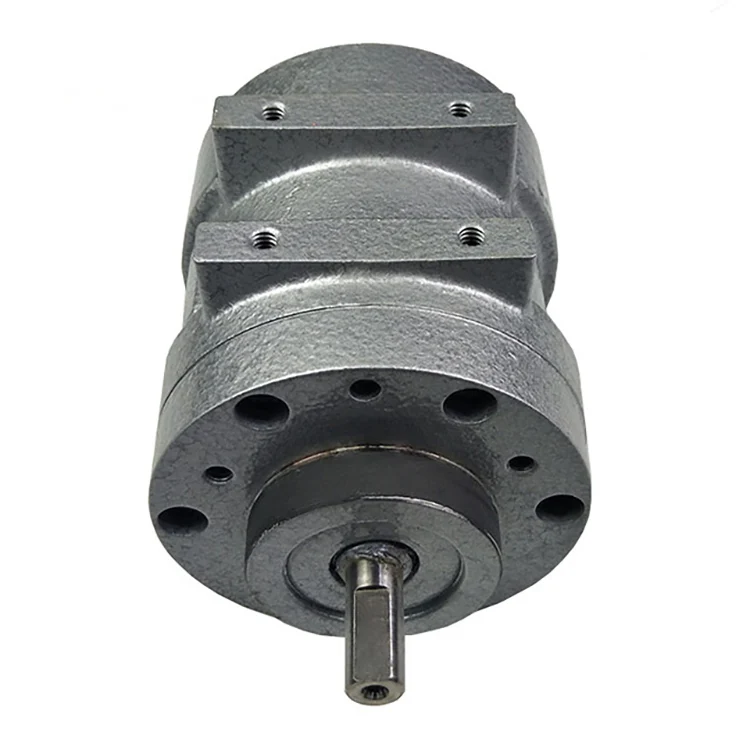

HXNL42
Operation Date
at Max. Power
Power
hp/kW
0.82/0.61
Torque
Nm/Ib.in
2.9/25.5
Rotate Speed
rpm
2000
Air Consumption
m³/h
70
cfm
41
Maximum Torque
Rotate Speed
rpm
500
Torque
Nm/Ib.in
5.0/44
Packing & Delivery
Packaging
Size
178mm(L) * 105.9mm(W) * 100mm(H)
Weight
7kg
Packaging Details
1 plywood case per set.
2 If container is too tight,we will pack it according to customers special request
Certifications
Our Company
Nantong Powerful Pneumatic&Electrical Technologies Co.,Ltd is a wholly-owned Subsidiary of Rudong Hongxin Machinery Manufacturing Co., Ltd.As a professional supplier of pneumatic tools, Rudong Hongxin Machinery Manufacturing Co., Ltd has mainly engaged with research,design,manufacturing installation,technical services and sales for Pneumatic equipment with 20 years' experience.Our factory covers an area of 5,600 square meters with well-equipped and strong processing capacity.Also it has around 100 people of skilled workers,R&D staffs and administrators.
Under ISO9001 quality management system,our company has exploited the leading pneumatic series products both at home and abroad,such as air motor,air winch,air mixer,air hoist,air explosion proof lamp,air fan,etc.
All of the air products series have been widely used and approved in ship, offshore platform, oil drilling, mine, etc which are very popular in North America, Southeast Asia, Europe etc.
