Diesel Engine Wheel Mobile Mine 100tph Cone Crusher
- Category: Energy & Mineral Equipment >>>
- Supplier: Fujian South Highway Machinery Co. Ltd.
Share on (62209507212):
Product Overview
Description
Tracked Mobile Cone Crusher

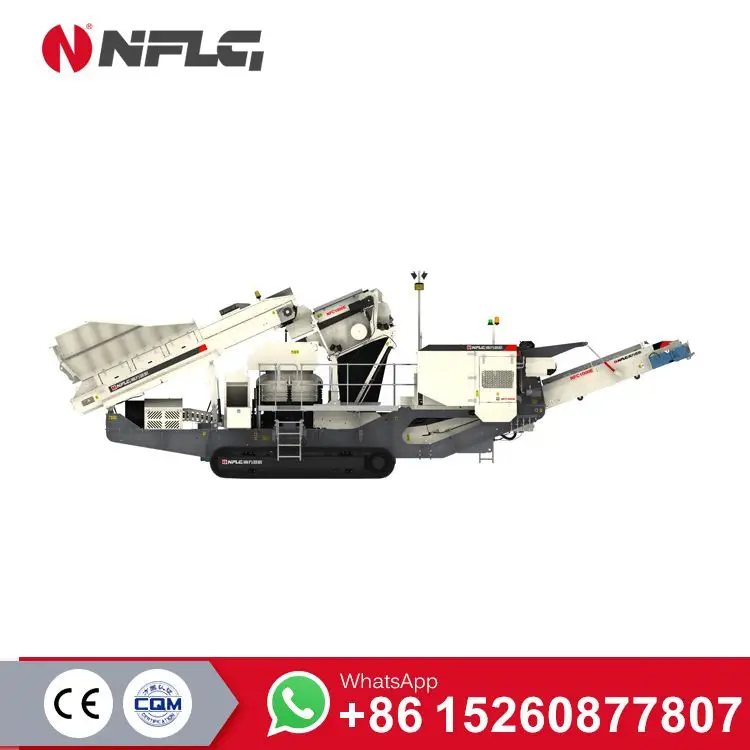

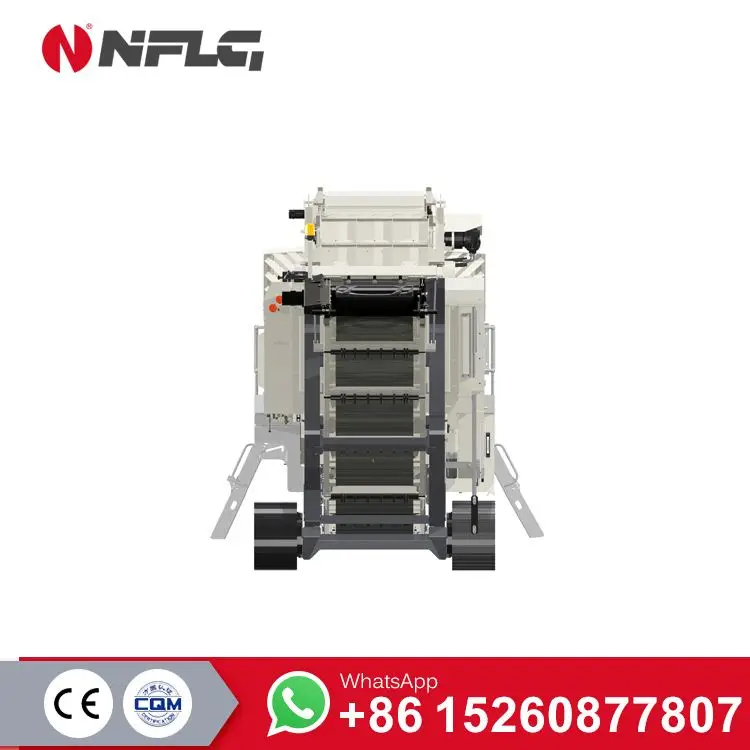

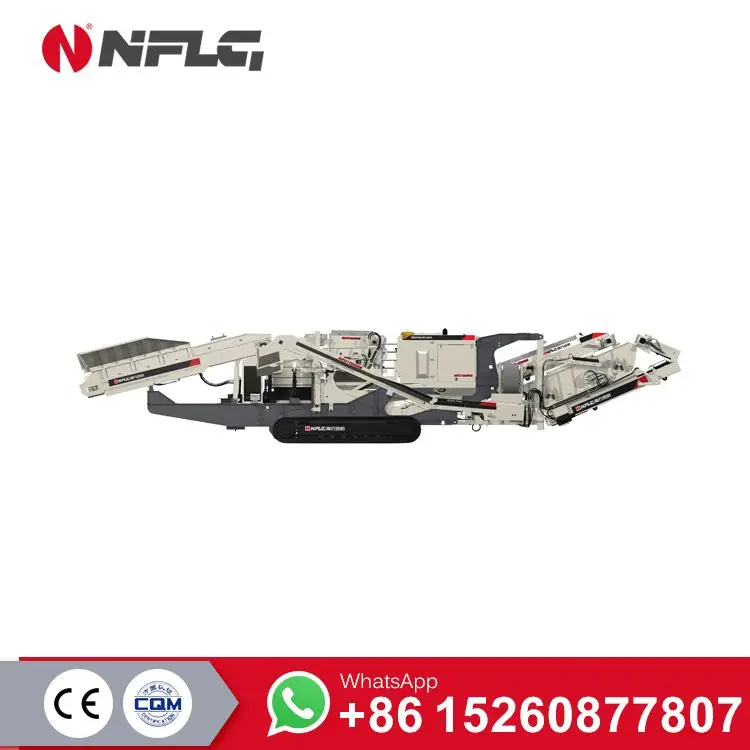

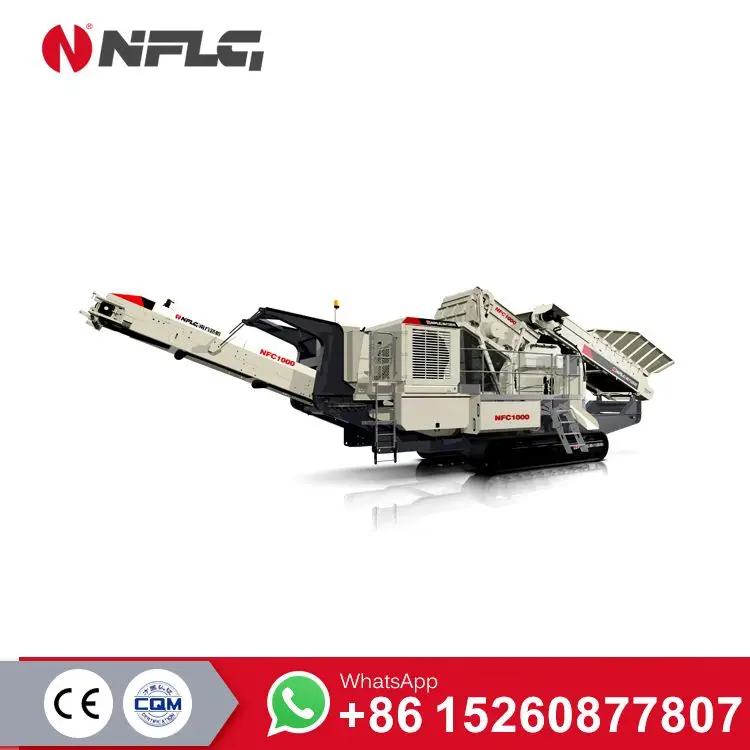

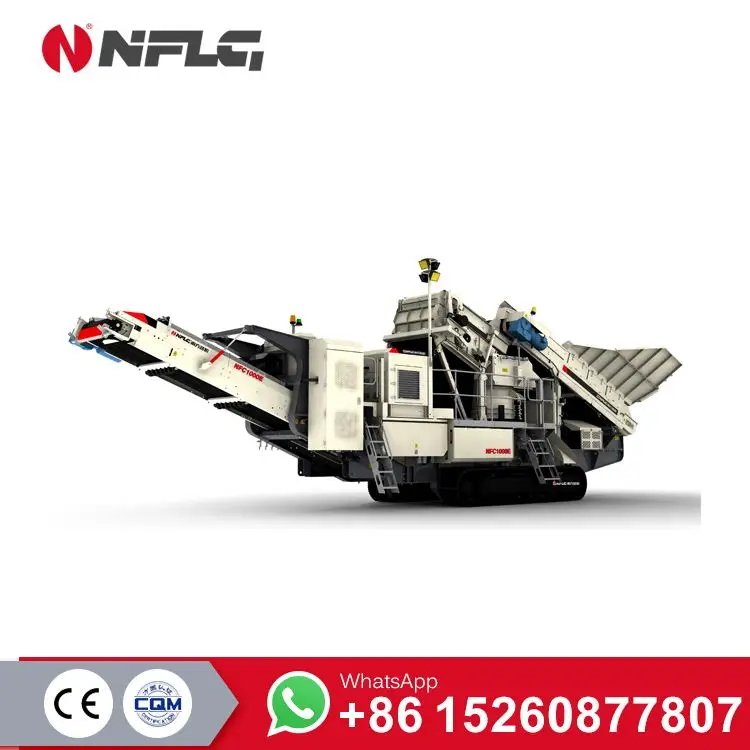

Diesel Engine Wheel Mobile Mine 100tph Cone Crusher
NFLG mobile crushing and screening equipment, divided into tracked and wheeled, with the international leading production technology as the design criteria, to provide users with a full range of equipment. Product technology is used in the crushing of rocks and ores in mines, stone processing, stripping crushing of cement concrete reconstruction, crushing of asphalt concrete before recycling and concrete construction waste.
| Model | NFC1000 | NFC1000E | NFC1000RS | NFC1300 | NFC1300E | NFC1300S |
| Chamber | TC1000 | TC1300 | ||||
| Cone head diameter(mm) | 1000 | 1300 | ||||
| Maximum feeding setting(mm) | 160(medium and coarse standard cavity) | 220(medium and coarse standard cavity) | ||||
| Eccentric shaft speed (adjustable) (rpm) | 350-394 | 323-357 | ||||
| Crusher drive shaft speed (rpm) | 936 | 753 | ||||
| CSS range(mm) | 6-38 | 9-45 | ||||
| Drive | Hydrostatic pressure | Motor | Hydrostatic pressure | Drive shaft and V-belt | Motor | Hydrostatic pressure |
| Engine/power (kw) | Cat C9/261 | Perkins/74.5 | Cat C13/328 | Cat C15/390 | Cummins QSB6.7/127 | Cat C13/328 |
| Rotational speed(rpm) | 1900 | 2200 | 1900 | 2200 | 1800 | |
| Main belt bandwidth/discharge height (m) | 0.9/3.3 | 1.2/3.8 | ||||
| Side belt bandwidth/discharge height (m) | 0.65/2.8(optional) | |||||
| Transfer belt bandwidth of prescreening (m) | 1 | 1.2 | ||||
| Feeder belt bandwidth (m) | 1.05 | 1.2 | ||||
| Hopper Capacity(m³) | 5 | 8 | ||||
| Prescreen size (mm) | 1830x1220(single) | 2450x1520(single) | ||||
| Total motor power ( kw) | N/A | 207 | N/A | 310 | N/A | |
| Actual fuel consumption (L/h) | 37.3 | N/A | 46.9 | 55.7 | N/A | |
| Actual power consumption (kw/h) | N/A | 155.25 | N/A | 232.5 | N/A | |
| Finished size (mm) | 0-75 | 0-90 | ||||
| Maximum Capacity (mtph) | 260 | 390 | ||||
| 0-31.5mm aggregate production capacity (mtph) | 115-160 | 190-225 | ||||
| Weight(t) | 38.3 | 45.6 | 40.6 | 63 | 70 | 49.8 |
| Transportation state dimension LxWxH(m) | 16.9x2.8x3.5 | 16.8x2.8x3.5 | 18.8x3.1x3.5 | 18.3x3.0x3.8 | 18.3x3.0x3.8 | 15.3x3.0x3.7 |
| Operation state dimension LxWxH(m) | 15.8x3.8x4.8 | 15.7x3.9x5.2 | 19.0x4.7x4.8 | 19.0x7.1x5.6 | 19.4x7.1x5.6 | 15.8x3.8x4.8 |
Mobile and flexible, transfer quickly and intelligently saves your mind
The mobile crushing station is light and small, no loading for the transfer site, and no infrastructure construction. After entering the site, the crushing station can be installed within 1 hour and directly delivered to the material department for a quick start. Stable performance, easy maintenance without a crane or special tools.
Thoughtful design, meets various production needs
Set feeding, crushing, transmission in one, through the combination of different models, form a crushing production line with strong capacity, complete a variety of material processing.
Structural upgrading, economy, and security
Through wireless remote control, can be automatically started and stopped within a safe distance of 100 meters, as well as the field movement, the overall operation is simple, effectively saving labor costs.
Energy - saving and environment-friendly adaptability is excellent
Mobile station transfer without truck consignment, and can reduce all kinds of noise, tail gas, dust pollution, and energy consumption. And the equipment input cost is only half of the ordinary fixed station; a smart structure can also easily meet the requirements of highway, tunnel, mining and other engineering crushing, the overall more economic, more environmental protection.
Crushing of building materials aggregate
NFLG mobile crushing equipment is used for limestone, basaltic stone, granite, pebbles and other rocks. the quality of finished products to meet the quality standards and are used for highways, railways, water conservancy, concrete mixing station and other industries to provide aggregate. The mobile crushing equipment can also use tunnel slag to process crushed stones and produce low-cost and high-quality building materials on site.
Construction waste disposal
NFLG mobile crushing equipment is used in the treatment of construction waste. Mobile crushing equipment set construction waste receiving, crushing, conveying, processing, reprocessing function in one, to complete a variety of demand construction waste treatment operations. It perfectly realizes the transformation of the new building materials industry chain and the production and operation mode of circular economy and low-carbon economy from the traditional " building materials → buildings → construction waste" to " building materials → buildings → construction waste →regenerated raw material→ new products".
Metal ore crushing
Through the organic combination of mobile crushing and screening equipment for operation, with large capacity, high efficiency, good maneuverability, greatly reduce cycle reversal, is a piece of ideal mining equipment.
Q: How is the quality of your products?
A: our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: We are factory and be able to give you the lowest price than market one, and we have a policy that for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis
Q: Service and Payment Terms?
A: We usually accept T/T, LC. T/T: 30% in advance as down payment, the balance before delivery We take pictures of finished products before delivery.
