Product Overview
Description
Product Description
Main Features:
1. The front –feeding platform has equipped with ruler for the plate feeding and also smooth in the surface to protect the plate in any surface hurting when feeding. The ruler can be precision into MM or more unit for accuracy control and checking.
2. The working table has equipped with ball or round bar steel to support the plate into feeding and also the protection for any surface lacerate.

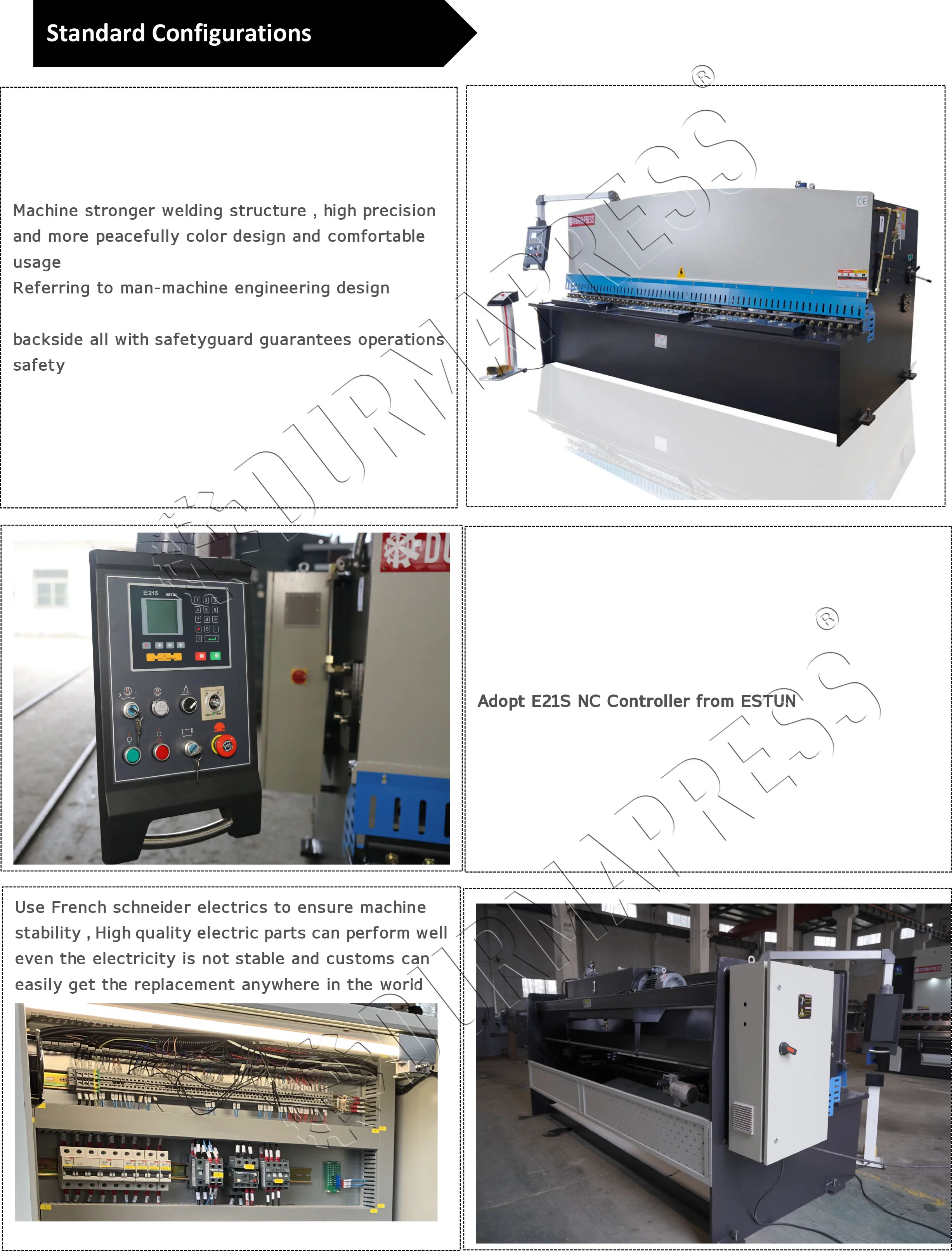

3. The electronic box been equipped with good certificated components.Mostly we use CE certificated SIEMENS or Schneider components for exportation machines and also some high quality CCC certificated components to carte for different standard needs clients.
4. The machine body steel ,we mostly choose China top brand steel plate provider Shanghai BAOSTEEL with good quality and been treated with anticorrosive paint before the last paint on. So the machine firstly will have good durable usage and also perfect outside appearance.

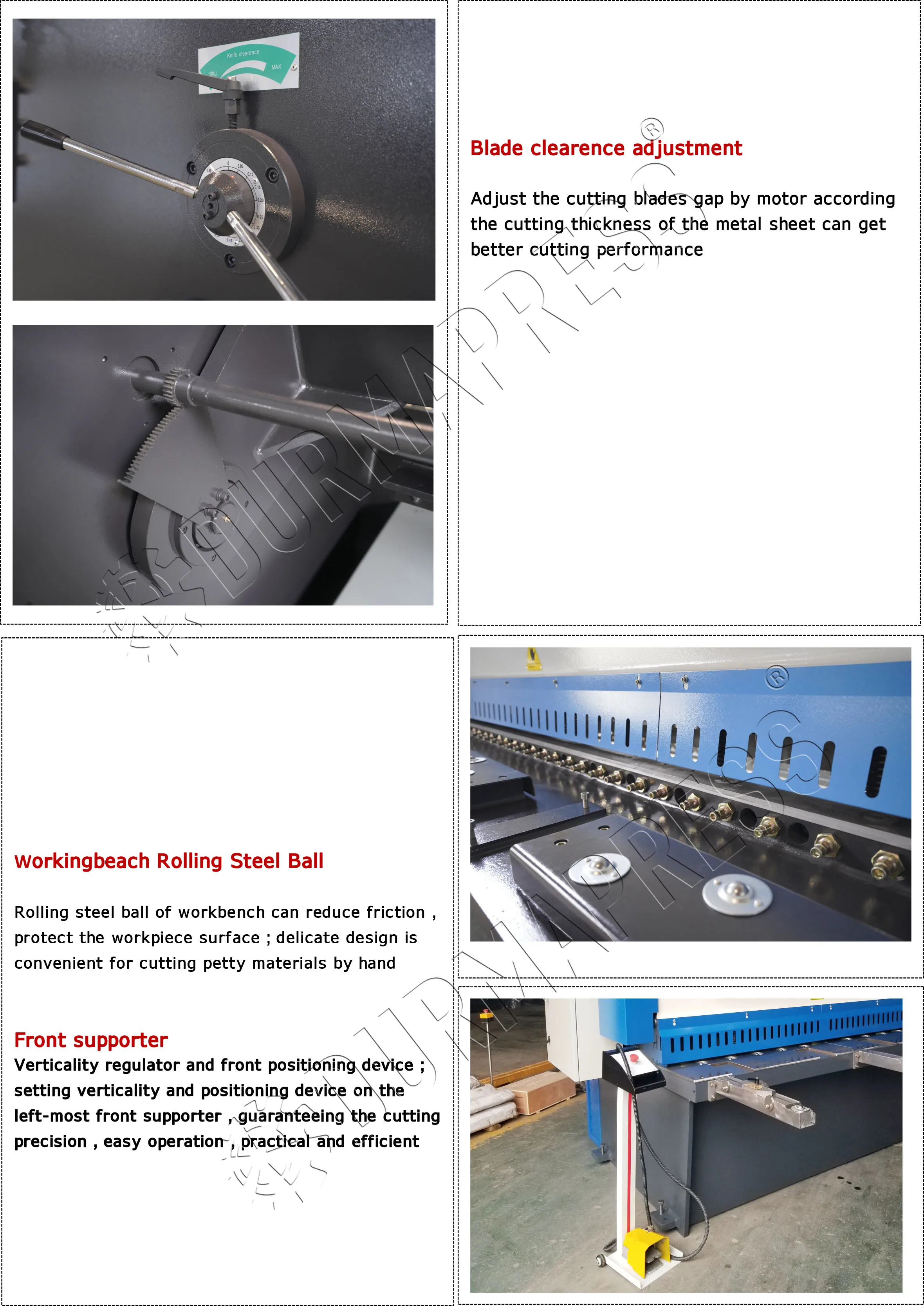

5. The blade :The blade material is 9CrSi or 6CrW2Si, the material is high tested material with thousand times for high rigidity and cutting result. The up blade is rectangle blade with four blade edges which is different from QC12Y Swing Beam shear machine (The detailed please check SIECC/SIECCTECH blade explain photo and instruction). The blade clearance can be adjusted by manual or by motor. Both has the index dial to display the clearance so the control and display can be easily. And the up blade shaft use tilting structure to promote the shearing precision.
6. The machine equipped the press foot to press the plate stably when cutting, the foot has been equipped with plastic surface with high fraction without surface destroy of the plate. For Hole plate,we will equip square foot for stable square press.
7. Gear Pump: We use good brand “straight conjugate internal gear pump” in both China brand Shanghai chengjie or Germany Eckerler.
The internal gear pump is treated as never wear pump in industry and has been widely used in high precision hydraulic machines with the character of low-noise, no pulsation and long lifetime. Shanghai Chengjie gear pump also used in China’s aircraft industry so it is trustable and reliable. When in high speed working, the audio is flat and smooth even no trapping. The long lifetime is depend on his abrasive performance the inner machine components has oil film protection layer, so even use normal hydraulic oil, even no abrasion.

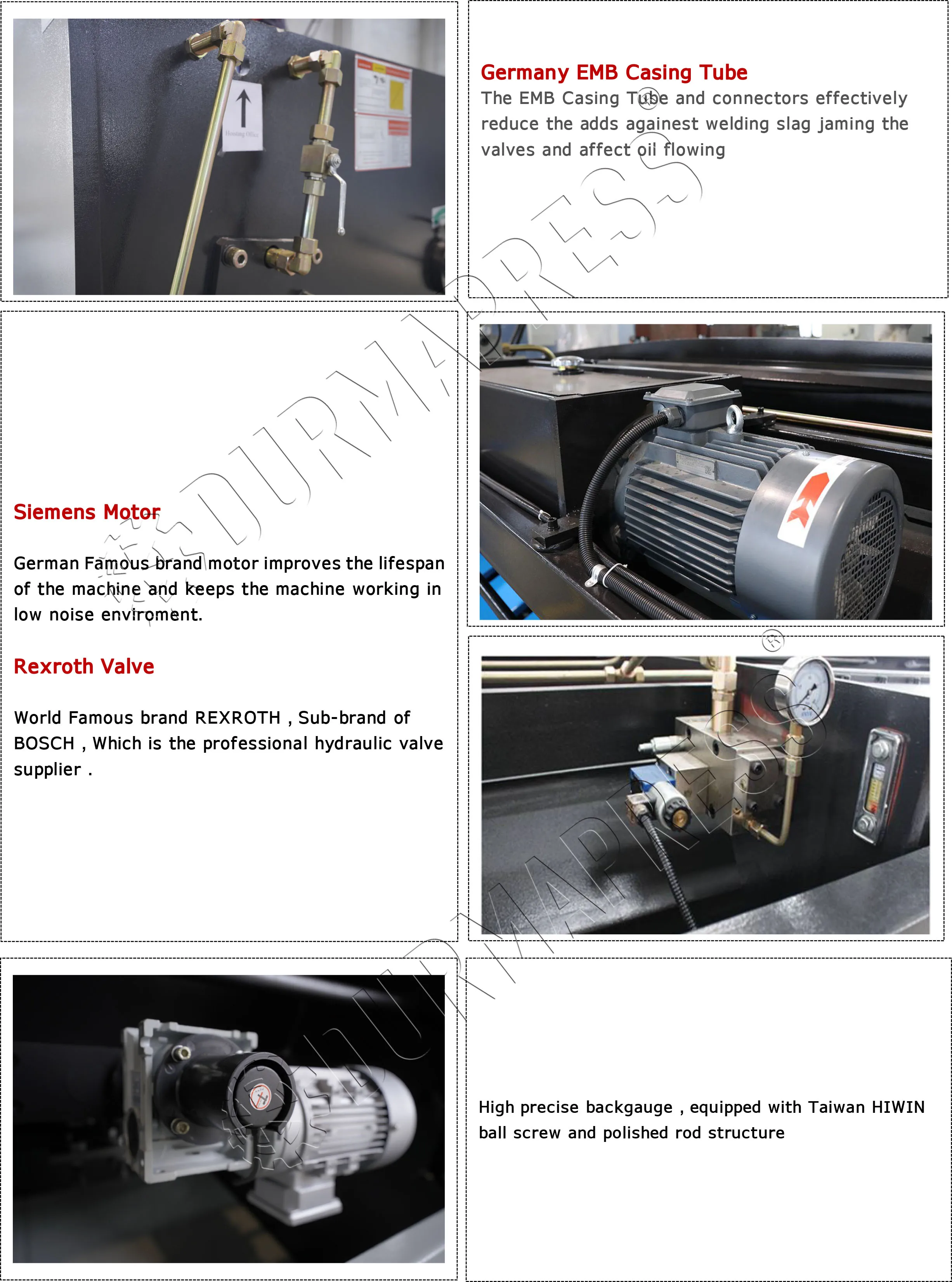

8. The hydraulic system can use Germany Rexroth or USA OMG system. The return is controlled by nitrogen return cylinder with stable working process and easy in operation. The hydraulic press enforced up transmission and nitrogen impose the up push-out with good cooperation working.(The working principle can revert to SIECC technology drawing of QC11Y and QC12Y)

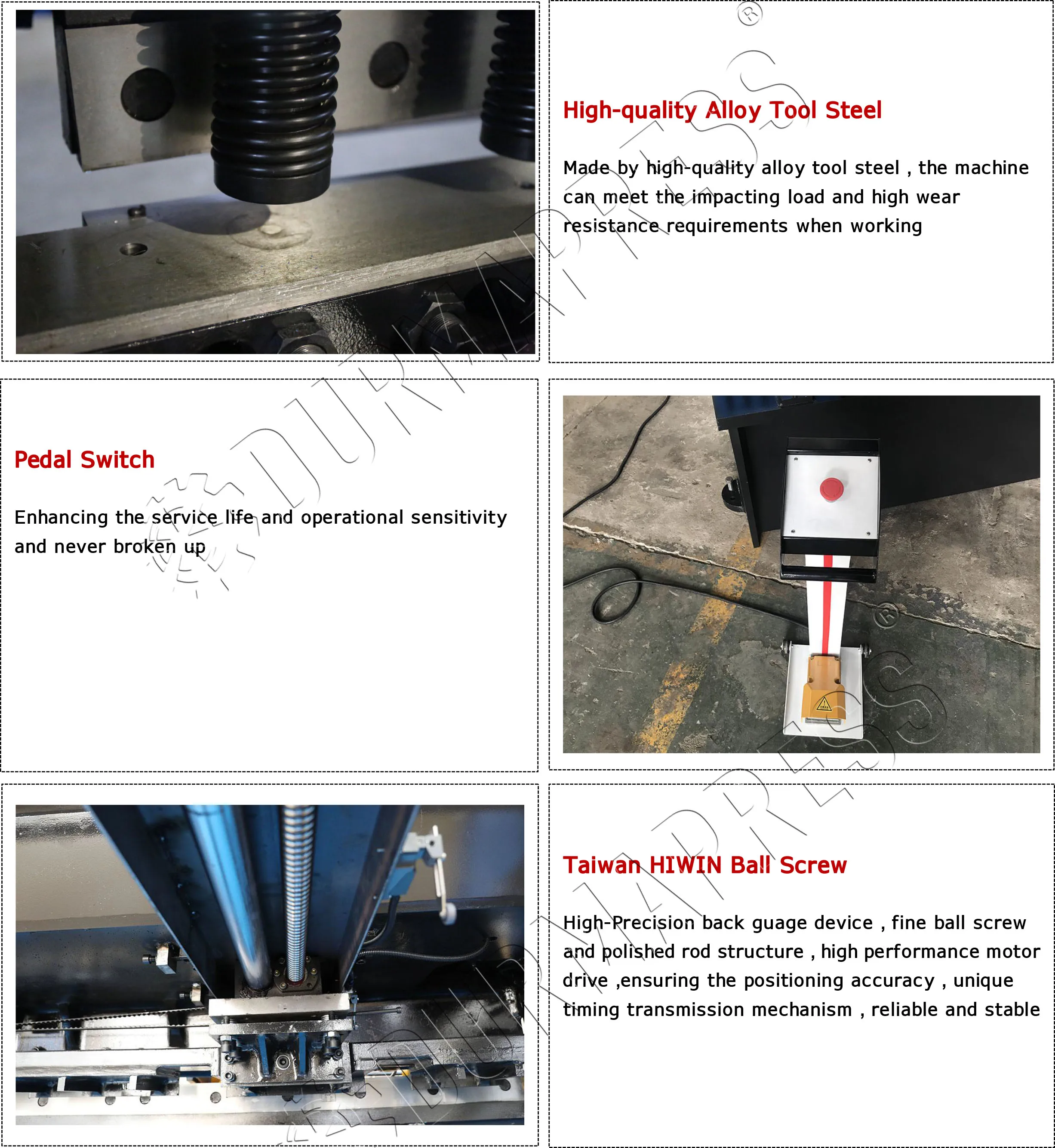

9. Backgauge are counted by counter and can be micro-adjusted and is motor drived.
10. the machine will be equipped with fence protection door before the cutting blade and the press foot.The fence can be opened if any needed. Near the throat,we will equipped with open-available door for person security but open-able when needs any inside checking.
11. Using three bearing rolling track to eliminate rail gap and enhance the shearing quality.(Machine drawing available for clearly explain)
2. The working table has equipped with ball or round bar steel to support the plate into feeding and also the protection for any surface lacerate.
3. The electronic box been equipped with good certificated components.Mostly we use CE certificated SIEMENS or Schneider components for exportation machines and also some high quality CCC certificated components to carte for different standard needs clients.
4. The machine body steel ,we mostly choose China top brand steel plate provider Shanghai BAOSTEEL with good quality and been treated with anticorrosive paint before the last paint on. So the machine firstly will have good durable usage and also perfect outside appearance.
5. The blade :The blade material is 9CrSi or 6CrW2Si, the material is high tested material with thousand times for high rigidity and cutting result. The up blade is rectangle blade with four blade edges which is different from QC12Y Swing Beam shear machine (The detailed please check SIECC/SIECCTECH blade explain photo and instruction). The blade clearance can be adjusted by manual or by motor. Both has the index dial to display the clearance so the control and display can be easily. And the up blade shaft use tilting structure to promote the shearing precision.
6. The machine equipped the press foot to press the plate stably when cutting, the foot has been equipped with plastic surface with high fraction without surface destroy of the plate. For Hole plate,we will equip square foot for stable square press.
7. Gear Pump: We use good brand “straight conjugate internal gear pump” in both China brand Shanghai chengjie or Germany Eckerler.
The internal gear pump is treated as never wear pump in industry and has been widely used in high precision hydraulic machines with the character of low-noise, no pulsation and long lifetime. Shanghai Chengjie gear pump also used in China’s aircraft industry so it is trustable and reliable. When in high speed working, the audio is flat and smooth even no trapping. The long lifetime is depend on his abrasive performance the inner machine components has oil film protection layer, so even use normal hydraulic oil, even no abrasion.
8. The hydraulic system can use Germany Rexroth or USA OMG system. The return is controlled by nitrogen return cylinder with stable working process and easy in operation. The hydraulic press enforced up transmission and nitrogen impose the up push-out with good cooperation working.(The working principle can revert to SIECC technology drawing of QC11Y and QC12Y)
9. Backgauge are counted by counter and can be micro-adjusted and is motor drived.
10. the machine will be equipped with fence protection door before the cutting blade and the press foot.The fence can be opened if any needed. Near the throat,we will equipped with open-available door for person security but open-able when needs any inside checking.
11. Using three bearing rolling track to eliminate rail gap and enhance the shearing quality.(Machine drawing available for clearly explain)

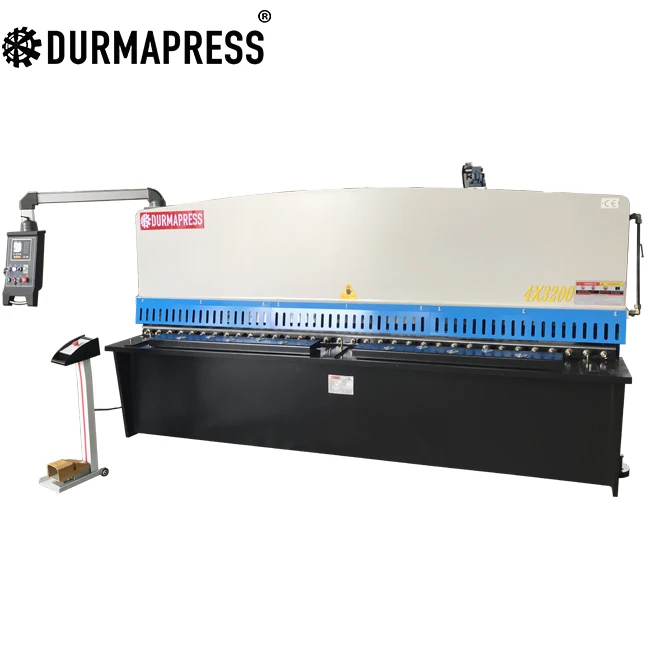

SPECIFICATIONS FOR QC12Y 4X3200MM | ||||||
Cutting thickness | 4 | MM | ||||
Cutting length | 3200 | MM | ||||
Cutting angel | 1°30' | ° | ||||
Meterial strength | ≤450 | KN/cm | ||||
Travel times | 9 | Hits/min | ||||
Power | 7.5 | Kw | ||||
Overall dimension | 3980*1750*1800 | MM | ||||
Details Images
Optional Configuration

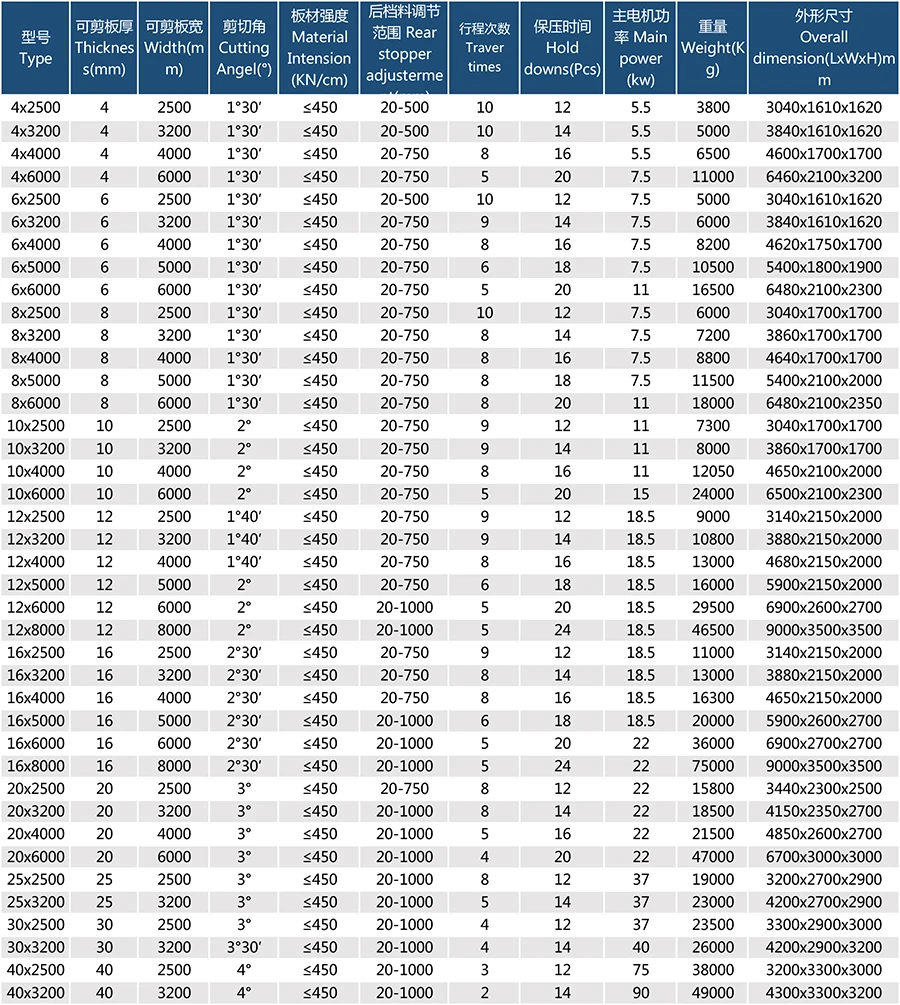

Type Reference
Company Profile
*Founded in 2006,Maanshan Durmapress CNC Machinery Co.,Ltd is located in the Maanshan city ,Dangtu County,close to Nanjing Airport.Our geographical position is superior and the transportation is very convenient. Our company covers an area of 160 acres with the registered capital of 32,000,000 Yuan. We have more than 320 employees, including all types of engineering and technical personnel, serving the company R&D, production, and customers' service. At the same time, we have our own sales companies in each major and medium city.
*Our company has established a perfect marketing service system. Our main products include RAS guillotine shears QC12Y, QC12K series of hydraulic, CNC shearing machine, ZYS series of electro-hydraulic servo CNC shearing machine, WC67Y, WC67K series of hydraulic, CNC bending machine, ZYB series of electro-hydraulic servo CNC bending machine, punching machine, bending machine, single column hydraulic machine, four hydraulic machine. Our products are widely used in decoration, metallurgy, ship, automobile, machinery, steel structure and other specialized areas of production. With exquisite design, reasonable price, excellent quality, efficient after-sales service and technical support by domestic and foreign customers, our products sell well in domestic more than 20 provinces and are exported to Europe, America, South America, Africa, Southeast Asia and the Middle East and other 40 countries and regions.
Certifications
Packing & Shipping
FAQ
Q.How to confirm the Machine Model?
A:You can tell us the material ,max thickness and width of your plate.We will recommend the suitable model to you .
A:You can tell us the material ,max thickness and width of your plate.We will recommend the suitable model to you .
Q. How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q.What is the payment term?
A:T/T (30% advance payment, and 70% balance paid one week before shipment)
L/C (100% L/C at sight), this should be negotiated first.
A:T/T (30% advance payment, and 70% balance paid one week before shipment)
L/C (100% L/C at sight), this should be negotiated first.
Q.Will you show me how to install the machine?
A:Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas.
A:Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas.
Q. After I buy the machine, what will you do if I don't know some of the function?
A: We will show you how to use the machine perfectly. Technical support and the video is available.
A: We will show you how to use the machine perfectly. Technical support and the video is available.
Q. What can I do if the machine troubled after I buy it?
A:We provide completely after sales service, and our engineers are available to service machinery overseas.
A:We provide completely after sales service, and our engineers are available to service machinery overseas.
