Industrial Aluzinc Steel Floor Deck Roll Forming Machine For High Steel Structure Buildings
- Category: >>>
- Supplier: Zhejiang Jinggong Integration Technology Co. Ltd
Share on (62213799074):
Product Overview
Description

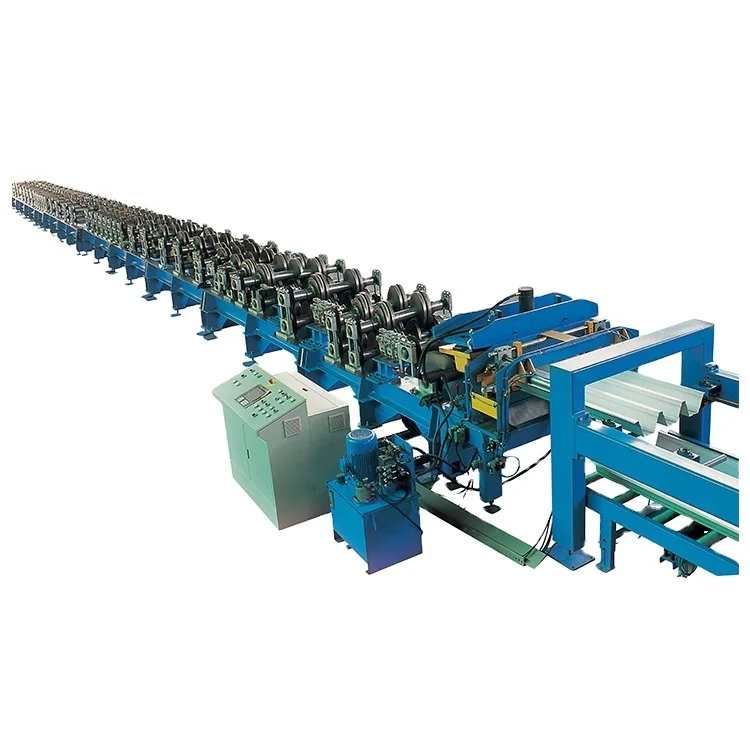

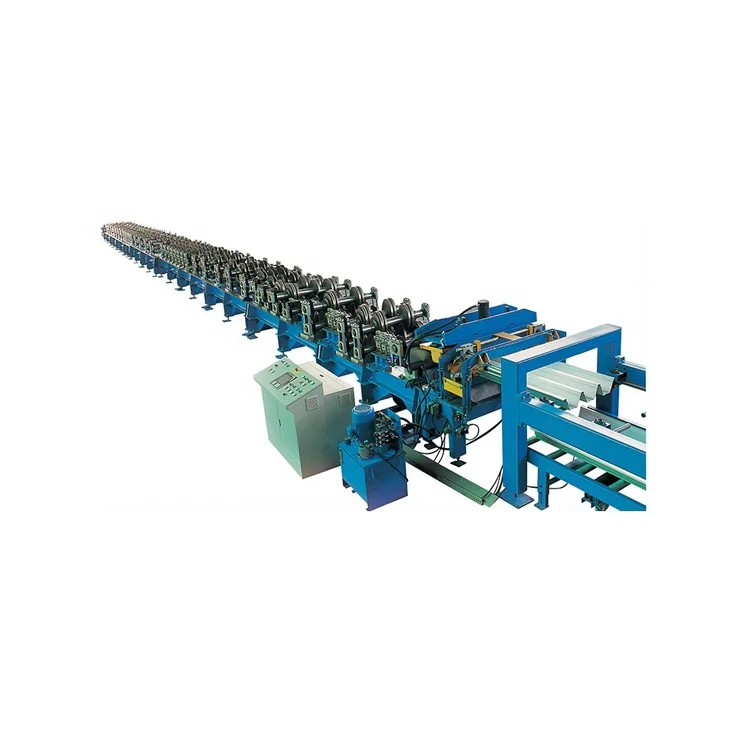

HG (HGM) SERIES STEEL FLOOR DECK MACHINE
The high-speed roll forming machine is the new type line which is cooperated between our company and finland company. The comolete machine adopts the cold forming，cold punching, automatic stack, industrial automation controlling system and precision machining technology, therefore it can run fully automatically, including decoiling，forming，cutting to length and stacking. The max speed can reach to 60m/min.We can design and manufacture machines for forming different profiles according to customers requirement.
Product Description
Item | Parameters | ||||||||
Model | HG-195 | HG-344 | |||||||
Material | Type | Aluzinc | Aluzinc | ||||||
Thickness(mm) | 0.6-1.0 | 0.8-1.2 | |||||||
Yield strength(Mpa) | 300-350 | 230-300 | |||||||
Forming speed (m/min) | 10-15 | 10-15 | |||||||
Roller material | 45# Steel with chrome plated | 45# Steel with chrome plated | |||||||
Roller driven type | Chain transmission | Chain transmission | |||||||
Control type | PLC | PLC | |||||||
Operation type | Touch screen +button | Touch screen +button | |||||||
Hydraulic system pressure(MPa) | 12 | 12 | |||||||
Hydraulic station motor power | 5.5 kw | 5.5 kw | |||||||
Main motor power | 30KW | 18.5 KW | |||||||
Total power | 35.5 KW | 24 KW | |||||||
Total Weight | About 30000KG | About 18000 KG | |||||||
Advantage | 1. Adopt independence guide post supporting wall plate and inside transmission chain, the rollers are treated with nitriding and polishing. 2. Setup the flat sheet pre-cutting equipment to avoid waste of raw material. 3. Procedure control and encoder measuring the length, it will automatically cut to length. 4. Adopt procedure control stacker which will automatically stack, take count and move out the products. | ||||||||
Working process
Decoiling -> feeding the steel sheet ->flat sheet cutting side guiding -> add lubrication -> roll forming-> cut to length ->
products stacking->move out products
products stacking->move out products
Company Profile
FAQ
1.Does one machine can only produce one size?
Not exactly, it depends on the machine.
2.Do you have after sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3.How to visit your company?
We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.
4.What can you do if the machine broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
5.Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.
6.You are trade company or factory?
We are Manufacturer.
7.Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.
8.Do you have overseas engineers?
Yes, we not only provide overseas engineers, but also provide technical training.
9.Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
