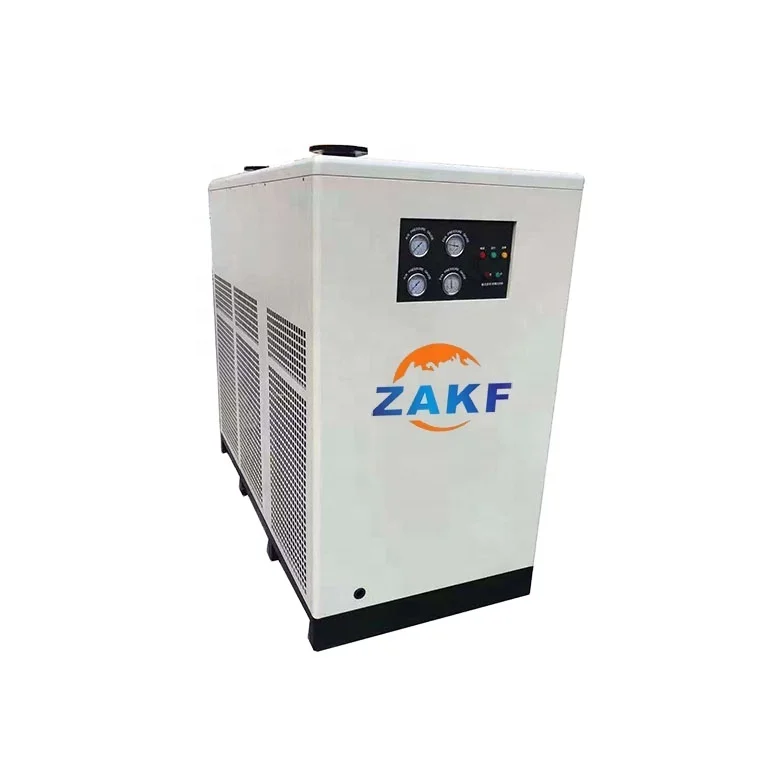

390CFM 100HP Freeze Drying Machine Compressed Air Refrigeration Equipment Dryer
Refrigeration Dryer have two type, according to inlet air temperatue:
1. Normal temp type: inlet temp <=45 degree, suitable for Mid-latitude and high latitude country. such as Russia, Canada ect
wa
2. High Temp Type: inlet temp <= 80 degree, suitable for high weather temperature country, such as India, Thailand, VietNam ect
Specification
SEQ.
MODEL #
AIR FLOW (m³/Min )
Refrigiant GAS
POWER SUPPLY (V/HZ)
PIPE DIAMETER
DIMENSION SIZE(LXWXH MM)
WEIGHT (KG)
1
ZD - 10 (10HP)
1.5
R22
220V / 50HZ
1"
750X420X800
52.00
2
ZD - 15 (15HP)
2
R22
220V / 50HZ
1"
750X420X800
52.00
3
ZD - 20 (20HP)
2.5
R22
220V / 50HZ
1- 1/4"
800X450X850
73.00
4
ZD- 25 (25HP)
3
R22
220V / 50HZ
1- 1/4"
800X450X850
73.00
5
ZD - 30 (30HP)
3.8
R22
220V / 50HZ
1 - 1/2"
930X510X950
92.00
6
ZD - 50 (50HP)
7.0
R22
220V / 50HZ
2'
980X570X1050
115.00
7
ZD - 75 (75HP)
10.0
R22
220V / 50HZ
2 - 1/2"
1080X600X1150
165.00
8
ZD- 100 (100HP)
13.0
R22
380V / 50HZ
2 - 1/2"
1180X700X1300
210.00
Packing & Delivery
Two package for your reference:
1. wooden pallet with carton package.
2. wooden box.
Company Profile
we supply air dryer, also supply screw air compressor, oil free scroll compressor and laser cutting compressor, if you need, please contact us feel free.
FAQ
Q:Are you a factory or trade company? A:We are a factory, we have a big factory located in JIANGXI province, and we have a warehouse located in DONGGUAN. Q:How to pay? A:T/T and L/C,Western Union,Paypal
Q:How to package&delivery? A:we will use standard wooden case to package and shipped after finishing payment
Q:How about your monthly production? A:2000sets/month
Q:How about the Energy saving effect of the air compressor? A:Energy saving inverter compressor running for more than 3 years the unit purchase price
Q:How many services you will provide about air compressor? A:we will provie perfect before-sales and after-sales for each machine
