New product cheap shaper B635A metal shaping machine with CE

Share on (62228671273):


Price:

Quantity:


Product Overview

Description


WELCOME

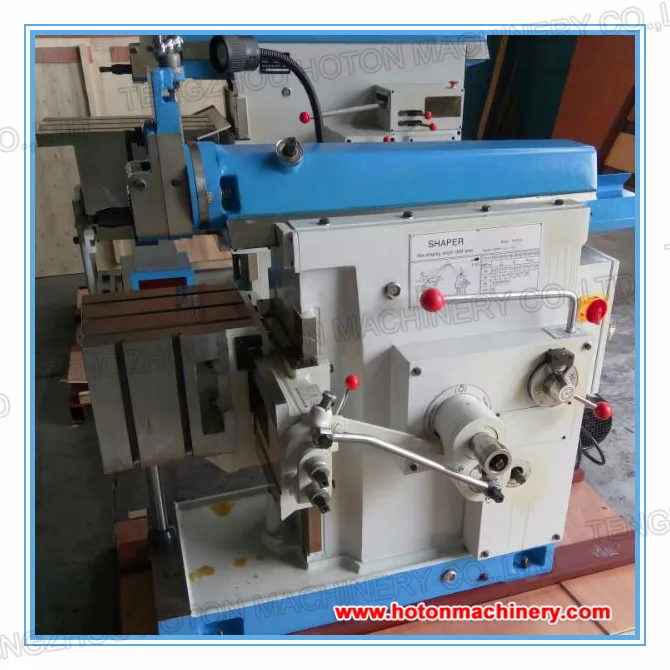

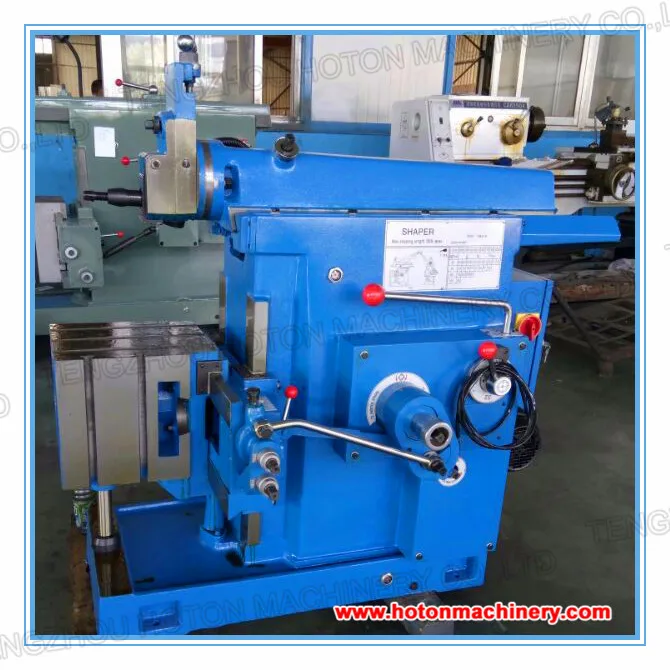

SHAPING MACHINE FOR METAL
1.Shaping machine price can turning angle of the table with horizontal and lift moving
mechanism; for the planning the inclined plane, thereby expanding the scope of use.
2.Planer feed system uses a cam mechanism to adjust the feed rate. It is very convenient to
change the feeding rate.
3.Shaping machine price equipped with cutting system overload safety agencies.
Once occur careless operation, external influences or cutting overload,it will shift to self-skid, and non-destructive the machine.
4.Gap between the ram and the bed rail, the speed gear and the main sliding guide surface,
will be lubricated by the pump shot oil.

\t
MODEL
\t
B635A
\t
Max.shaping length
\t
350mm
\t
Max.distance from,lower edge of ram to table
\t
330mm
\t
Max travel of table Horizontal
\t
400mm
\t
Vertical
\t
270mm
\t
Max.length between cutter and front bed end
\t
500mm
\t
Max.ram travel
\t
170mm
\t
Max.swivel angle of table Without vice
\t
±90º
\t
With vice
\t
±55º
\t
Max.vertical travel of tool head
\t
110mm
\t
Frequency of ram strokes
\t
32,50,80,125times/min
\t
Wheeled round a tooth(V)
\t
0.18mm
\t
Wheeled round a tooth(H)
\t
0.21mm
\t
Wheel rotation 4 tooth(V)
\t
0.73mm
\t
Wheel rotation 4 tooth(H)
\t
0.84mm
\t
Motor
\t
1.5kw 1400r/min
\t
Vice measurement (Width * Depth * Max.opening)
\t
180*55*150mm
\t
Overall dimensions(L * W * H)
\t
1390*860*1455mm
\t
Packing size(L * W * H)
\t
1530*930*1370mm
\t
Net weight
\t
1000kgs
\t
Gross weight
\t
1200kgs
About US
Other

Q1: Are you trading company or manufacturer ?
A: We are factory.

Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity  more than.

Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.  Airline and sea shipping also optional.

Q5. What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment. If you have another question, pls feel free to contact us as below.
