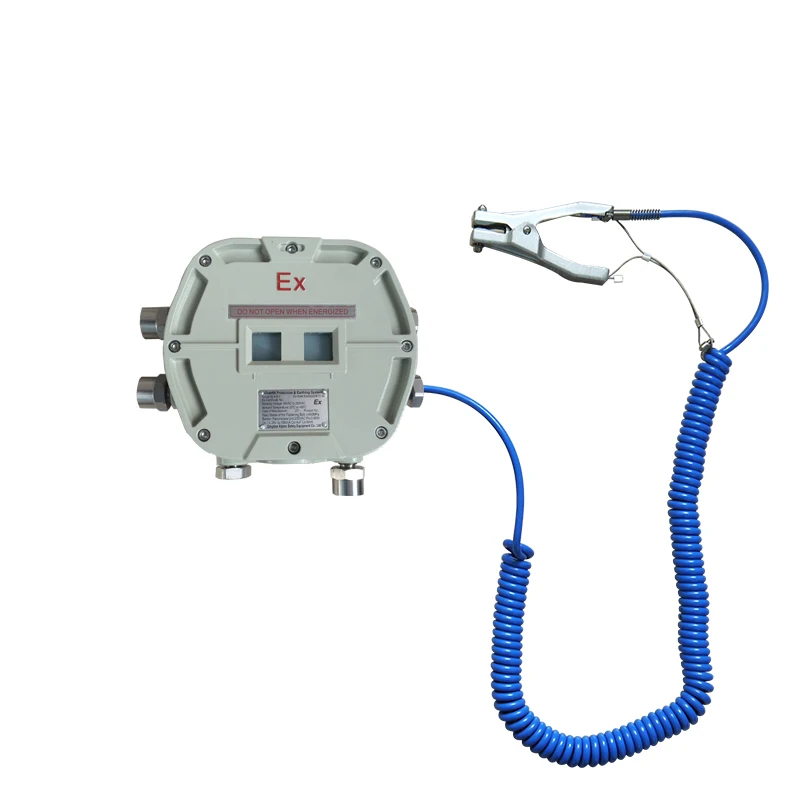

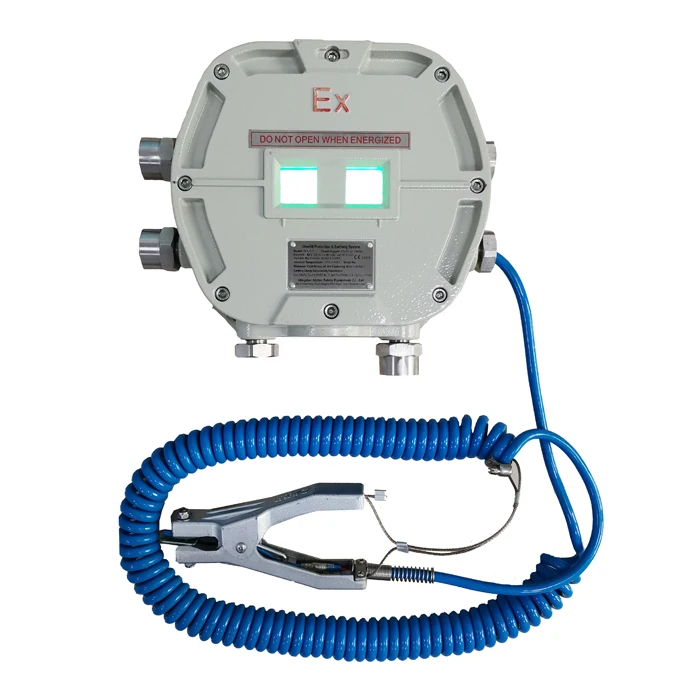

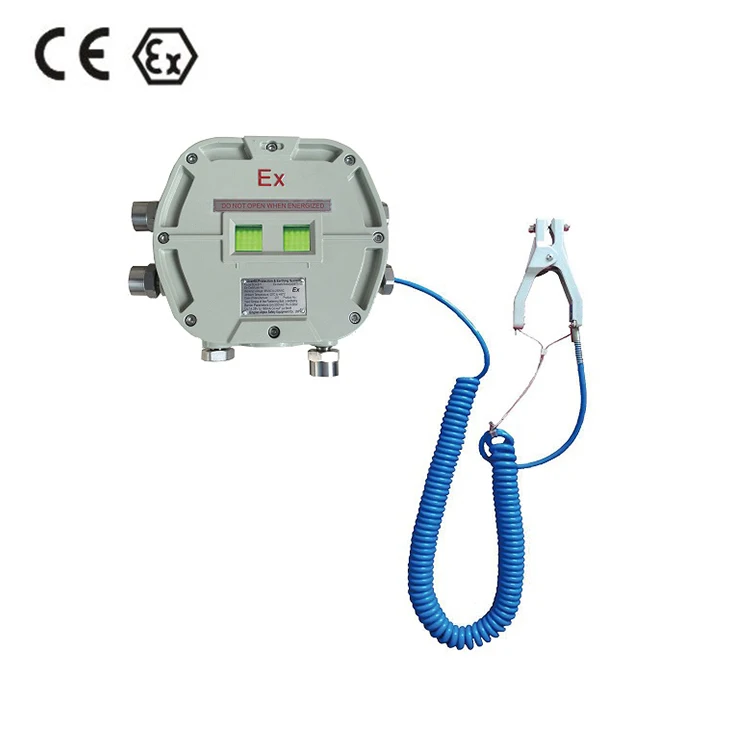

Vehicle static grounding verification monitoring system
The ATEX certified SLA-S-Y is designed for protecting plant and personnel, during tank loading and unloading operations, involving flammable or combustible products, from the risk of explosion. It makes it possible to ground the tank, to avoid any risk of explosion due to spark, generated by static electricity. Indeed, any static generated by the liquid transfer process, is immediately transferred to ground by the Vehicle static grounding verification monitoring system.

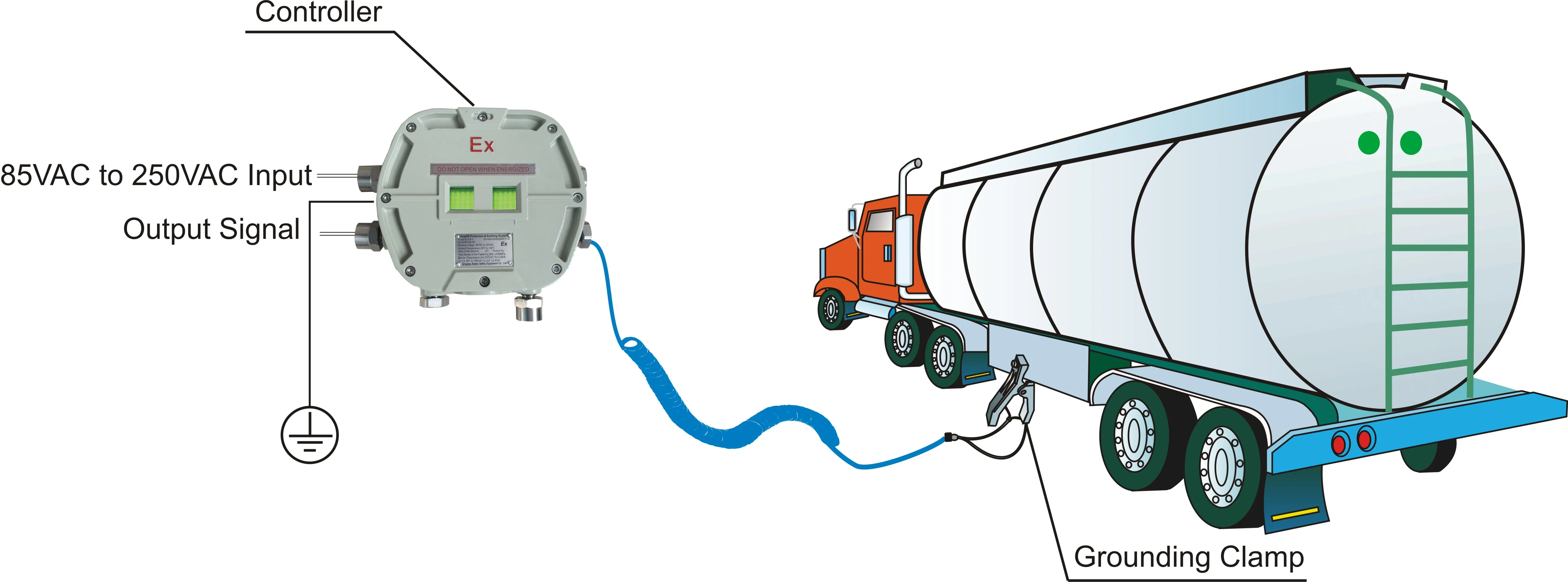

The "Vehicle static grounding verification monitoring system" functions as a part of an Overfill Protection & Earthing System. These provide a visual green light indicating a confirmed grounding condition of road tanker vehicles during the transfer of flammable and combustible materials. A red light indicates the absence of dependable grounding. An interlock circuit inside the control panel will prevent pumps and equipment from starting until a satisfactory ground is established. The interlock circuit will also shut off pumps and equipment if the ground is lost during the pumping operation.
Specification
Product Name | Vehicle static grounding verification monitoring system | |
Input Power: | 85VAC to 250VAC 50Hz | |
Input Current: | <60mA | |
Output Signal: | On-Off signal | |
Monitoring Set Point: | 10 ohms | |
Alarm: | Visible alarm | |
Spiral Cable: | Extendable to 5.3m (17.4ft.) | |
Output Safety Parameters: | Um:250VAC,Uo:14.28VDC,Io:27.2mA,Po:97mW,Co:4.17μF,Lo:192mH | |
Indicator: Lamp (Green=satisfactory ground and red=no ground) | ||
Ambient Temperature: | -20ºC to +55ºC(-4ºF to +131ºF) | |
EU-Type Examination Certification No.: | Presafe 16 ATEX 8909X | |
QAN Certificate No.: | Presafe 16 ATEX 7744Q | |
Standard: | EN60079-0, EN60079-1, EN60079-11 | |
Applicable Directive: | 2014/34/EU |

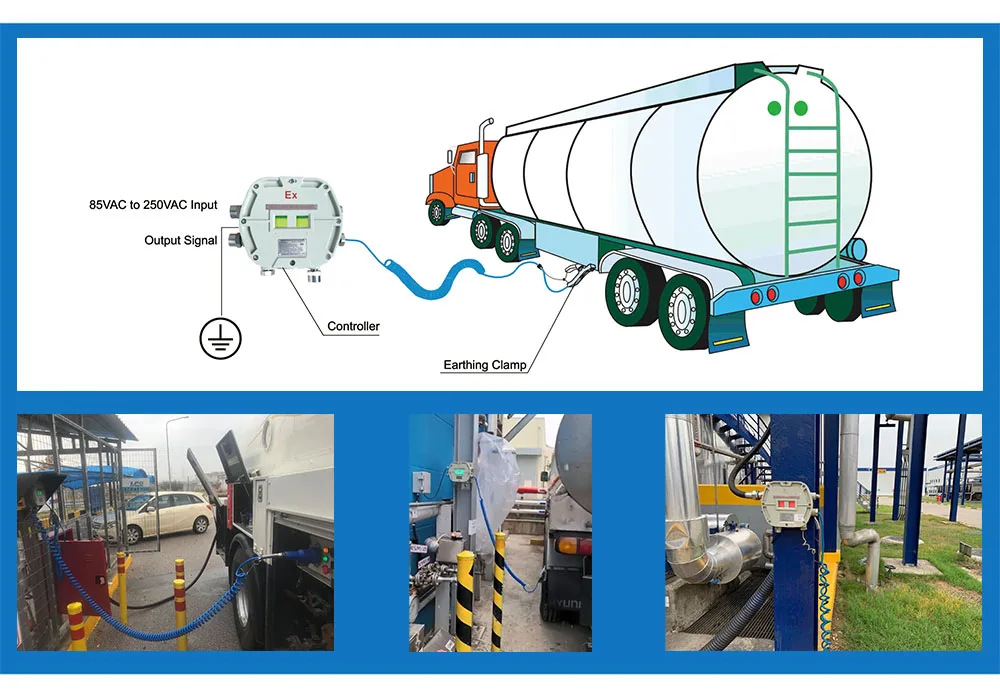

Application
The system is explosion-proof and intrinsically safe. It comprises explosion proof part and 2 intrinsically safe parts. The controller is explosion-proof, which can be used in zone1 or 2, while the Earthing Clamp and Plug & Cable can be used in zone1 or 2.
The system will effectively prevent the overfill of liquid and guarantee that the static earthing resistance meets the prescription of relevant safety regulations.
Recommended application for the system includes but is not limited to:
1)Tank truck loading and railway loading.
2)Loading control systems.
The system will effectively prevent the overfill of liquid and guarantee that the static earthing resistance meets the prescription of relevant safety regulations.
Recommended application for the system includes but is not limited to:
1)Tank truck loading and railway loading.
2)Loading control systems.
Related Products

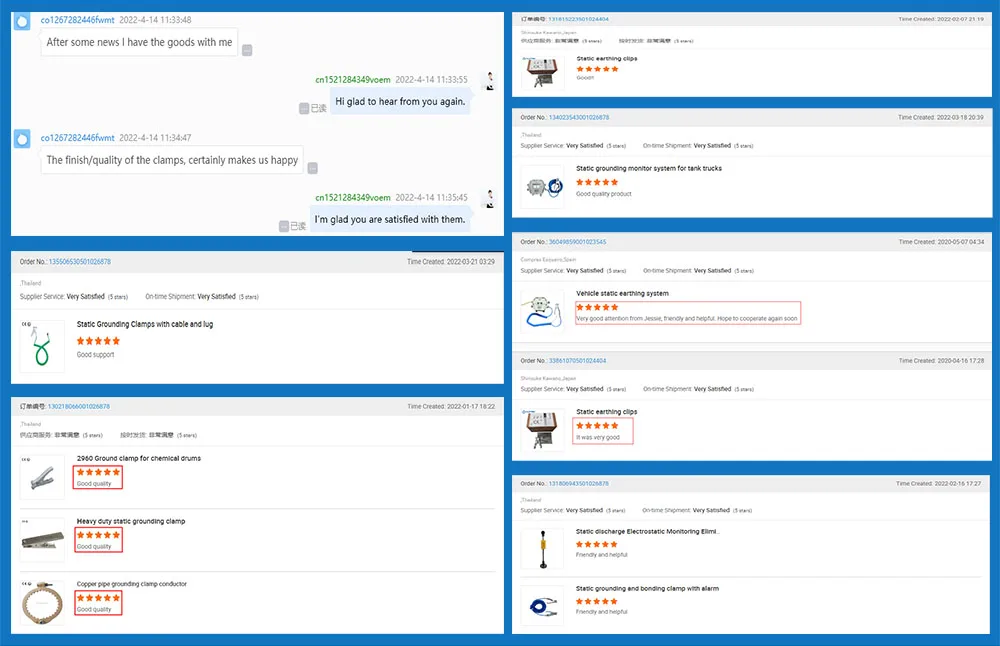

Customer Reviews

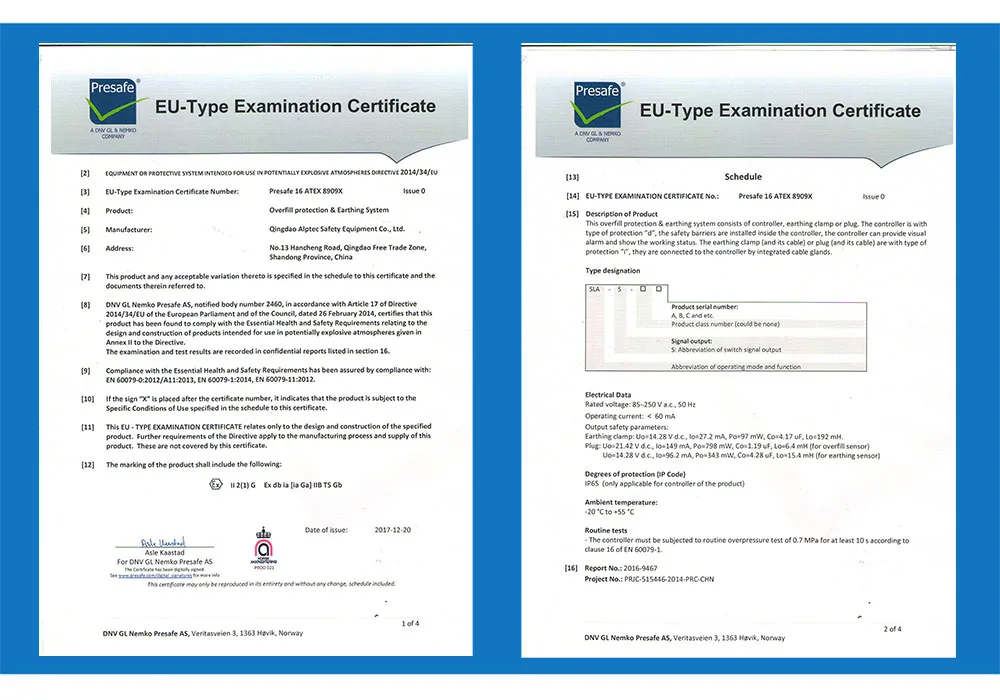

Certifications

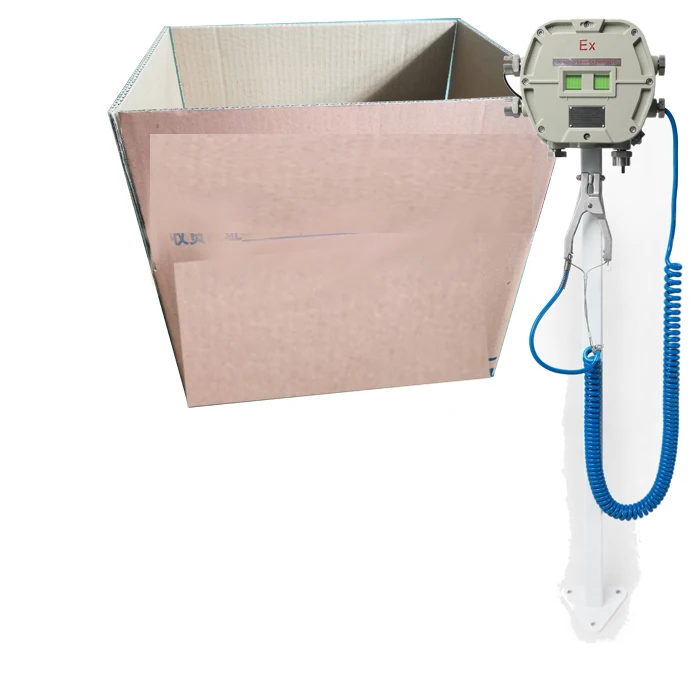

Packing & Delivery
