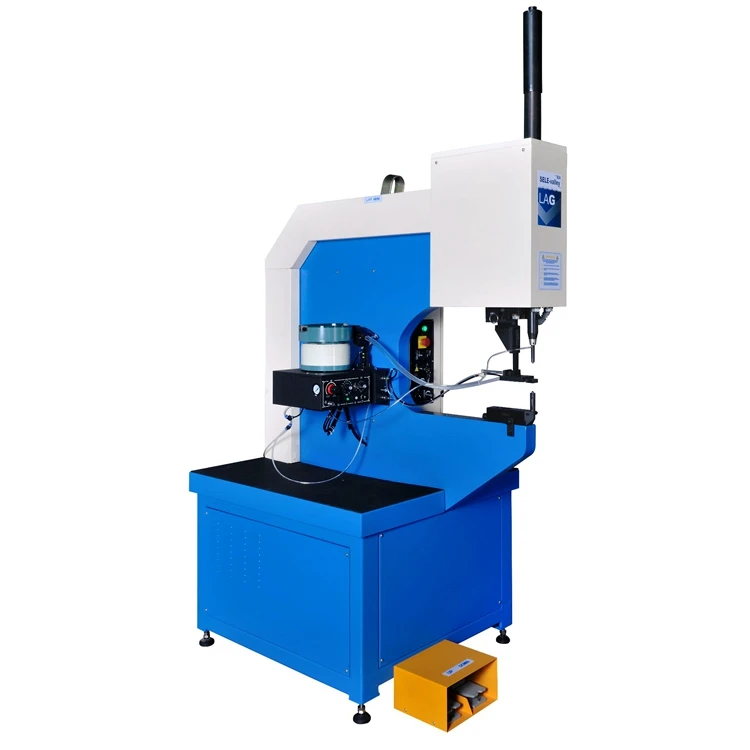

824 Clinching Press For Max Size Nut M10/Standoff M8/Stud M6

 824 Clinching Press For Max Size Nut M10/Standoff M8/Stud M6

- High stiffness, structure, high stability, less vibration, high accuracy

- Ergonomic design frame and different size tooling package with easy operation panel to meet most of the complex insertion process by single operator
- Quick press force setting and repeatability ±1%
- Ram force range MAX 72KN
- 100% safety system
- Standard Forward Limited System
- Energy saving Re-design reliability and energy efficiency of a full hydraulic system
- Optional auto feeding system and clinching joint system
- Possibility to insert nut M12/standoff M10/stud M8 with the mild steel
- Standard power supply 3 phase 380v/50hz

Modular Auto Feed System
Work for PEM size nut/stud/standoff from M2-M6, efficiency is 3 times of manual tooling. It is possible to automatically divert, import and transport all kinds of fasteners without changing the automatic feeding system. Quick and easy mold change, providing up to 1200 pieces fastener feed/hour feed rate.

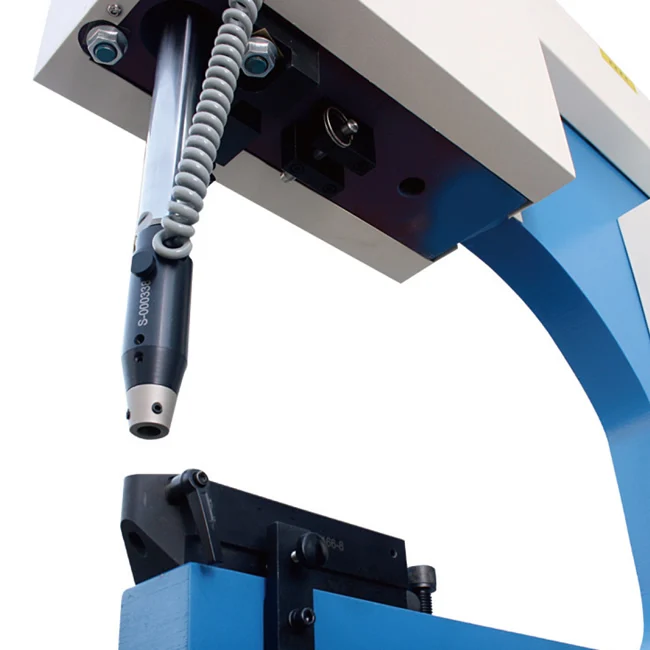

Shuttle Nut Tooling System Order Number :

Bottom Feed Nut Tooling System Order Number:

Stud Automatic Tooling System Order Number:

Certification
We have gained internationally recognized patents and certificates that display as assurance and guarantee of quality and competence.

Fastener Insertion Press
1,What size of nuts could fastener insertion 416/618/824 machine could press?
For the nuts/standoff/stud,we can make the press M3-M12.

2,If we have bought the manual fastener insertion, could we update to automatic machine easily?
Absolutely yes.

3,What is the difference between hydraulic fastener insertion machine and RSM fastener insertion machine?
Hydraulic drive is with energy saving and environment protection, if can reduce energy consumption by about 40% relatively pneumatic drive.

4,What is the Manual tooling package made of? And What is the function of the Manual tooling package?
33 pieces of manual work with nuts/studs/standoff different size of punch and dies M2-M8, length up to 35mm, special insertion application for small parts flange die holder and Manual J frame.

5,What is the main function of the fastener insertion machine?

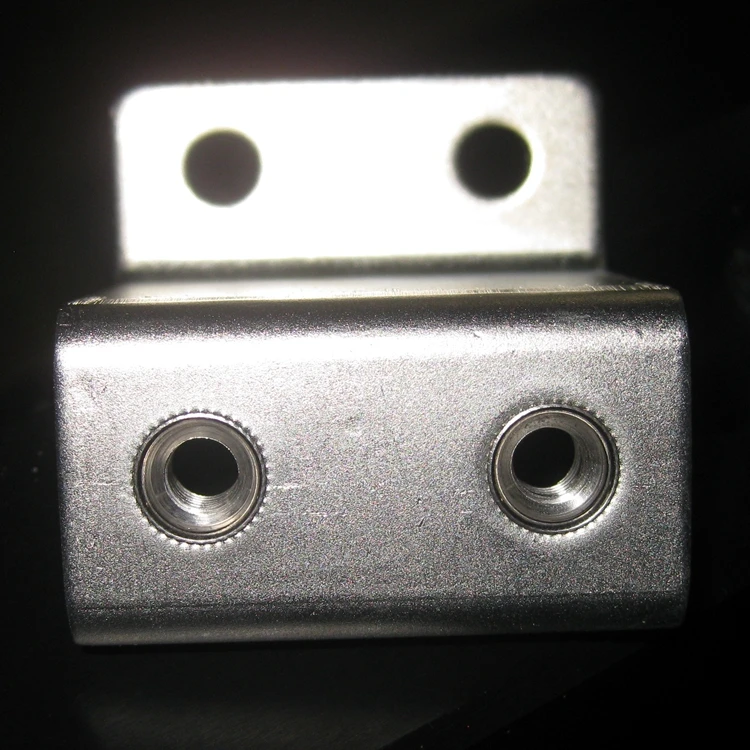

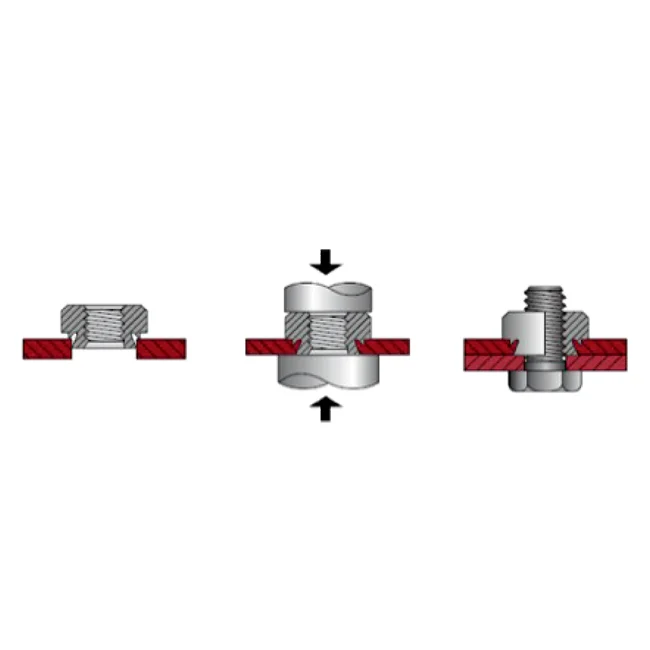

Fastener insertion machine with the technology to provide strong, reusable and permanent the threads and mounting points in thin sheet metal.

6,What quick-wear part does Fastener insertion machine has?
Fuse, safety switch, relay, oil filter, die holder handle.

Main Options
1,How to choose BTM tooling?
Specify your joint parts material, thickness, drawing and supply min 10pcs sample to make the testing.

2,What is the function of Forward Limited?
Forward limited function is designed to protect both the tooling and workpiece from damage by positive stop cylinder.

3,How to choose Automatic tooling system?
For nut, either bottom or upper delivery; for standoff/stud, upper delivery. Please send at least 300pcs samples for us to make the testing.

4,Is it Automatic tooling system stable?
Yes, the automatic tooling system include high quality vibration bowl and intelligent digital variable voltage and variable frequency Piezoelectric vibration feeder controller.
