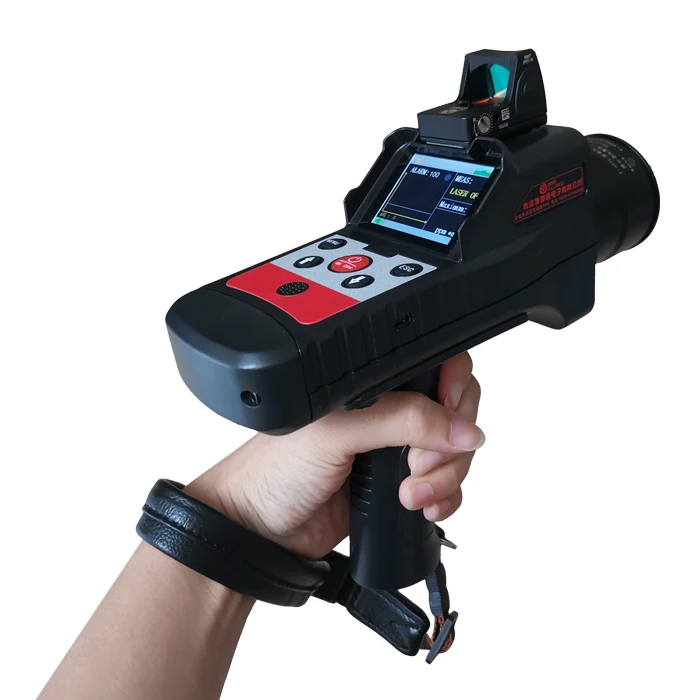

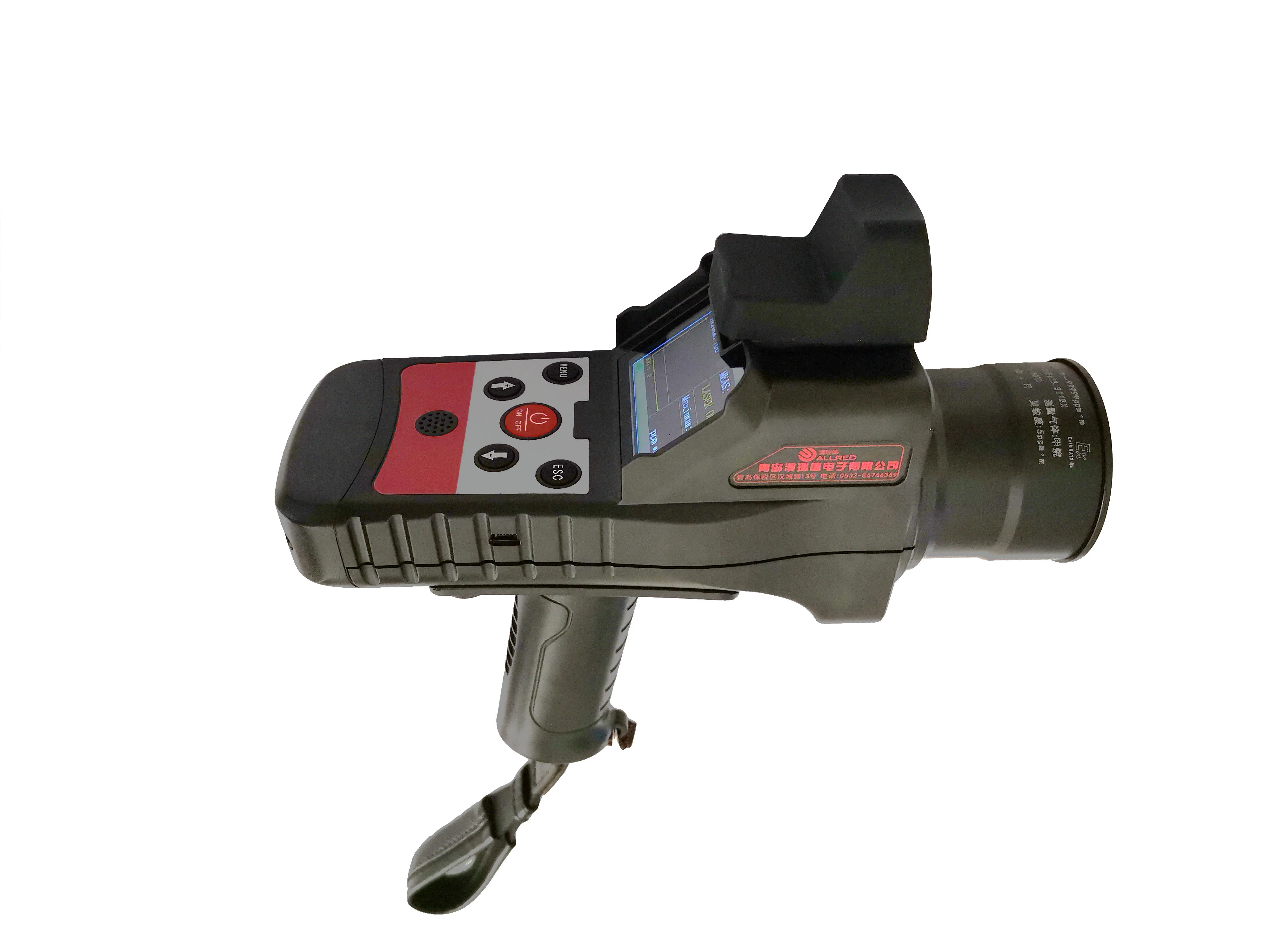

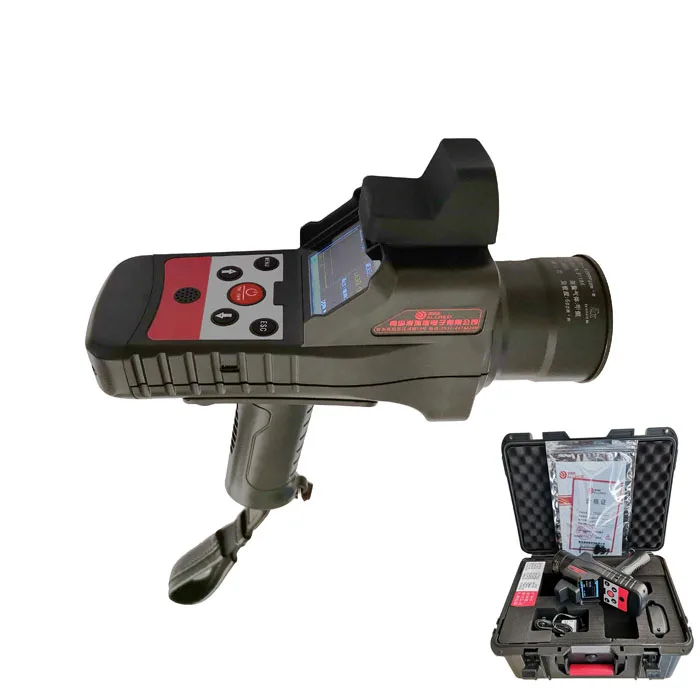

Handheld Infrared laser methane gas detector
- Category: Gas Analyzers >>>
- Supplier: Qingdao Alptec Safety Equipment Co. Ltd.
Share on (62231460167):
Product Overview
Description
Product Description
Remote Methane Leak Detector
ARD2000 Remote Methane Leak Detector uses international advanced tunable diode laser absorption spectroscopy technology (TDLAS), which can detect methane gas within a certain distance. At the same time, through optimization design and independent research and development, the measurement distance and accuracy of the detector are greatly improved, which is the most powerful safety guarantee for gas inspection and leak detection. Unlike traditional portable detectors, this Remote Methane Leak Detector does not need to place the probe in a gas-filled environment. Instead, the device emits a laser beam. The laser passes through the pipe or the space above the facility and hits the object at the other end. Reflected back to the receiver, and then converted into electrical signals, these signals are used to analyze the concentration of methane, the unit is ppm.m. By using WMS technology, the ARD2000 Remote Methane Leak Detector can achieve extremely high detection accuracy. The light at this wavelength is only absorbed by methane, so it only reacts to methane and is not affected by other gases, which greatly improves the accuracy of detection. Using the Remote Methane Leak Detector, the operator does not need to be in a dangerous environment, which not only protects the safety of the inspector, but also can inspect the overhead pipeline from a long distance, which improves the inspection efficiency.
Working Principle
Unlike traditional portable detectors, this Remote Methane Leak Detector does not need to place the probe in a gas-filled environment. Instead, the device emits a laser beam. The laser passes through the pipe or the space above the facility and hits the object at the other end. Reflected back to the receiver, and then converted into electrical signals, these signals are used to analyze the concentration of methane, the unit is ppm﹒m. By using WMS technology, the ARD2000 Remote Methane Leak Detector can achieve extremely high detection accuracy. The light at this wavelength is only absorbed by methane, so it only reacts to methane and is not affected by other gases, which greatly improves the accuracy of detection. Using the Remote Methane Leak Detector, the operator does not need to be in a dangerous environment, which not only protects the safety of the inspector, but also can inspect the overhead pipeline from a long distance, which improves the inspection efficiency. The detection reading is the product of the concentration of the laser passing through the methane gas mass and the thickness of the gas mass in ppm﹒m.
Specification
Product Name | ARD2000 Remote/Portable/Handheld Laser Methane/CH4 Leak/leakage Detector with Alarm |
Detection Method: | Tunable Diode Laser Absorption Spectroscopy (TDLAS) |
Detection Gas: | Methane |
Measurement Method: | Laser Reflection |
Measurement Range: | 0 to 99,999 ppm-m |
Detection Distance: | 150m nominal. Actual distance may vary due to background type and conditions |
Sensitivity: | 5 ppm-m at distance from 0 to 15m 10 ppm-m or better from 15 to 100 m |
Measurement Accuracy: | ±10% |
Response Time: | 0.1s |
Detection Alarms Modes: | Buzz with LCD turning red |
Laser Eye Safety: | IR Detector Laser: Class I Green Spotter Laser: Class IIIa; Do not stare into beam or view directly with optical instruments. |
Display: | Large easy to read backlit LCD |
Compliance: | EMC (EN61000-6-2, EN6100-6-4) Pending |

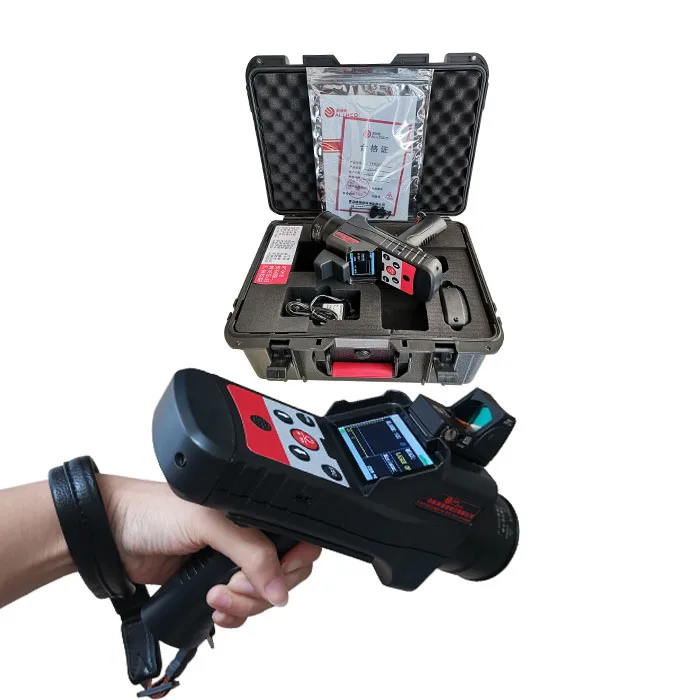

Self Test & Calibration: | Built-in Self-Test and Calibration function verifies operation and adjusts laser wavelength for maximum sensitivity. Test gas cell integrated with carrying case. |
Battery | Rechargeable Lithium battery |
Battery Operating Life: | 8 hours (Internal battery) |
Battery Charger: | External, in-line, 220 VAC, 50/60 hertz universal type with charge indicator |
Operating Temperature | -20° to 50° C |
Humidity | 5 to 95 % RH, non-condensing |
Enclosure: | IP54 (Water splash and Dust resistant) |
Instrument Weight: | 0.65kg |
Size: | 206mm×200mm×76mm |
Explosion Proof Classification | Exib IIA T3 Gb |
Data Transmission Method | Bluetooth, Dedicated APP(iOS) |
Application
1. What to do if there are too many pipelines and there are not enough inspection staff?
Efficient remote detecting, no need to go everywhere.
2. What should I do if the user is not at home and I cannot enter the house for security check?

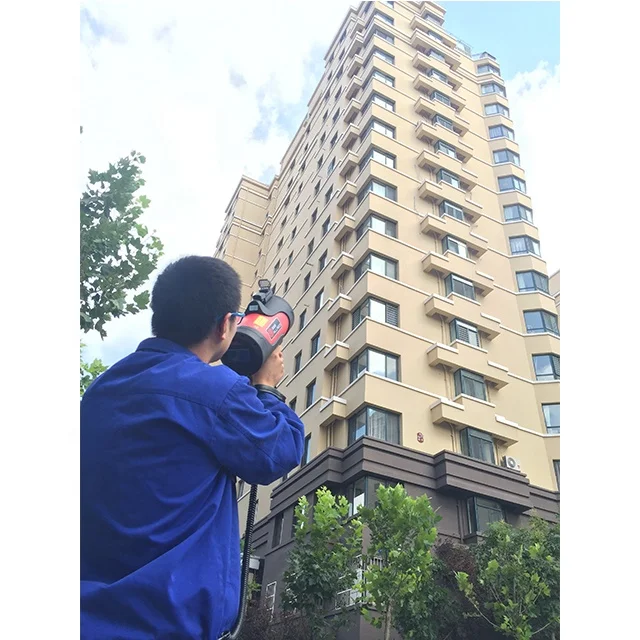

Measuring height up to 30th floor.
3. What if the distance is too far to detect?
150 meters actual detection distance.
4. What to do if a small leak is difficult to detect with similar equipment?
2.5ppm·m minimum air mass concentration detection.
