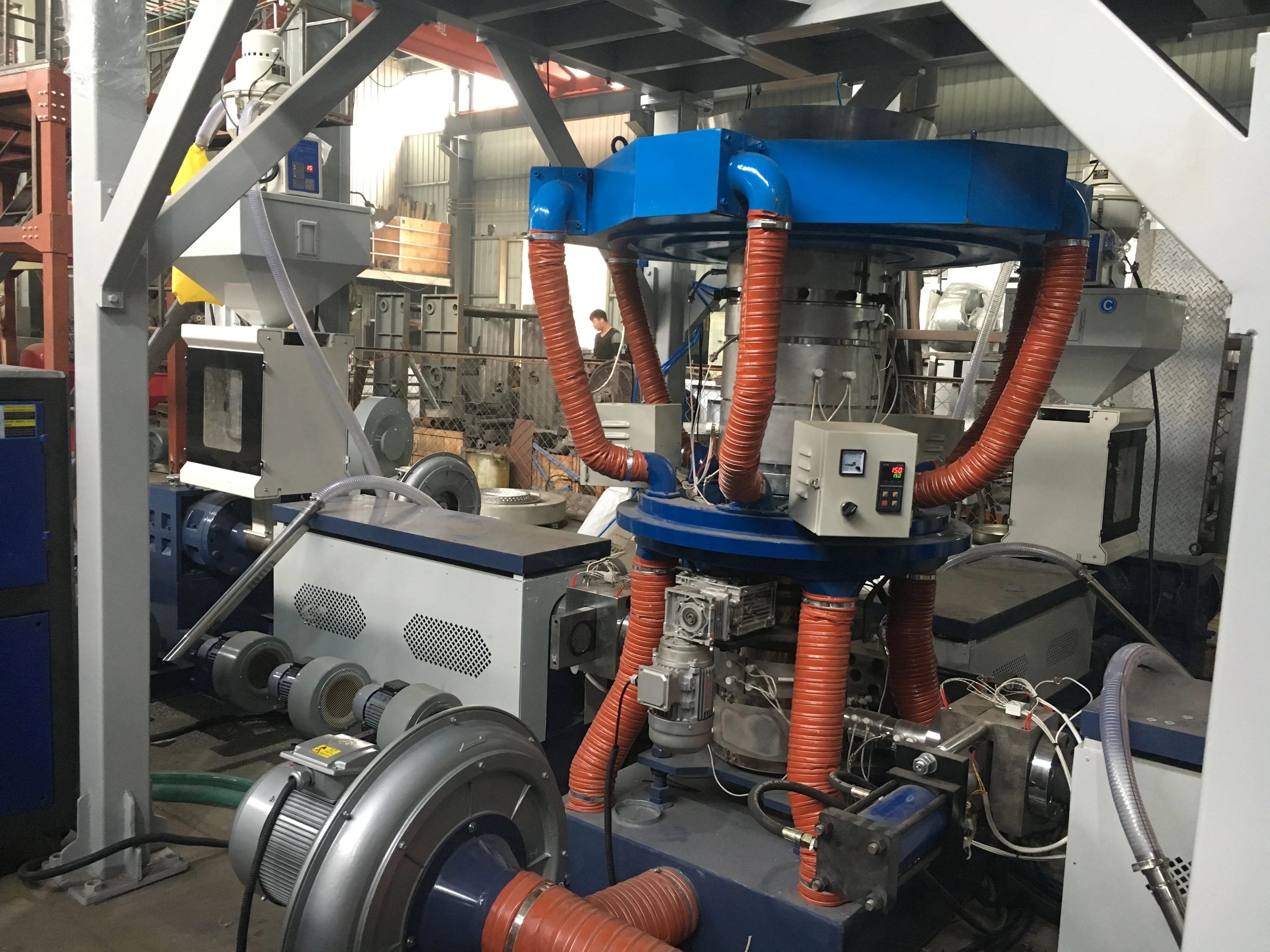

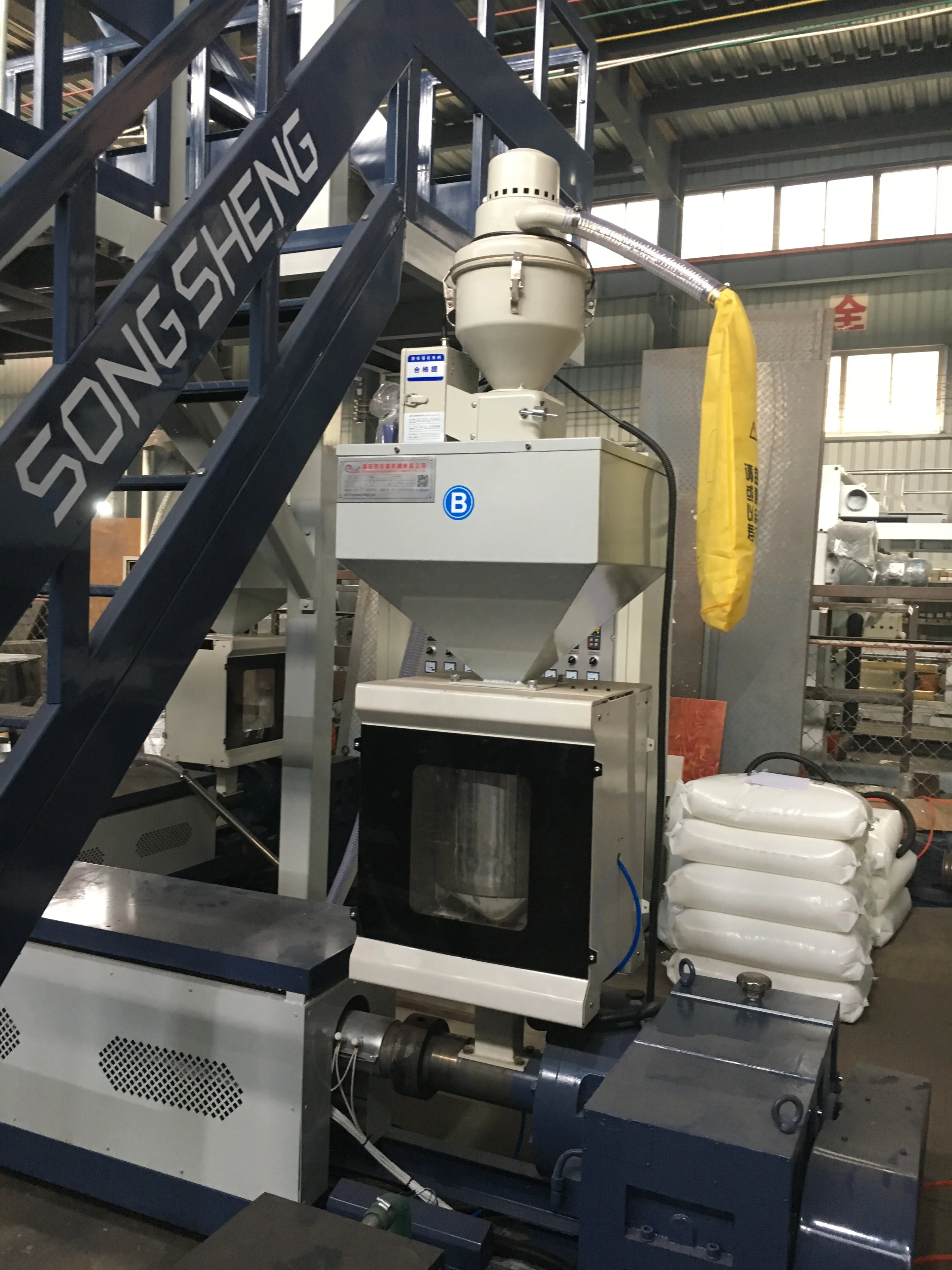

SS 3L 3 Layer Rotary Die Head Blowing Film Extruder Machine
SS-3L 3 Layer Rotary Die Head Blowing Film Extruder Machine
SS-3L 3 Layer Rotary Die Head Blowing Film Extruder Machine
SS-3L 3 Layer Rotary Die Head Blowing Film Extruder Machine
SS-3L 3 Layer Rotary Die Head Blowing Film Extruder Machine
SS-3L 3 Layer Rotary Die Head Blowing Film Extruder Machine
SS-3L 3 Layer Rotary Die Head Blowing Film Extruder Machine

SS 3L 3 Layer Rotary Die Head Blowing Film Extruder Machine

Share on (62231661840):


Price:RUB 1,516,360.00

Quantity:


Product Overview

Description

Product Description

Product Application

It is fit to puff high density and low density polyethylene industry film, farm-oriented mulch film. The cylinder and the screw stems of the extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing. It is double rolling and account the meter automatically.

Main Technical Parameters
SS-ABA Series Three Layers Film Blowing Machine
Model
600
800
1000
Dia. of Screw
Φ40mm*1
Φ45mm*1
Φ55mm*1
Φ50mm*1
Φ60mm*1
Φ55mm*1
Ratio of Screw
30:1
30:1
30:1
Speed of Screw
10-140rmp
10-140rmp
10-140rmp
Max. Output
70-80Kgs/h
80-100Kgs/h
90-110Kgs/h

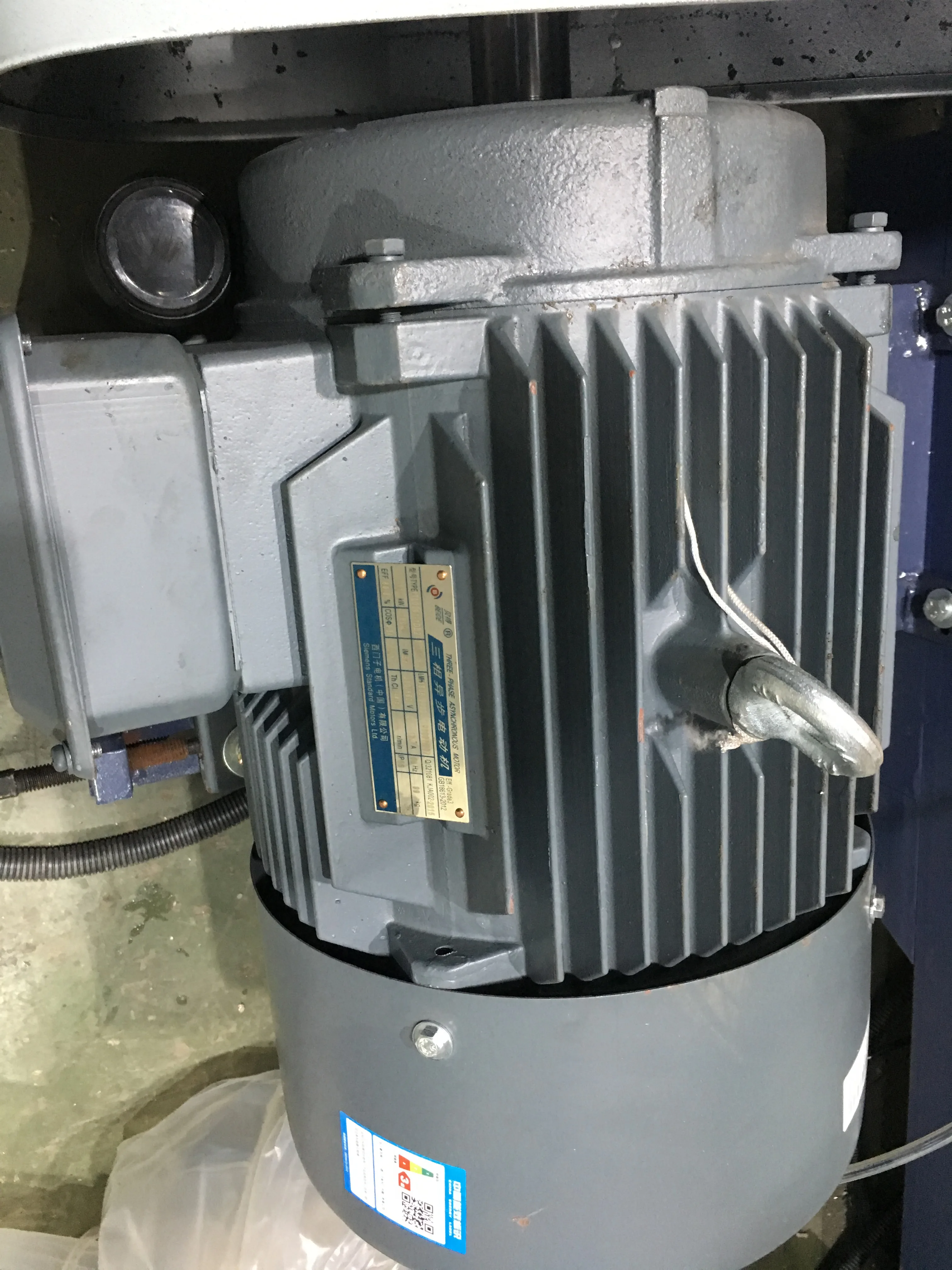

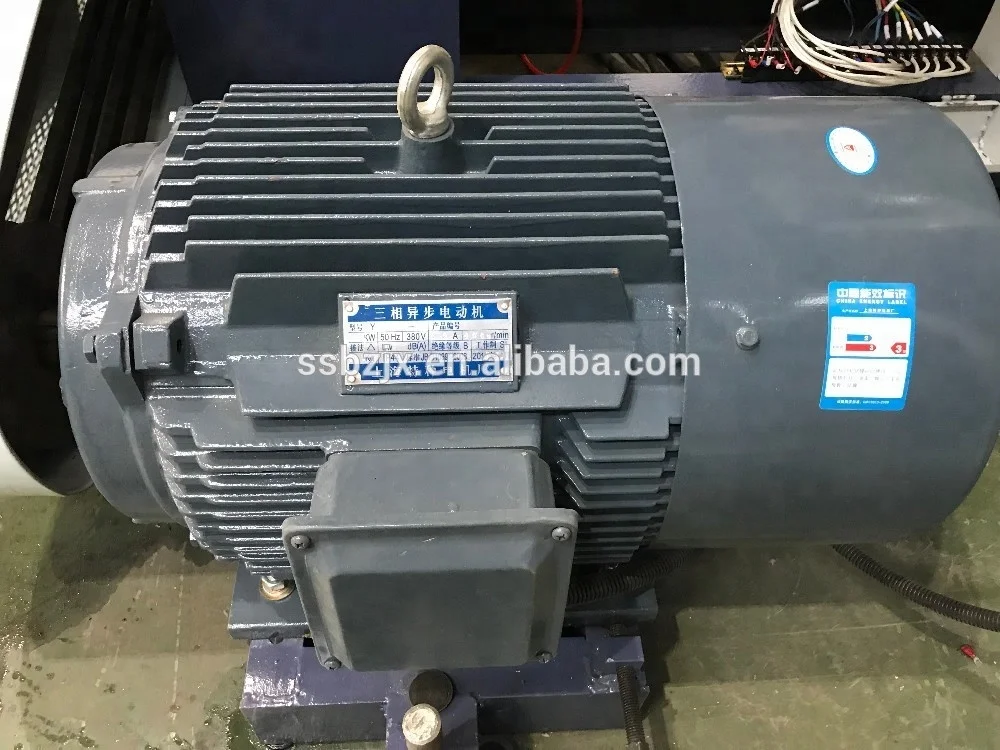

Power of Main Motor
11Kw*1
15kw*1
15Kw*1
18.5kw*1
15Kw*1
18.5kw*1
Die Model
Φ50mm
Φ80mm
Φ220mm
Thickness of Film
0.008-0.12mm
0.008-0.12mm
0.008-0.12mm
Max. Folding Width of Film
200-600mm
200-800mm
500-1000mm
Machine Weight
3.0T
4.0T
6.0T
Machine Dimension
5800*2400*
4800mm
5800*2600*5000mm
6000*2800*5500mm

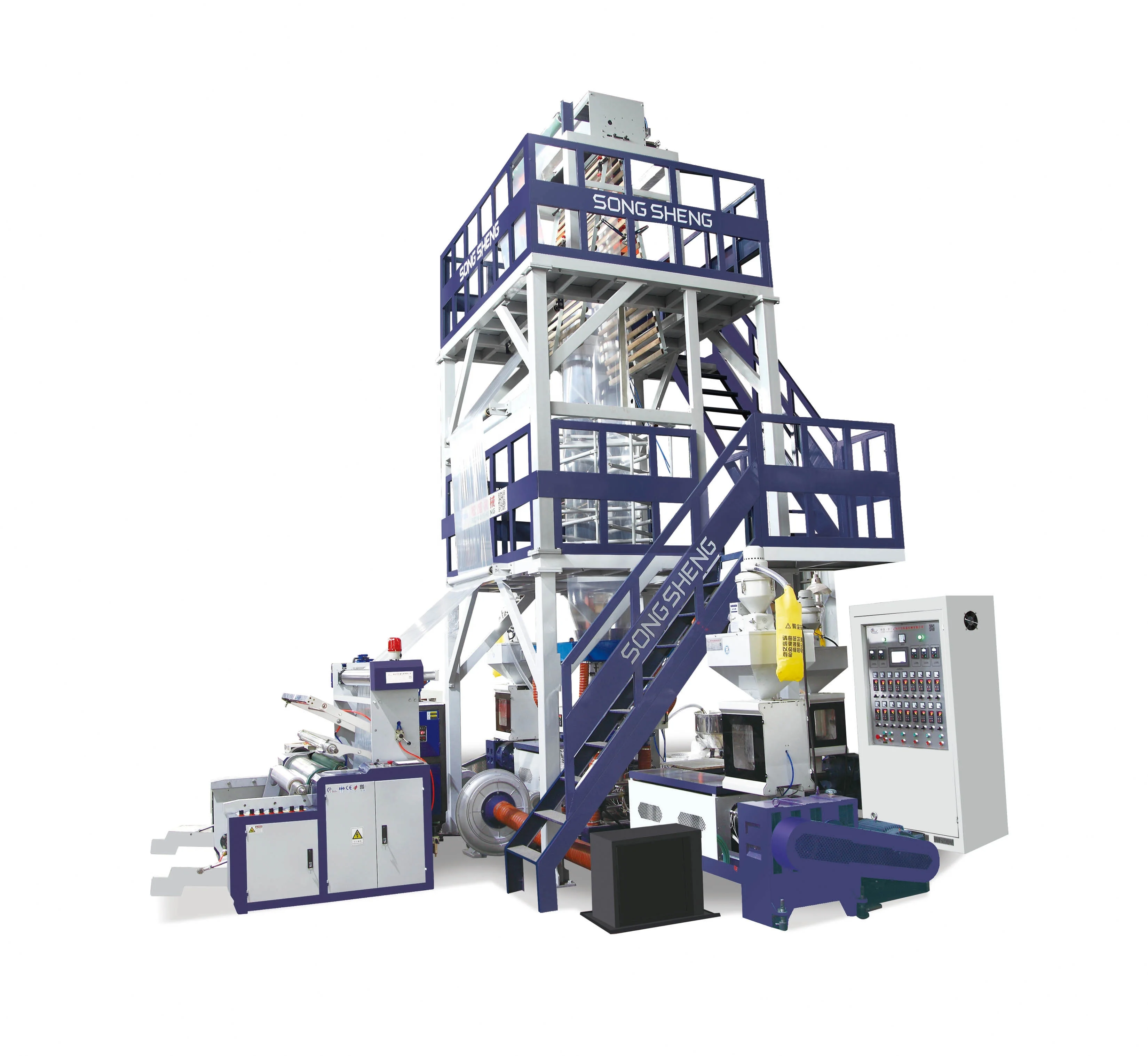

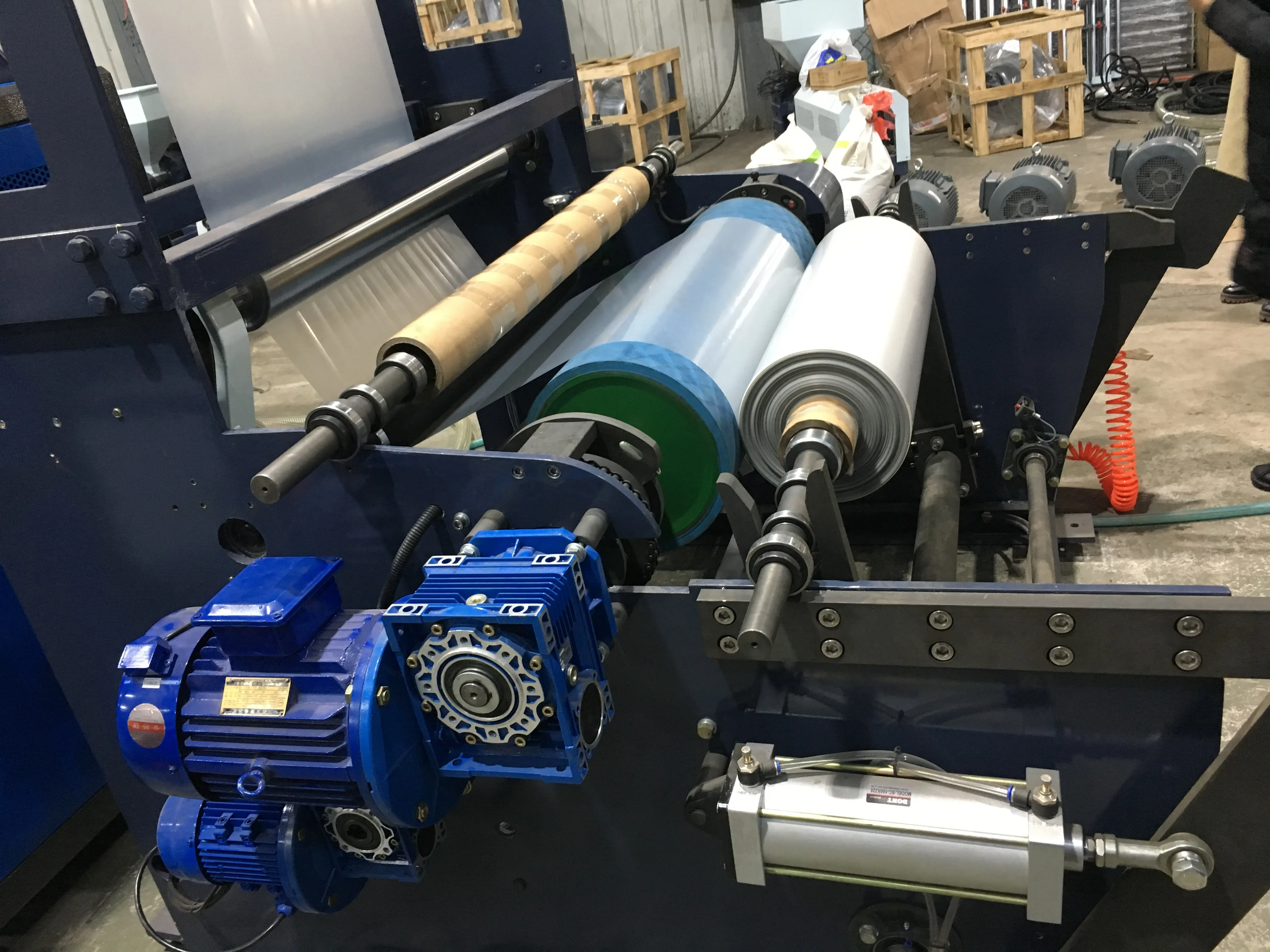

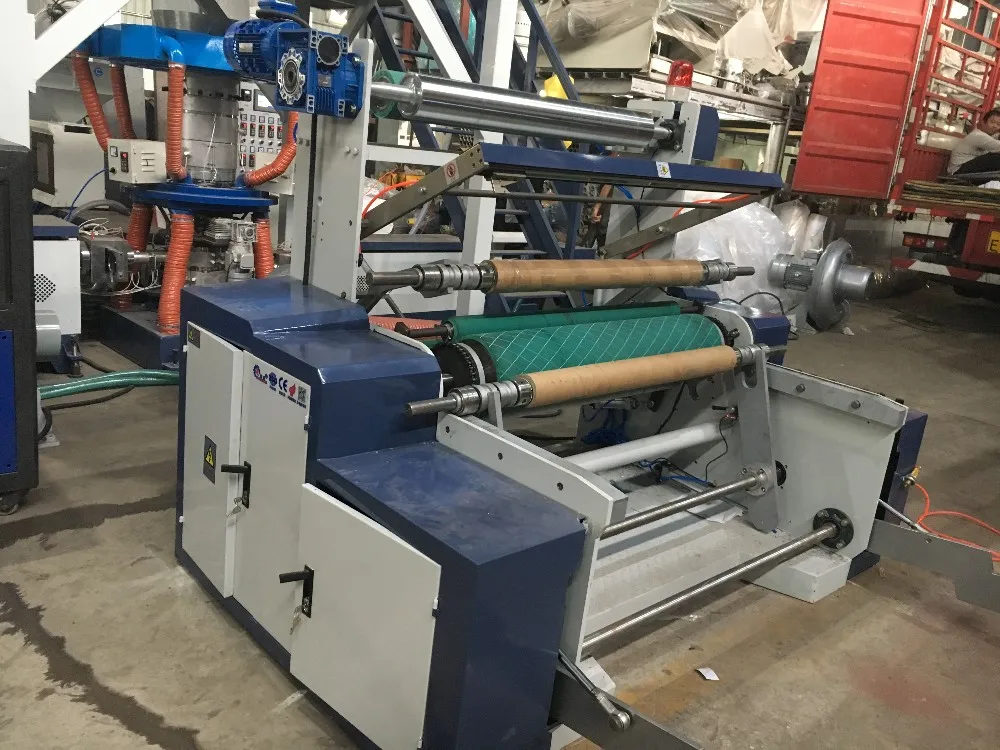

Main Machine Picture:

Detailed Images

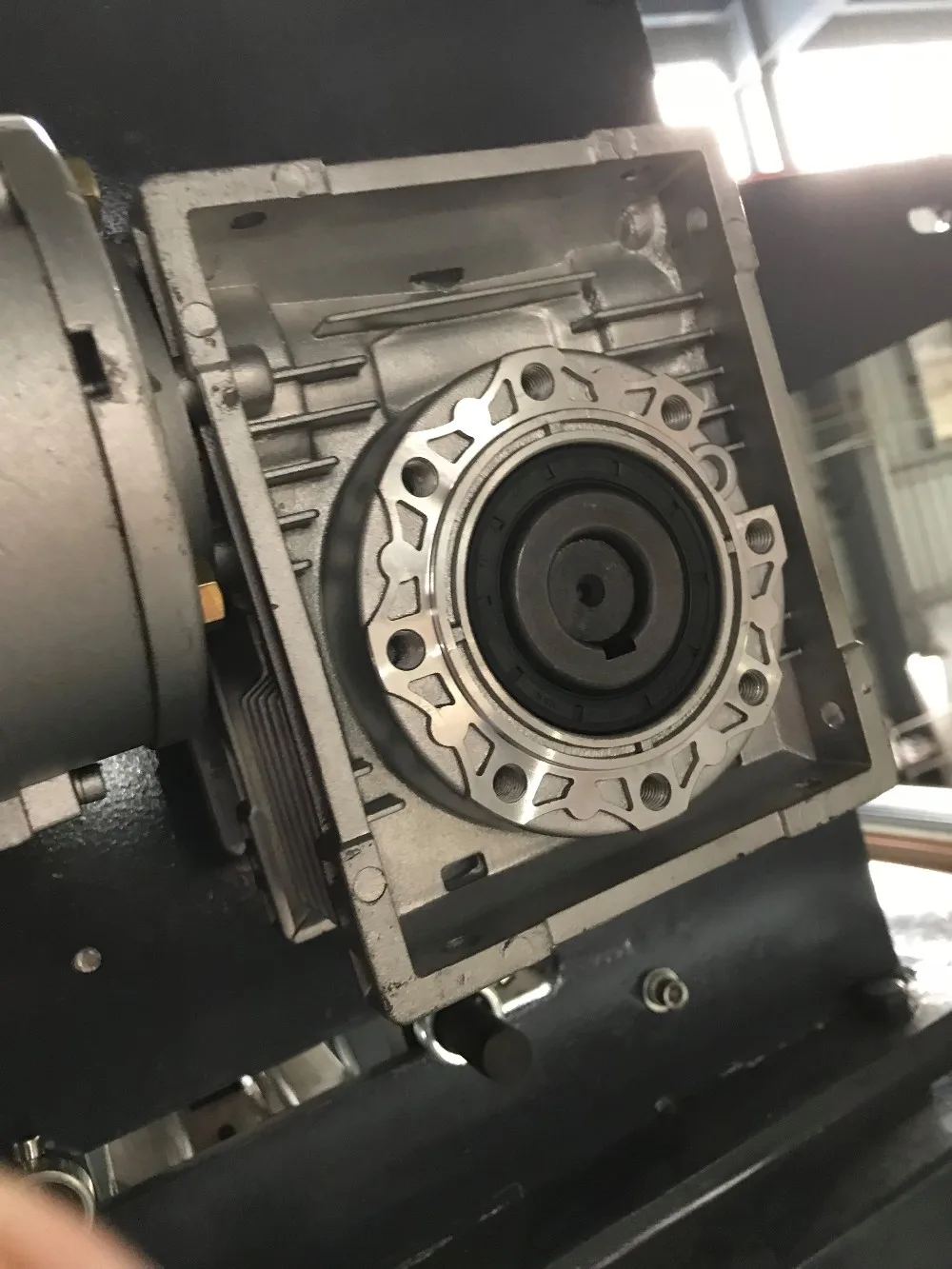

Machine Parts

Name: Electic Box


Domestic famous brands, such as CHINT, people's electrical appliances

Main Features

Name: Screw
Original: Zhoushan, China.

Machine Parts

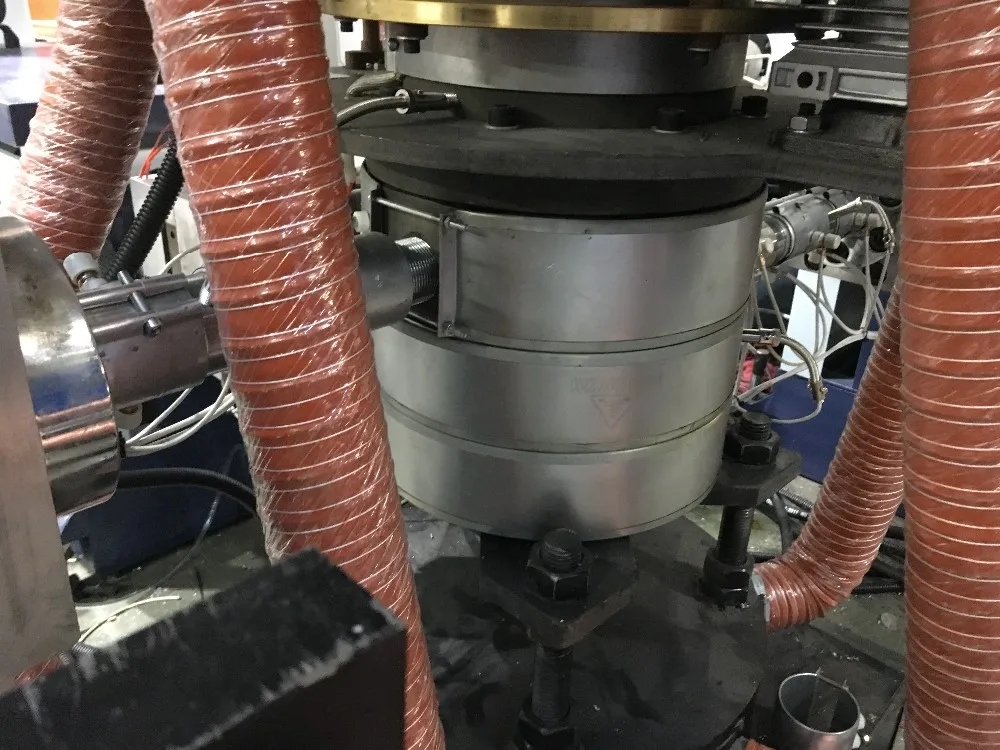

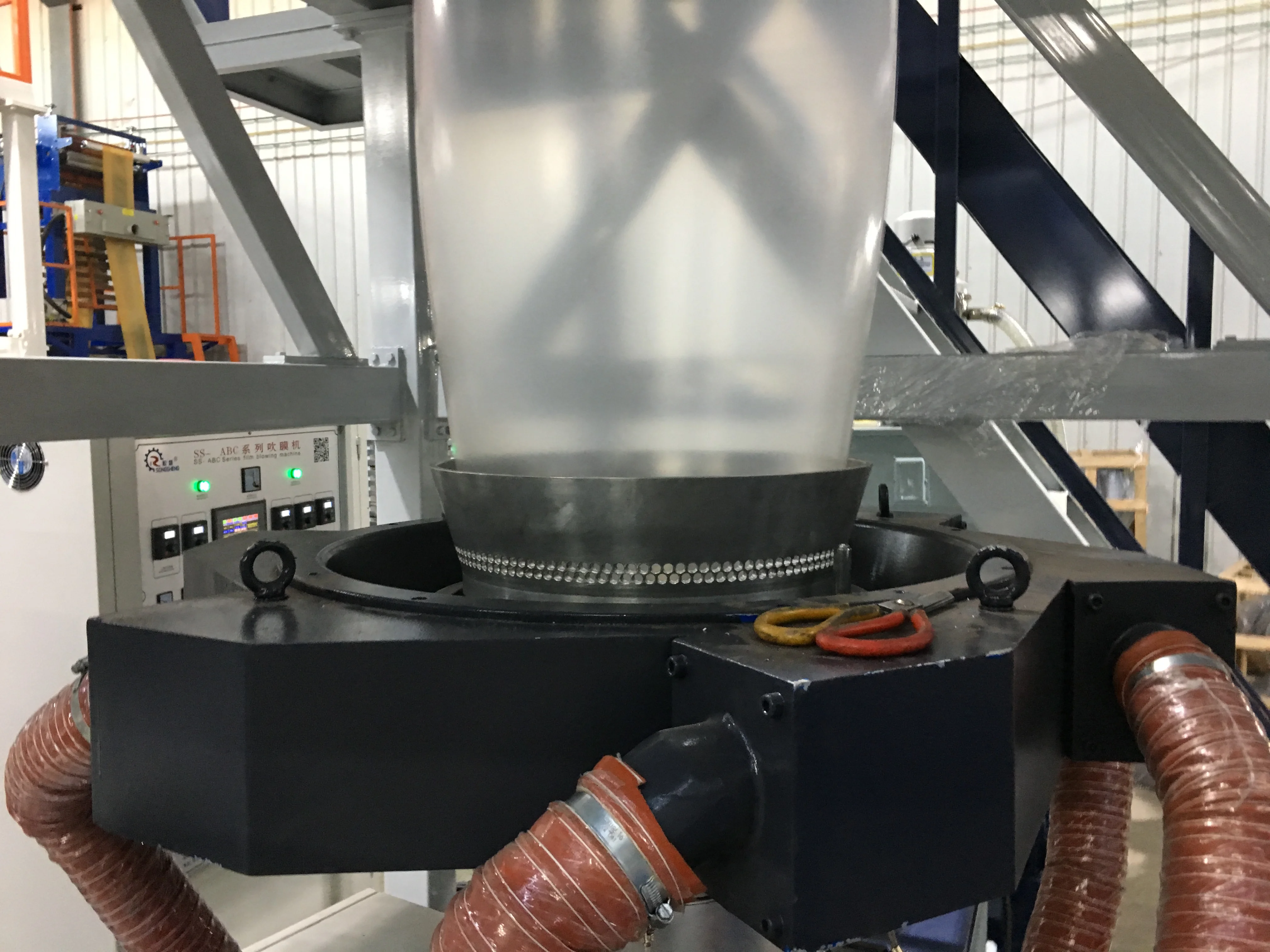

Name: Die Head
inside spiral, center feed
45C steel die runner hard chromium plating

fixed die  or   rotary die head

Our Company

Company Information:

Ruian Songsheng Machinery Co., Ltd is located in China's plastic machinery production base- Ruian city. Company specialized in manufacturing film blowing machine, plastic bag machines and other equiped machines in one line for more than 10 years. We strive for quality and innovation in machine. We export the machines to worldwide as Southeast Asia, the Middle East, South Asia, Russian, North Asia, North America, Eastern Europe, Africa etc.  Most welcome from all country to visit our company.

Our Service

Pre-sales Service:                                                           After-sales Service

* Inquiry and consulting support.                                                    *Training how to instal the machine, training how to use
* Sample testing support.                                                                      the machine.
* View our Factory.                                                                                 * Engineers available to service machinery overseas.

* Pick up customer from air-port and stations.
